Model: A-3032

Electric Counterbalance Stacker – 3300 lb Capacity, 177" Lift Height, A-3032

$16,000.00 $14,500.00 Save $1,500.00
In stock
Key Features
  • 3,300 lb capacity with up to 177" lift height.
  • Counterbalance Type with adjustable 42" × 8.7–26.8" forks.
  • Lead-acid battery / 24V / 280Ah electric power system.
  • 61.8" turning radius for tight spaces.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 2–3 business days
Freight Delivery Requirements Unloading requires a forklift or loading dock. Liftgate delivery is not available for this item.
Freight Shipping Cost at Checkout Shipping costs are calculated based on your delivery location at checkout.
✓ For details on returns and refunds, please see our Return Policy .

Product details

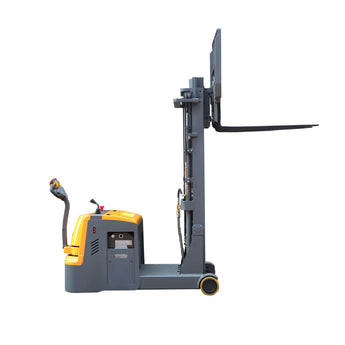

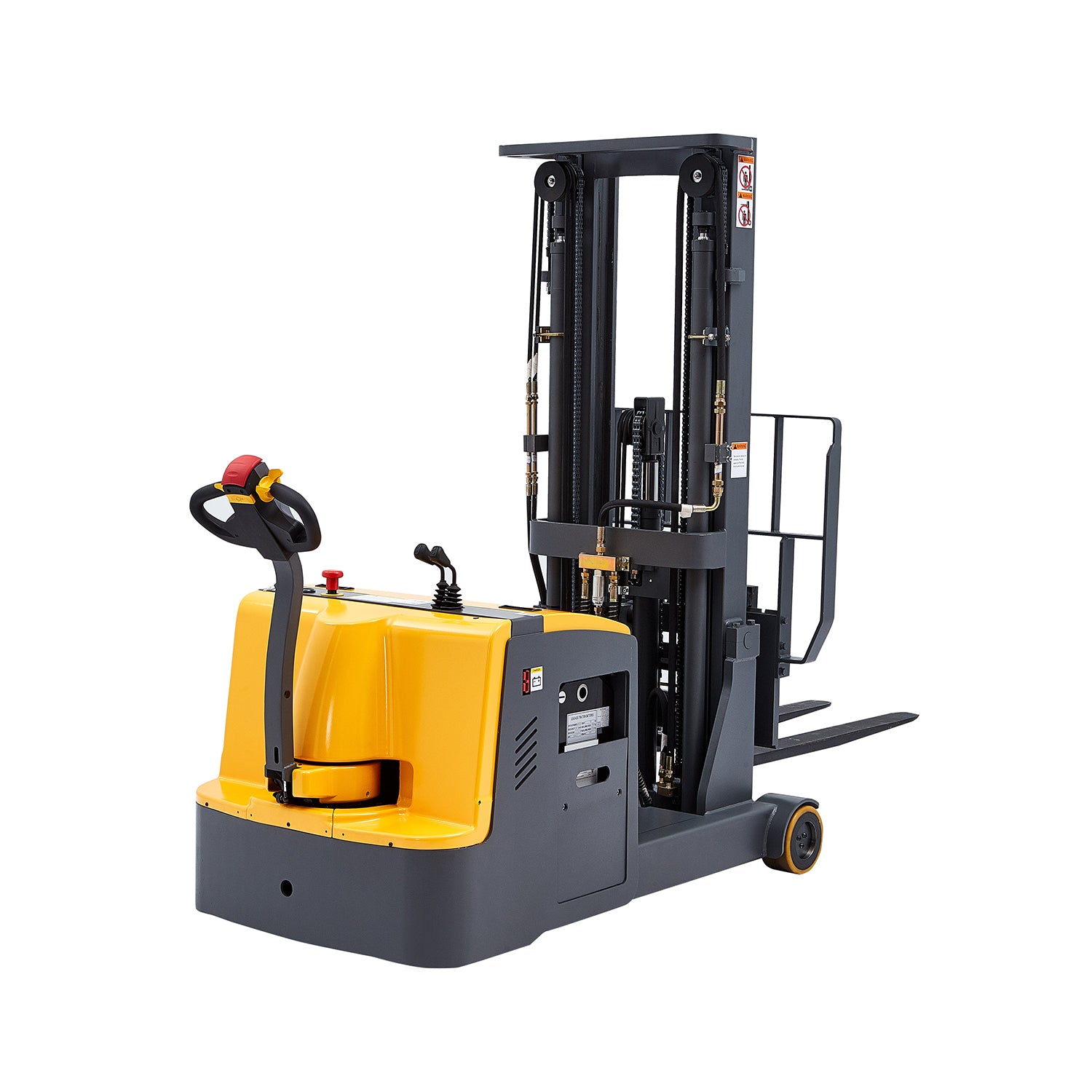

The TORY CARRIER A-3032 Counterbalance Electric Stacker is designed for high-level pallet stacking and demanding indoor material handling. With a 3,300 lb rated capacity and maximum lift height of 177 in, it provides the reach required for elevated warehouse racking and pallet positioning.

Its counterbalanced, straddle-leg-free design allows the forks to approach racks and handle compatible closed-bottom pallets without support legs obstructing pallet entry. Tilting forks, a brushless AC drive motor, dedicated hydraulic controls, and a 24V / 280Ah lead-acid battery support controlled handling and dependable daily operation.

Key Features

  • 3,300 lb Rated Capacity: Supports demanding pallet lifting, transport, and stacking applications.
  • 177 in Maximum Lift Height: Provides extended reach for high-level pallet storage and multi-level racking.
  • Counterbalanced Design: The straddle-leg-free configuration handles compatible closed-bottom pallets and approaches racking without support-leg interference.
  • Tilting Forks: Forks tilt up to 3 degrees forward and 6 degrees backward for controlled load positioning.
  • Brushless AC Drive System: Provides smooth travel response with reduced motor maintenance requirements.
  • Dedicated Hydraulic Controls: Separate levers control lifting and fork tilt independently from the travel handle.
  • 24V / 280Ah Lead-Acid Battery: Provides high-capacity power for routine warehouse operation and includes a 24V / 40A external charger.
  • Operator-Focused Controls: The ergonomic FREI handle, multifunction display, keyed power switch, emergency stop, and emergency reverse switch support controlled operation.
  • Electromagnetic and Regenerative Braking: Supports responsive deceleration while recovering energy during applicable braking conditions.

Capacity Notice: Maximum lifting capacity may vary with lift height and load center. Review the machine data plate and applicable load-capacity chart before lifting, and confirm pallet compatibility, load dimensions, aisle clearance, and floor capacity.

Specification Value
Load Capacity 3,300 lbs
Load Center 19.7″
Turning Radius 61.8″
Aisle Width 120.9″
Fork Dimensions 42″ L × 8.7–26.7″ W × 1.3″ Thick
Inside Fork Width 0.9″–19″
Overall Size 109.4″ L × 39″ W
Max Lifting Height 177″
Mast Height (Lowered/Extended) 82.1″ / 216.5″
Fork Lowered Height 1.4″
Battery 24V / 280Ah
Charger 24V / 40A External
Travel Speed (L/U) 3.6 / 3.7 mph
Lifting Speed (L/U) 4.7 / 7.5 in/s
Lowering Speed (L/U) 9.8 / 7.8 in/s
Service Weight 4,740 lbs

Warranty

 Warranty 1-Year Limited Warranty

Installation and Operation Video

High-Capacity 24V/280Ah Battery

The large-capacity lead-acid battery provides reliable power for extended daily operation. Its accessible design also makes routine inspection, servicing, and maintenance more convenient.

Tilting Forks for Improved Load Stability

The forks tilt up to 3° forward and 6° backward, helping operators adjust the load angle for safer handling, more stable transport, and precise pallet positioning.

German-Engineered FREI Control Handle

The imported FREI ergonomic handle provides intuitive travel control and a comfortable grip, helping reduce operator fatigue during extended shifts.

Integrated Safety and Diagnostic Display

The keyed power switch helps prevent unauthorized operation, while the emergency reverse switch provides additional operator protection. The instrument panel clearly displays battery status and fault codes for easier monitoring and troubleshooting.

Dedicated Hydraulic Controls

Lift and fork-tilt functions are controlled separately from the travel handle, reducing the risk of accidental operation and allowing operators to position loads more deliberately and safely.

24V/40A External Charger

The included external charger provides reliable charging performance and is easy to access, inspect, maintain, or replace without opening the stacker’s main electrical compartment.

Counterbalance Stacker FAQ

What is the maximum load capacity of Tory Carrier Counterbalance Stackers?

Depending on the model, Tory Carrier Counterbalance Stackers can handle loads ranging from 1,200 lbs to 3,300 lbs, suitable for medium to heavy-duty warehouse operations.
Are these stackers suitable for narrow aisle applications?

Yes, Counterbalance Stackers are designed with compact turning radii and optimized mast designs, making them efficient in narrow aisles while maintaining stability.
What type of power options are available?

Tory Carrier Counterbalance Stackers come with electric drive systems, powered by 24V–48V batteries, offering long operating hours, low maintenance, and zero emissions for indoor use.
How is operator safety ensured?

Safety features include electromagnetic service brakes, overload protection, mast tilt limiters, ergonomic standing or seated controls, and non-marking PU wheels for stable and secure handling.
