Electric Counterbalance Stacker – 2200 lb Capacity, 98" Lift Height

$8,699.00
Lifting Height: 98"

Pickup available at GA

Usually ready in 24 hours

Lifting Height

Product details

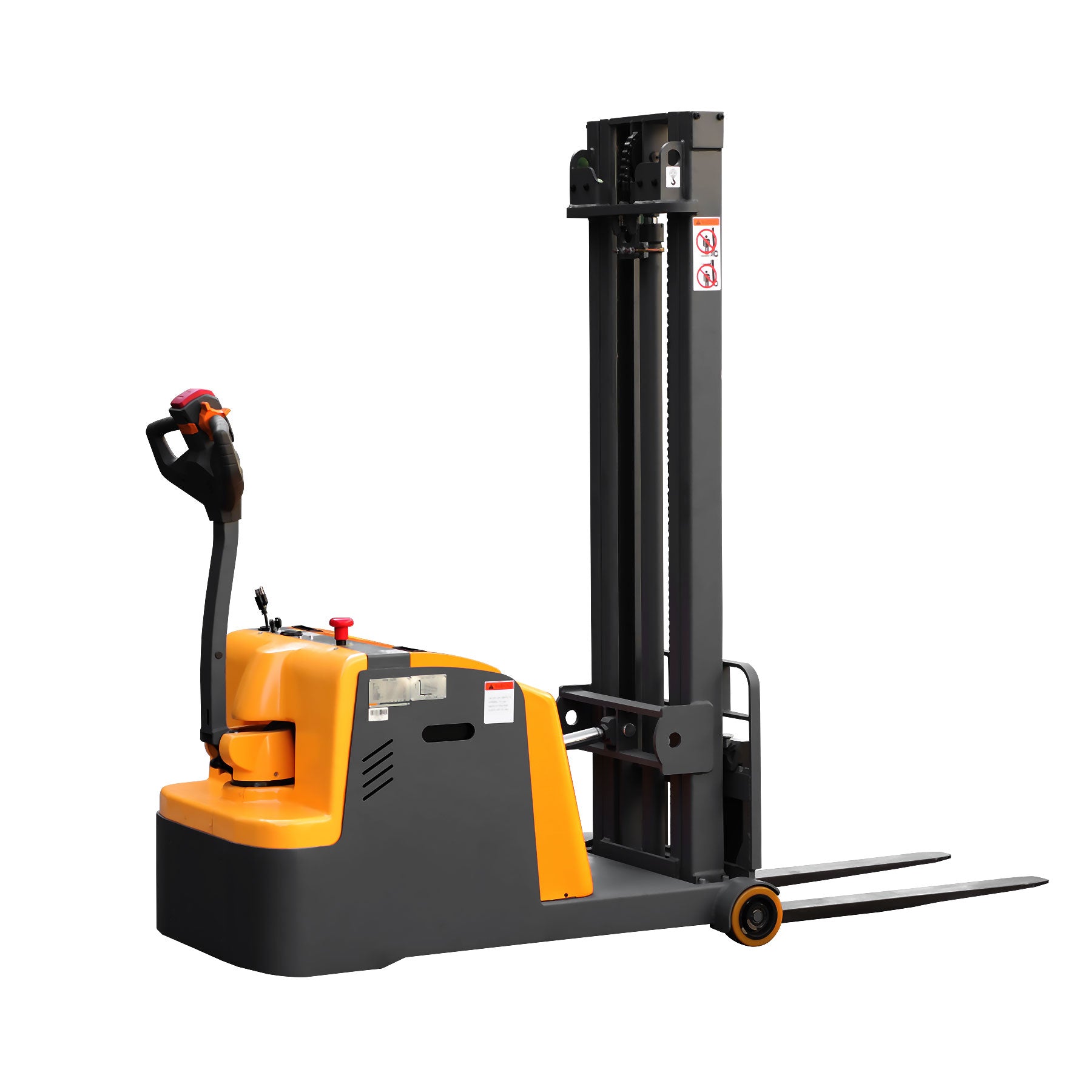

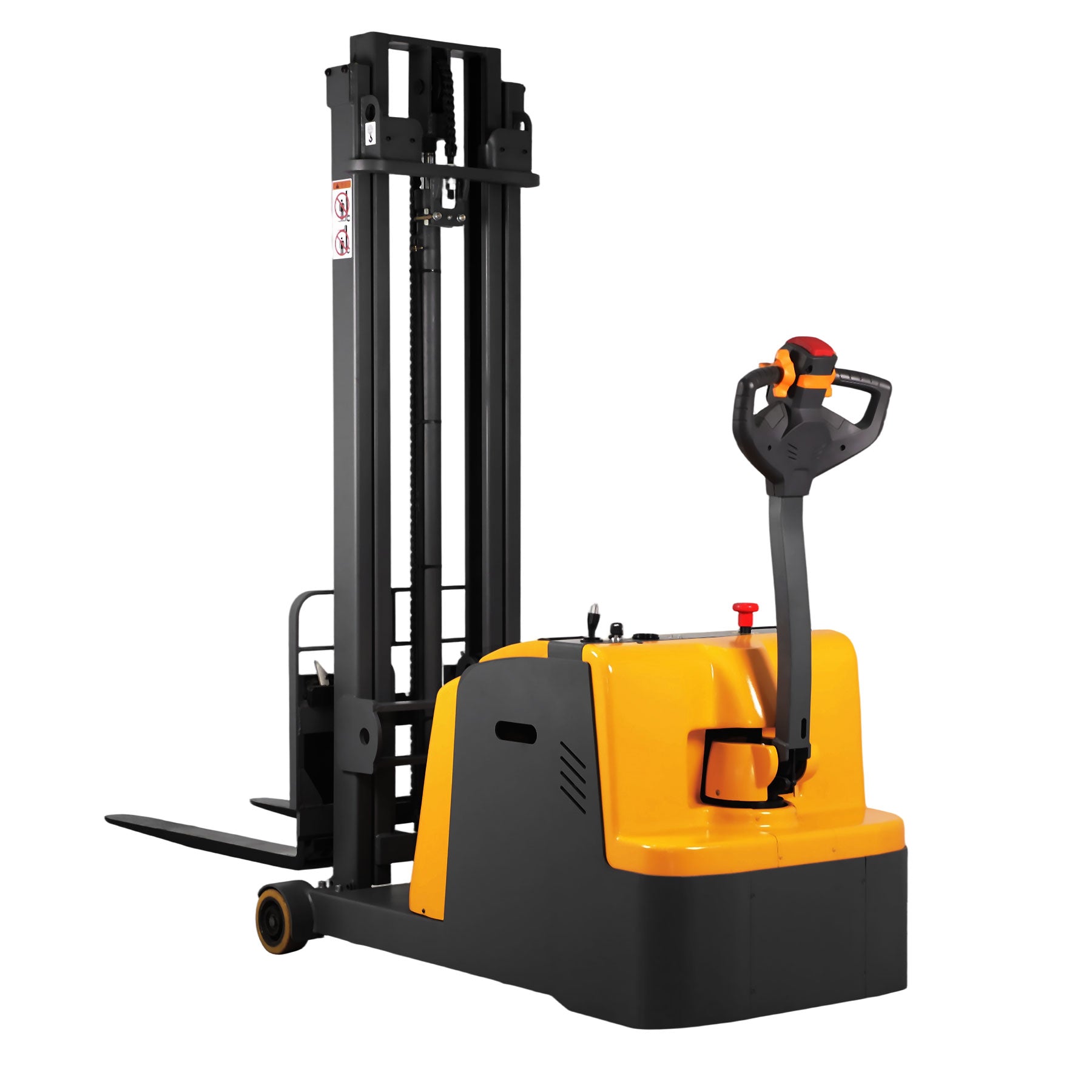

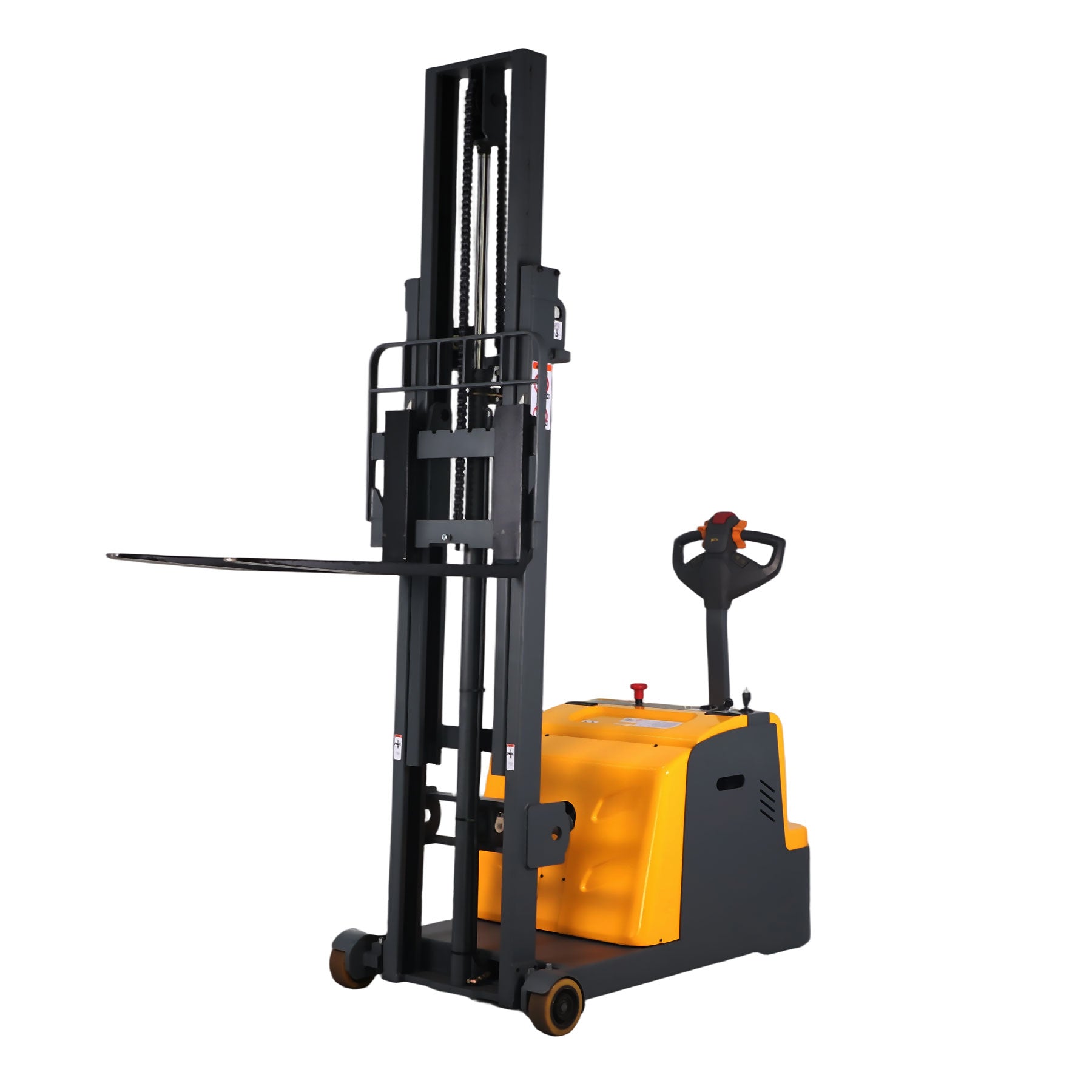

The Tory Carrier Electric Counterbalance Stacker is engineered for seamless loading and unloading of containers and trucks. With a 2200 lb capacity and 98" lift height, its legless fork design and tilt-assist system streamline stacking tasks—ideal for busy warehouse and distribution operations.

Key Features

Legless Fork Design: Enables full access to closed pallets and container loads without support legs.
Tilt Assist System: Simplifies loading and stacking for faster, more efficient workflows.
Three-Point Support: Front wheels carry the load while the rear drive wheel ensures optimal force distribution.
Terrain Adaptability: Smooth passability and stability on a variety of surfaces, from concrete to uneven floors.
Top‑Mounted Drive Wheel: Easy access for quick maintenance and minimal downtime.
Modular Electrical Design: 90% integrated components allow fast servicing and reduced repair time.
Battery Care Tip: Charge once a month when not in use to prolong battery life and maintain performance.

Capacity 2200 lb
Overall Length 92.8 in
Overall Width 33.3 in

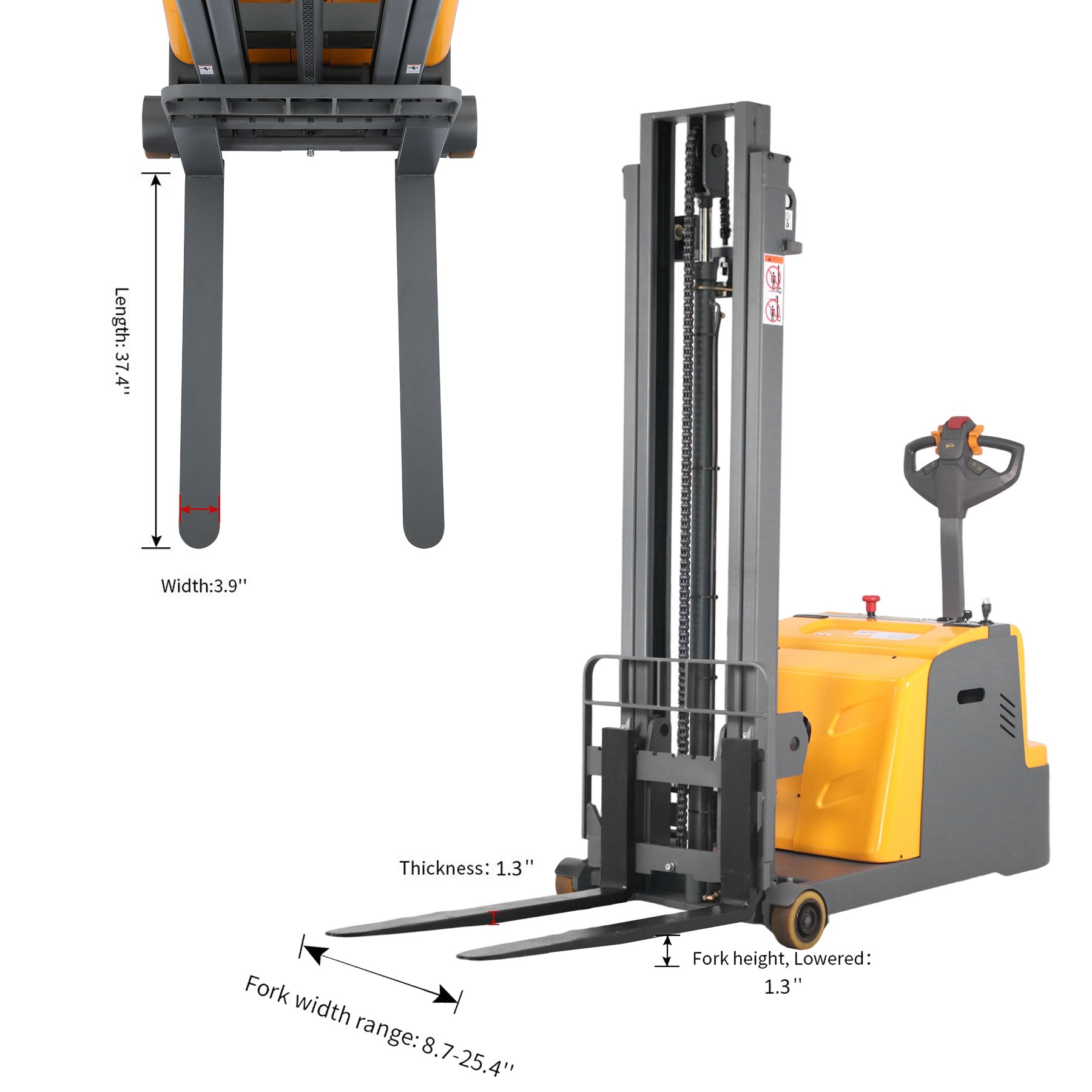

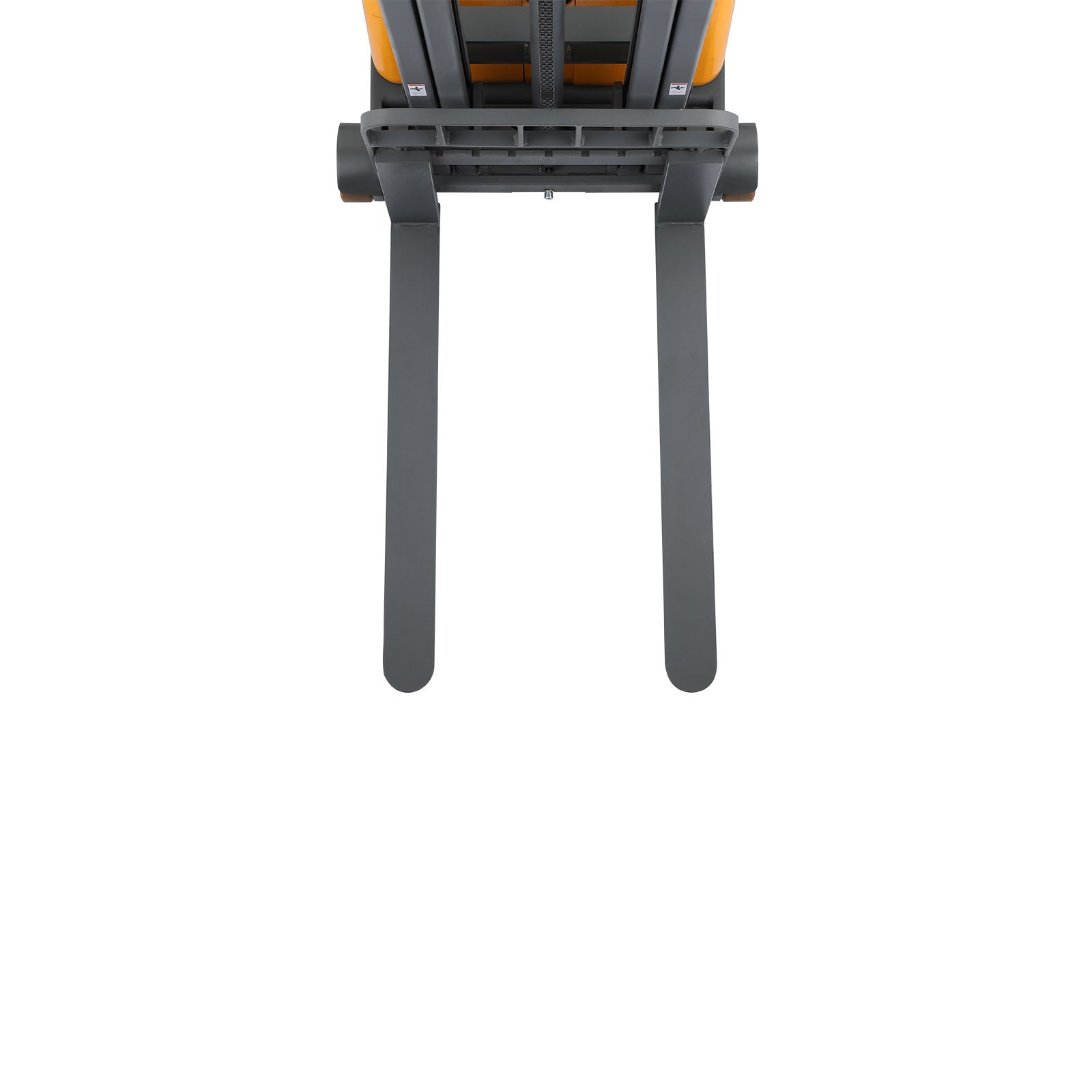

Fork Length 37.4 in

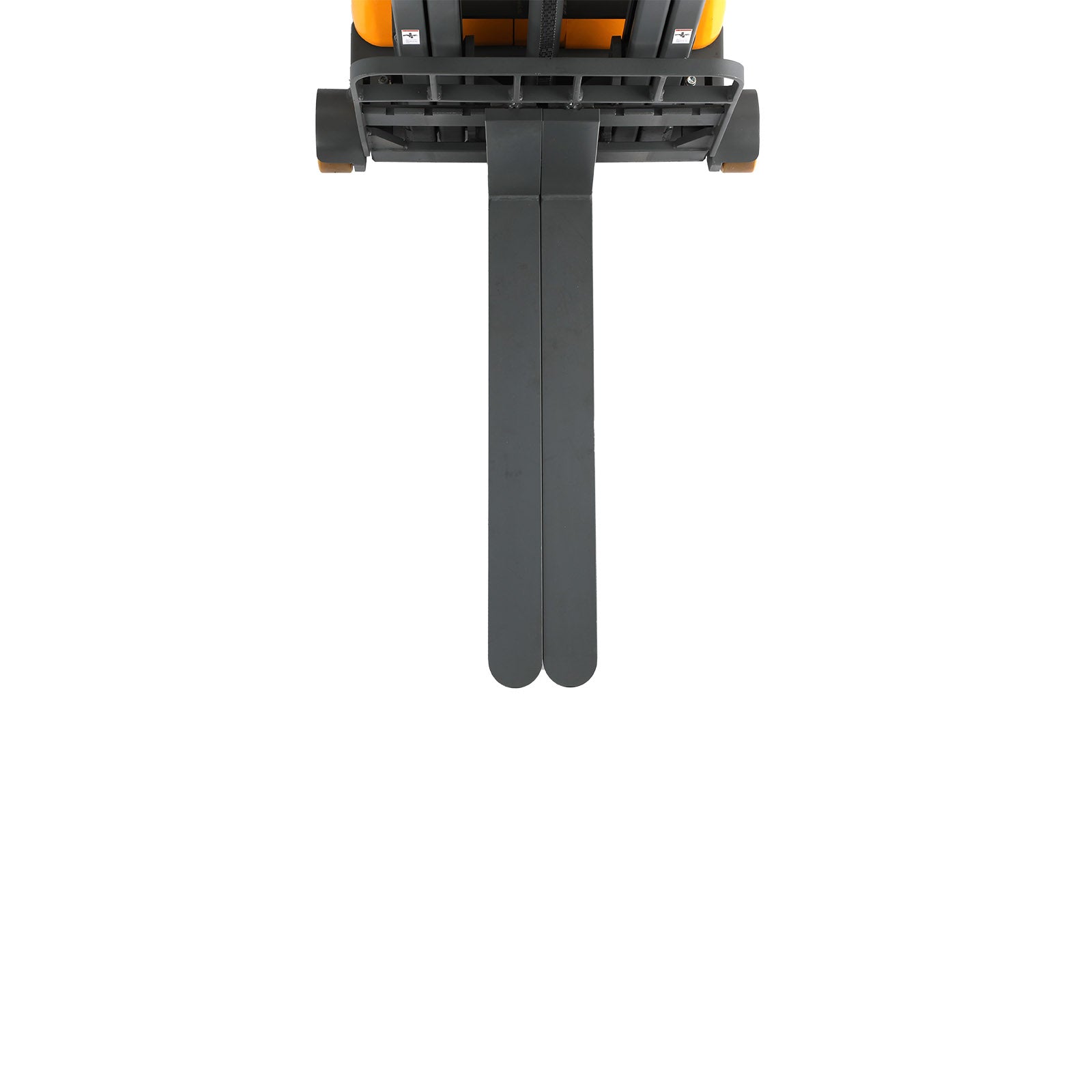

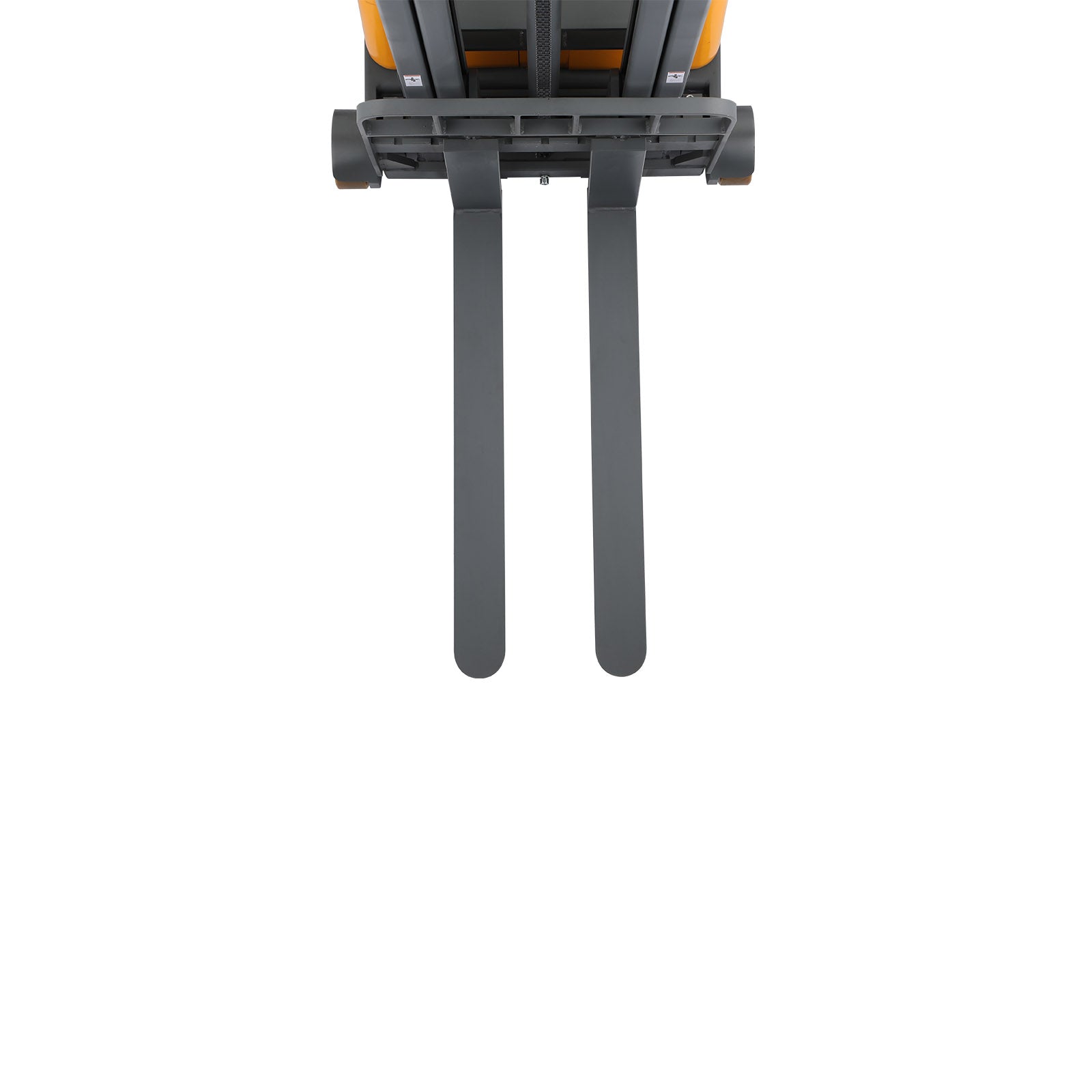

Forks Overall Width 8.7–25.4 in
Fork Thickness 1.3 in
Single Fork Width 3.9 in
Inside Distance Between Forks 0.9–17.6 in
Fork Lowered Height 1.2 in
Turning Radius 52.5 in
Aisle Width 113.4 in
Service Weight 2650 lb
Driving Speed (Laden) 2.4 mph
Driving Speed (Unladen) 2.6 mph
Lifting Speed (Laden) 4.3 in/s
Lifting Speed (Unladen) 5.9 in/s
Lowering Speed (Laden) 3.5 in/s
Lowering Speed (Unladen) 3.2 in/s
Battery Type Gel Battery
Battery Capacity 125AH
Battery Voltage 24V
Charger 24V/10A Built-in

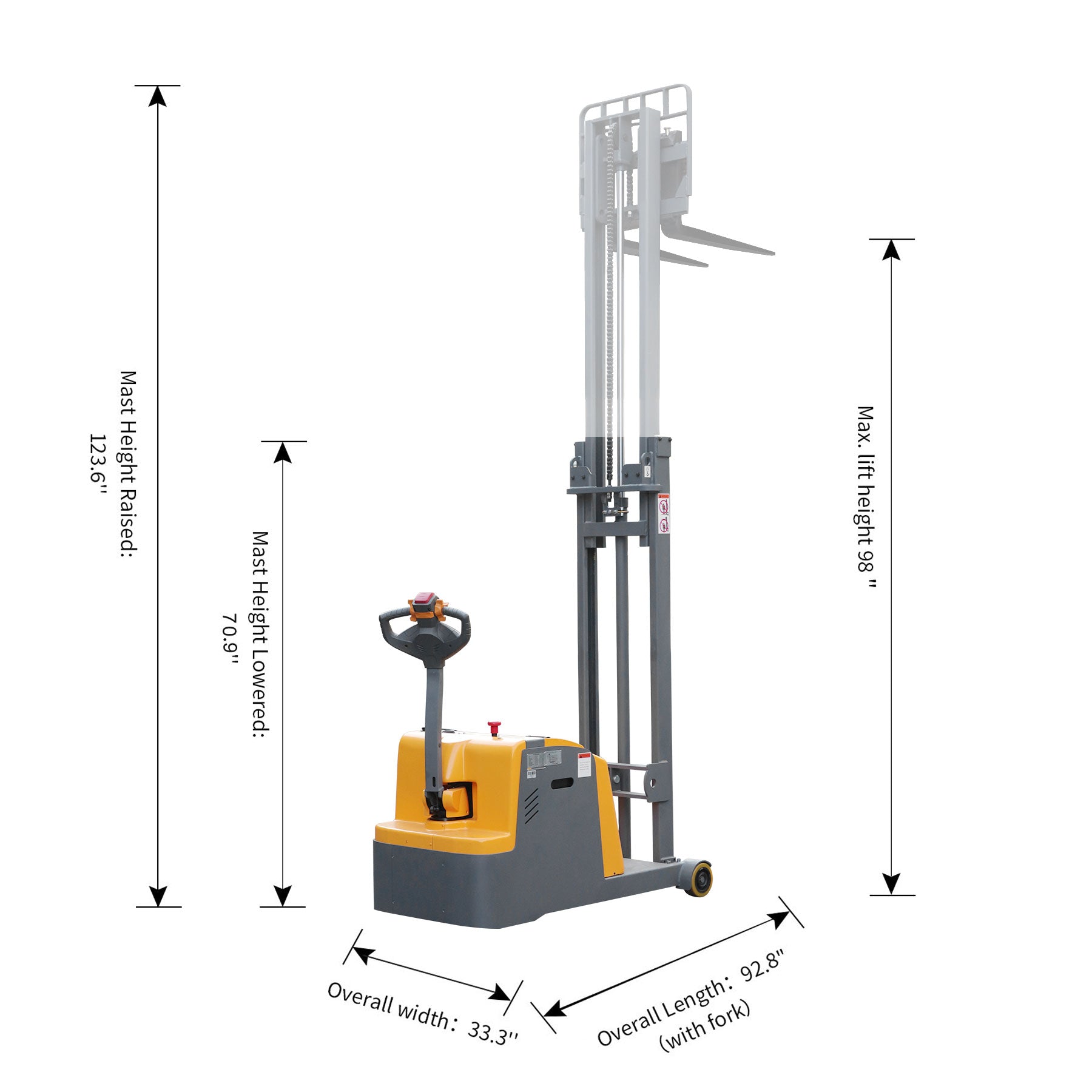

Mast Lowered Height 70.9 in
Mast Extended Height 123.6 in
Load Center 15.7 in
Gross Weight 2660 lb
Package Size 60 × 34 × 75 in

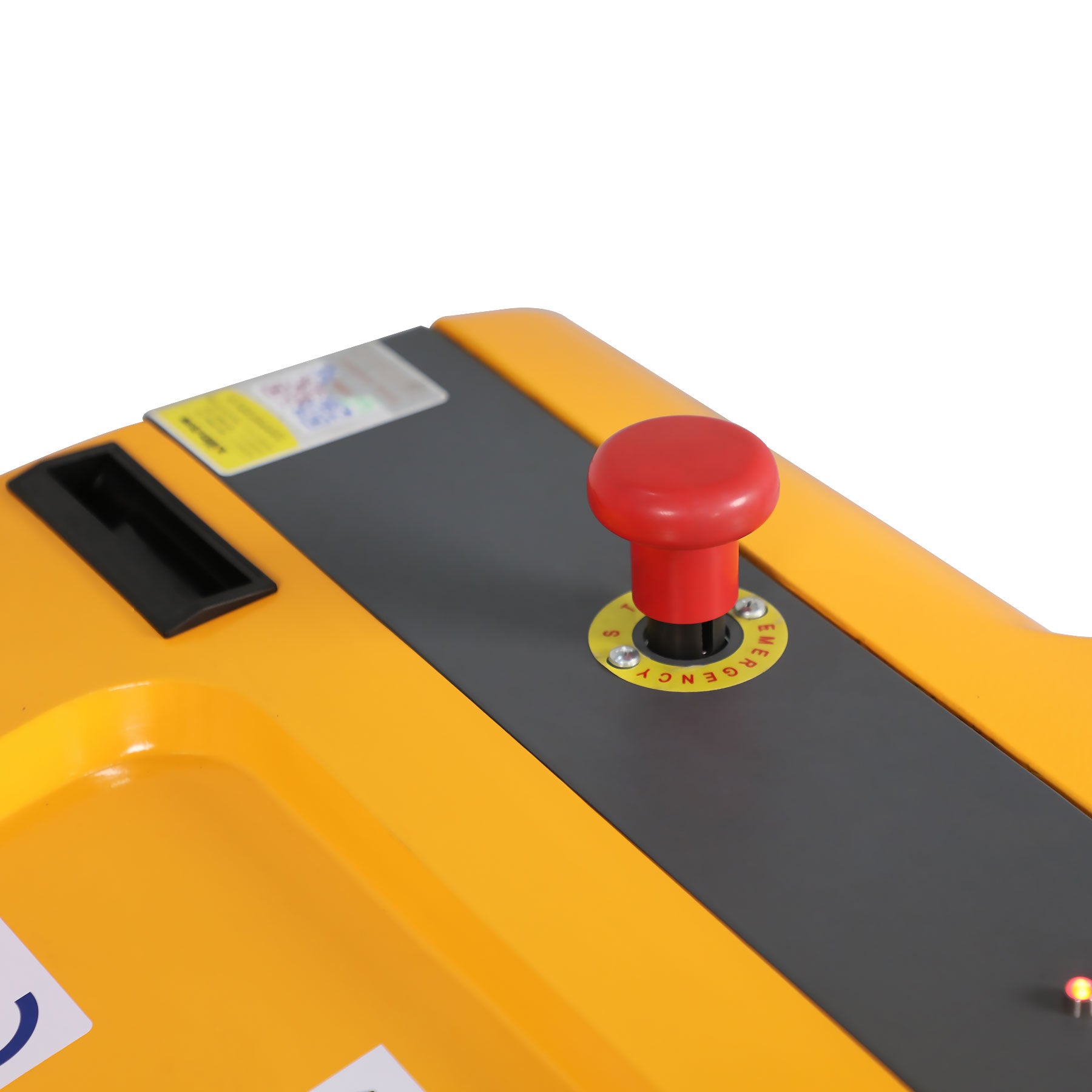

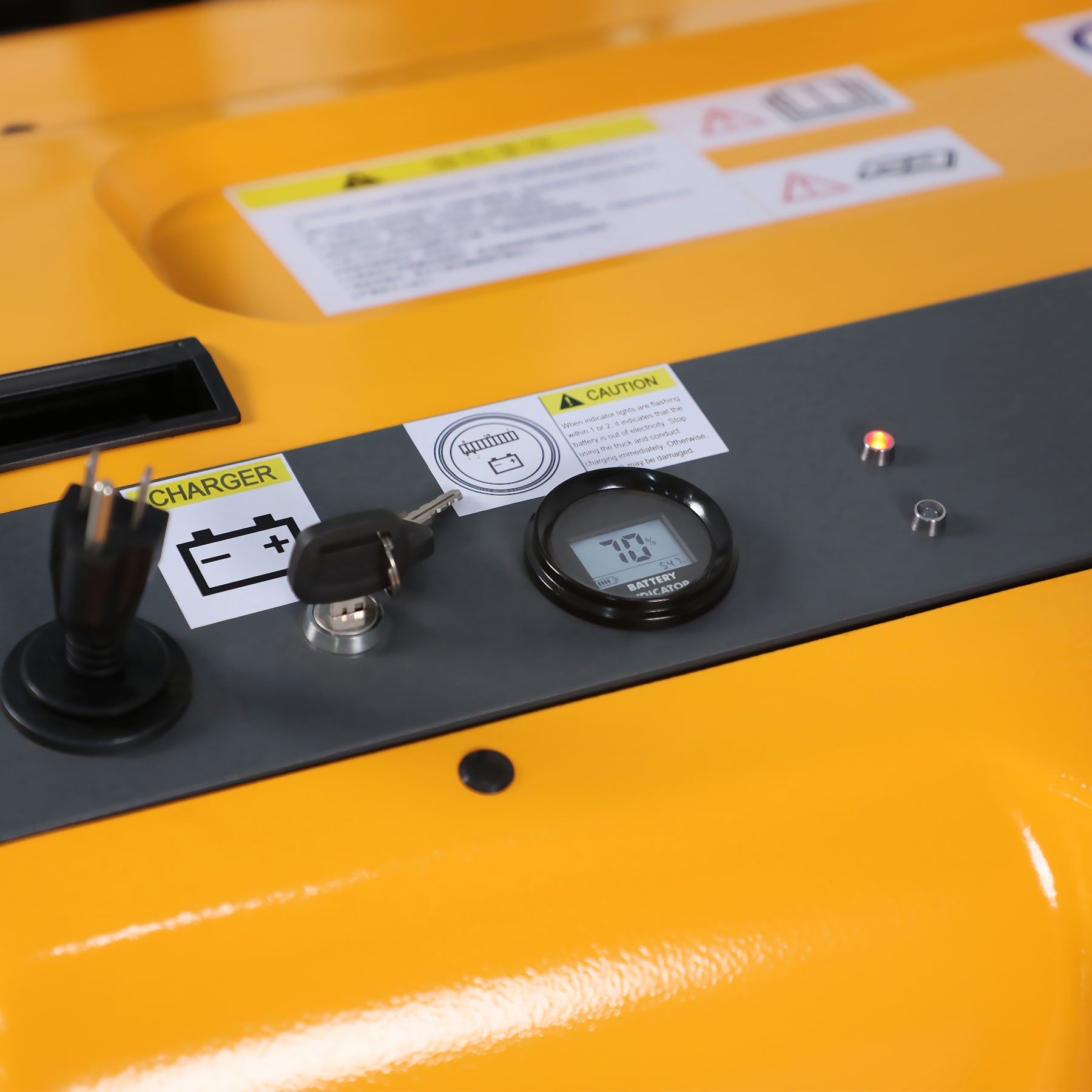

With emergency stop switch and electricity lock button

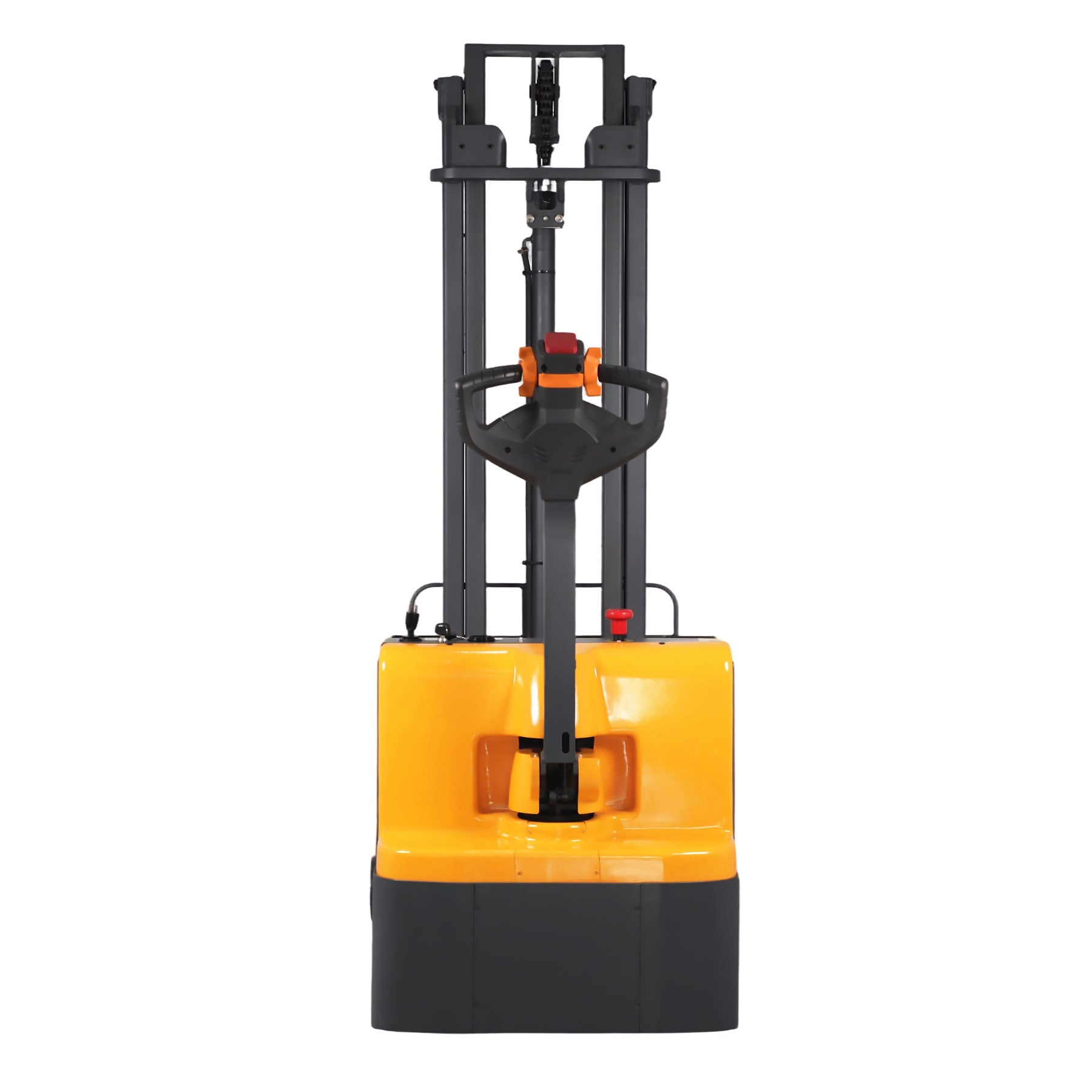

Long handle structure makes it steering light and flexible.

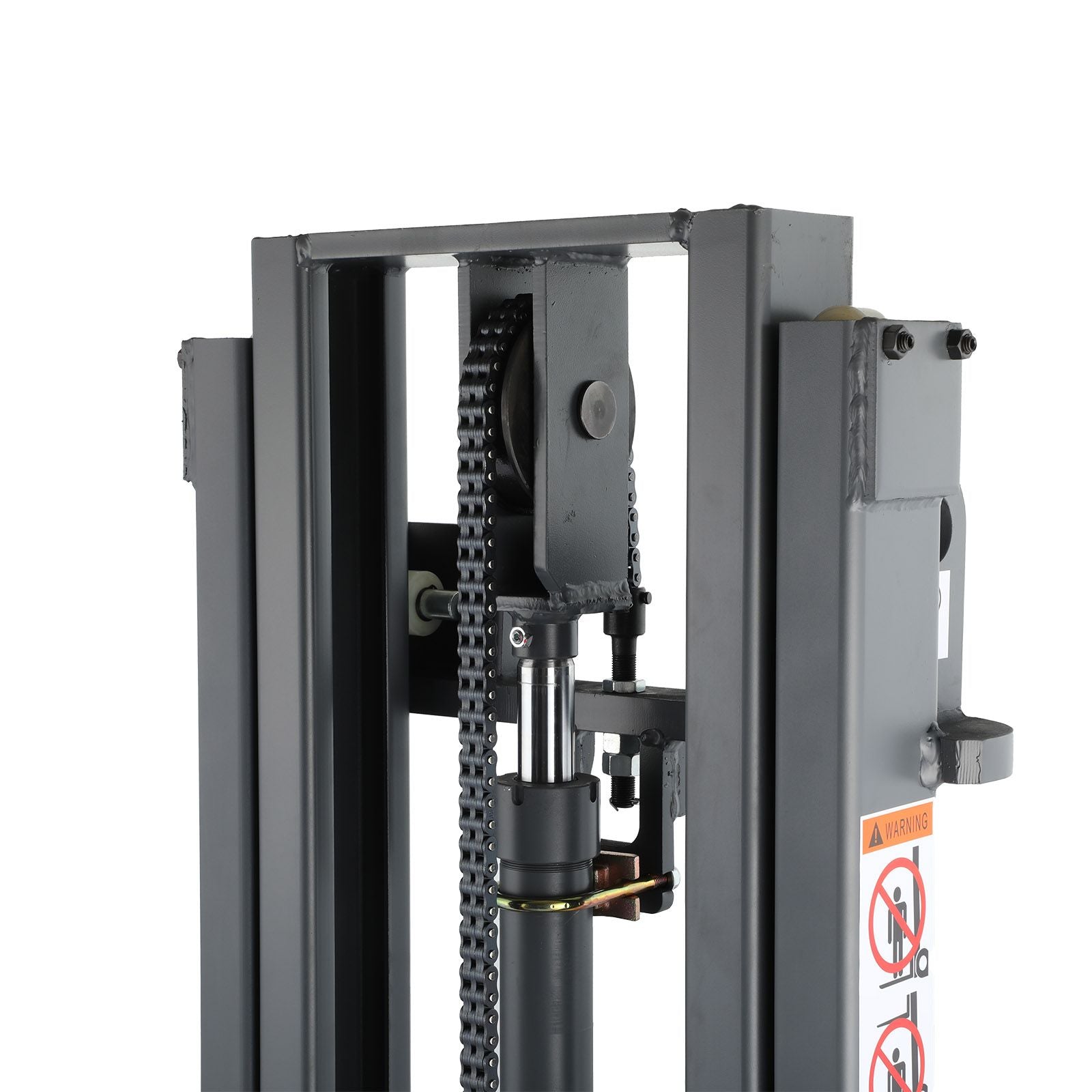

Reinforced steel wide gantry for a wide field of view.

Warranty

1-Year Warranty from Delivery Date

First 30 Days
We offer free replacement parts, free round-trip shipping, and remote technical support.

Day 31 to 1 Year
We provide free replacement parts and cover one-way shipping. Customers are responsible for return shipping if needed.

After 1 Year
We offer lifetime technical support. Customers cover the cost of parts and shipping.

Special Coverage

Battery warranty is 6 months.
Spare parts warranty is 3 months.
Used units include a 3-month parts-only warranty with no labor or returns.

Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Care Tip

To maintain battery health, charge it at least once a month when not in use.
