Model: A-3040

Electric Counterbalance Stacker – 2200 lb Capacity, 118" Lift Height, A-3040

$9,500.00 $8,099.00 Save $1,401.00
9 in stock
Key Features
  • 2,200 lb capacity with up to 118" lift height.
  • Counterbalance Type with adjustable 37.4" x 8.7-25.4" forks.
  • GEL battery / 24V / 125Ah electric power system.
  • 52.5" turning radius for tight spaces.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 2–3 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
✓ For details on returns and refunds, please see our Return Policy .

Product details

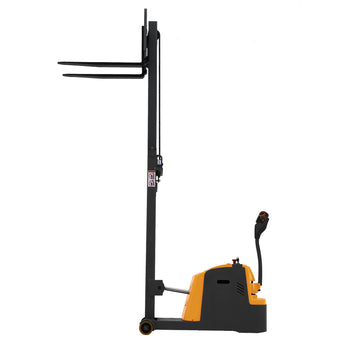

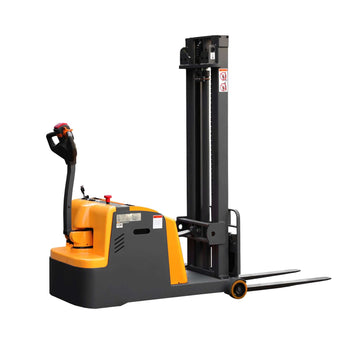

The TORY CARRIER Electric Counterbalance Stacker is designed for loading, unloading, pallet stacking, and elevated load positioning in warehouses, distribution centers, and loading areas. With a 2,200 lb load capacity and maximum lift height of 118 in, it provides powered handling for compatible palletized loads.

Its counterbalanced, straddle-leg-free design allows the forks to approach trucks, containers, racks, and compatible closed-bottom pallets without front support legs obstructing pallet entry. A compact three-point chassis, extended tiller handle, fork-tilt function, and service-friendly component layout support controlled operation in appropriately sized indoor work areas.

Key Features

  • 2,200 lb Load Capacity: Supports pallet lifting, transport, and stacking in indoor material handling applications.
  • 118 in Maximum Lift Height: Provides extended reach for elevated pallet storage and load positioning.
  • Counterbalanced Design: The straddle-leg-free configuration handles compatible closed-bottom pallets without front support-leg interference.
  • Fork-Tilt Function: Assists with controlled fork positioning and load alignment during stacking.
  • Three-Point Chassis: The load wheels and rear drive wheel support balanced travel and responsive maneuvering.
  • Extended Tiller Handle: Provides additional steering leverage and precise control in confined work areas.
  • Hydraulic Safety Valve: Helps limit uncontrolled fork lowering in the event of hydraulic pressure loss.
  • Maintenance-Free Battery: The sealed battery requires no routine watering and includes low-voltage protection.
  • Built-In Charger: Provides convenient onboard charging through an integrated retractable cable.
  • Service-Friendly Layout: Top-access drive components and modular electrical parts simplify inspection and maintenance.

Operating and Battery Care: Maximum lifting capacity may vary with lift height and load center. Review the equipment data plate and load-capacity chart before lifting. Operate only on firm, level indoor surfaces. During extended storage, recharge the battery at least once a month.

Capacity 2200 lb
Overall Length 96.7 in
Overall Width 33.3 in
Fork Length 37.4 in
Forks Overall Width 8.7–25.4 in
Fork Thickness 1.3 in
Single Fork Width 3.9 in
Inside Distance Between Forks 0.9–17.6 in
Fork Lowered Height 1.3 in
Turning Radius 52.5 in
Aisle Width 113.4 in
Service Weight 2720 lb
Driving Speed (Laden) 2.4 mph
Driving Speed (Unladen) 2.6 mph
Lifting Speed (Laden) 4.3 in/s
Lifting Speed (Unladen) 5.9 in/s
Lowering Speed (Laden) 3.5 in/s
Lowering Speed (Unladen) 3.2 in/s
Battery Type Gel Battery
Battery Capacity 125AH
Battery Voltage 24V
Charger 24V/10A built-in
Mast Lowered Height 80.8 in
Mast Extended Height 143.3 in
Load Center 15.7 in
Gross Weight 2730 lb
Package Size 60 × 34 × 85 in

Warranty

 Warranty 1-Year Limited Warranty

👉Installation and Operation Video

With emergency stop switch and electricity lock button

Ergonomic long handle with integrated control buttons and turtle speed mode for comfortable, precise, and easy operation in tight spaces.

Reinforced steel wide gantry for a wide field of view.

Counterbalance Stacker FAQ

What is the maximum load capacity of Tory Carrier Counterbalance Stackers?

Depending on the model, Tory Carrier Counterbalance Stackers can handle loads ranging from 1,200 lbs to 3,300 lbs, suitable for medium to heavy-duty warehouse operations.
Are these stackers suitable for narrow aisle applications?

Yes, Counterbalance Stackers are designed with compact turning radii and optimized mast designs, making them efficient in narrow aisles while maintaining stability.
What type of power options are available?

Tory Carrier Counterbalance Stackers come with electric drive systems, powered by 24V–48V batteries, offering long operating hours, low maintenance, and zero emissions for indoor use.
How is operator safety ensured?

Safety features include electromagnetic service brakes, overload protection, mast tilt limiters, ergonomic standing or seated controls, and non-marking PU wheels for stable and secure handling.
