Model: A-103801

Electric Pallet Jack 4400 lb Capacity with 48" x 27" Forks Lightweight Lithium Design, A-103801

$2,199.00 $1,889.00 Save $310.00
In stock
Key Features
  • 4,400 lb capacity with 48" x 27" forks.
  • 48V / 20Ah Lithium battery power system.
  • Battery can be replaced in as little as 10 seconds.
  • Lift height up to 7.3".
  • 55.7" turning radius.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
✓ For details on returns and refunds, please see our Return Policy .

Product details

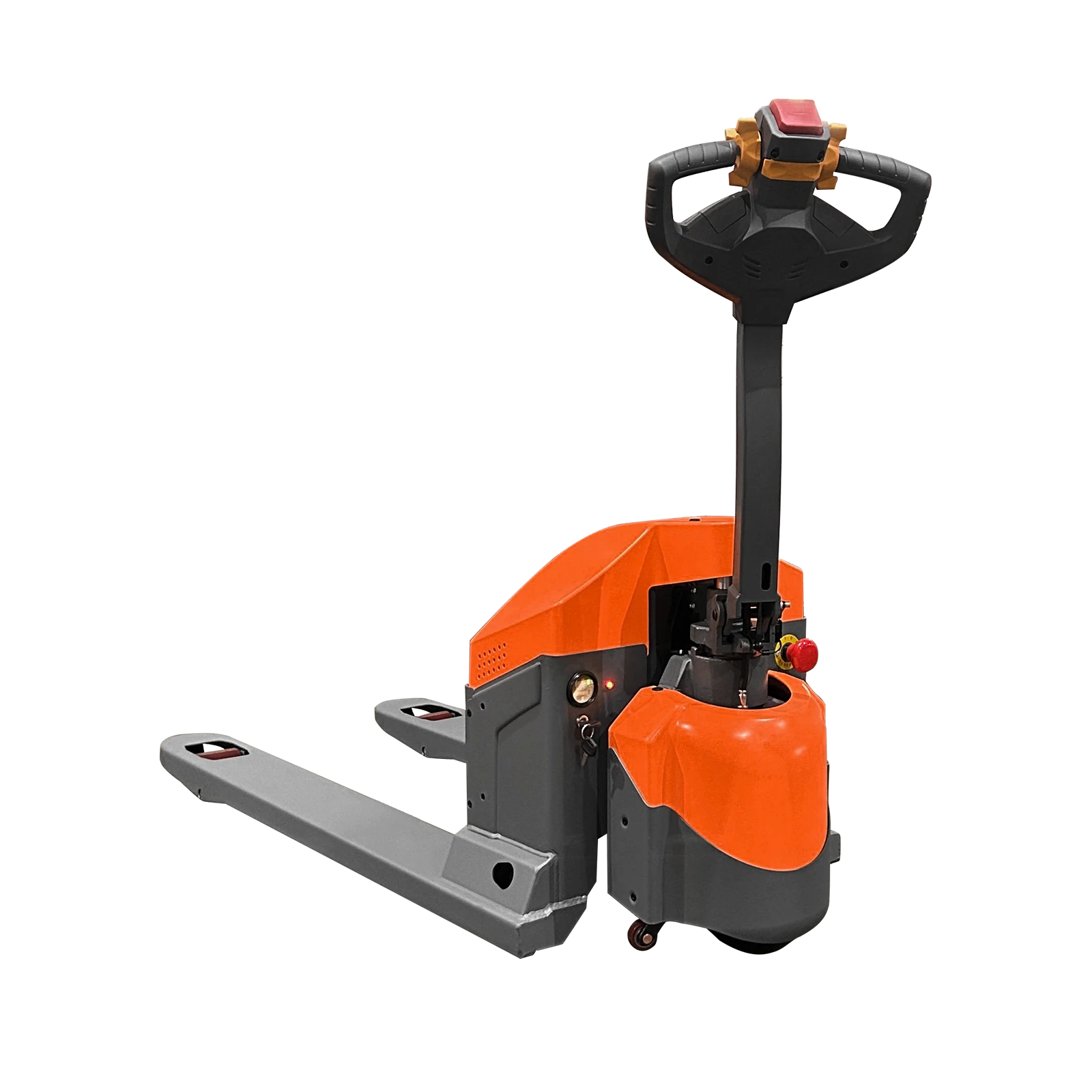

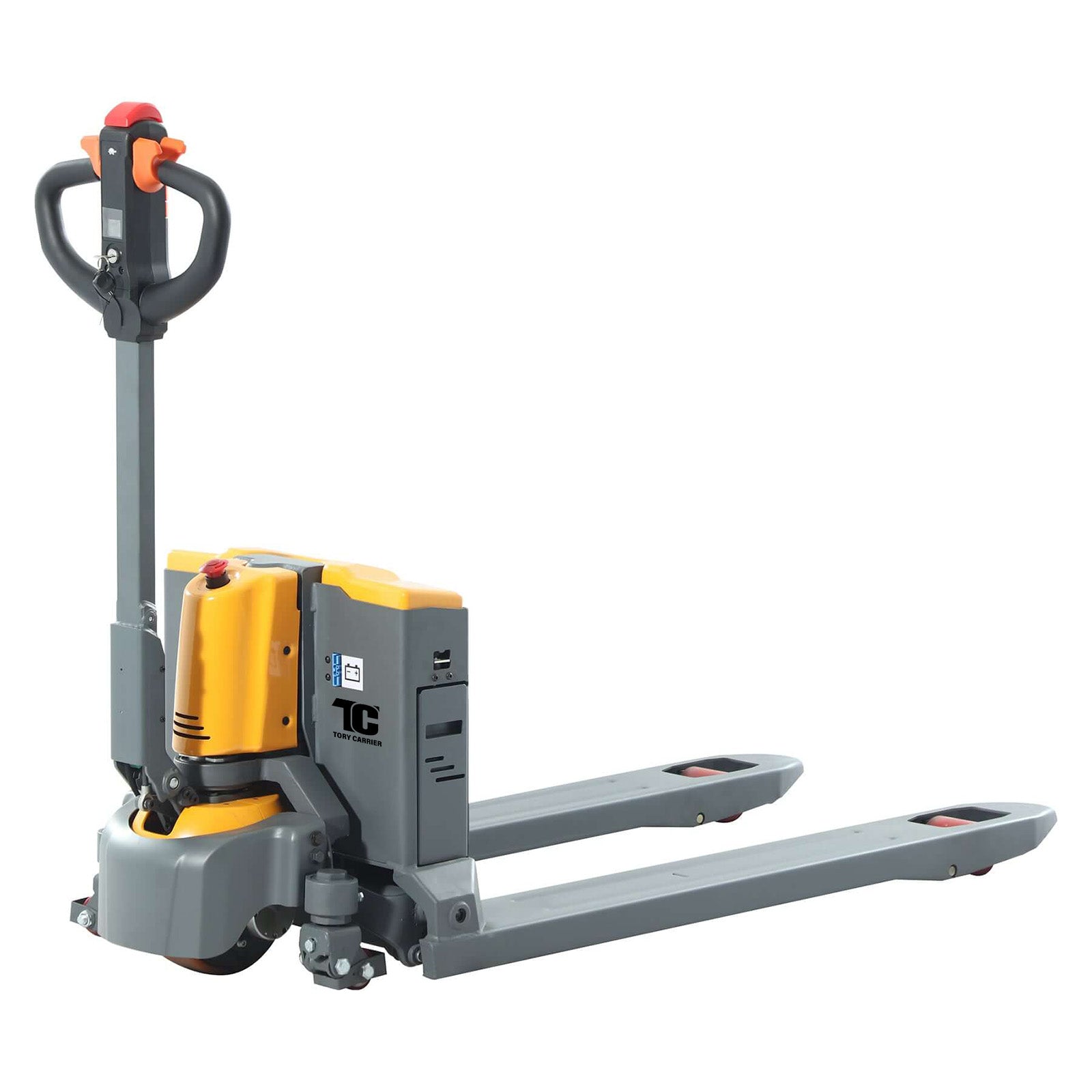

The TORY CARRIER 4,400 lb Electric Pallet Jack is designed for moving heavy palletized loads in warehouses, stockrooms, loading areas, and other indoor material handling environments. Its compact chassis and ergonomic control handle support responsive maneuvering in aisles and confined workspaces.

A reinforced steel frame, strengthened fork structure, floating balance wheels, and electromagnetic braking system provide stable and controlled performance during daily operation. Protective metal covers, accessible components, and a removable battery design also simplify routine inspection and service.

Key Features

  • 4,400 lb load capacity supports heavy pallet transport and demanding warehouse applications.
  • Compact chassis with low-speed control supports precise positioning in aisles and confined work areas.
  • 6% loaded gradeability supports operation on suitable warehouse ramps and moderate inclines.
  • Reinforced steel frame and ribbed forks provide structural support for frequent pallet handling.
  • Reinforced rocker arm distributes operating forces across the lifting structure.
  • Floating balance wheels improve weight distribution and travel stability during movement and turning.
  • Angled fork tips help guide the forks into compatible pallets for smoother pallet entry.
  • Service-friendly construction combines metal covers, accessible components, a removable handle, quick-change battery access, and electromagnetic braking.
Load Capacity 4,400 lb
Load Center Distance 23.6 in
Minimum Aisle Width 87 in
Fork Height, Lowered 3 in
Maximum Fork Height 7.3 in

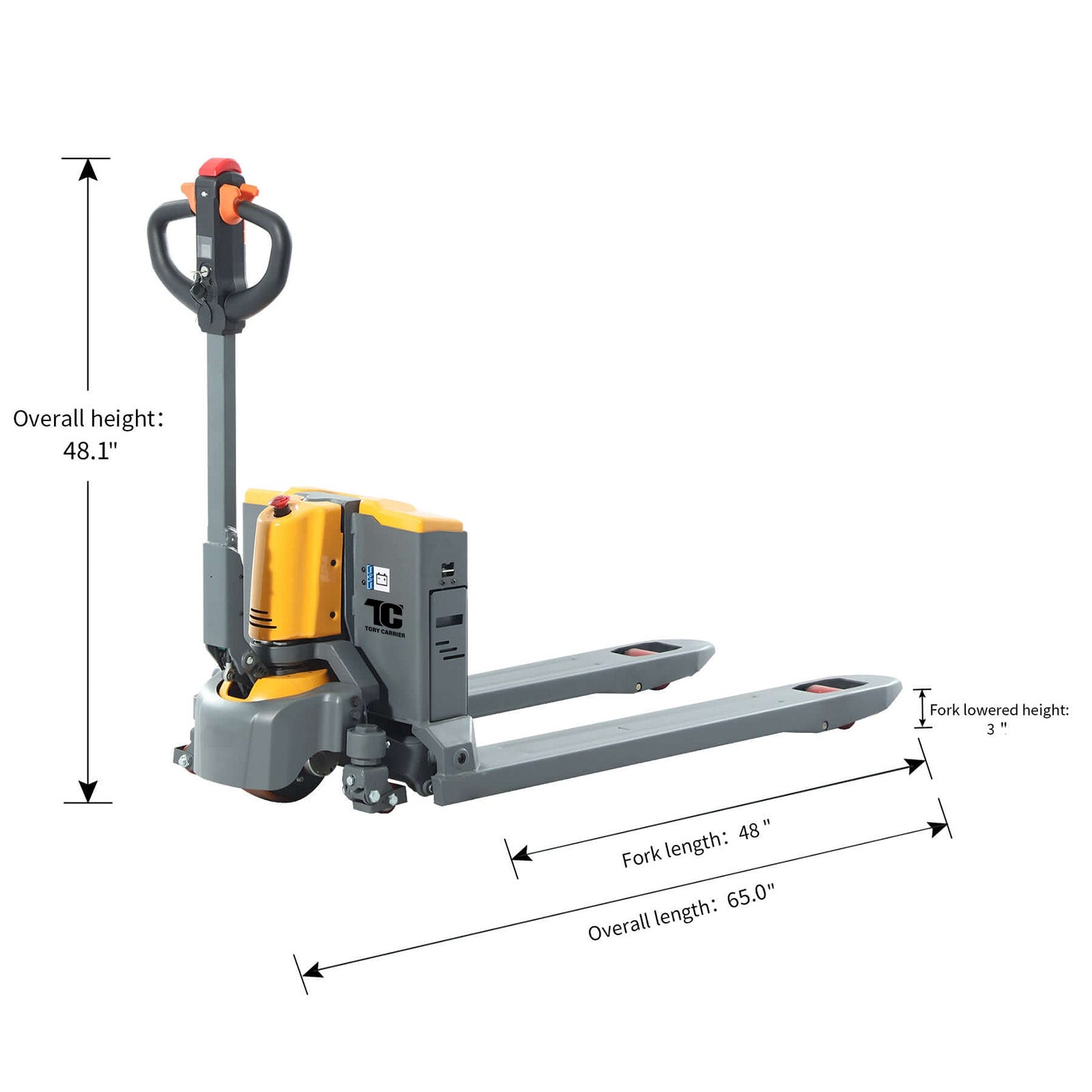

Overall Dimensions (L × W × H) 65 × 27 × 48.1 in
Fork Dimensions (T × W × L) 2.8 × 6.3 × 48 in
Overall Fork Width 27 in
Inside Fork Width 14.2 in
Turning Radius 55.7 in
Travel Speed, Loaded / Unloaded 2.86 / 2.98 mph
Lift Speed, Loaded / Unloaded 0.8 / 1.0 in/s
Lowering Speed, Loaded / Unloaded 1.8 / 1.2 in/s
Gradeability, Loaded / Unloaded 6% / 20%
Battery 48V / 20Ah Lithium-ion
Charger External 48V / 10A
Drive Wheel Size 8.3 × 2.8 in
Load Wheel Size 2.9 × 3.7 in
Balance Wheel Size 2.4 × 1.4 in
Operating Weight 310 lb
Warranty 1-Year Limited Warranty

User Documentation

View Product Manual

👉Installation and Operation Video

Download the Tory Carrier Electric Pallet Truck Operation Manual (1038 Series)

Drive Wheel & Steel Safety Guard

Equipped with a high-torque drive wheel and a heavy-duty steel safety guard, this unit ensures superior stability on uneven surfaces while providing 360-degree protection to prevent operator foot injuries during maneuvers.

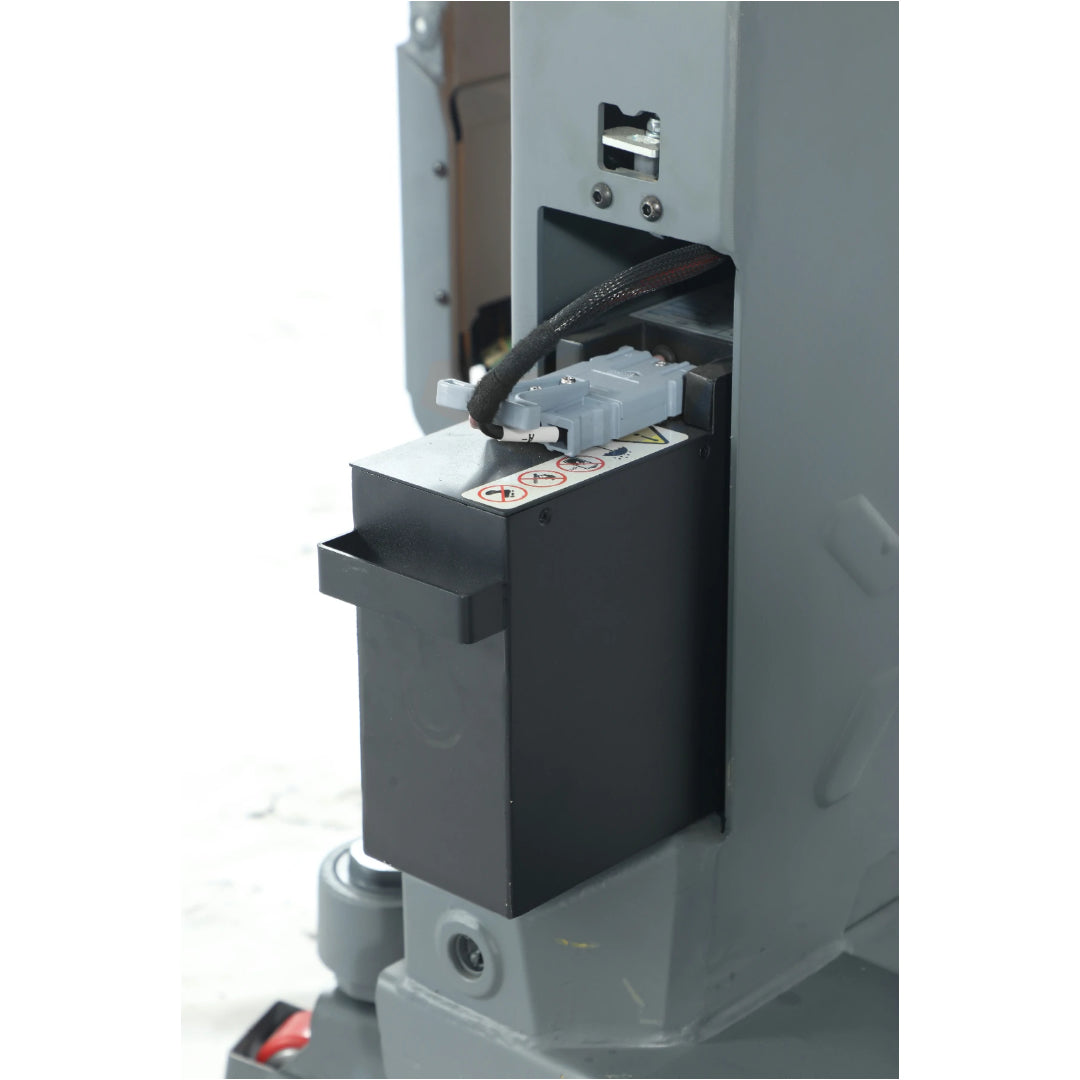

10-Second Battery Swap

Our rapid-exchange battery system allows for a full power swap in under 10 seconds. Minimize idle time and keep your warehouse operations running across multiple shifts without the need for specialized tools.

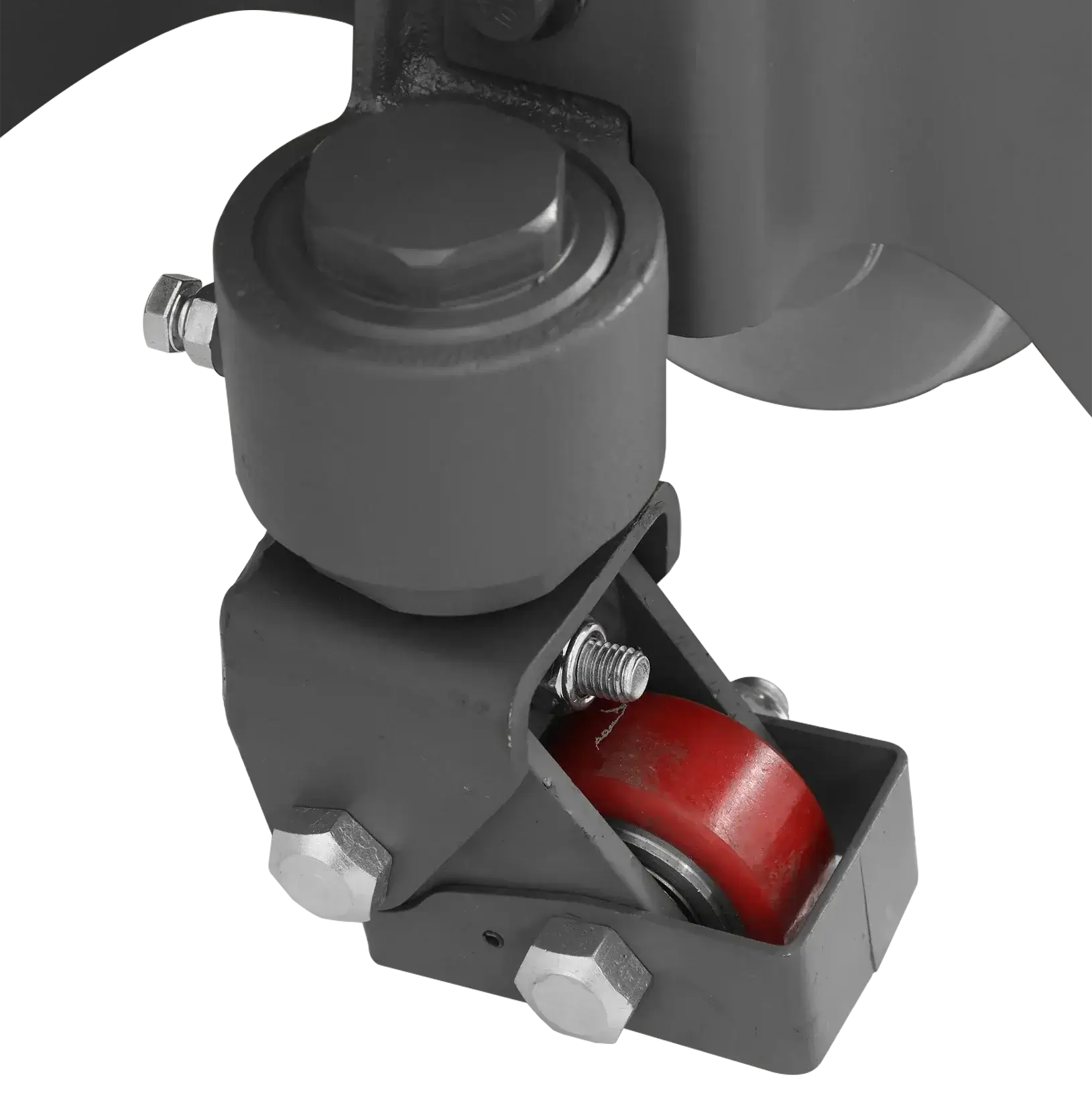

Stability Caster Wheels

Designed with dual lateral stability casters, this pallet jack eliminates tipping risks during sharp turns. It maintains a low center of gravity, ensuring the chassis remains level even when transporting off-center or heavy-duty loads.

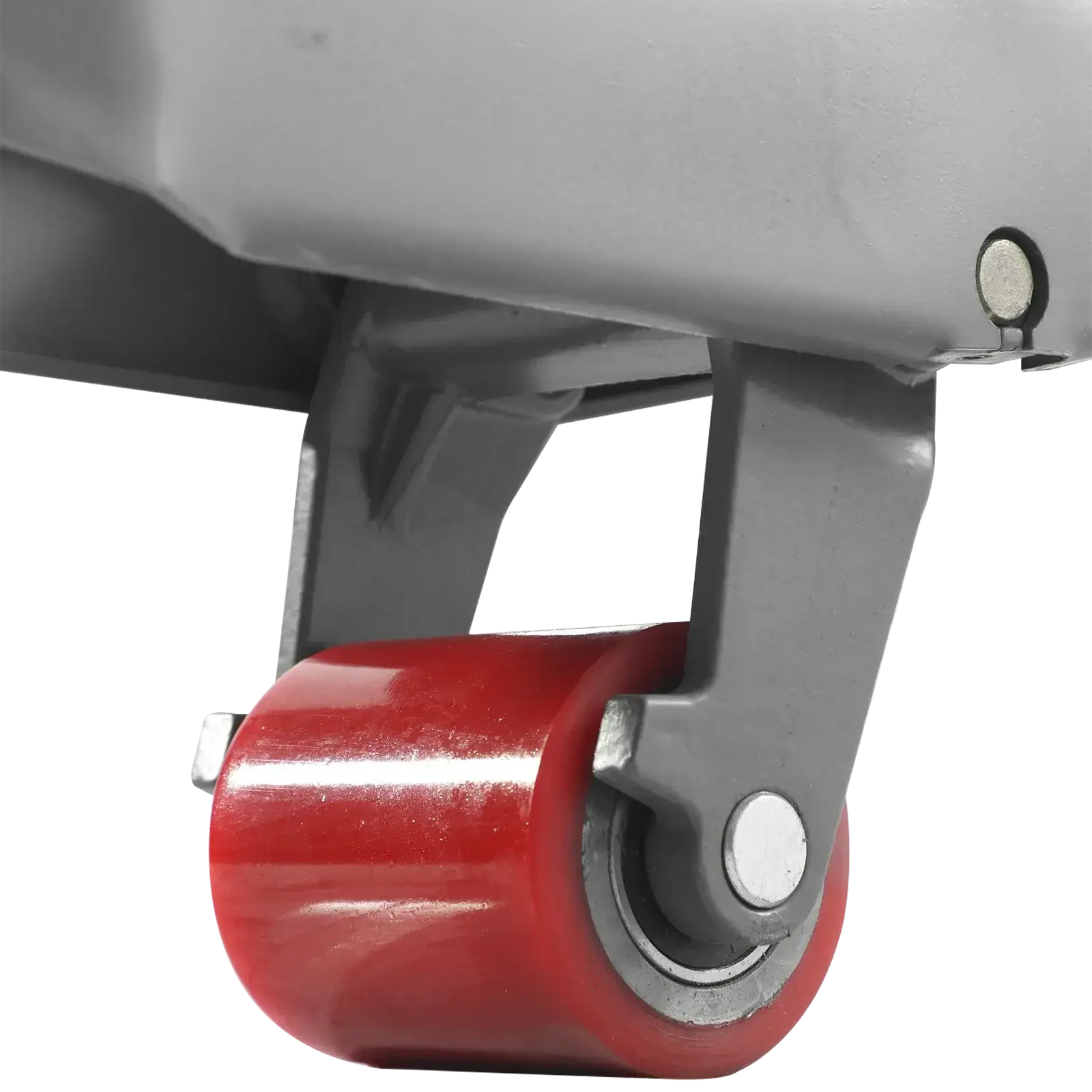

Heavy-Duty PU Support Rollers

The premium Polyurethane (PU) rollers are engineered for high-capacity load-bearing and low-noise operation. These durable, non-marking wheels glide effortlessly over warehouse floors, protecting your facility's surfaces from damage.

Ergonomic Multi-Function Tiller

The ergonomically designed handle features integrated lift/lower controls, a safety belly switch, and a turtle speed button for precise navigation in tight spaces. It reduces operator fatigue and enhances overall handling accuracy.

Smart LCD Display & Control Features

The high-contrast LCD dashboard provides real-time battery status and maintenance alerts to prevent mid-shift power loss. For enhanced safety in tight aisles, the integrated "Turtle Speed" mode allows for precise, low-speed navigation, while the secure key-start ignition ensures only authorized personnel can operate the equipment.

Electric Pallet Jack FAQ

What applications is this electric pallet jack suitable for?

This electric pallet jack is designed for warehouses, distribution centers, manufacturing facilities, retail backrooms, and loading docks where frequent pallet transportation is required.
What is the maximum load capacity?

This model can handle loads up to 3300 lbs. Do not exceed the rated capacity to ensure safe operation and extend equipment life.
How long can the battery operate on a full charge?

Battery runtime depends on load weight, operating frequency, and working conditions. Under normal warehouse operations, it provides reliable performance for daily material handling tasks.
How long does it take to charge the battery?

Charging time depends on the battery capacity and charger specifications. Please refer to the included user manual for detailed charging instructions.
Is this electric pallet jack easy to operate?

Yes. The ergonomic control handle allows operators to easily control lifting, lowering, forward, and reverse functions with minimal training.
What is included with the pallet jack?

Every order includes:
✅ Electric Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
✅ Battery Charger

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Where does this product ship from?

Orders ship from our U.S. warehouses to provide fast delivery across the United States.
