Product details

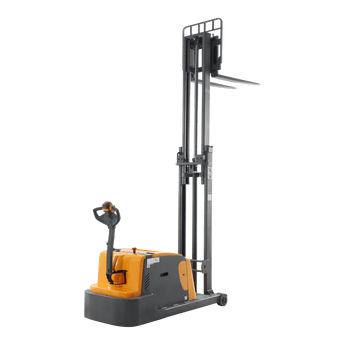

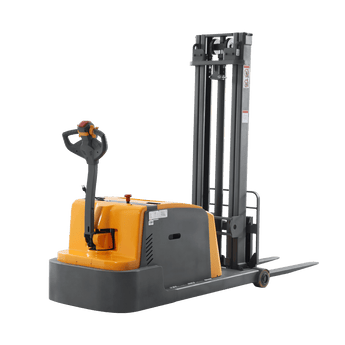

The TORY CARRIER A-3048 is a compact, heavy-duty counterbalanced electric stacker engineered for tight aisles and demanding warehouse work. With a 3,300 lb rated capacity and 118" maximum lift, it combines stability, quiet operation, and easy maintenance for reliable daily performance.
Key Features & Benefits
- No-leg counterbalanced design — full access to closed-bottom and low-clearance pallets without front straddle legs.
- Rounded chassis & low center of gravity — smooth, stable stacking in narrow aisles.
- Walk-behind steering with 3-point support — precise maneuverability in tight spaces.
- Multi-function textured handle — fingertip control for lift/lower, forward/reverse, horn and turtle (slow) mode.
- Smart speed logic — proportional throttle for smooth acceleration and auto-brake in standby zones.
- Electromagnetic brakes — short stopping distance with low maintenance.
- Brushless AC drive motor — strong ramp power, longer life, no brush replacement.
- Quiet operation — shock-absorbing mounts and low-noise motor keep sound under 70 dB(A).
- Digital dashboard — real-time battery level, operating hours, and fault codes.
- Full safety package — emergency stop, belly switch, anti-drop valve, interlock and high-visibility mast.
- Smooth hydraulic mast & tilt lever — stable lifting and controlled tilting action.
- Regenerative braking — energy recovery during deceleration reduces wear.
- Onboard charging (24V/10A) — integrated charger with protection for convenient daily charging.
- Easy maintenance layout — ~90% modular components and clear wiring for fast servicing.
Technical Highlights
- Rated capacity: 3,300 lb
- Max lift height: 118"
- Battery: 24V / 125Ah sealed battery
- Charger: Built-in 24V/10A
- Drive: Brushless AC motor
- Noise level: < 70 dB(A)
Ideal Applications
Warehouses / Retail stockrooms / Manufacturing / Narrow aisles / Closed-bottom pallet handling
Partial assembly required. For optimal battery life, charge the unit at least once a month when not in regular use.
| TORY CARRIER A-3048 Technical Specifications | |
|---|---|
| Load Capacity | 3,300 lbs |
| Load Center | 19.7" |
| Turning Radius | 66.9" |
| Aisle Width | 128" |
| Fork Dimensions | 37.4" L × 8.7–25.4" W × 1.3" Thick |
| Inside Fork Width | 0.9"–17.6" |
| Overall Dimensions | 109.4" L × 34.7" W |
| Max Lifting Height | 118" |
| Mast Height (Lowered / Extended) | 81.3" / 146" |
| Fork Lowered Height | 1.4" |
| Battery | 24V / 125Ah Lead-Acid |
| Charger | 24V / 10A Built-in |
| Service Weight | 3,460 lbs |
With emergency stop switch and electricity lock button
Long handle structure makes it steering light and flexible.
Reinforced steel wide gantry for a wide field of view.
Warranty
1-Year Warranty from Delivery Date
First 30 Days
We offer free replacement parts, free round-trip shipping, and remote technical support.
Day 31 to 1 Year
We provide free replacement parts and cover one-way shipping. Customers are responsible for return shipping if needed.
After 1 Year
We offer lifetime technical support. Customers cover the cost of parts and shipping.
Special Coverage
Battery warranty is 6 months.
Spare parts warranty is 3 months.
Used units include a 3-month parts-only warranty with no labor or returns.
Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Care Tip
To maintain battery health, charge it at least once a month when not in use.
 |  |  |  |  | |
|---|---|---|---|---|---|
| Specs | |||||
Model |
|
|
|
|
|
Load Capacity |
|
|
|
|
|
Fork Size |
|
|
|
|
|
Lowered Fork Height |
|
|
|
|
|
Max.lift height |
|
|
|
|
|
Travel Speed(laden) |
|
|
|
|
|
Travel Speed(unladen) |
|
|
|
|
|
Lift Speed(laden) |
|
|
|
|
|
Lift Speed(unladen) |
|
|
|
|
|
Turning radius |
|
|
|
|
|
Battery Type |
|
|
|
|
|
Battery Voltage & Capacity |
|
|
|
|
|
Charger |
|
|
|
|
|
Machine Weight |
|
|
|
|
|
Areas of Application |
|
|
|
|
|
