Product details

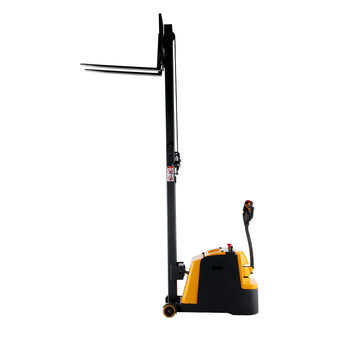

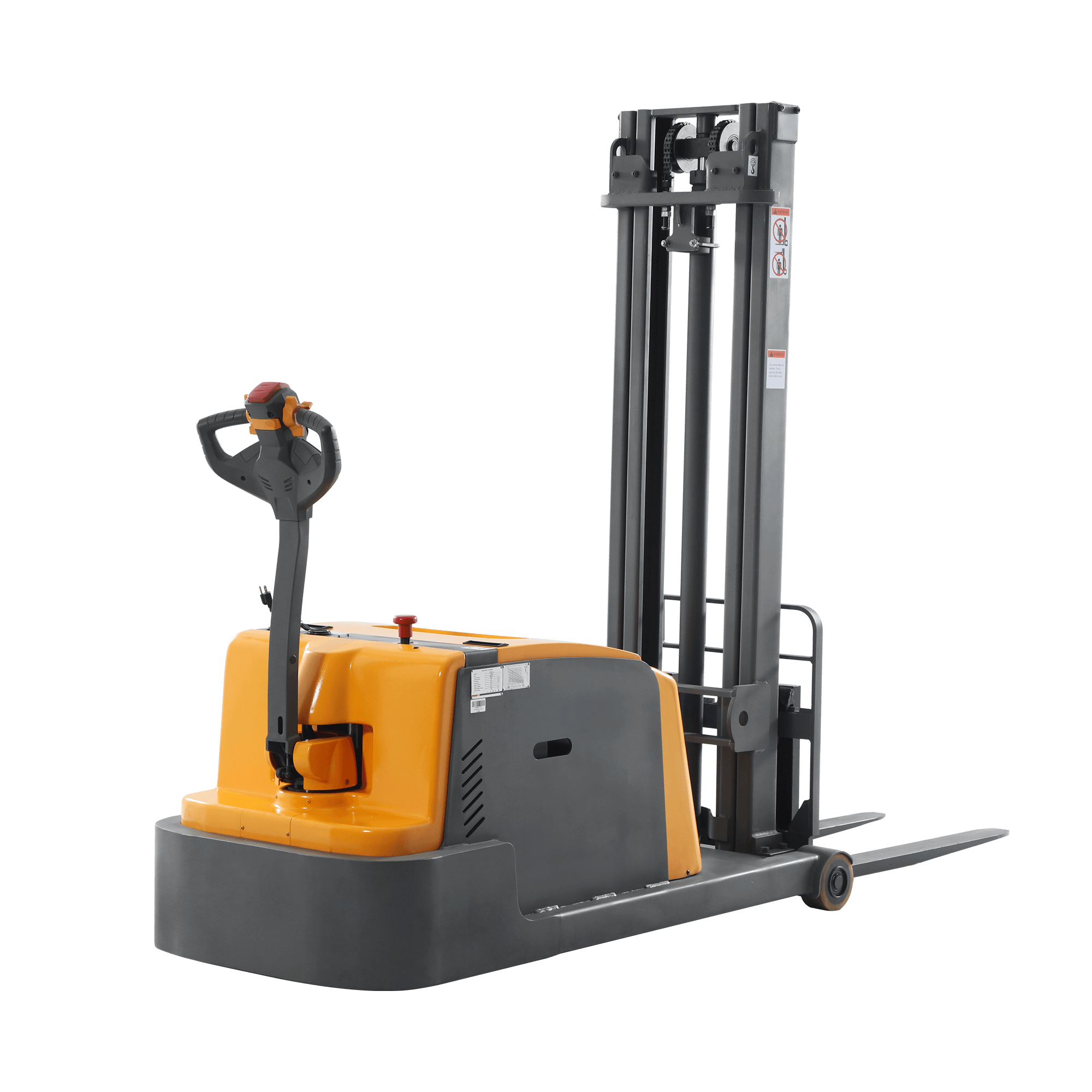

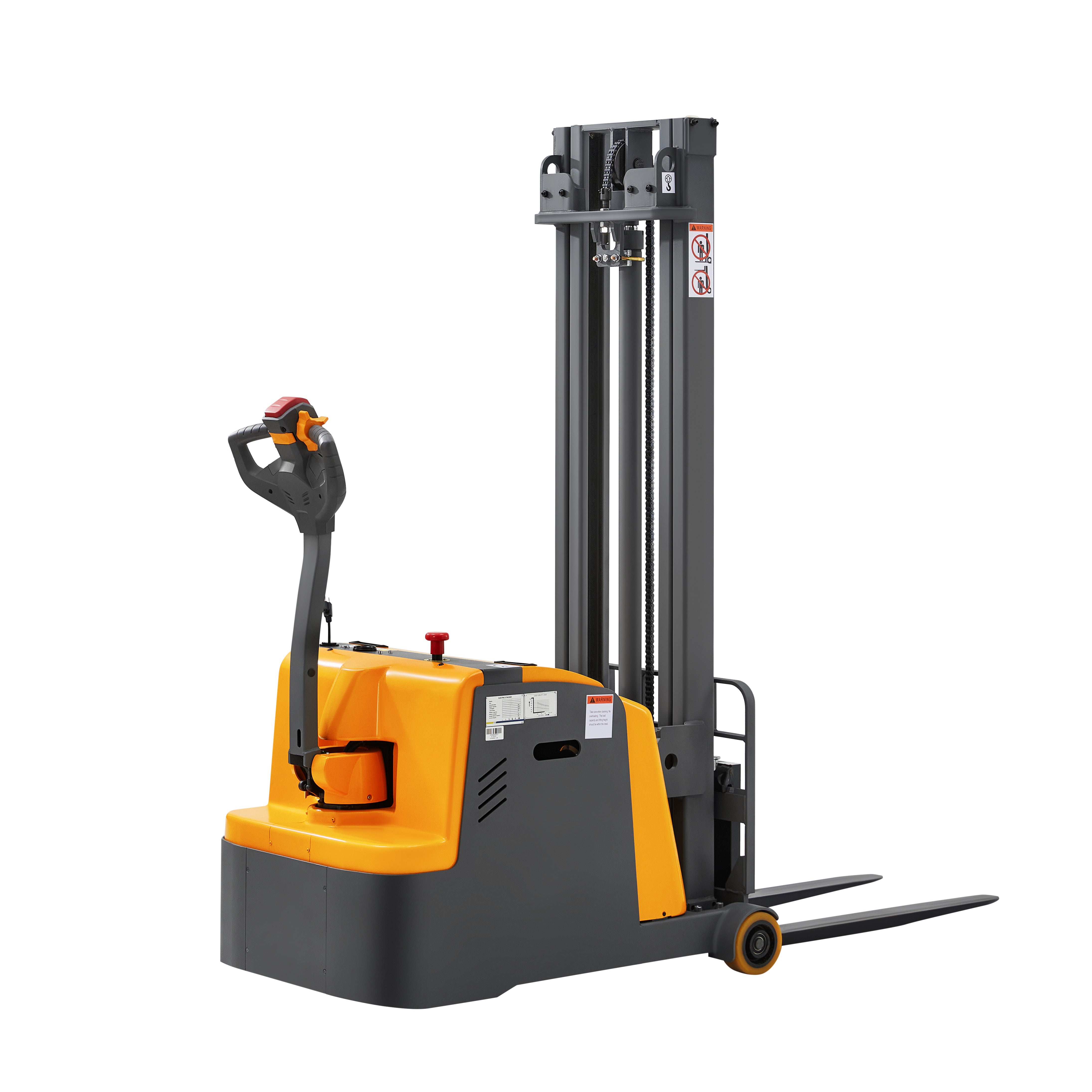

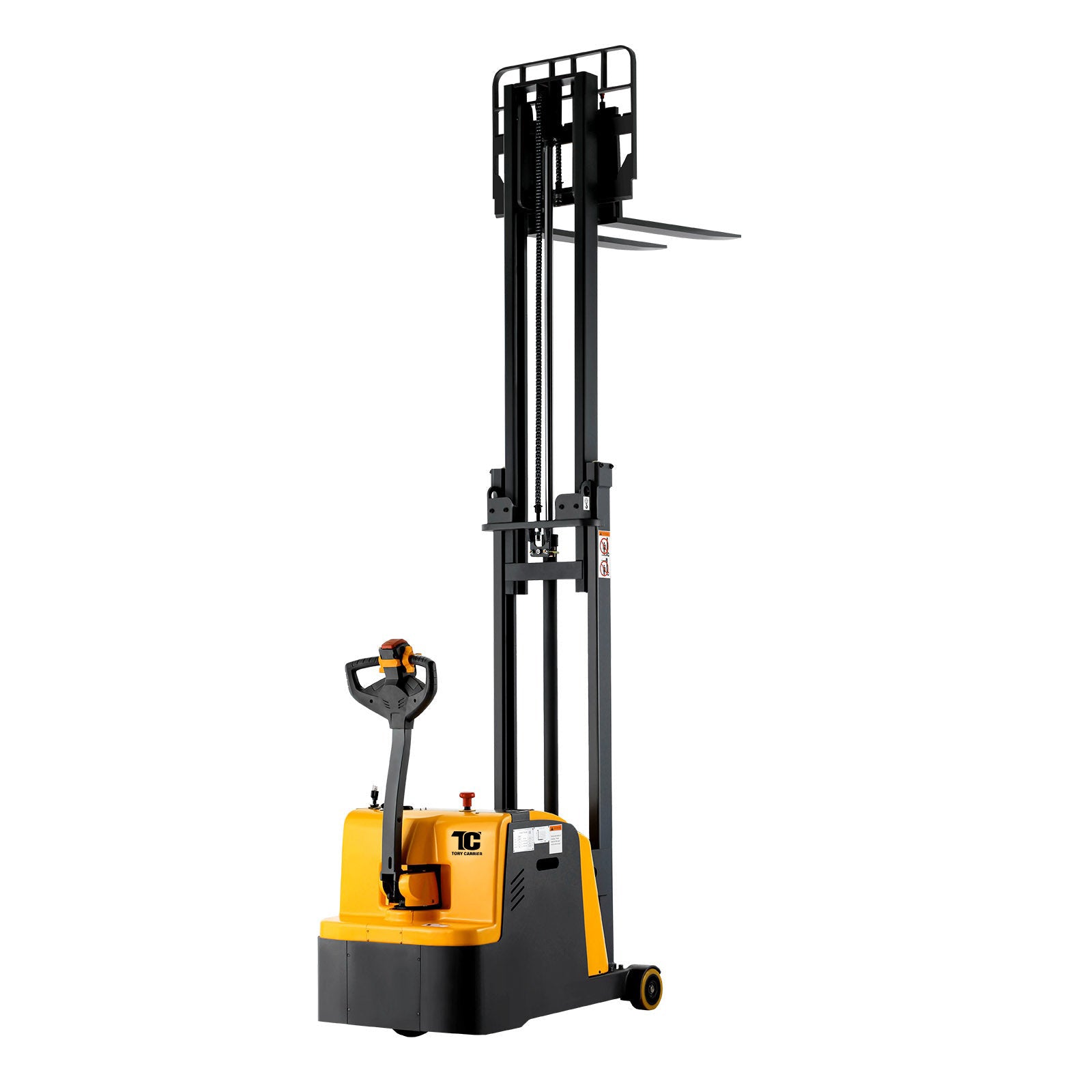

The Tory Carrier Electric Counterbalance Stacker is engineered for seamless loading and unloading of containers and trucks. With a 1200 lb capacity and 118" lift height, its legless fork design and tilt-assist system streamline stacking tasks—ideal for busy warehouse and distribution operations.
Key Features
Legless Fork Design: Enables full access to closed pallets and container loads without support legs.
Tilt Assist System: Simplifies loading and stacking for faster, more efficient workflows.

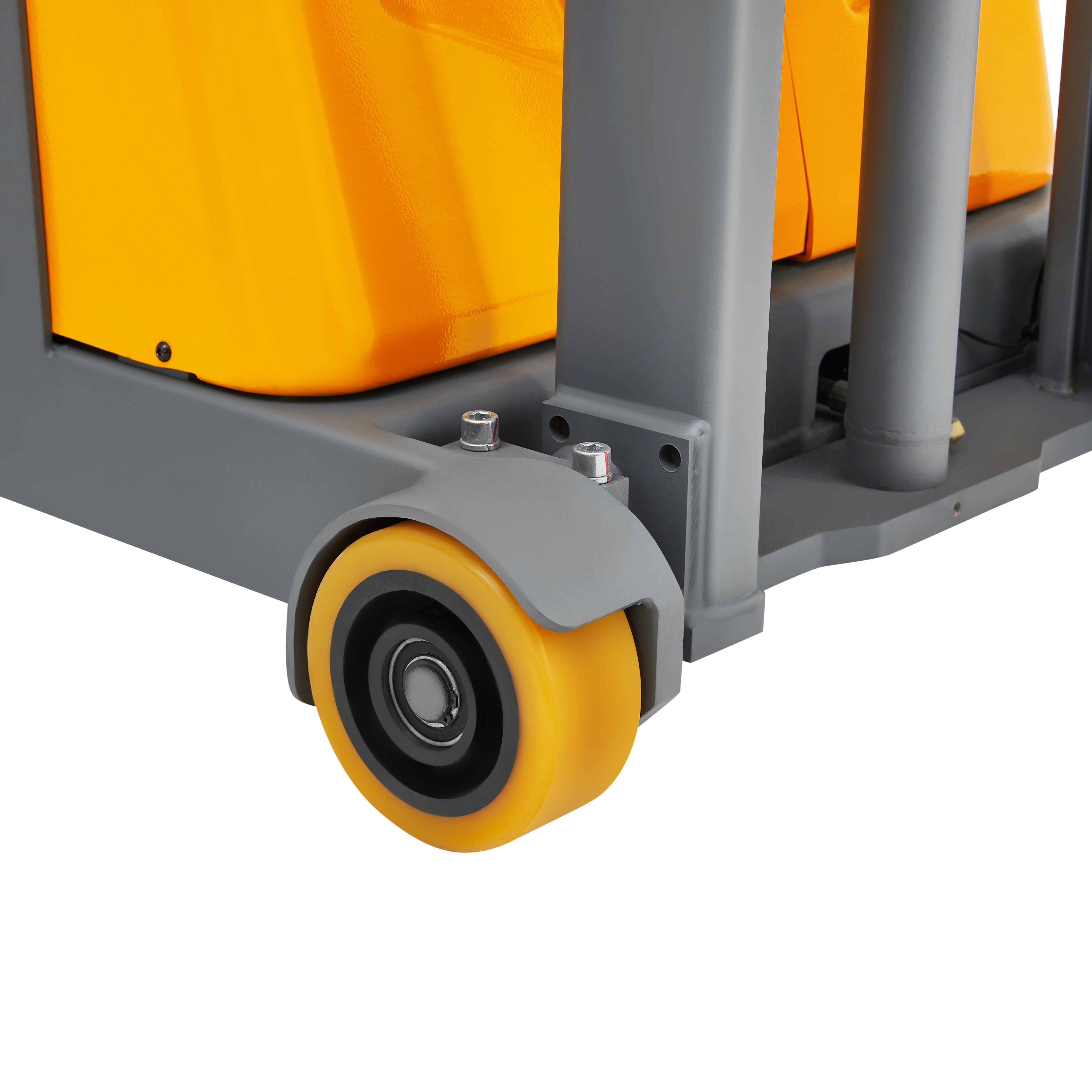

Three-Point Support: Front wheels carry the load while the rear drive wheel ensures optimal force distribution.
Terrain Adaptability: Smooth passability and stability on a variety of surfaces, from concrete to uneven floors.
Top‑Mounted Drive Wheel: Easy access for quick maintenance and minimal downtime.
Modular Electrical Design: 90% integrated components allow fast servicing and reduced repair time.
Battery Care Tip: Charge once a month when not in use to prolong battery life and maintain performance.

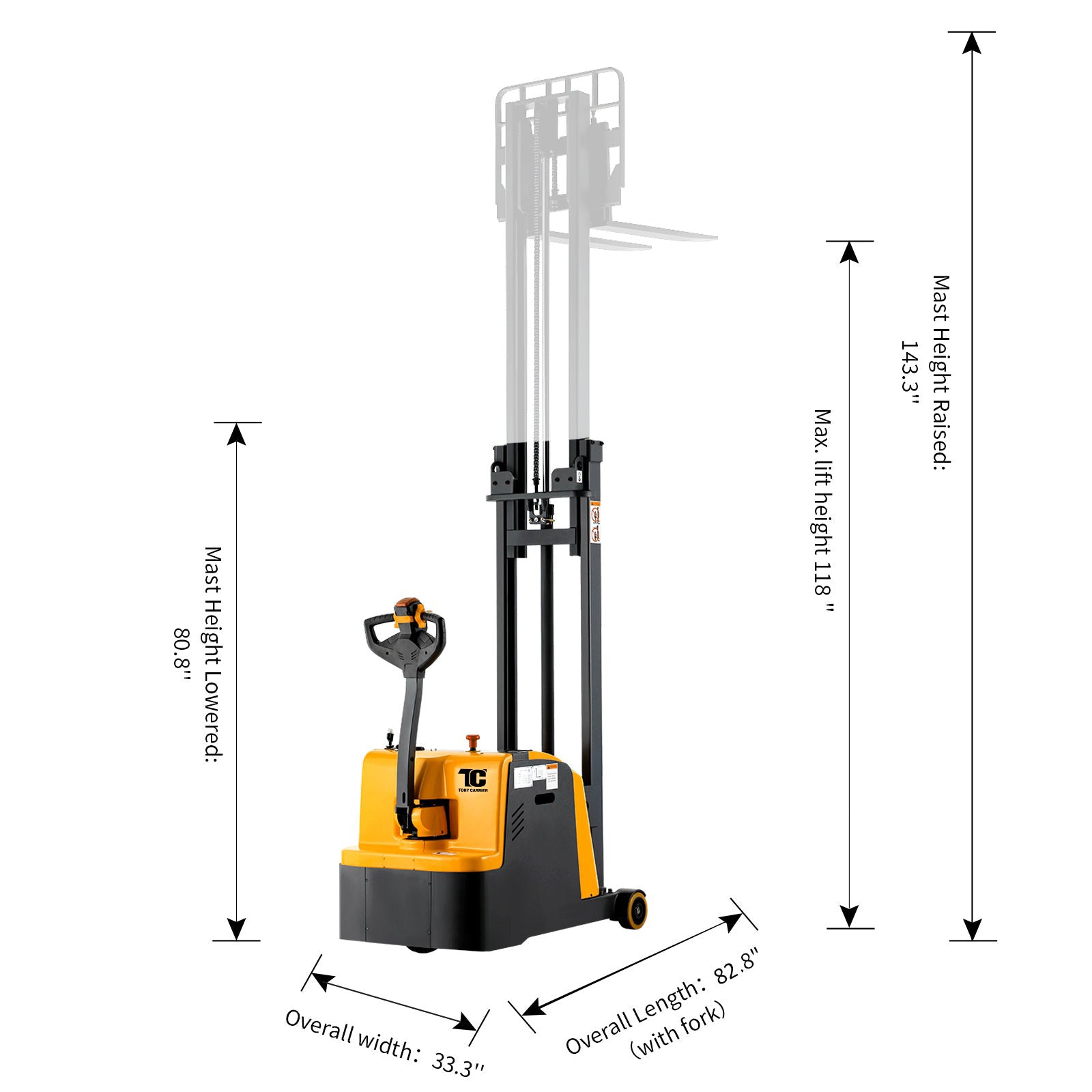

| Capacity | 1200 lb |
| Overall Length | 82.8 in |
| Overall Width | 33.3 in |
| Fork Length | 37.4 in |
| Forks Overall Width | 8.7–25.4 in |
| Fork Thickness | 1.3 in |
| Single Fork Width | 3.9 in |
| Inside Distance Between Forks | 0.9–17.6 in |
| Fork Lowered Height | 1.3 in |
| Turning Radius | 46.1 in |
| Aisle Width | 108.3 in |
| Service Weight | 2038 lb |
| Driving Speed (Laden) | 2.5 mph |
| Driving Speed (Unladen) | 2.8 mph |
| Lifting Speed (Laden) | 6.7 in/s |
| Lifting Speed (Unladen) | 9.8 in/s |
| Lowering Speed (Laden) | 5.5 in/s |
| Lowering Speed (Unladen) | 5.5 in/s |
| Battery Type | Gel Battery |
| Battery Capacity | 105AH |
| Battery Voltage | 24V |
| Charger | 24V/10A built-in |
| Mast Lowered Height | 80.8 in |
| Mast Extended Height | 143.3 in |
| Load Center | 15.7 in |
| Gross Weight | 2048 lbs |
| Package Size | 48 x 34 x 85 in |

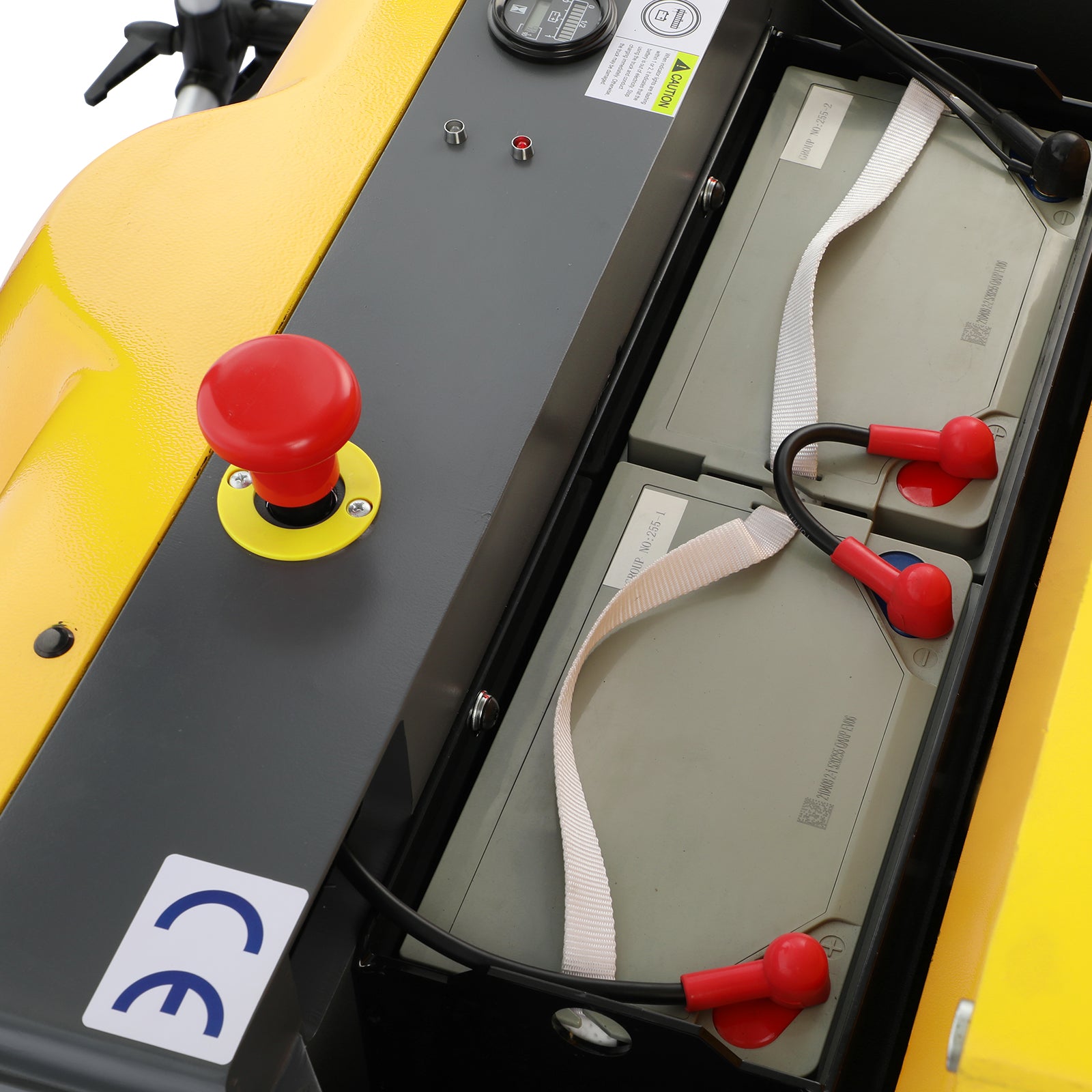

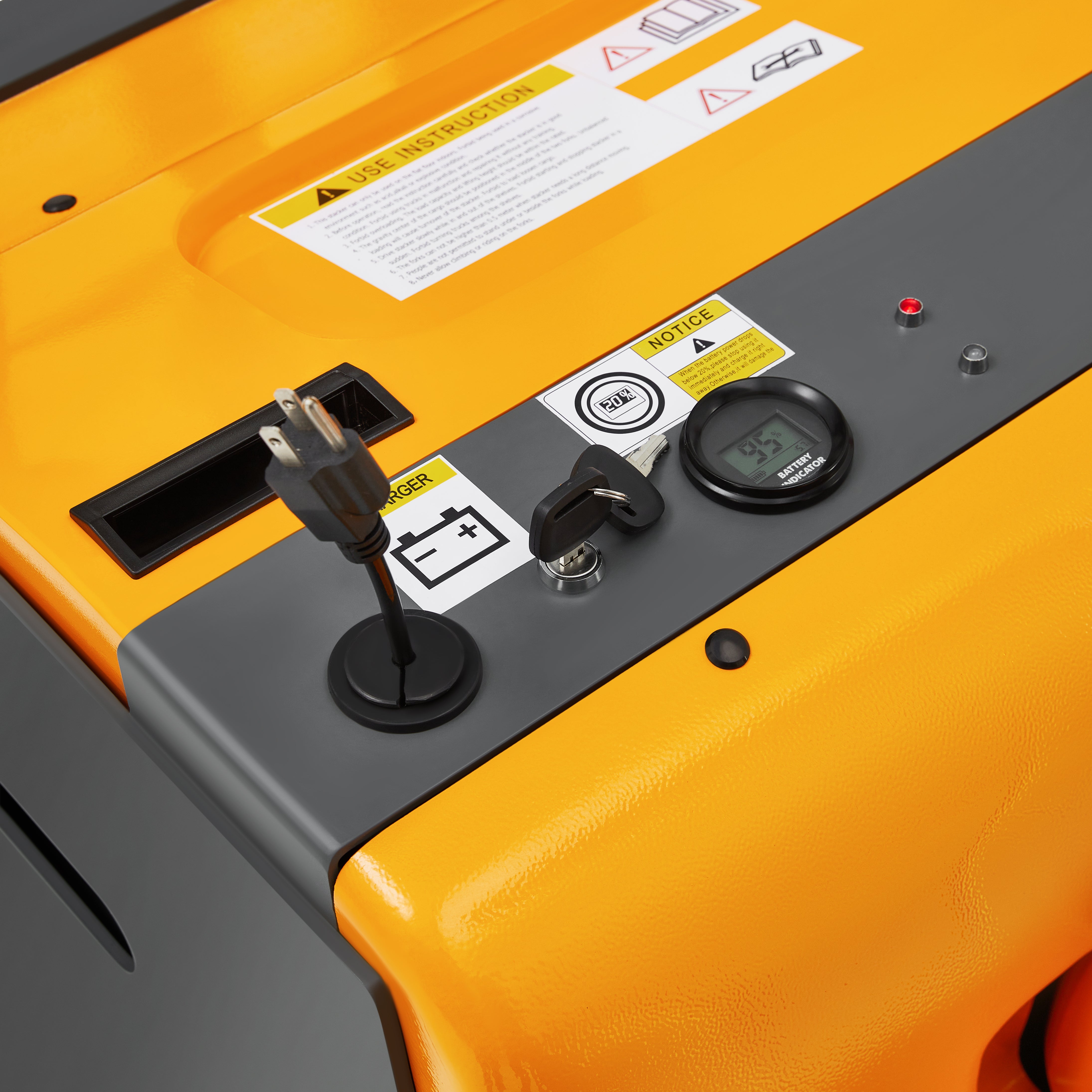

With emergency stop switch and electricity lock button
Long handle structure makes it steering light and flexible.

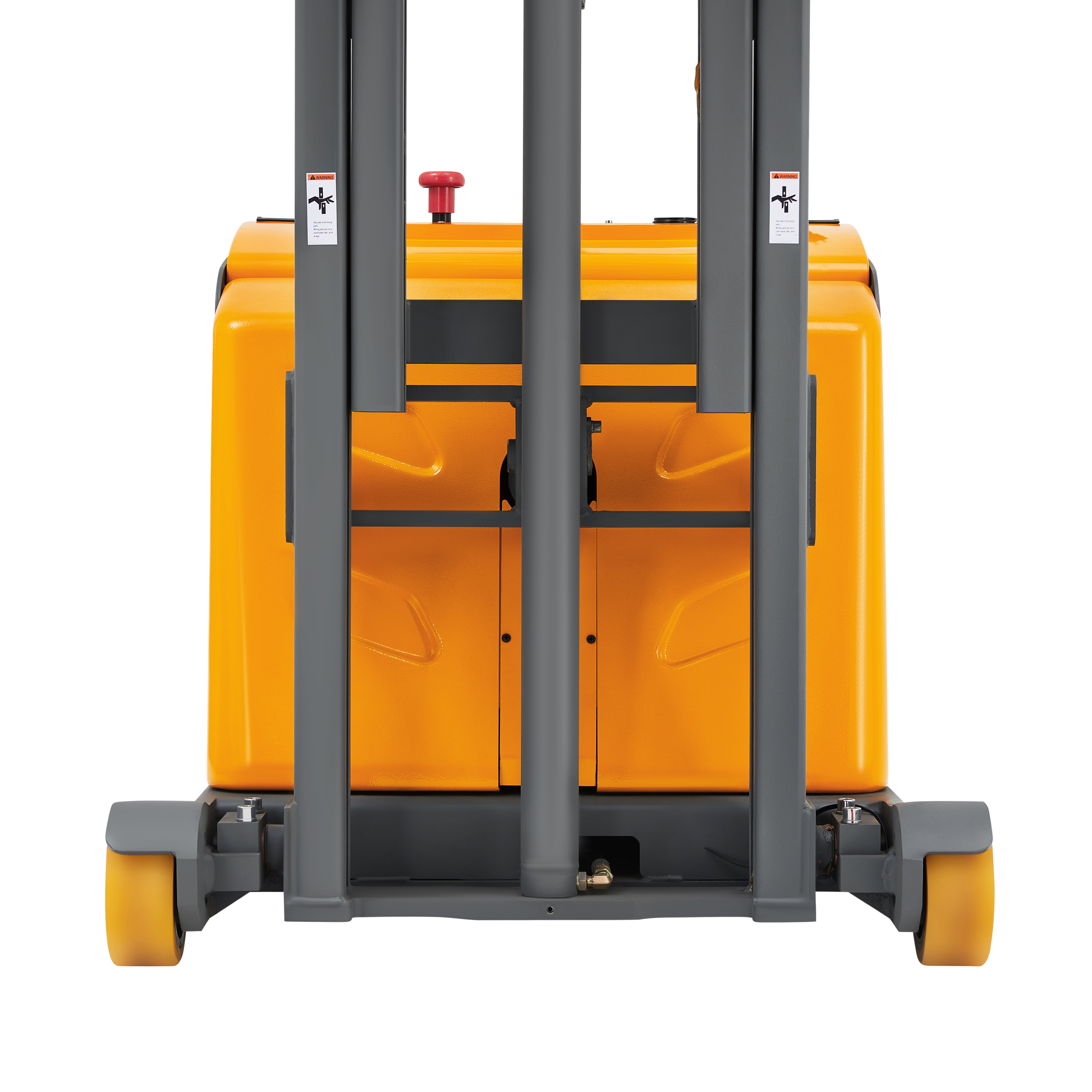

Reinforced steel wide gantry for a wide field of view.
Warranty
1-Year Warranty from Delivery Date
First 30 Days
We offer free replacement parts, free round-trip shipping, and remote technical support.
Day 31 to 1 Year
We provide free replacement parts and cover one-way shipping. Customers are responsible for return shipping if needed.
After 1 Year
We offer lifetime technical support. Customers cover the cost of parts and shipping.
Special Coverage
Battery warranty is 6 months.
Spare parts warranty is 3 months.
Used units include a 3-month parts-only warranty with no labor or returns.
Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Care Tip
To maintain battery health, charge it at least once a month when not in use.
