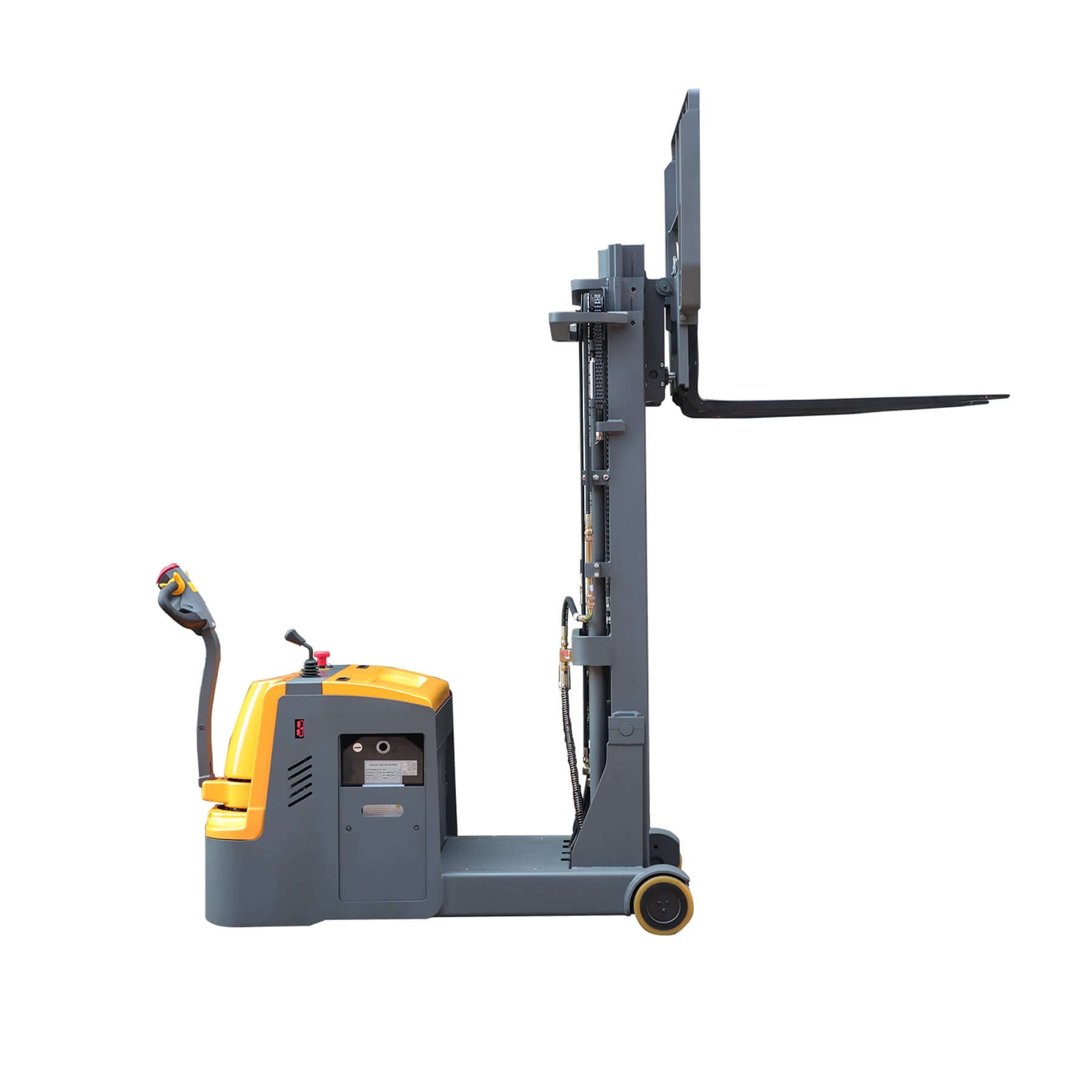

Electric Counterbalance Stacker – 3300 lb Capacity, 177" Lift Height

$14,800.00
SKU: A-3032
3 in stock

Pickup available at GA

Usually ready in 24 hours

⛟ Fast Shipping: Orders typically ship within 2 business days. Final shipping cost is automatically calculated at checkout based on your ZIP code.

Product details

Built for high stacking and tight spaces, the A-3032 delivers 3,300 lbs of lifting capacity and a towering 177" maximum lift height. Its leg-free frame, powerful AC motor, and 24V/280Ah high-capacity battery make it the perfect solution for intensive warehouse and industrial operations.

💡 Key Features & Benefits

  • Stable Rounded Chassis – Wide, low-profile frame ensures superior balance during lifting.

  • 3-Wheel Steering System – Walk-behind handle for smooth maneuverability and precise control.

  • Leg-Free Fork Design – Accesses closed-bottom pallets and fits easily under racks.

  • Multi-Function Handle – Integrated controls for lift, drive, tilt, horn, reverse, and turtle speed.

  • Smart Speed Zones – Automatic speed adjustments with throttle precision and zone braking.

  • Electromagnetic Brakes – Short braking distance, low maintenance.

  • Low Noise Operation – Vibration-dampened motor and quiet hydraulic system reduce fatigue.

  • Brushless AC Motor – Delivers strong incline performance with reduced wear.

  • Digital Monitoring Panel – Real-time display of battery status, fault codes, and working hours.

  • Comprehensive Safety System – Includes anti-drop valve, emergency stop, belly switch, and battery interlock.

  • Hydraulic Lift & Tilt – Smooth mast operation via lever-controlled gear pump.

  • Quiet Hydraulic Circuit – Multi-way valve with integrated oil tank and low-noise pump.

  • Modular Service Design – 90% integrated components for easier maintenance and quick service access.

  • Safe Onboard Charging – 24V/40A external charger with built-in safety interlock.

  • Regenerative Braking – Recovers energy during deceleration, extending brake and battery life.

  • High-Capacity Battery – 24V / 280Ah battery supports extended shifts and heavy-duty performance.

Specification Value
Load Capacity 3,300 lbs
Load Center 19.7″
Turning Radius 61.8″
Aisle Width 120.9″
Fork Dimensions 42″ L × 8.7–26.7″ W × 1.3″ Thick
Inside Fork Width 0.9″–19″
Overall Size 109.4″ L × 39″ W
Max Lifting Height 177″
Mast Height (Lowered/Extended) 82.1″ / 216.5″
Fork Lowered Height 1.4″
Battery 24V / 280Ah
Charger 24V / 40A External
Travel Speed (L/U) 3.6 / 3.7 mph
Lifting Speed (L/U) 4.7 / 7.5 in/s
Lowering Speed (L/U) 9.8 / 7.8 in/s
Service Weight 4,740 lbs

👉Installation and Operation Video

With emergency stop switch and electricity lock button

Long handle structure makes it steering light and flexible.

Reinforced steel wide gantry for a wide field of view.

Counterbalance Stacker FAQ

What is the maximum load capacity of Tory Carrier Counterbalance Stackers?

Depending on the model, Tory Carrier Counterbalance Stackers can handle loads ranging from 1,200 lbs to 3,300 lbs, suitable for medium to heavy-duty warehouse operations.
Are these stackers suitable for narrow aisle applications?

Yes, Counterbalance Stackers are designed with compact turning radii and optimized mast designs, making them efficient in narrow aisles while maintaining stability.
What type of power options are available?

Tory Carrier Counterbalance Stackers come with electric drive systems, powered by 24V–48V batteries, offering long operating hours, low maintenance, and zero emissions for indoor use.
How is operator safety ensured?

Safety features include electromagnetic service brakes, overload protection, mast tilt limiters, ergonomic standing or seated controls, and non-marking PU wheels for stable and secure handling.

Warranty & Support

1-Year Limited Warranty

All new equipment is covered by a 1-year limited warranty. For detailed terms, please refer to our official warranty policy or contact our support team.

Battery Maintenance
  • Charge the battery at least once a month to prolong lifespan, even when the equipment is not in use.
Warranty Exclusions
  • Misuse, neglect, modifications, or force majeure events.
  • Normal wear, consumables, and damage caused by improper operation.
Special Items
  • Accessories: 6-month warranty.
  • Batteries: 12-month warranty.
  • Used Machines: 6-month limited warranty (parts-only).
