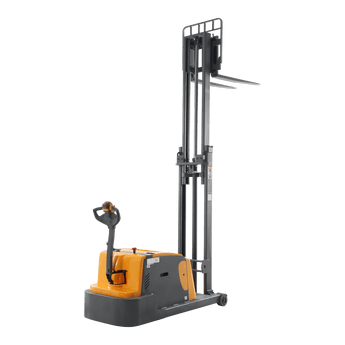

Electric Counterbalance Stacker – 3300 lb Capacity, 118" Lift Height

$9,800.00
SKU: A-3048
Lifting Height: 118"
8 in stock

Pickup available at GA

Usually ready in 24 hours

⛟ Fast Shipping: Orders typically ship within 2 business days. Final shipping cost is automatically calculated at checkout based on your ZIP code.

Lifting Height

Product details

The TORY CARRIER A-3048 is a compact, heavy-duty counterbalanced electric stacker engineered for tight aisles and demanding warehouse work. With a 3,300 lb rated capacity and 118" maximum lift, it combines stability, quiet operation, and easy maintenance for reliable daily performance.

Key Features & Benefits

  • No-leg counterbalanced design — full access to closed-bottom and low-clearance pallets without front straddle legs.
  • Rounded chassis & low center of gravity — smooth, stable stacking in narrow aisles.
  • Walk-behind steering with 3-point support — precise maneuverability in tight spaces.
  • Multi-function textured handle — fingertip control for lift/lower, forward/reverse, horn and turtle (slow) mode.
  • Smart speed logic — proportional throttle for smooth acceleration and auto-brake in standby zones.
  • Electromagnetic brakes — short stopping distance with low maintenance.
  • Brushless AC drive motor — strong ramp power, longer life, no brush replacement.
  • Quiet operation — shock-absorbing mounts and low-noise motor keep sound under 70 dB(A).
  • Digital dashboard — real-time battery level, operating hours, and fault codes.
  • Full safety package — emergency stop, belly switch, anti-drop valve, interlock and high-visibility mast.
  • Smooth hydraulic mast & tilt lever — stable lifting and controlled tilting action.
  • Regenerative braking — energy recovery during deceleration reduces wear.
  • Onboard charging (24V/10A) — integrated charger with protection for convenient daily charging.
  • Easy maintenance layout — ~90% modular components and clear wiring for fast servicing.

Technical Highlights

  • Rated capacity: 3,300 lb
  • Max lift height: 118"
  • Battery: 24V / 125Ah sealed battery
  • Charger: Built-in 24V/10A
  • Drive: Brushless AC motor
  • Noise level: < 70 dB(A)

Ideal Applications

Warehouses / Retail stockrooms / Manufacturing / Narrow aisles / Closed-bottom pallet handling

Partial assembly required. For optimal battery life, charge the unit at least once a month when not in regular use.

TORY CARRIER A-3048 Technical Specifications
Load Capacity 3,300 lbs
Load Center 19.7"
Turning Radius 66.9"
Aisle Width 128"
Fork Dimensions 37.4" L × 8.7–25.4" W × 1.3" Thick
Inside Fork Width 0.9"–17.6"
Overall Dimensions 109.4" L × 34.7" W
Max Lifting Height 118"
Mast Height (Lowered / Extended) 81.3" / 146"
Fork Lowered Height 1.4"
Battery 24V / 125Ah Lead-Acid
Charger 24V / 10A Built-in
Service Weight 3,460 lbs

👉Installation and Operation Video

With emergency stop switch and electricity lock button

Long handle structure makes it steering light and flexible.

Reinforced steel wide gantry for a wide field of view.

Warranty

1-Year Warranty from Delivery Date

First 30 Days
We offer free replacement parts, free round-trip shipping, and remote technical support.

Day 31 to 1 Year
We provide free replacement parts and cover one-way shipping. Customers are responsible for return shipping if needed.

After 1 Year
We offer lifetime technical support. Customers cover the cost of parts and shipping.

Special Coverage

Battery warranty is 6 months.
Spare parts warranty is 3 months.
Used units include a 3-month parts-only warranty with no labor or returns.

Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Care Tip

To maintain battery health, charge it at least once a month when not in use.

Counterbalance Stacker FAQ

What is the maximum load capacity of Tory Carrier Counterbalance Stackers?

Depending on the model, Tory Carrier Counterbalance Stackers can handle loads ranging from 1,200 lbs to 3,300 lbs, suitable for medium to heavy-duty warehouse operations.
Are these stackers suitable for narrow aisle applications?

Yes, Counterbalance Stackers are designed with compact turning radii and optimized mast designs, making them efficient in narrow aisles while maintaining stability.
What type of power options are available?

Tory Carrier Counterbalance Stackers come with electric drive systems, powered by 24V–48V batteries, offering long operating hours, low maintenance, and zero emissions for indoor use.
How is operator safety ensured?

Safety features include electromagnetic service brakes, overload protection, mast tilt limiters, ergonomic standing or seated controls, and non-marking PU wheels for stable and secure handling.
