Product details

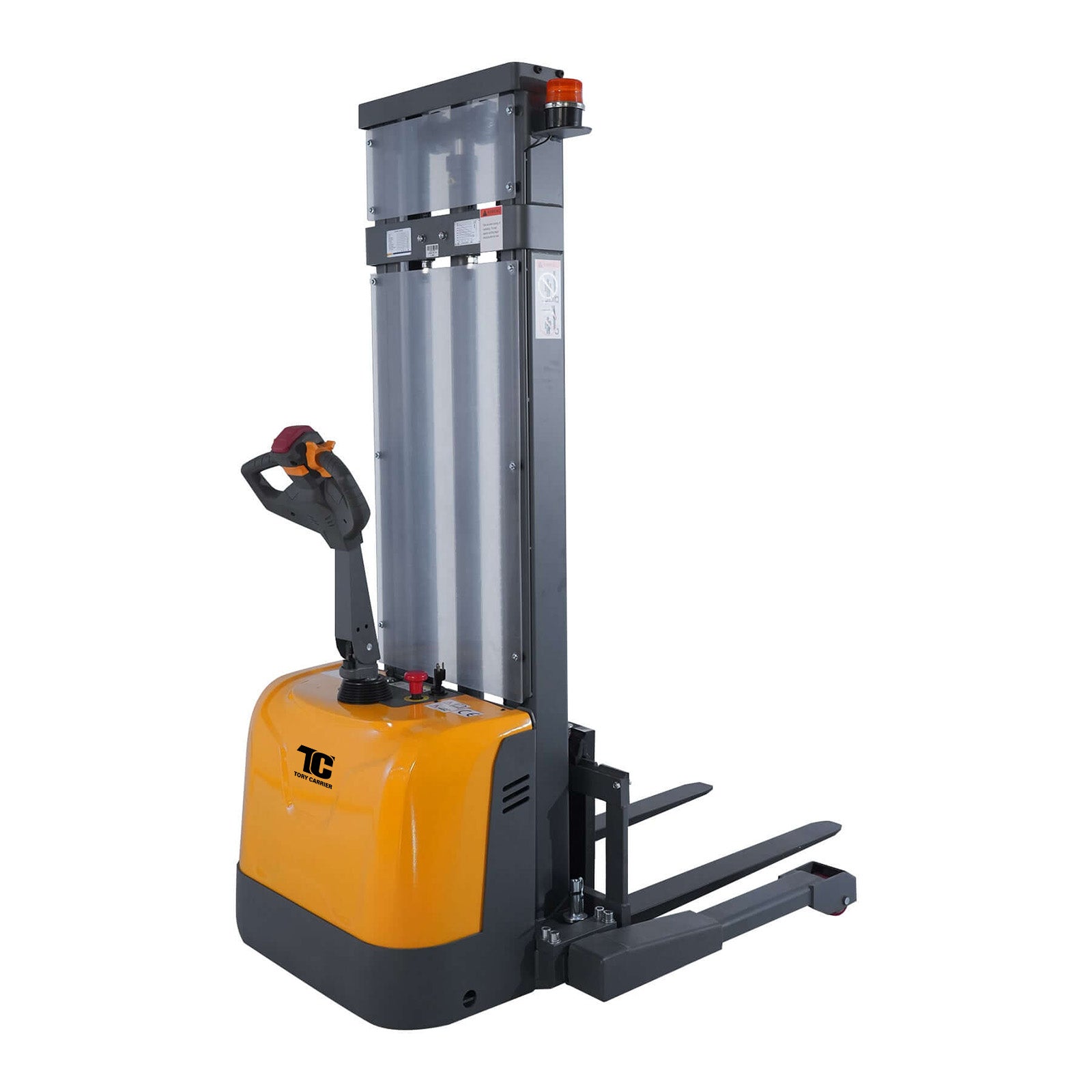

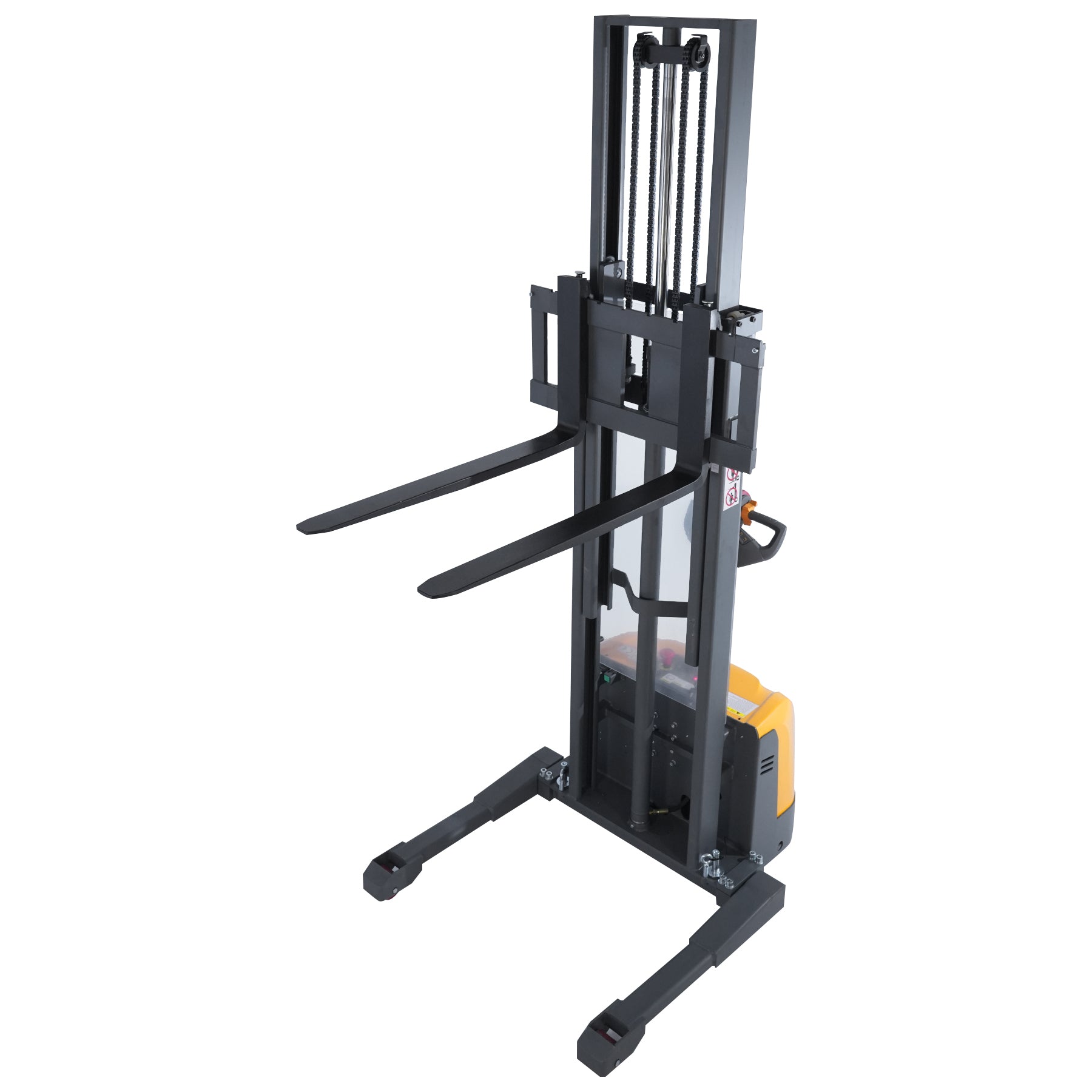

The TORY CARRIER 3300 lb Lithium Electric Straddle Stacker is designed for efficient warehouse lifting, stacking, and pallet handling applications that require extended reach. With a maximum lift height of 130 inches, this electric stacker helps operators access higher storage levels, optimize vertical space, and improve workflow efficiency in warehouses, distribution centers, and industrial facilities.
Powered by a 24V/60Ah lithium battery, this stacker delivers reliable power, longer service life, faster charging, and reduced maintenance compared with traditional lead-acid battery models. The built-in 24V/25A charger provides convenient onboard charging without requiring an external charger, helping minimize downtime and keep your operation running smoothly.
Featuring adjustable straddle legs and a compact 53-inch turning radius, this stacker offers excellent flexibility for different pallet sizes and tight working environments. The 650W drive motor and 2200W lift motor provide smooth travel, stable lifting, and dependable performance for daily material handling tasks.
Built with operator safety and convenience in mind, it includes a protective mast shield, warning light, audible buzzer, battery level display, working hour display, and low-voltage alert. With its higher lifting capability and lithium-powered design, this electric straddle stacker is an ideal solution for businesses looking to maximize storage efficiency while reducing equipment maintenance.
Features
- 3300 lb Load Capacity: Provides reliable lifting performance for pallet handling, stacking, and warehouse operations.

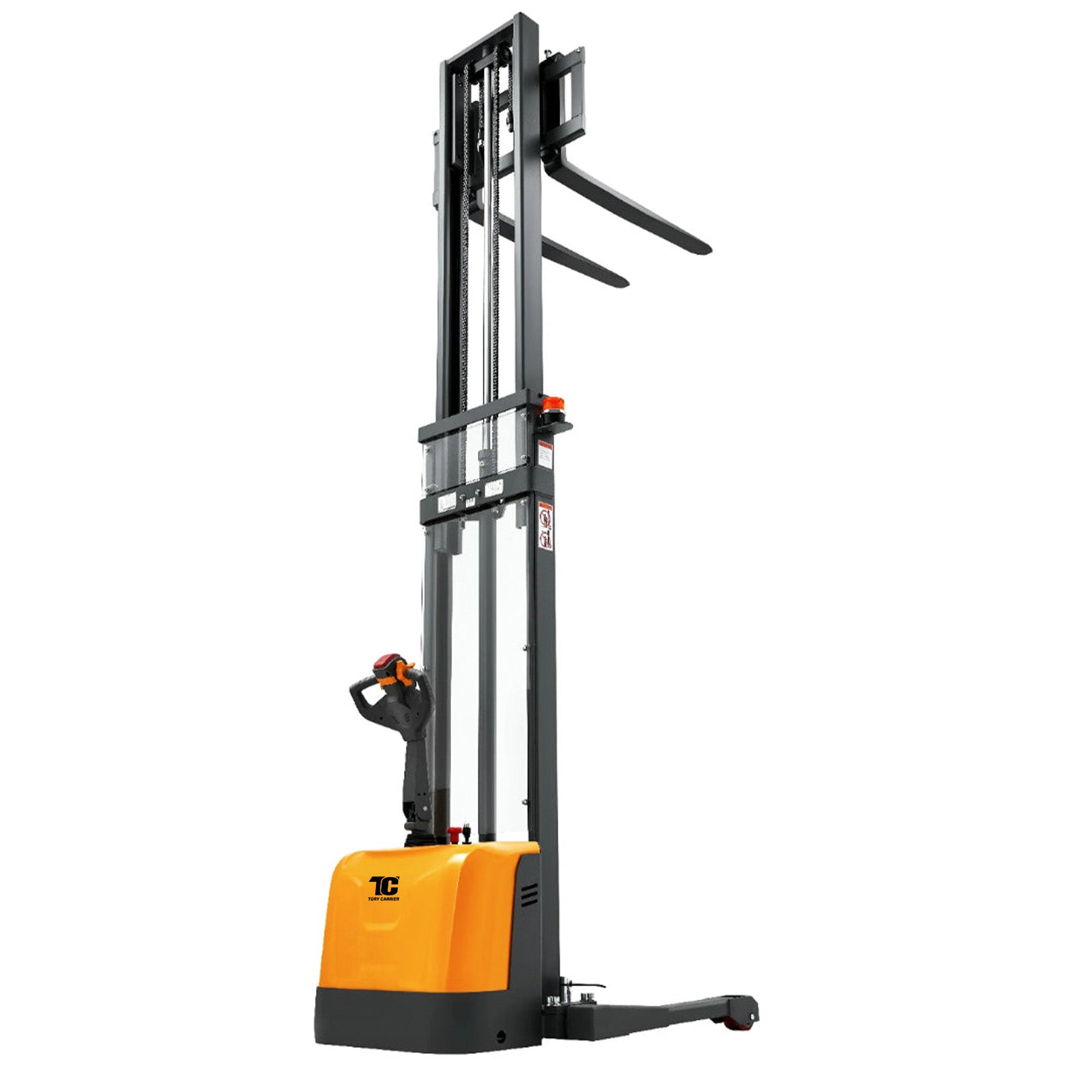

- 130" Maximum Lift Height: Extended lifting height allows operators to reach higher storage locations and maximize vertical warehouse space.
- 24V/60Ah Lithium Battery: Delivers longer runtime, faster charging, lower maintenance, and consistent power output compared with traditional lead-acid batteries.
- Built-in 24V/25A Charger: Integrated charger design enables convenient charging without additional charging equipment and helps reduce operational downtime.
- Fast Charging & High Efficiency: Lithium battery technology supports quicker charging cycles and improves productivity during frequent warehouse operations.
- Adjustable Straddle Legs: Adjustable leg width from 46.5 to 62.3 inches provides compatibility with various pallet sizes and handling requirements.
- Powerful Motor System: Equipped with a 650W drive motor and 2200W lift motor for smooth movement and stable lifting performance.
- Compact Turning Radius: The 53-inch turning radius allows easy maneuvering in narrow aisles and confined warehouse spaces.
- Low Fork Clearance: Forks lower to 2.8 inches, allowing access to low-clearance pallets and different load configurations.
- Narrow Aisle Operation: Designed for efficient operation with an 87.8-inch aisle width requirement, making it suitable for space-conscious facilities.

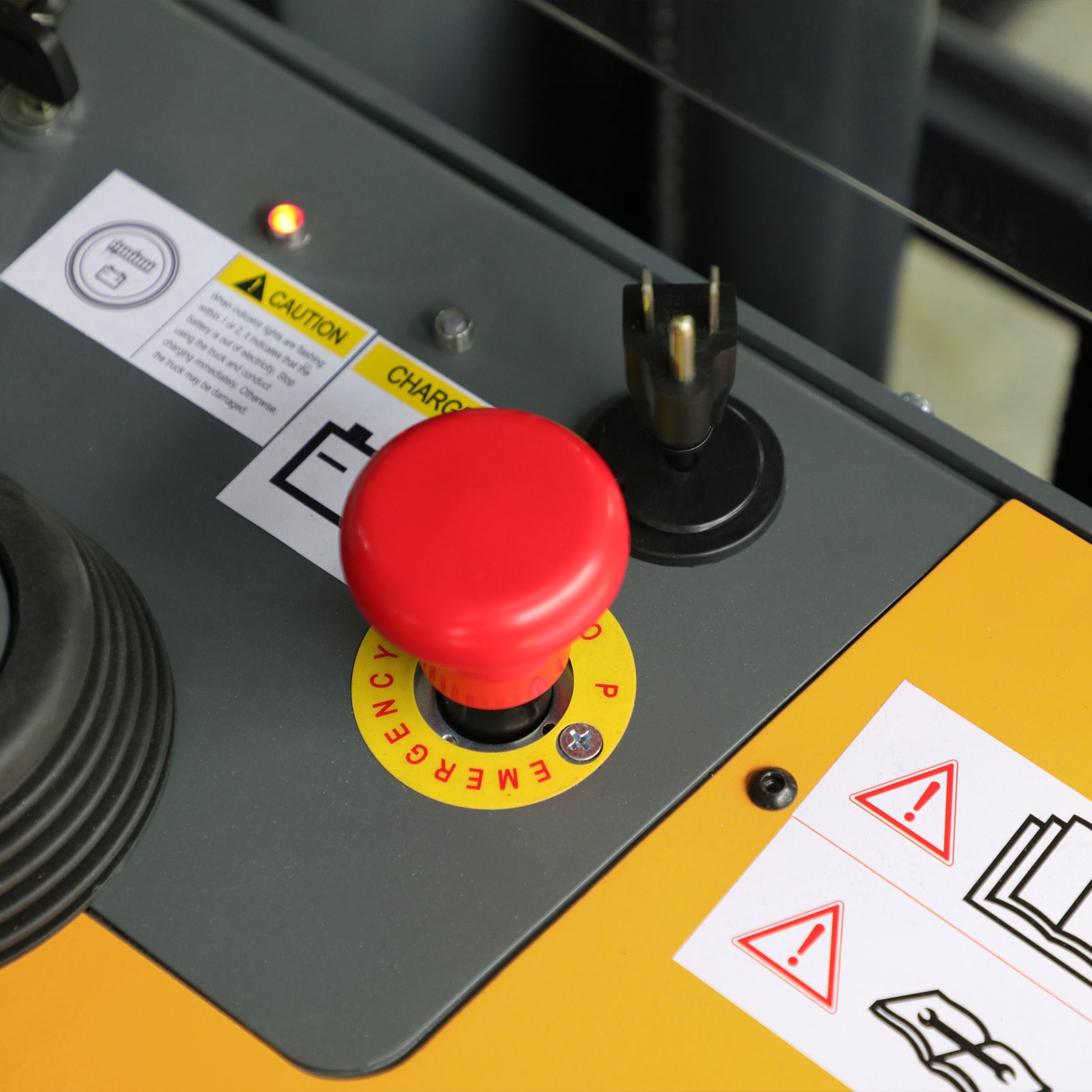

- Enhanced Safety Features: Includes plexiglass mast protection, warning light, audible buzzer, battery display, and low-voltage alert for safer operation.

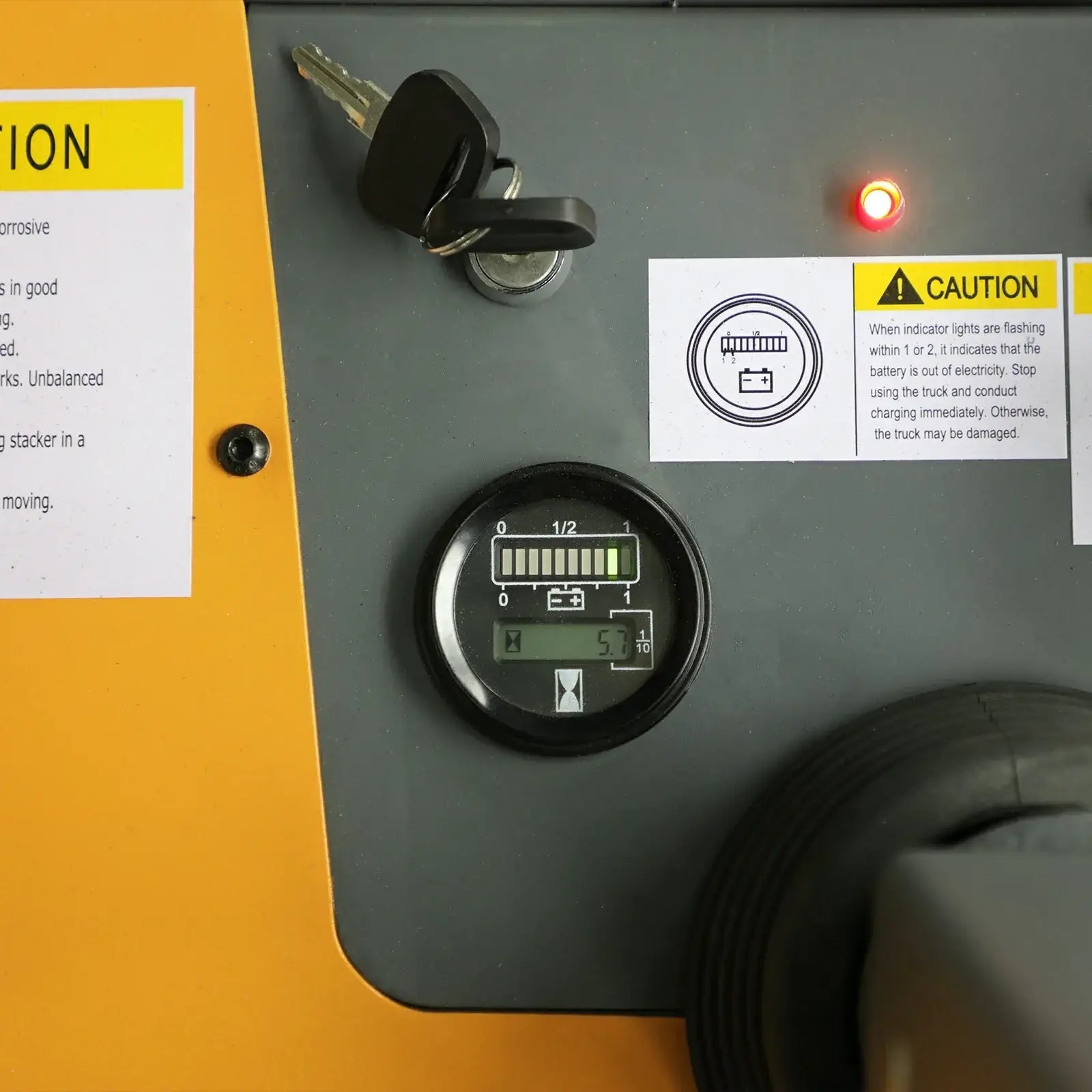

- Battery & Operation Display: Provides real-time battery status, operating hours, and system alerts for easier monitoring.
- Customizable Performance Settings: After-sales engineers can adjust driving speed and acceleration parameters using a compatible Curtis handheld controller to meet different operational requirements.
| Specification | Value |
|---|---|
| Load Capacity | 3300 lbs |
| Load Center Distance | 23.6 inch |
| Height, Mast Lowered | 90.4 inch |
| Max. Lifting Height | 130 inch |
| Height, Mast Extended | 157.3 inch |
| Fork Lowered Height | 2.8 inch |
| Overall Length | 68.9 inch |

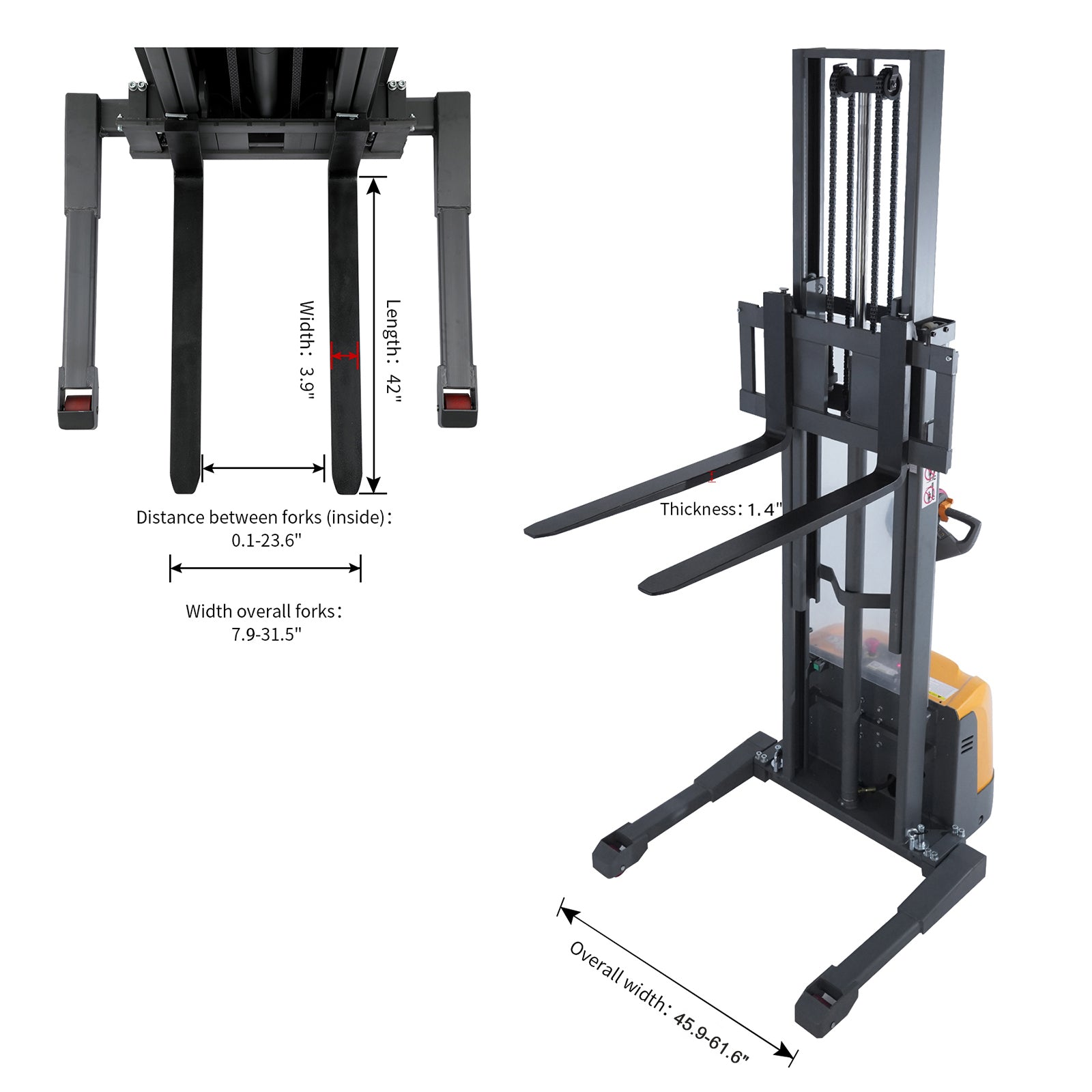

| Overall Width | 45.9–61.6 inch |
| Width Overall Forks | 7.9–31.5 inch |
| Fork Dimensions (thickness × width × length) | 1.4 × 3.9 × 42 inch |
| Distance Between Forks (inside) | 0.1–23.6 inch |
| Turning Radius | 53 inch |
| Travel Speed (Laden / Unladen) | 2.8 / 3.1 mph |
| Lift Speed (Laden / Unladen) | 3.5 / 5.9 inch/s |
| Lowering Speed (Laden / Unladen) | 5.9 / 4.3 inch/s |
| Battery | 24V / 60Ah Lithium Battery |
| Charger | 24V / 25A built-in |
| Service Weight | 1450 lbs |
Warranty
| Warranty | 1-Year Limited Warranty |
User Documentation
Certifications & Compliance
Designed with Compliance in Mind
This model is UKCA certified to support safer and more reliable material handling operation. Certification coverage may vary by model, so please verify certification details before purchase.
UKCA Certified
Indicates conformity with applicable UK product compliance requirements for this model.
Have Questions About Our Electric Stackers?
What is the difference between a full electric stacker and a Manual stacker?
A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
What type of pallets are compatible with full electric stackers?
This full electric stacker is designed to handle both open-bottom and closed-bottom (block) pallets and is compatible with most standard pallet types.
How long does the battery last on a full charge?
Typically, the battery lasts 4–6 hours under normal use. Charging time is usually 3–5 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?
Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?
Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.
Operation & Maintenance Notes
- Designed for flat indoor warehouse environments for optimal performance.
- Recommended operating temperature: -13°F to 104°F.
- Fully charge the battery before first use to help maximize battery life.
- Compatible with standard 110V–120V outlets.
- To maintain battery health, recharge at least once per month during storage periods.
- For secure transportation, straddle legs and forks are shipped separately and require assembly upon delivery.
