Model: A-3029

3300lbs Full Electric Walkie Stacker, 177"–220" Lift Height, Adjustable Legs & Forks

$12,000.00 $9,599.00 Save $2,401.00
In stock
Key Features
  • 3,300 lb capacity with up to 177-220" lift height.
  • Straddle legs with adjustable 42" x 7.9-31½" forks.
  • Lead-acid battery / 24V / 200Ah electric power system.
  • 68.1" turning radius for tight spaces.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 2–3 business days
Freight Delivery Requirements Unloading requires a forklift or loading dock. Liftgate delivery is not available for this item.
Freight Shipping Cost at Checkout Shipping costs are calculated based on your delivery location at checkout.
Max Lifting Height: 177"
✓ For details on returns and refunds, please see our Return Policy .
Max Lifting Height: 177"

Product details

The TORY CARRIER Full Electric Walkie Stacker delivers powered travel and lifting for demanding warehouse material handling. With a 3,300 lb load capacity and lift heights from 177 to 220 inches, it is designed for high-rack storage, pallet stacking, load positioning, and everyday warehouse operations.

A 24V / 200Ah lead-acid battery provides reliable power throughout the workday, while the AC drive system supports smooth acceleration and precise maneuvering. The extended tiller arm helps reduce steering effort, making the stacker easier to control in aisles and confined work areas.

Adjustable forks and straddle legs accommodate different pallet sizes and handling requirements. The integrated operator display provides clear access to working hours, battery status, and low-voltage alerts. Each stacker includes a compatible battery and charger.

Key Features

  • 3,300 lb capacity for demanding pallet handling applications.
  • 177-220 in lift height options for high-rack storage.
  • Full electric travel and lifting reduce manual effort.
  • 24V / 200Ah lead-acid battery supports extended daily operation.
  • AC drive control provides smooth acceleration and precise handling.
  • Adjustable forks and straddle legs accommodate different pallet sizes.
  • Extended tiller arm improves control in confined work areas.
  • Smart operator display shows operating hours, battery status, and low-voltage alerts.
  • Vertical drive wheel design supports efficient operation and convenient maintenance access.
  • Battery and charger included for a complete equipment package.

Designed for High-Lift Material Handling

This walkie stacker is built for facilities that need to lift palletized loads to elevated storage positions without operating a full-size forklift. Its compact walk-behind design makes it suitable for warehouse aisles, production areas, stockrooms, and other spaces where maneuverability matters.

Recommended Applications

  • High-rack pallet storage
  • Pallet stacking and positioning
  • Inventory movement and order staging
  • Manufacturing and production support
  • Distribution center operations
  • Loading dock and warehouse material handling

What’s Included

  • Full electric walkie stacker
  • 24V / 200Ah lead-acid battery
  • Compatible battery charger
  • Standard operating components

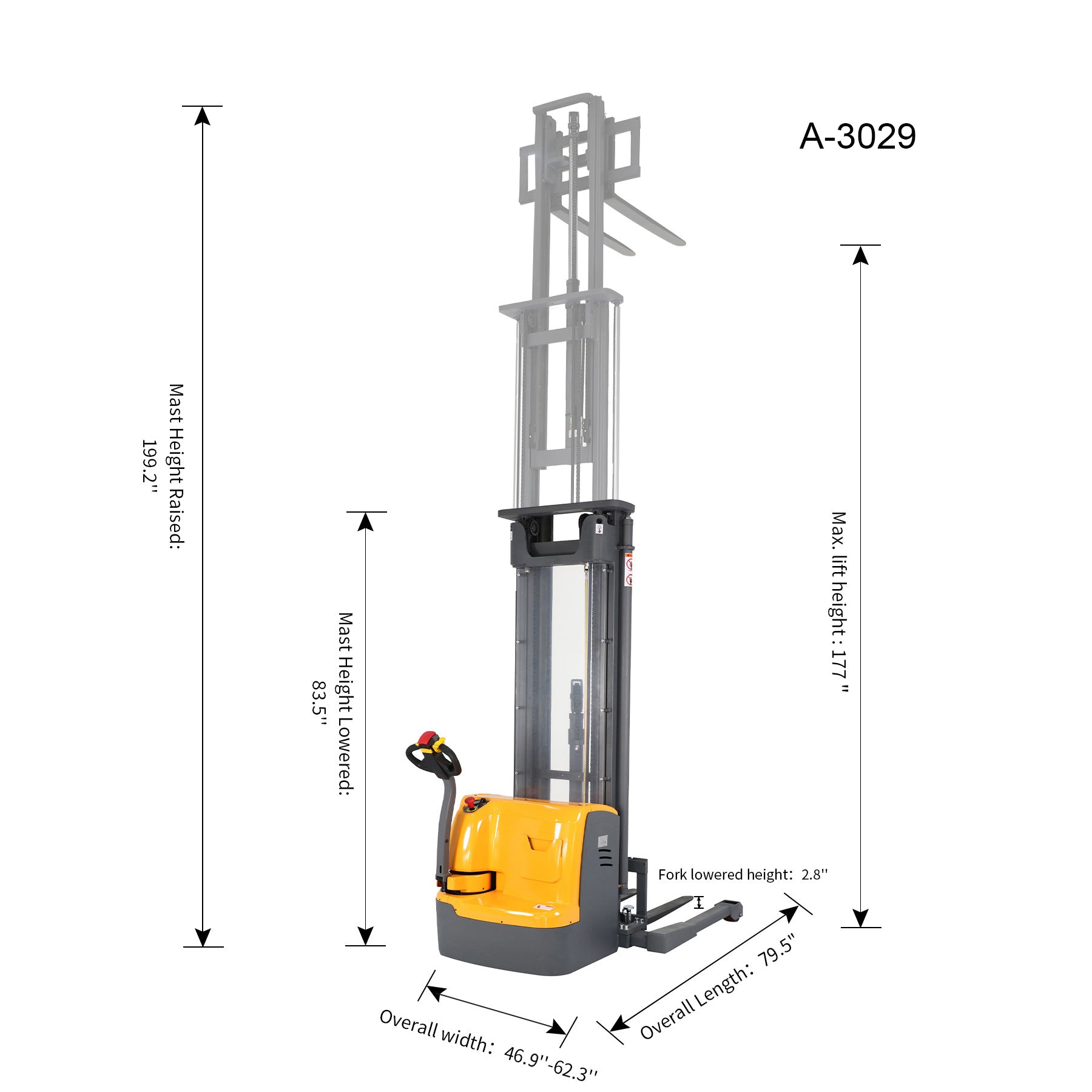

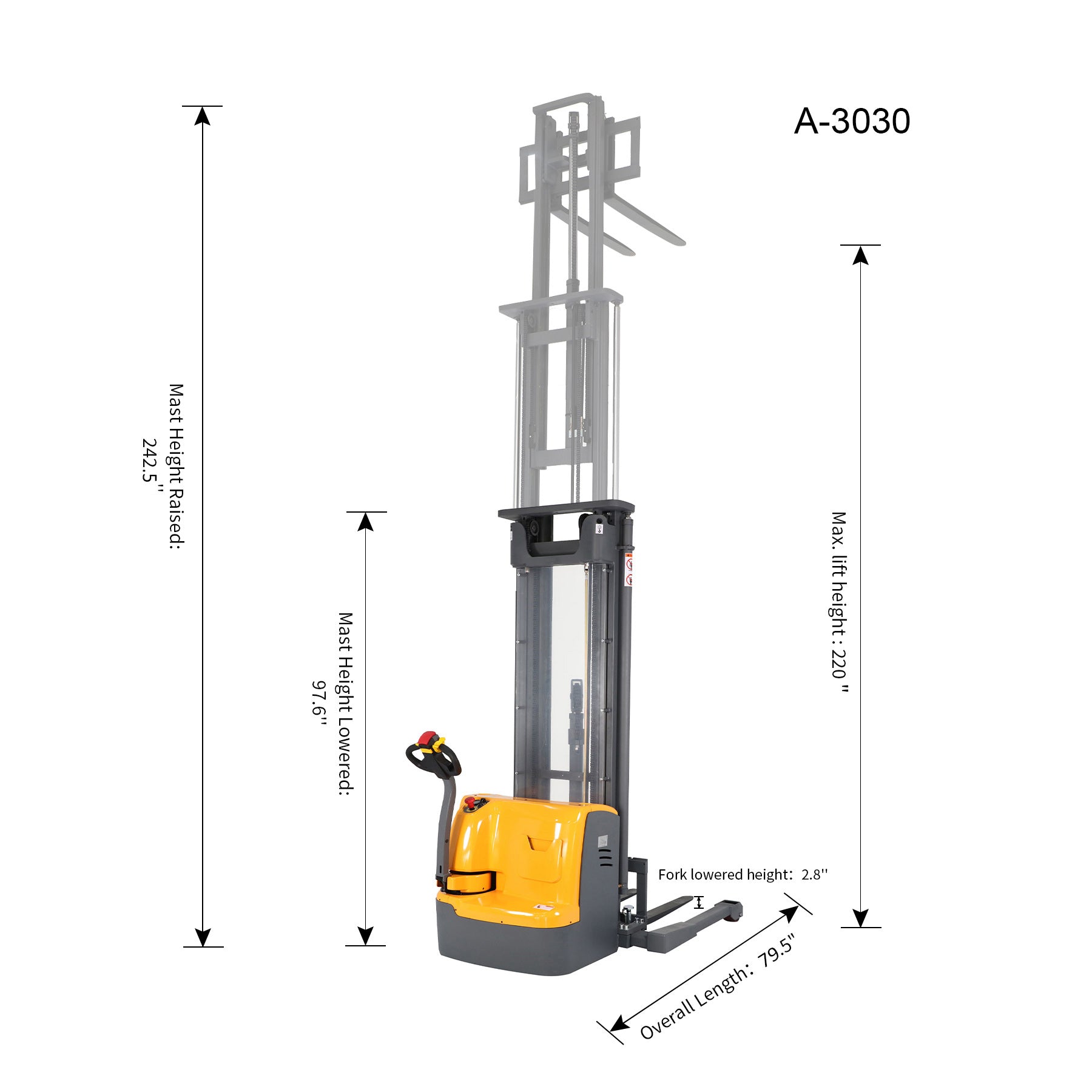

Specification A-3029 A-3030
Load Capacity 3,300 lbs 3,300 lbs
Load Center 23.6 in 23.6 in
Maximum Lift Height 177 in 220 in
Mast Height (Lowered) 83.5 in 97.6 in
Mast Height (Extended) 199.2 in 242.5 in
Fork Dimensions (L × W × T) 42 × 3.9 × 1.4 in 42 × 3.9 × 1.4 in
Adjustable Fork Width 7.9–31.5 in 7.9–31.5 in
Overall Width 46.9–62.3 in 46.9–62.3 in
Overall Length 79.5 in 79.5 in
Turning Radius 68.1 in 68.1 in
Minimum Aisle Width 101.1 in 101.1 in
Travel Speed (Loaded/Unloaded) 3.6 / 3.7 mph 3.6 / 3.7 mph
Lift Speed (Loaded/Unloaded) 3.5 / 6.3 in/s 3.5 / 6.3 in/s
Gradeability (Loaded/Unloaded) 6% / 15% 6% / 15%
Battery Voltage & Capacity 24V / 200Ah 24V / 200Ah
Battery Type Lead-Acid Lead-Acid
Charger 24V / 30A External Charger 24V / 30A External Charger
Service Weight 2,790 lbs 2,980 lbs

Warranty

Coverage 1-Year Limited Warranty

User Documentation

 Product Manual (PDF) Electric Straddle Stacker Product Image

Installation



Certifications & Compliance

Designed with Compliance in Mind

This model is CE and UKCA certified to support safer and more reliable material handling operation. Please verify certification details for the specific model before purchase.

CE

CE Certified

Indicates conformity with applicable European safety, health, and product requirements for this model.

UKCA

UKCA Certified

Indicates conformity with applicable UK product compliance requirements for this model.

Have Questions About Our Electric Stackers?

What is the difference between a full electric stacker and a Manual stacker?

A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
What type of pallets are compatible with full electric stackers?

This full electric stacker is designed to handle both open-bottom and closed-bottom (block) pallets and is compatible with most standard pallet types.
How long does the battery last on a full charge?

Typically, the battery lasts 6–8 hours under normal use. Charging time is usually 8–10 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?

Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?

Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.
