Product details

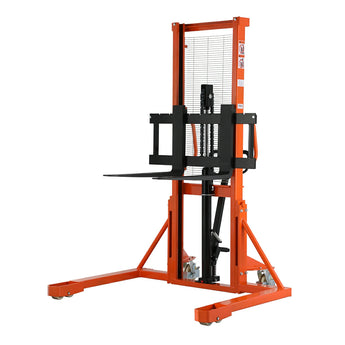

The stacker uses a manual hydraulic pump (hydraulic device) as force to lift heavy goods, which are pushed, pulled and handled manually. The hydraulic device is equipped with an oil return valve and the fork decline speed is controlled via a hand lever to make the operation of the hydraulic system correct, safe and reliable. The mast is welded with high quality profile steel such as to good rigidity and high strength. Universal wheels with braking device are adopted as the back wheels, which can rotate freely, easily and flexibly. Both front and back wheels are installed on wheel shafts with ball bearings so as to rotate flexibly. Wear-resistant and durable Nylon wheels are adopted so that it is not easy to damage the operation ground.
- Manual Hydraulic Lifting: Operates with a manual hydraulic pump for reliable and cost-effective heavy-duty lifting.
- Adjustable Forks and Straddle Legs: Compatible with both EU and American pallets for versatile pallet handling.
- Multiple Operating Options: Can be operated via foot pedal or handle, catering to different user preferences.
- High Load Capacity: Supports up to 2200lbs with a maximum lifting height of 63 inches, ideal for heavy-duty applications.
- Durable Construction: Welded high-strength steel frame ensures stability and long-lasting use.
- Easy Maneuverability: Features universal wheels with ball bearings for smooth and flexible movement.
- Enhanced Safety: Guard wheel design offers added protection during operation.
- Wear-Resistant Wheels: Durable nylon wheels minimize ground damage, suitable for various environments.
- Increased Efficiency: Lightweight and sturdy design improves operational efficiency, perfect for frequent use.
- Precise Hydraulic Control: Oil return valve and controlled fork descent ensure smooth, safe, and stable operation.
| Description | Parameter | |
|---|---|---|
| Capacity | lbs | 2200 |
| Load centre distance | c(inch) | 19.7 |
| Fork height, lowered | h13(inch) | 2.8 |
| Height, mast lowered | h1(inch) | 80.7 |
| Max. lift height | h3(inch) | 63 |
| Overall length | l1 (inch) | 51.2 |
| Overall width | b1(inch) | 58.1 |
| Fork dimensions | s/e/l | 1.2/3.9/31.5 |
| Width overall forks | b5(inch) | 7.9-37.4 |
| Lifting speed, laden/unladen | inch/time | 0.98 |
| Truck weight | lbs | 647 |
