Model: A-1013

Hand Pallet Jack 11000lbs. Heavy Duty Manual Pallet Truck 48"*27" Fork, A-1013

$800.00 $669.00 Save $131.00
In stock
Key Features
  • 11,000 lb capacity with 48" x 27" forks.
  • Heavy Duty configuration.
  • Lift height up to 7.7".
  • 3.1" lowered fork height.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 2–3 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
✓ For details on returns and refunds, please see our Return Policy .

Product details

The TORY CARRIER Heavy-Duty Manual Pallet Jack is designed for moving substantial palletized loads in warehouses, manufacturing facilities, distribution centers, and loading areas. Its 11,000 lb load capacity and 48 × 27 in forks provide dependable support for demanding industrial material handling.

A heavy-duty hydraulic system provides controlled lifting from 3.1 to 7.7 in, while the hand-operated control supports convenient raising, holding, and lowering. The reinforced steel frame, powder-coated finish, and overload protection valve support reliable performance during frequent operation.

Key Features

  • 11,000 lb Load Capacity: Supports exceptionally heavy palletized loads in demanding industrial applications.
  • 48 × 27 in Forks: Provide stable support for compatible palletized loads.
  • Heavy-Duty Hydraulic System: Provides dependable lifting without batteries, charging, or external power.

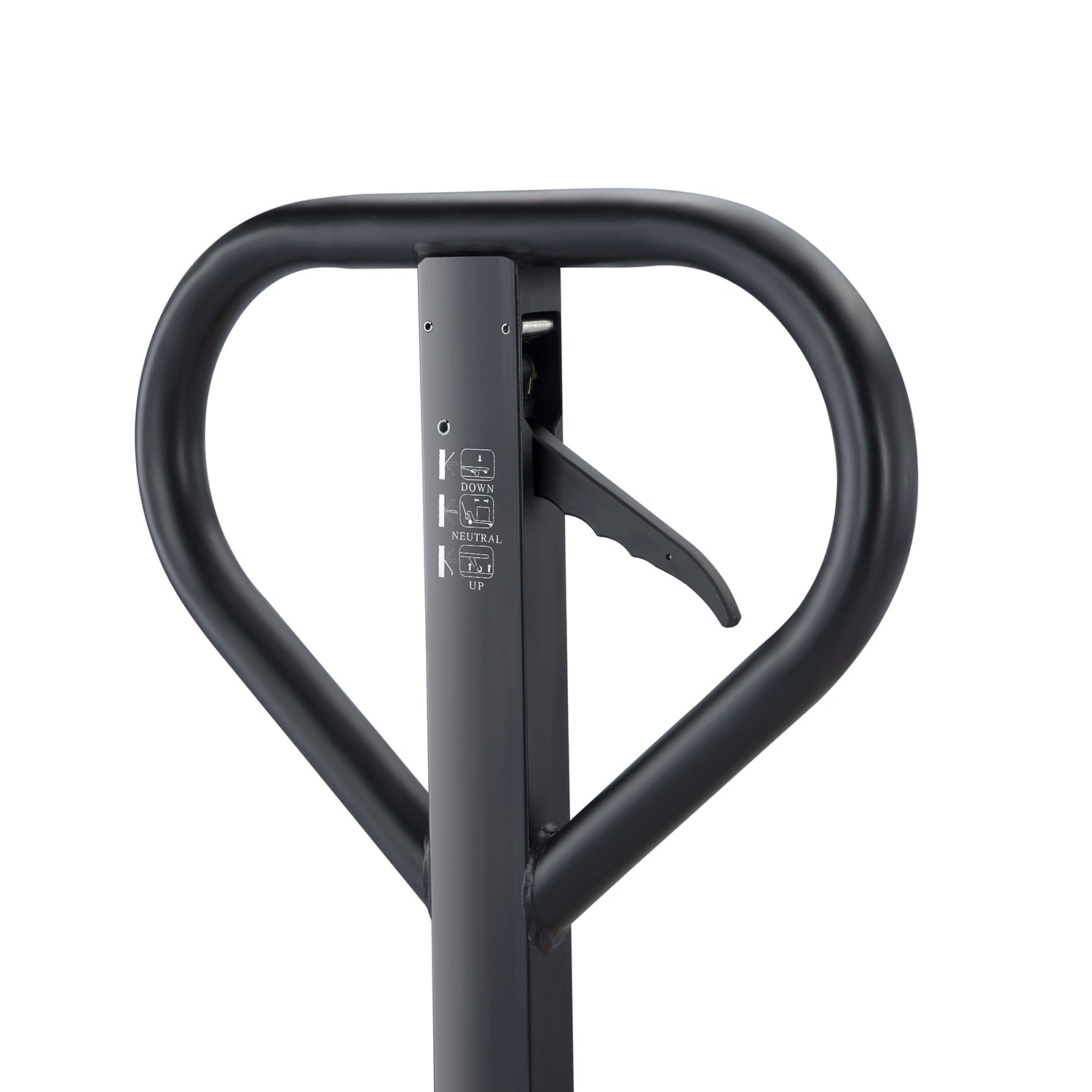

  • Controlled Fork Lowering: The hand-operated control supports smooth load lowering and precise positioning.
  • 3.1 to 7.7 in Fork Height: Provides 4.6 in of lifting travel for pallet transport and positioning.
  • Reinforced Steel Construction: The heavy-duty frame and 2.4 in thick fork structure support demanding workloads.
  • Overload Protection Valve: Helps protect the hydraulic system when the applied load exceeds the rated capacity.
  • Compact Industrial Design: A 63.5 in overall length and 53.9 in turning radius support maneuvering in appropriately sized work areas.
  • Powder-Coated Finish: The protective coating helps resist corrosion, scratches, and everyday industrial wear.

Product Specifications

Load Capacity 11,000 lb
Fork Dimensions (L × W × T) 48 × 27 × 2.4 in
Lowered Fork Height 3.1 in
Maximum Fork Height 7.7 in
Lifting Travel 4.6 in

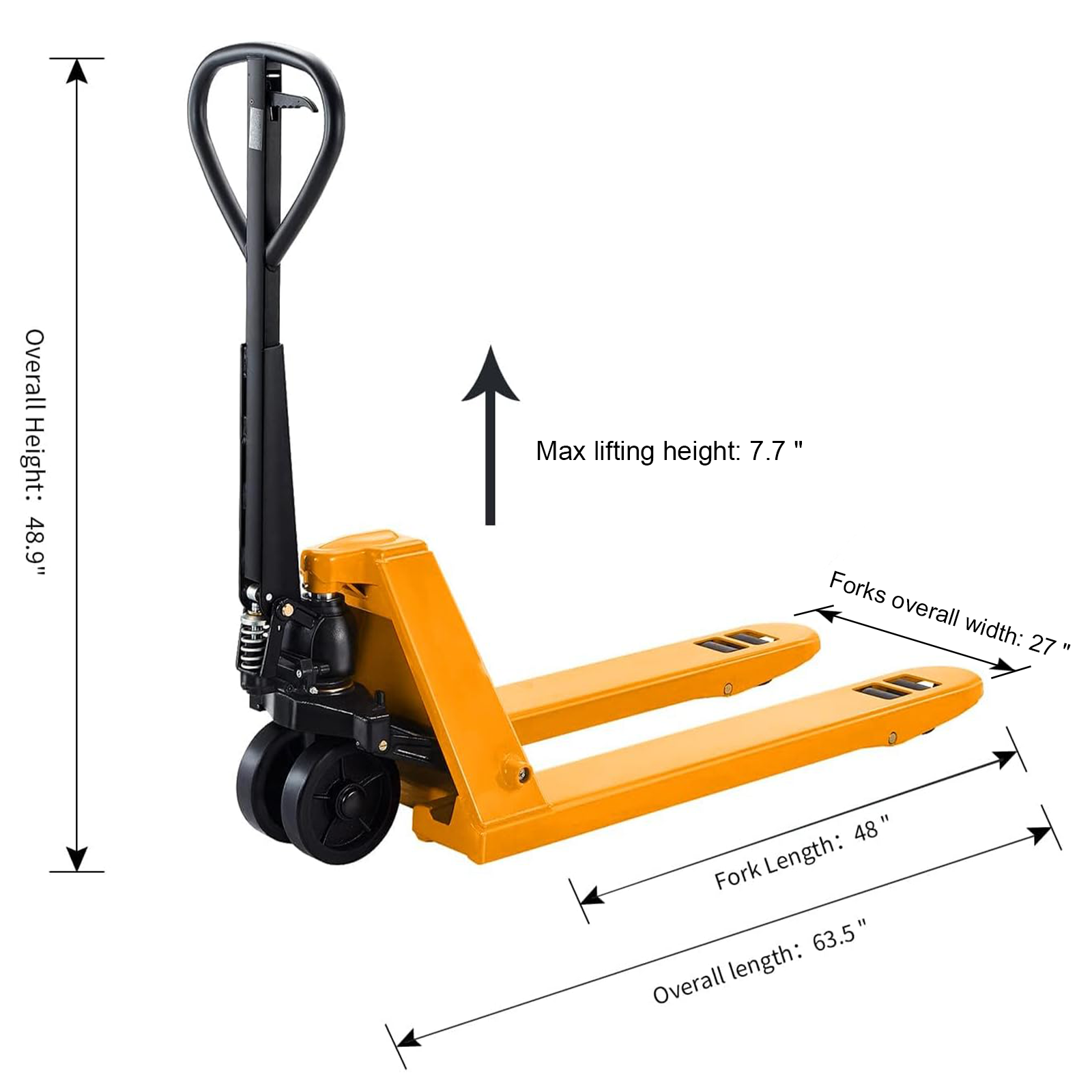

Overall Dimensions (L × W × H) 63.5 × 27 × 48.9 in
Turning Radius 53.9 in
Minimum Aisle Width 71.4 in
Service Weight 243 lb
Warranty 1-Year Limited Warranty

Operating Notice: Confirm pallet opening, fork clearance, floor capacity, and load distribution before use. Operate on firm, level surfaces and do not exceed the rated 11,000 lb capacity.

Manual Pallet Jack FAQ

What types of pallets can this manual pallet jack handle?

This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
Does this manual pallet jack require maintenance?

Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
How long does shipping take?

Standard orders are processed within 1-3 business days, with delivery times varying based on your location. Expedited shipping options are available upon request.
What’s in the Box

Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?

Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?

It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
