Model: R-1030

Electric Pallet Jack 4400 lb Capacity with 48" x 27" Forks Gel Battery Powered, R-1030

$2,600.00 $2,259.00 Save $341.00
In stock
Key Features
  • 4,400 lb capacity with 48" x 27" forks.
  • 24V / 105Ah GEL battery power system.
  • Lift height up to 7.3".
  • 59.5" turning radius.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.

Product details

The TORY CARRIER Flagship 4,400 lb Electric Pallet Jack is designed for demanding pallet transport in warehouses, distribution centers, retail facilities, manufacturing plants, trailers, and containers. Its compact design combines the highest load capacity in this series with responsive control for efficient material movement in confined work areas.

A high-capacity 24V / 105Ah GEL battery, maintenance-friendly brushless drive motor, and reinforced structural components provide dependable performance for frequent handling operations. The integrated 24V / 10A built-in charger supports convenient charging without separate external charging equipment.

Key Features

  • 4,400 lb load capacity supports heavy pallet transport and demanding warehouse handling.
  • 24V / 105Ah GEL battery provides increased battery capacity for frequent material handling applications.
  • 24V / 10A built-in charger allows convenient charging without separate external equipment.
  • Brushless drive motor delivers smooth power with reduced routine motor maintenance.
  • Reinforced chassis and swingarm support fork alignment and durability during frequent use.
  • Floating balance wheel system improves load distribution and travel stability.
  • Multifunction handle and turtle-speed mode provide convenient control and precise positioning in confined areas.
  • Lift-limit protection helps prevent excessive lifting and protects the hydraulic system.
Battery Care: During extended storage, recharge the battery at least once a month to help maintain battery performance.
Specification T-1029 T-1028 R-1030
Color Orange Orange Red
Load Capacity 3,300 lb 3,900 lb 4,400 lb
Load Center Distance 23.6 in. 23.6 in. 23.6 in.
Overall Dimensions (L × W × H) 70.1 × 27 × 50.2 in. 70.1 × 27 × 50.2 in. 70.1 × 27 × 50.2 in.
Minimum Fork Height 3.0 in. 3.0 in. 3.0 in.
Maximum Fork Height 7.3 in. 7.3 in. 7.3 in.
Fork Dimensions (W × L × T) 27 × 48 × 2.1 in. 27 × 48 × 2.1 in. 27 × 48 × 2.1 in.
Inside Fork Width 14.4 in. 14.4 in. 14.4 in.
Minimum Aisle Width 93.1 in. 93.1 in. 90.9 in.
Turning Radius 60.0 in. 60.0 in. 59.5 in.
Travel Speed (Loaded / Unloaded) 2.67 / 2.98 mph 2.70 / 3.00 mph 2.70 / 3.00 mph
Lifting Speed (Loaded / Unloaded) 1.0 / 1.2 in./s 1.0 / 1.2 in./s 1.0 / 1.2 in./s
Lowering Speed (Loaded / Unloaded) 1.4 / 1.0 in./s 1.4 / 1.0 in./s 1.4 / 1.0 in./s
Gradeability (Loaded / Unloaded) 5% / 20% 5% / 20% 5% / 20%
Battery Type GEL Battery GEL Battery GEL Battery
Battery Voltage / Capacity 24V / 65Ah 24V / 65Ah 24V / 105Ah
Charger 24V / 8A External Charger 24V / 5A Built-In Charger 24V / 10A Built-In Charger
Wheel Size Drive Wheel: 7.7 × 2.8 in.
Load Wheel: 2.9 × 3.7 in.
Balance Wheel: 1.7 × 0.7 in.		 Drive Wheel: 7.7 × 2.8 in.
Load Wheel: 2.9 × 3.7 in.
Balance Wheel: 1.7 × 0.7 in.		 Drive Wheel: 7.7 × 2.8 in.
Load Wheel: 2.9 × 3.7 in.
Balance Wheel: 1.7 × 0.7 in.
Ground Clearance 0.9 in. 0.9 in. 0.9 in.
Service Weight 487 lb 487 lb 530 lb
Warranty
Warranty Coverage 1-Year Limited Warranty
User Documentation

 Download the Tory Carrier Electric Pallet Truck Operation Manual (1029 / 1028 / 1030 Series)

👉Installation and Operation Video

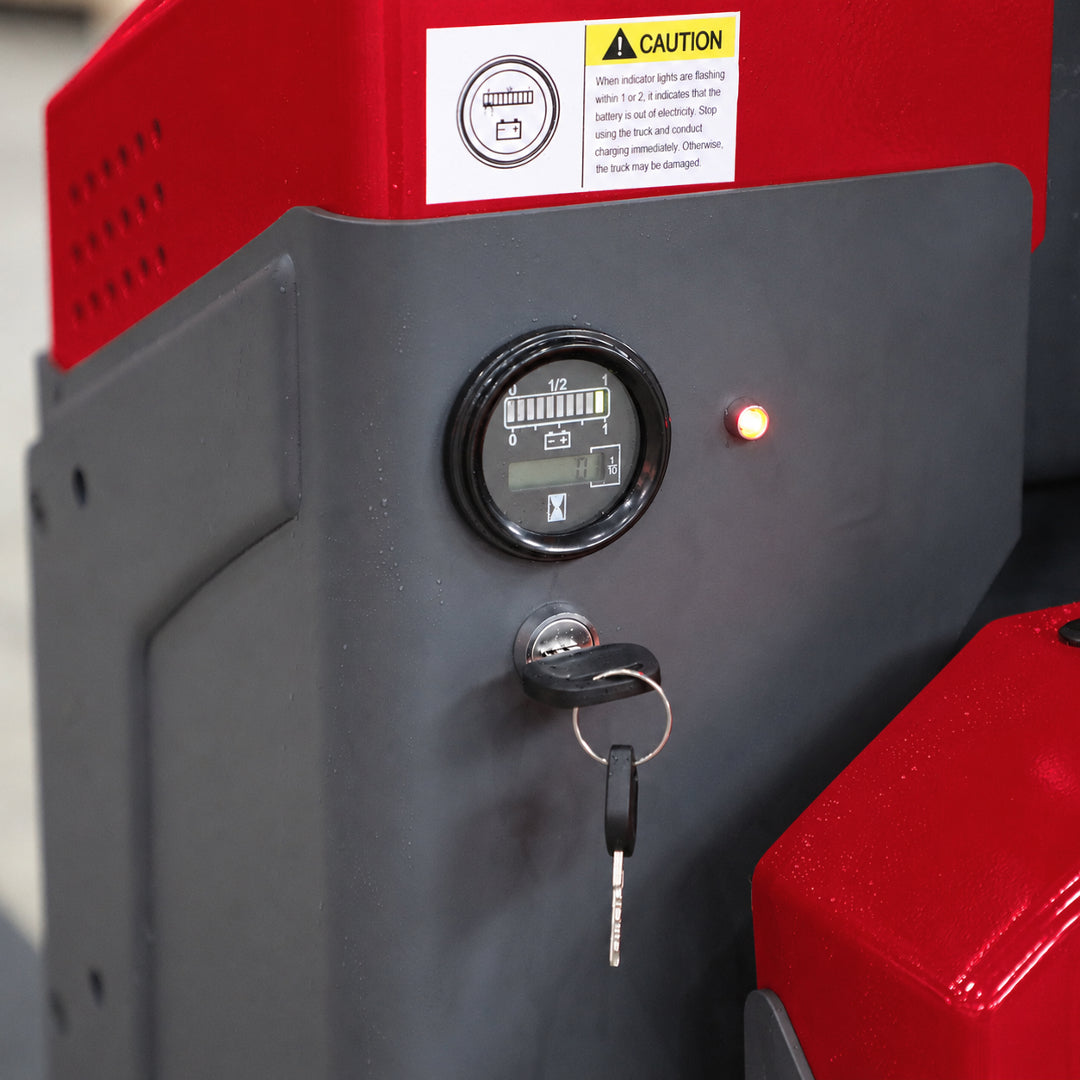

Smart Dashboard Display

Displays battery level and fault codes clearly, with integrated key switch for easy machine control.

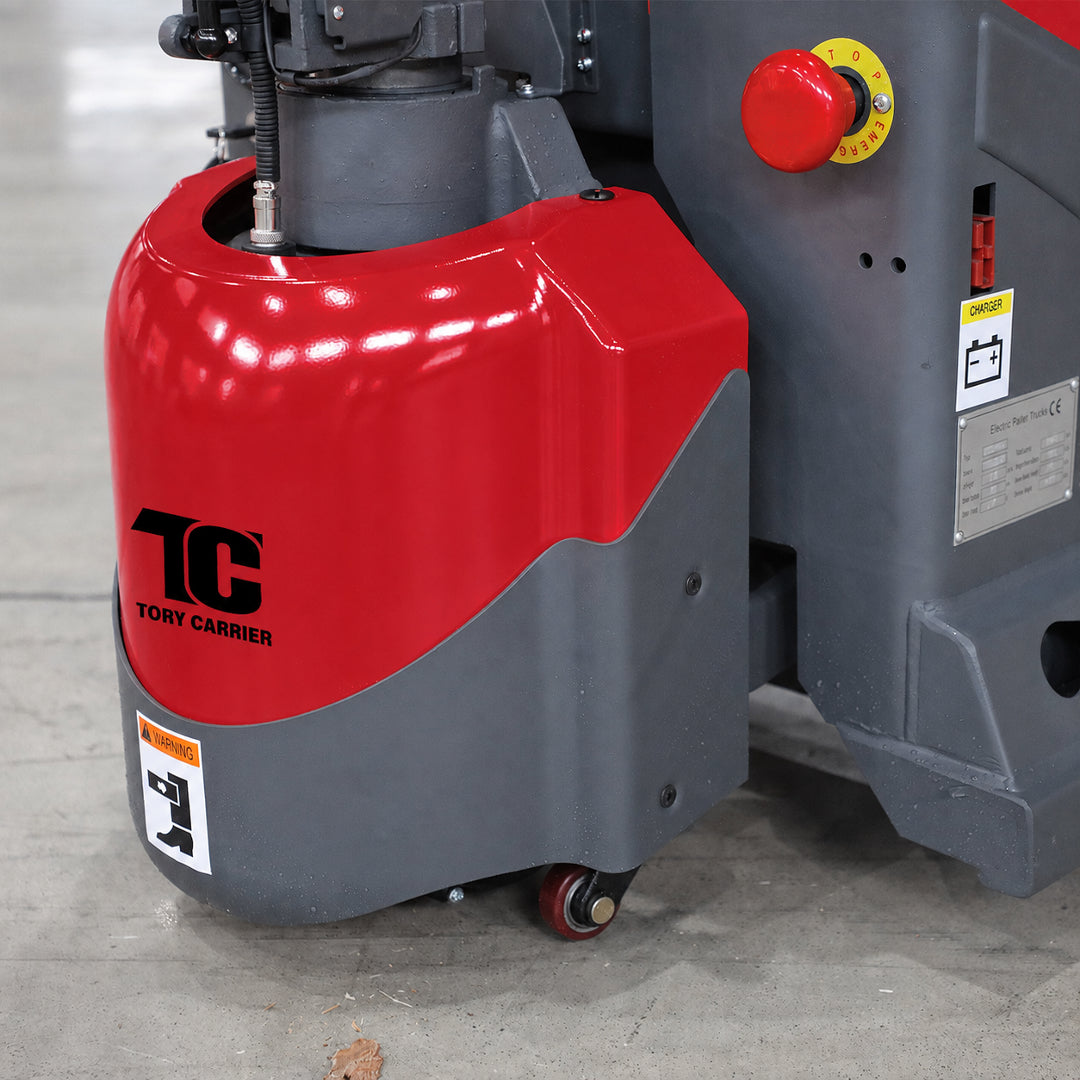

Protective Drive Wheel Cover

Protective wheel guard helps prevent foot injuries while moving through tight working areas.

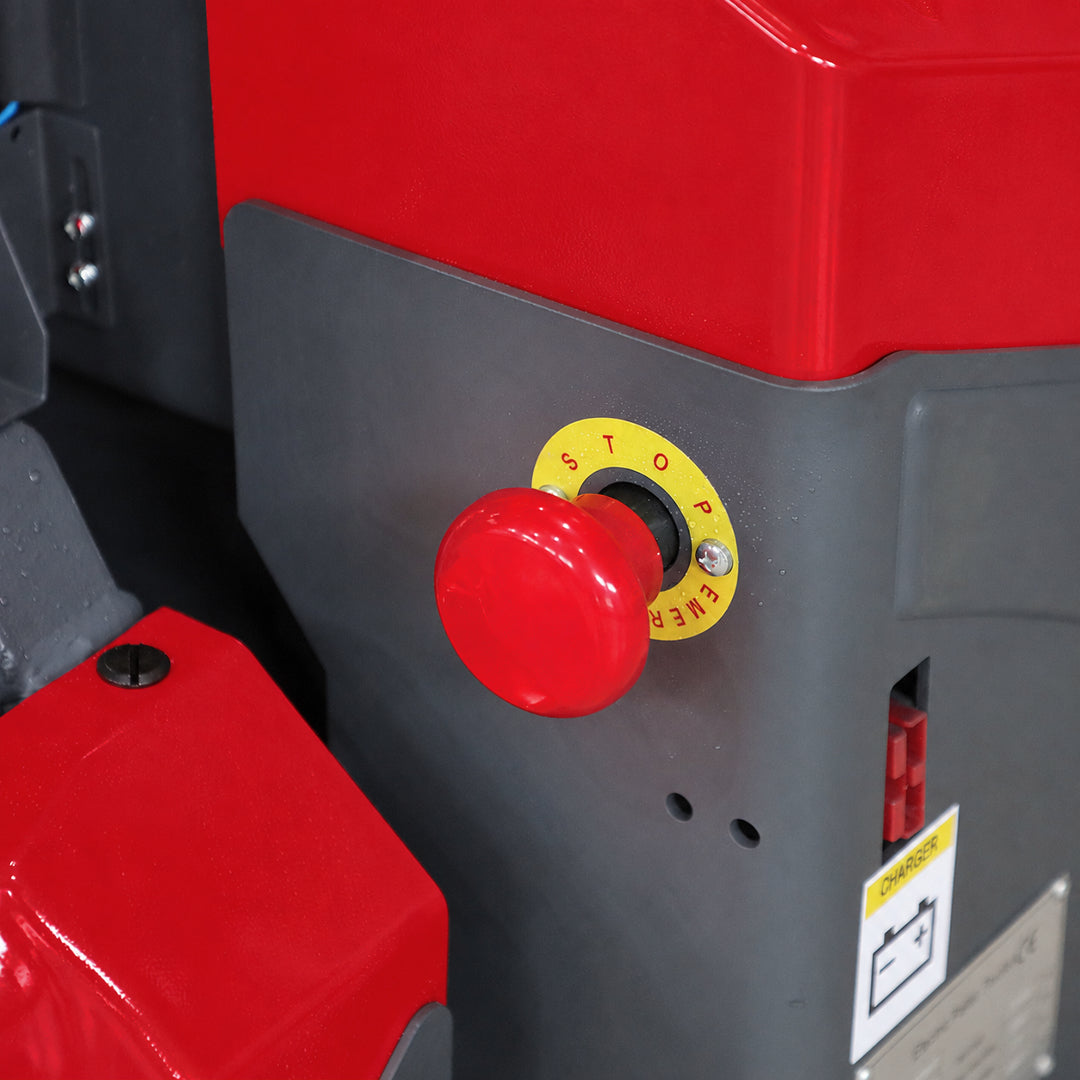

Emergency Stop Button

Quick-response emergency stop enhances operator safety during operation.

Upper horizontal drive motor

1) Make replacing the driving wheel easier

2) Effectively prevent water, dust, and oil from sticking to the motor, to improve the working condition of the motor

Multi-function Control Handle

Incorporates butterfly-style thumb controls, emergency reversebutton, horn button and key switch for ease of use.

Durable Polyurethane Balance Wheel

Wear-resistant PU wheel provides smooth rolling, enhanced stability, and long-lasting performance for daily material handling tasks.

Electric Pallet Jack FAQ

What applications is this electric pallet jack suitable for?

This electric pallet jack is designed for warehouses, distribution centers, manufacturing facilities, retail backrooms, and loading docks where frequent pallet transportation is required.
What is the maximum load capacity?

This model can handle loads up to 3300/3900/4400 lbs. Do not exceed the rated capacity to ensure safe operation and extend equipment life.
How long can the battery operate on a full charge?

Battery runtime depends on load weight, operating frequency, and working conditions. Under normal warehouse operations, it provides reliable performance for daily material handling tasks.
How long does it take to charge the battery?

Charging time depends on the battery capacity and charger specifications. Please refer to the included user manual for detailed charging instructions.
Is this electric pallet jack easy to operate?

Yes. The ergonomic control handle allows operators to easily control lifting, lowering, forward, and reverse functions with minimal training.
What is included with the pallet jack?

Every order includes:
✅ Electric Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
✅ Battery Charger

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Where does this product ship from?

Orders ship from our U.S. warehouses to provide fast delivery across the United States.
