Model: A-103801

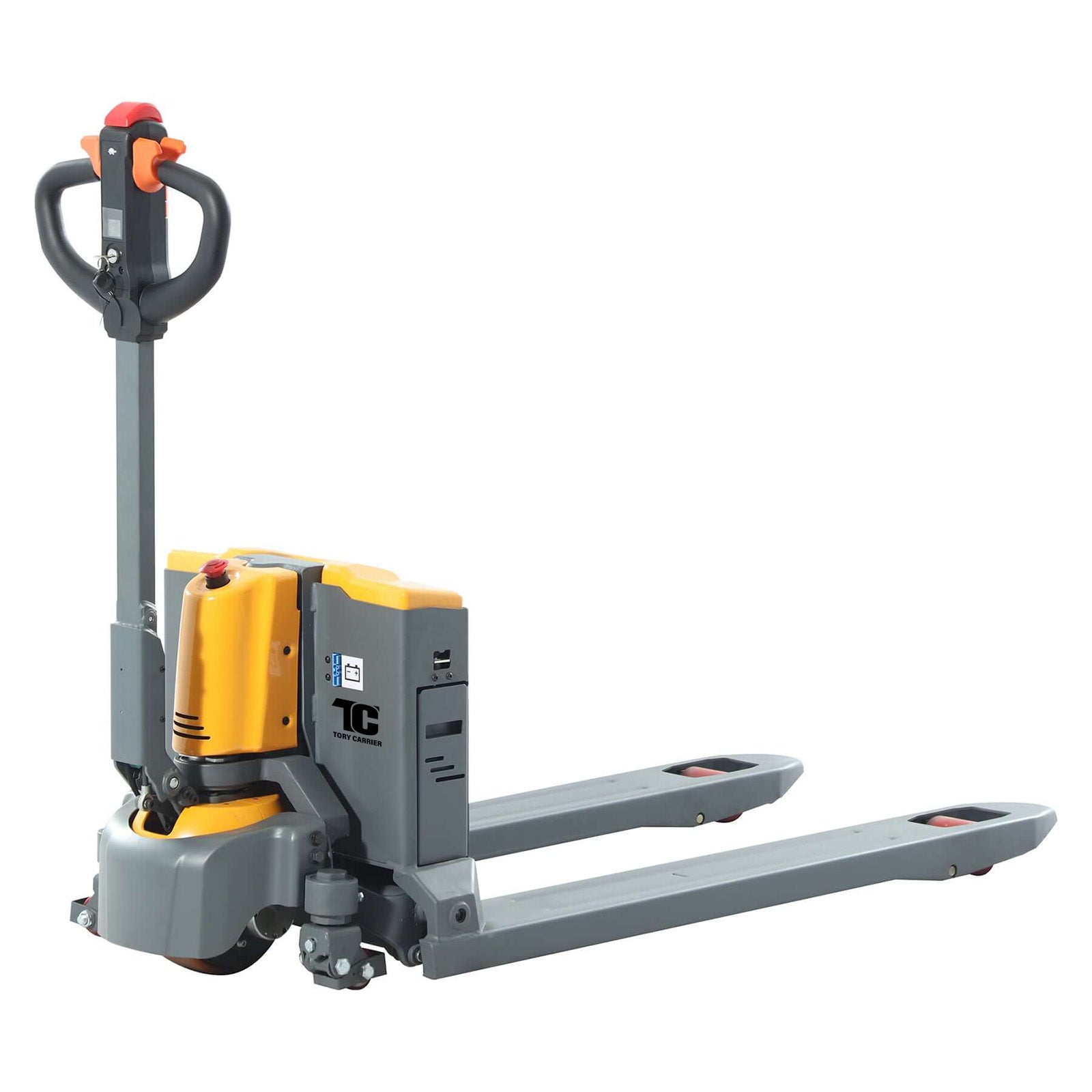

Electric Pallet Jack 4400 lb Capacity with 48" x 27" Forks Lightweight Lithium Design, A-103801

$2,199.00 $1,889.00 Save $310.00
In stock
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.

Product details

The TORY CARRIER 4,400 lb Electric Pallet Jack is designed for efficient pallet movement in warehouses, stockrooms, loading areas, and other indoor material handling environments. Its compact body, ergonomic control handle, and low-speed maneuvering function help operators work more confidently in narrow aisles and confined spaces. A reinforced steel frame, ribbed forks, floating balance wheels, and durable metal covers provide the strength and stability needed for demanding daily use.

Key Features
  • Precise Low-Speed Maneuvering: The ergonomic control handle includes a low-speed function for smoother positioning and better control in narrow aisles and confined work areas.
  • 4,400 lb Load Capacity: Built to handle heavy pallets and everyday warehouse loads with reliable lifting and travel performance.
  • Reliable Gradeability: The high-output drive system supports operation on grades of up to 5% while loaded.
  • Durable Metal Covers: Protective metal exterior panels help shield internal components from impacts and damage during daily operation.
  • Reinforced Steel Construction: The solid steel frame and strengthened fork structure improve rigidity, load support, and long-term durability.
  • Floating Balance Wheels: Floating support wheels help distribute weight more evenly and improve stability when traveling or turning.
  • Integrated Rocker Arm: The reinforced rocker arm distributes force more evenly, helping reduce component stress and premature wear.
  • Easy Pallet Entry: Angled fork tips and reinforced fork surfaces help guide the forks smoothly into compatible pallets.
  • Convenient Maintenance: Accessible components, removable covers, and a quick-change battery design help simplify routine servicing and reduce downtime.
  • Compact, Service-Friendly Design: The removable handle assembly makes the unit easier to service, transport, and store when space is limited.
  • Responsive Braking: The high-torque electromagnetic braking system provides dependable stopping performance during normal operation.
Specification Details
Load Capacity 4,400 lb
Load Center Distance 23.6 in
Minimum Aisle Width 87 in
Fork Height, Lowered 3.0 in
Fork Height, Raised 7.3 in
Overall Dimensions (L × W × H) 65 × 27 × 48.1 in
Fork Dimensions (T × W × L) 2.8 × 6.3 × 48 in
Overall Fork Width 27 in
Inside Distance Between Forks 14.2 in
Turning Radius 55.7 in
Travel Speed (Loaded / Unloaded) 2.86 / 2.98 mph
Lifting Speed (Loaded / Unloaded) 0.8 / 1.0 in/s
Lowering Speed (Loaded / Unloaded) 1.8 / 1.2 in/s
Gradeability (Loaded / Unloaded) 6% / 20%
Battery 48V / 20Ah Lithium-Ion
Charger 48V / 10A External Charger
Drive Wheel Size 8.3 × 2.8 in
Load Wheel Size 2.9 × 3.7 in
Balance Wheel Size 2.4 × 1.4 in
Service Weight 310 lb
Warranty
Warranty Coverage 1-Year Limited Warranty
User Documentation

Download the Tory Carrier Electric Pallet Truck Operation Manual (1038 Series)

👉Installation and Operation Video

Certifications & Compliance

Compliance Support for Safer Warehouse Operation

Tory Carrier equipment is designed for dependable material handling performance. Certification coverage may vary by model and configuration, with selected models meeting applicable CE, UKCA, UL, or other compliance requirements. Please verify the certification details for your specific model before purchase.

CE

CE Marked

Available on selected models to indicate conformity with applicable European safety and product requirements.

UKCA

UKCA Marked

Available on selected models to indicate conformity with applicable UK product compliance requirements.

UL

UL Certification

Available on selected models or components where applicable to support electrical safety and compliance needs.

Tory Carrier 4,400 lbs Electric Pallet Truck features a powerful 48V/20Ah lithium battery and an ergonomic control handle with belly switch, turtle speed mode, and emergency reverse for safe and precise operation. Built with a durable one-piece rocker arm, easy-maintenance horizontal motor, and floating balance wheels, it delivers smooth, stable, and reliable performance for daily material handling tasks.

Drive Wheel & Steel Safety Guard

Equipped with a high-torque drive wheel and a heavy-duty steel safety guard, this unit ensures superior stability on uneven surfaces while providing 360-degree protection to prevent operator foot injuries during maneuvers.

10-Second Battery Swap

Our rapid-exchange battery system allows for a full power swap in under 10 seconds. Minimize idle time and keep your warehouse operations running across multiple shifts without the need for specialized tools.

Stability Caster Wheels

Designed with dual lateral stability casters, this pallet jack eliminates tipping risks during sharp turns. It maintains a low center of gravity, ensuring the chassis remains level even when transporting off-center or heavy-duty loads.

Heavy-Duty PU Support Rollers

The premium Polyurethane (PU) rollers are engineered for high-capacity load-bearing and low-noise operation. These durable, non-marking wheels glide effortlessly over warehouse floors, protecting your facility's surfaces from damage.

Ergonomic Multi-Function Tiller

The ergonomically designed handle features integrated lift/lower controls, a safety belly switch, and a turtle speed button for precise navigation in tight spaces. It reduces operator fatigue and enhances overall handling accuracy.

Smart LCD Display & Control Features

The high-contrast LCD dashboard provides real-time battery status and maintenance alerts to prevent mid-shift power loss. For enhanced safety in tight aisles, the integrated "Turtle Speed" mode allows for precise, low-speed navigation, while the secure key-start ignition ensures only authorized personnel can operate the equipment.

Electric Pallet Jack FAQ

What applications is this electric pallet jack suitable for?

This electric pallet jack is designed for warehouses, distribution centers, manufacturing facilities, retail backrooms, and loading docks where frequent pallet transportation is required.
What is the maximum load capacity?

This model can handle loads up to 3300 lbs. Do not exceed the rated capacity to ensure safe operation and extend equipment life.
How long can the battery operate on a full charge?

Battery runtime depends on load weight, operating frequency, and working conditions. Under normal warehouse operations, it provides reliable performance for daily material handling tasks.
How long does it take to charge the battery?

Charging time depends on the battery capacity and charger specifications. Please refer to the included user manual for detailed charging instructions.
Is this electric pallet jack easy to operate?

Yes. The ergonomic control handle allows operators to easily control lifting, lowering, forward, and reverse functions with minimal training.
What is included with the pallet jack?

Every order includes:
✅ Electric Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
✅ Battery Charger

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Where does this product ship from?

Orders ship from our U.S. warehouses to provide fast delivery across the United States.
