Model: A-3012

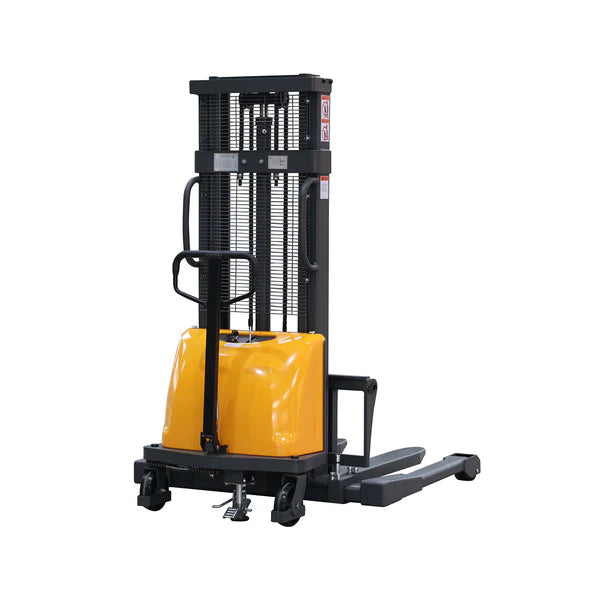

Semi-Electric Straddle Stacker – 3300 lb Capacity, 118" Lift Height, Adjustable Legs & Forks, A-3012

$3,599.00 $3,099.00 Save $500.00
1 in stock
Key Features
  • 3,300 lb capacity with up to 118" lift height.
  • Straddle legs with adjustable 42" x 11.6-36.6" forks.
  • Electric lifting with manual travel.
  • 56.1" turning radius for tight spaces.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
Lifting Height: 118"
✓ For details on returns and refunds, please see our Return Policy .
Lifting Height: 118"

Product details

The TORY CARRIER Semi-Electric Straddle Stacker is a powerful, heavy-duty lifting solution designed for professional material handling in warehouses, workshops, and industrial settings. With a 3300 lb load capacity, adjustable forks, and a max lift height of up to 118 inches, it offers superior performance for stacking, loading, and pallet transfer—especially where traditional forklifts may not fit.

Key Features

  • High-Performance Motor:Equipped with a 1.5KW motor for fast, efficient lifting—perfect for handling heavy goods with minimal effort.
  • Explosion-Proof Safety Valve:Designed to prevent accidental lowering, ensuring secure load handling on elevated platforms.
  • Adjustable Forks:Fork width can be adapted to accommodate various pallet sizes and loads for flexible operation.
  • Straddle Leg Design:Provides compatibility with most pallet types, including closed-bottom pallets often used in warehouses and manufacturing.
  • Comprehensive Safety System:Includes a mesh safety guard, reinforced support legs, and a reliable braking system to protect operators and cargo.
  • Smooth Steering Control:Chain-driven steering mechanism enables effortless handling and precise movement even in tight spaces.
  • Speed-Adjustable Lift Control:Fine-tune your lifting speed using the multi-functional handle for better load management and safety.
  • Long Runtime Battery:Powered by a 12V/105AH high-capacity battery for extended operation. Includes charger for daily use.
  • Battery Maintenance Reminder:To extend battery life and maintain performance, please charge the unit at least once a month when not in use.

⚙️ Note: Straddle leg and forklift self-installation required upon delivery.

Application & Workload Recommendation

A semi-electric stacker uses electric lifting + manual travel, meaning the operator must push/pull the unit manually.
Recommended for:
✔ Low to moderate stacking frequency
✔ Short travel distances
✔ Occasional warehouse or workshop material handling

Not recommended for:
✘ High-volume warehouse logistics
✘ Long-distance horizontal movement
✘ Continuous heavy stacking operations

If you require high-efficiency stacking with frequent travel or heavy workloads, we recommend upgrading to a full electric stacker, which offers powered travel + powered lift, significantly reducing operator fatigue and improving productivity.

Specifications

Model A-3012
Load Capacity 3,300 lb
Load Center Distance 19.7 in
Mast Height, Lowered 84.4 in
Maximum Lift Height 118 in
Overall Length 68.7 in
Overall Width 44.5–60.3 in
Fork Dimensions (L × W × H) 42.1 × 5.6 × 2.4 in
Lifting Speed, Loaded / Unloaded 2 / 3.1 in/s
Turning Radius 56.1 in
Battery Type Lead-acid
Battery Rating 12V / 100Ah
Service Weight 1,172 lb

Warranty

Warranty Coverage 1-Year Limited Warranty
TORY CARRIER A-3012 electric stacker specifications

User Documentation

View Product Manual

👉Installation and Operation Video

Have Questions About Our Semi-Electric Stacker?

What makes a straddle semi-electric stacker different from a fixed-leg model?

A straddle semi-electric stacker features adjustable outer legs that allow the unit to handle closed-bottom / U.S. standard pallets, which fixed-leg models cannot accommodate.
It still uses electric lifting + manual travel.
What pallet types is it compatible with?

The straddle design makes it compatible with:
✔ Closed-bottom U.S. stringer pallets
✔ Open-bottom Euro pallets
✔ Custom pallets with varying widths
The adjustable forks and legs provide greater pallet versatility.
Is a semi-electric stacker suitable for high-intensity warehouse operations?

Not recommended. Semi-electric stackers require manual movement, which can become tiring during:

  • Long travel distances
  • High-frequency stacking
  • Heavy workloads
    For high-intensity operations, a full electric stacker with powered travel is recommended to reduce operator fatigue and improve efficiency.
How long does the battery last and how should it be maintained?

The lift motor battery typically supports a full work shift under normal use. For best performance:

  • Charge after daily use
  • Charge once a month if not in operation
  • Avoid deep discharge to extend battery life
What environments are ideal for a semi-electric stacker?

Best used in:
✔ Small to medium warehouses
✔ Workshops
✔ Manufacturing lines
✔ Places with narrow aisles & short travel distances
Not suitable for outdoor uneven ground or long-distance logistics operations.
