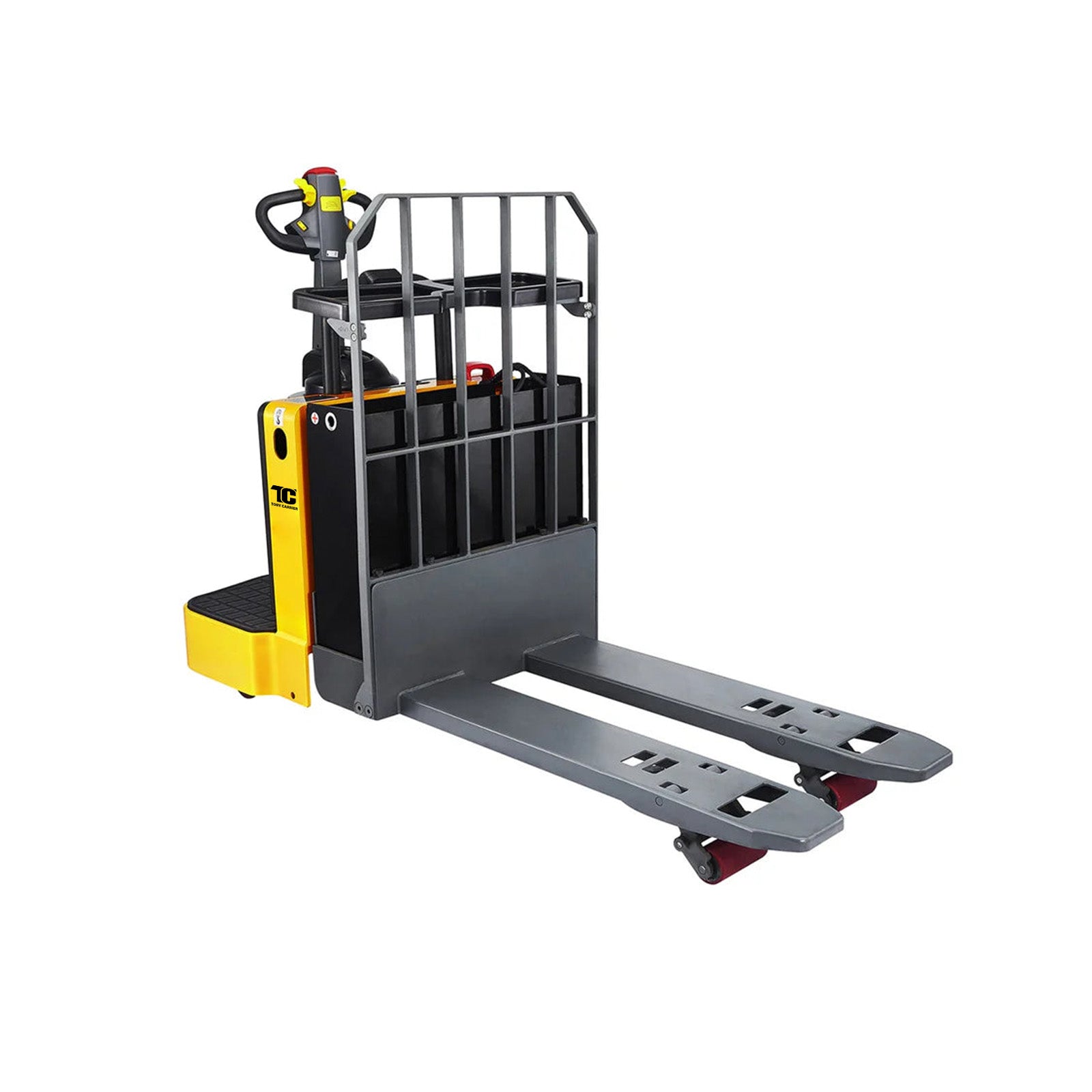

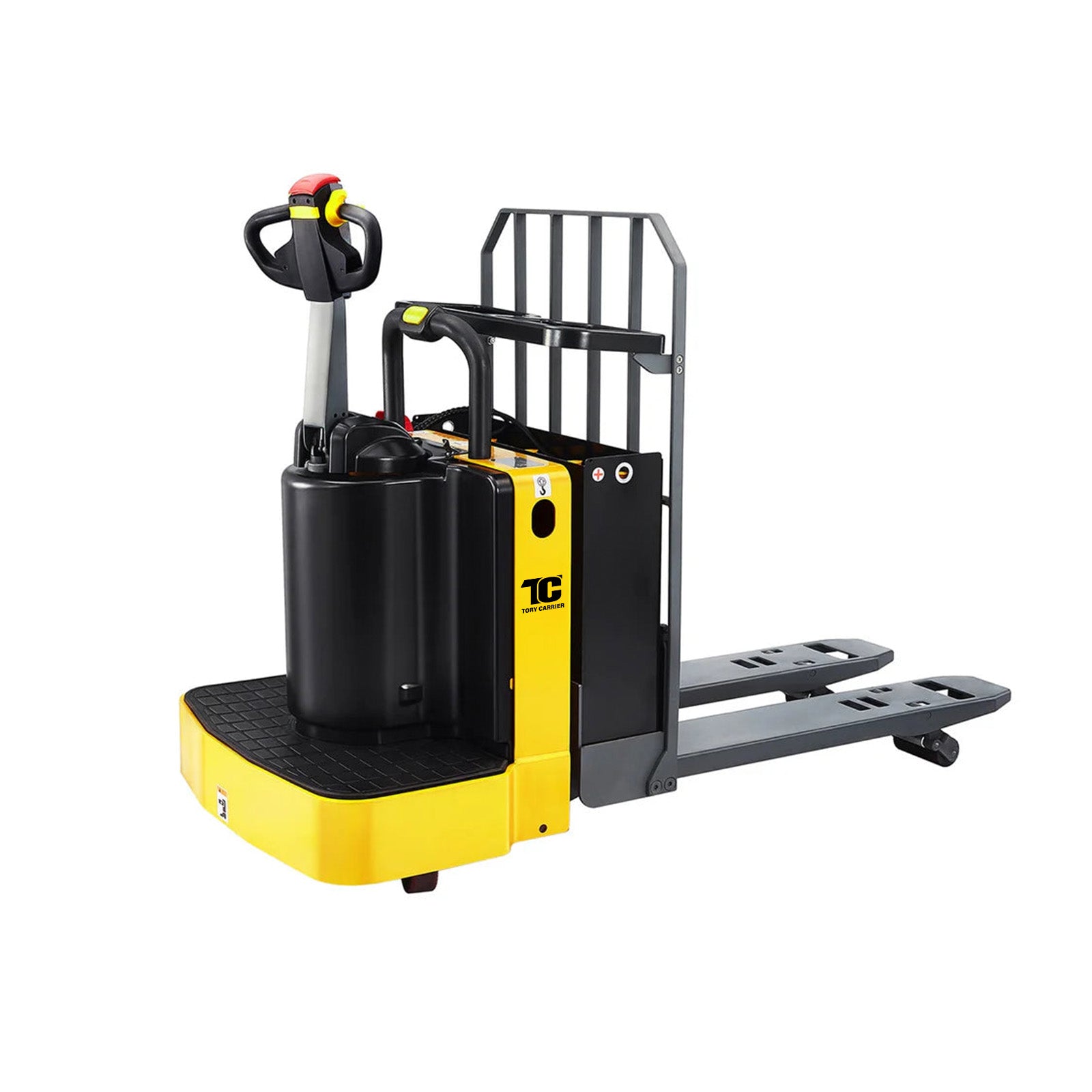

Ride-On Electric Pallet Jack 5,500 lb Capacity with 24V/300Ah Battery, EPS Steering, Smart Display, A-1024
Couldn't load pickup availability
Product details
The TORY CARRIER A-1024 Ride-On Electric Pallet Jack is designed for high-volume pallet transport in warehouses, logistics centers, manufacturing facilities, and other industrial material handling environments. Its 5,500 lb load capacity and ride-on operator platform make it well suited for moving heavy palletized loads over longer warehouse routes.
A 24V / 300Ah battery system, AC brushless drive motor, and electric power steering provide smooth acceleration, responsive handling, and consistent travel performance. Dual-speed control supports precise pallet positioning and efficient transport, while the integrated display provides convenient access to battery status, fault codes, and operating information.
Key Features
- 5,500 lb load capacity supports heavy pallet transport in demanding warehouse operations.
- 24V / 300Ah battery system provides reliable power for high-volume material handling.
- Side-pull battery design provides convenient access for battery service and replacement.
- AC brushless drive system delivers smooth acceleration and consistent performance under load.
- Electric power steering and dual-speed control support responsive maneuvering and precise pallet positioning.
- 5% loaded gradeability supports operation on suitable warehouse ramps and inclines.
- 48 × 27 × 2.1 in reinforced forks feature guidance rollers and support wheels for smoother pallet entry and exit.

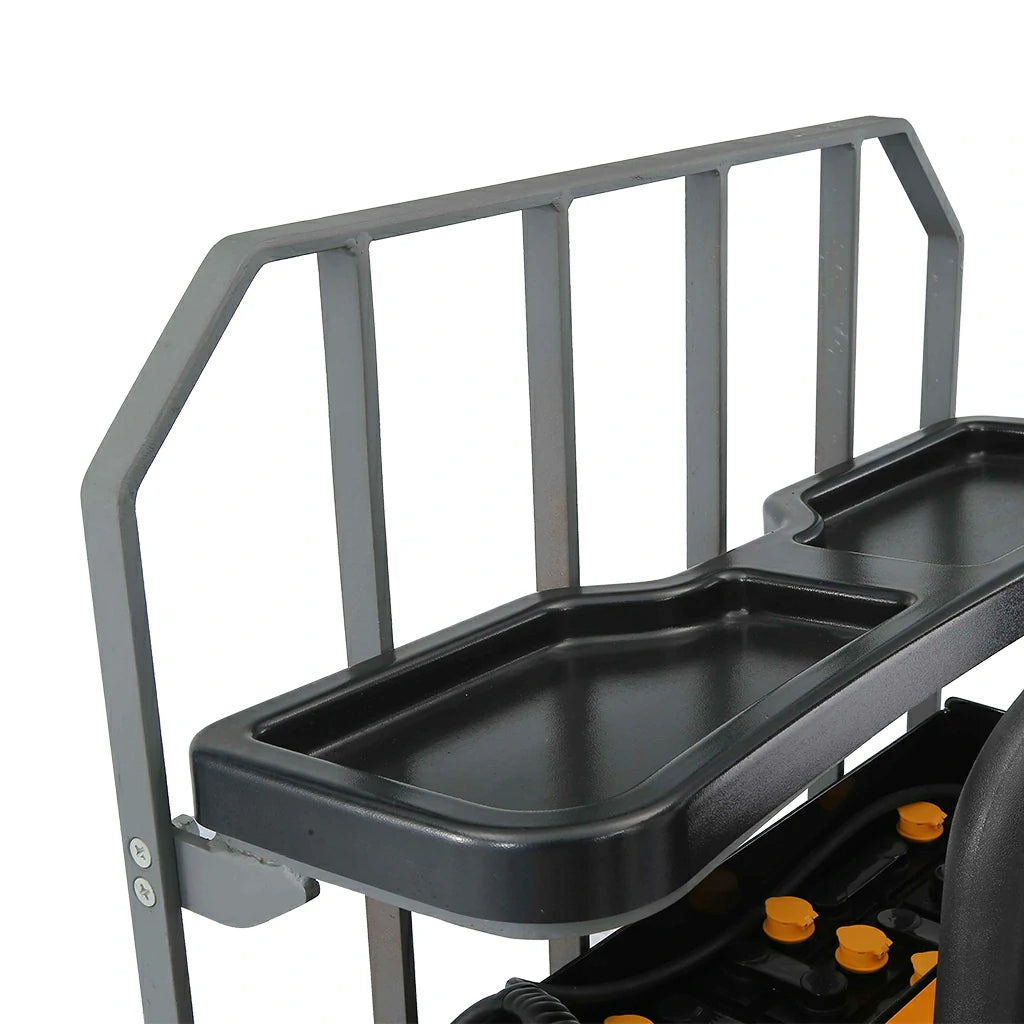

- Operator-focused design combines double safety rails, an anti-slip platform, padded support, braking system, and multifunction display.
| Load Capacity | 5,500 lb |
|---|---|
| Turning Radius | 73.7 in |
| Aisle Width | 105 in |

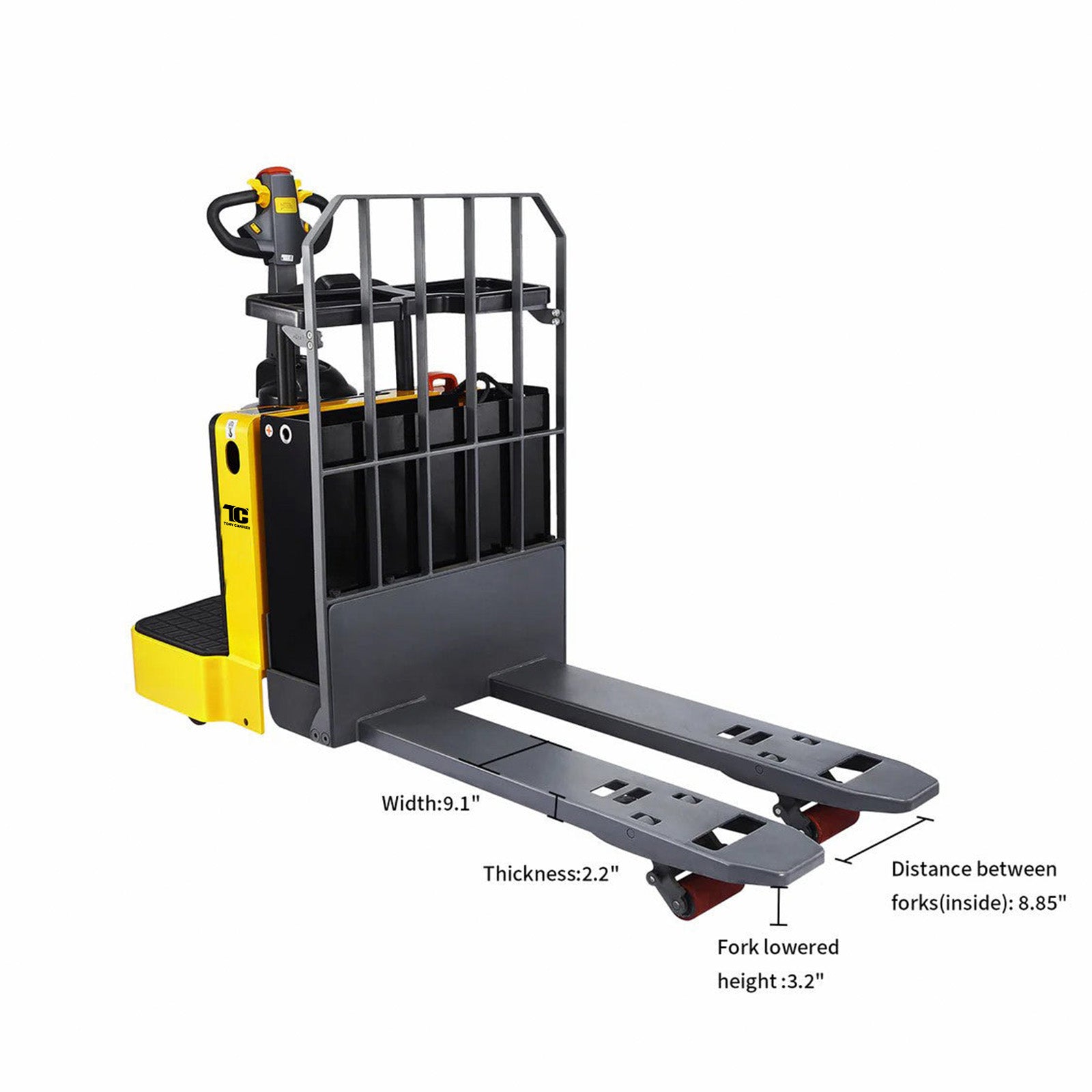

| Fork Dimensions (L × W × T) | 48 × 27 × 2.1 in |
| Inside Fork Width | 8.9 in |
| Fork Height, Lowered | 3.2 in |
| Overall Dimensions (W × L) | 36.9 × 84.4 in |
| Maximum Lift Height | 8.5 in |
| Lift Travel | 5.3 in |
| Handle Height | 52.4 in |
| Battery Rating | 24V / 300Ah |
| Charger | 24V / 40A External |
| Travel Speed, Loaded / Unloaded | 3.7 / 4.0 mph |
| Service Weight | 1,895 lb |
| Warranty | 1-Year Limited Warranty |
Electric Pallet Jack FAQ
What applications is this electric pallet jack suitable for?
This electric pallet jack is designed for warehouses, distribution centers, manufacturing facilities, retail backrooms, and loading docks where frequent pallet transportation is required.
What is the maximum load capacity?
This model can handle loads up to 5500 lbs. Do not exceed the rated capacity to ensure safe operation and extend equipment life.
How long can the battery operate on a full charge?
Battery runtime depends on load weight, operating frequency, and working conditions. Under normal warehouse operations, it provides reliable performance for daily material handling tasks.
How long does it take to charge the battery?
Charging time depends on the battery capacity and charger specifications. Please refer to the included user manual for detailed charging instructions.
Is this electric pallet jack easy to operate?

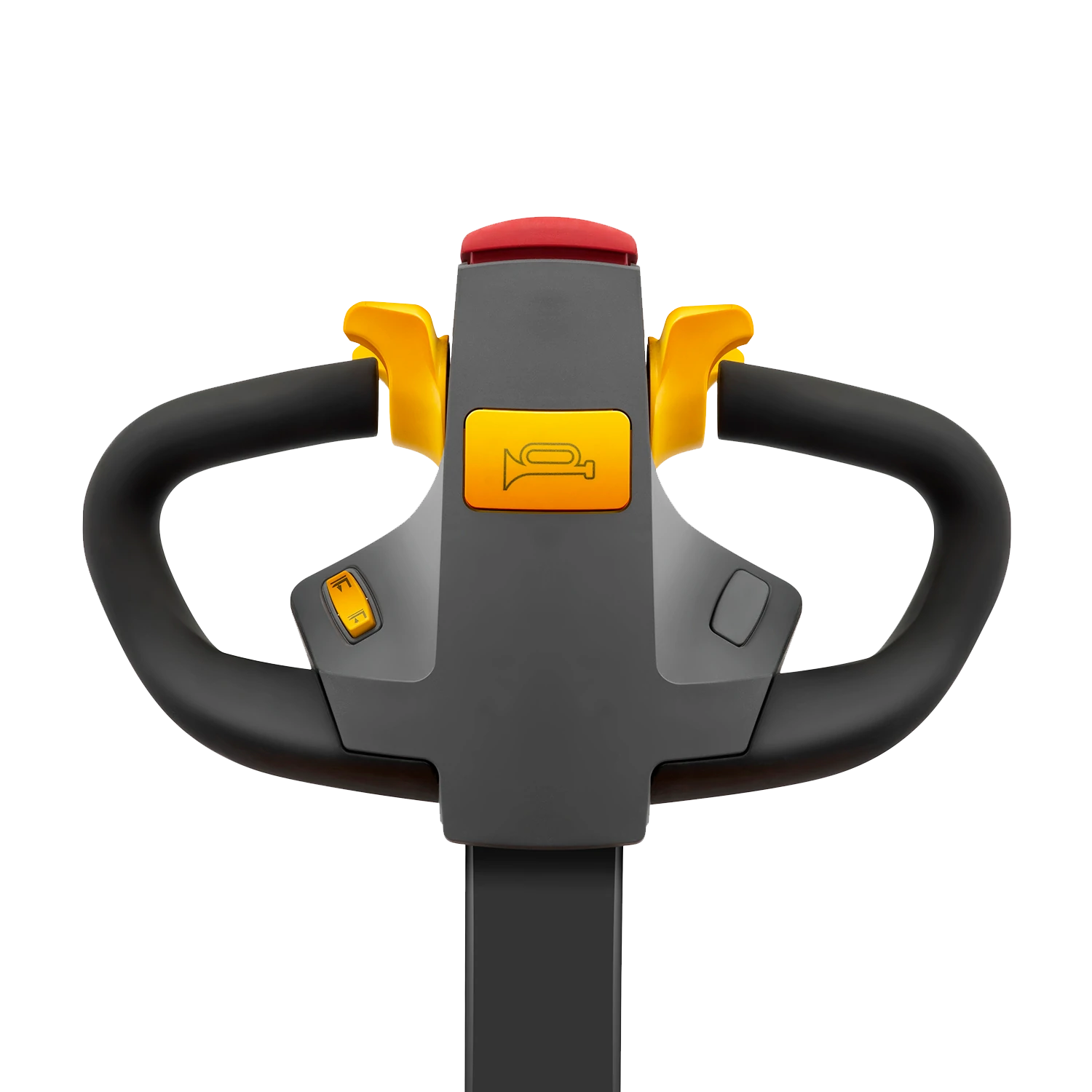

Yes. The ergonomic control handle allows operators to easily control lifting, lowering, forward, and reverse functions with minimal training.
What is included with the pallet jack?
Every order includes:
✅ Electric Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
✅ Battery Charger
All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?
Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Where does this product ship from?
Orders ship from our U.S. warehouses to provide fast delivery across the United States.
