Pre-Owned Semi-Electric Straddle Stacker – 3300 lb Capacity, 98" Lift Height, Adjustable Legs & Forks, A-3011
Couldn't load pickup availability
Product details
IMPORTANT INFORMATION
All used machines are inspected and classified according to their overall cosmetic condition, operating performance, and visible signs of use.
We offer four used machine condition grades:
- Excellent – Our highest condition grade. The machine is well-maintained and shows only minimal signs of use, with an overall condition approximately equivalent to 90% of a new machine.
- Good – Good overall condition with normal signs of use, including minor scratches, scuffs, or cosmetic wear. Fully functional and ready for operation.
- Fair – Noticeable cosmetic wear, scratches, dents, or fading from regular use. The machine remains functional and has been inspected before shipment.
- Poor – Heavy visible wear and more significant cosmetic imperfections. The machine is operational but may show substantial signs of previous use.
All used machine sales are final—no returns or refunds. However, each unit comes with a 6-month limited warranty covering parts only. Labor is not included.
Due to high demand, the machine you receive may not be the exact unit pictured, but it will have a comparable condition grade. Every machine undergoes a comprehensive inspection before shipping.
Actual appearance may vary from the photos. Condition grades describe the overall condition of the machine and do not guarantee that every component has the same cosmetic condition.
By purchasing, you confirm your understanding and acceptance of this policy.
For any questions, urgent or not, call us at 888-927-9439 .
The TORY CARRIER Flagship Electric Pallet Jack is designed for users who need higher durability, stronger performance, and longer operating time. Compared with standard models, this flagship version features upgraded build quality, a larger-capacity battery, and a maintenance-free brushless drive motor, delivering more stable power output and longer service life in daily warehouse operations.
It is suitable for warehouses, retail environments, distribution centers, and tight working spaces such as containers or narrow aisles. The enhanced structural design, reinforced components, and smoother travel system make this model ideal for high-frequency, heavy-duty use.

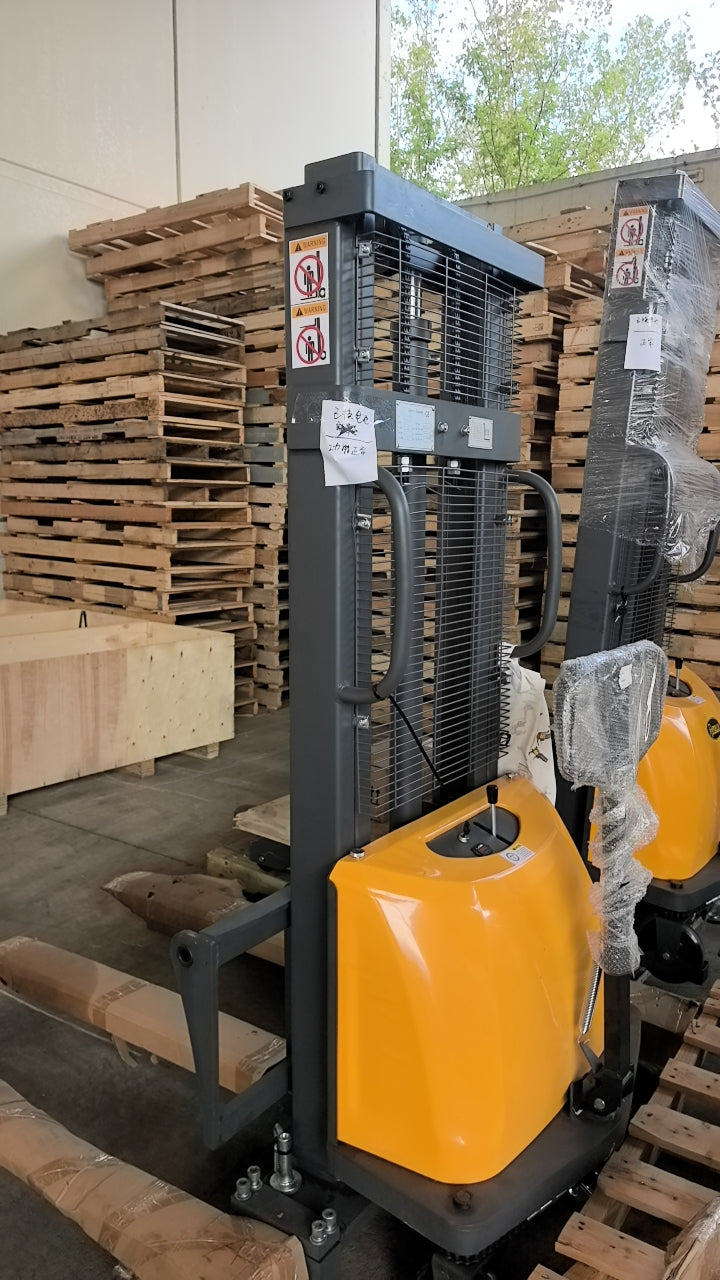

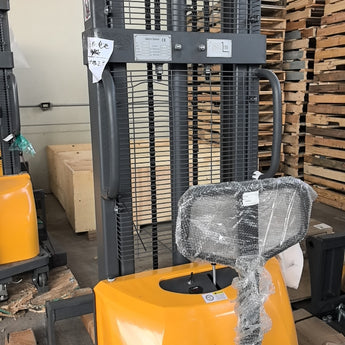

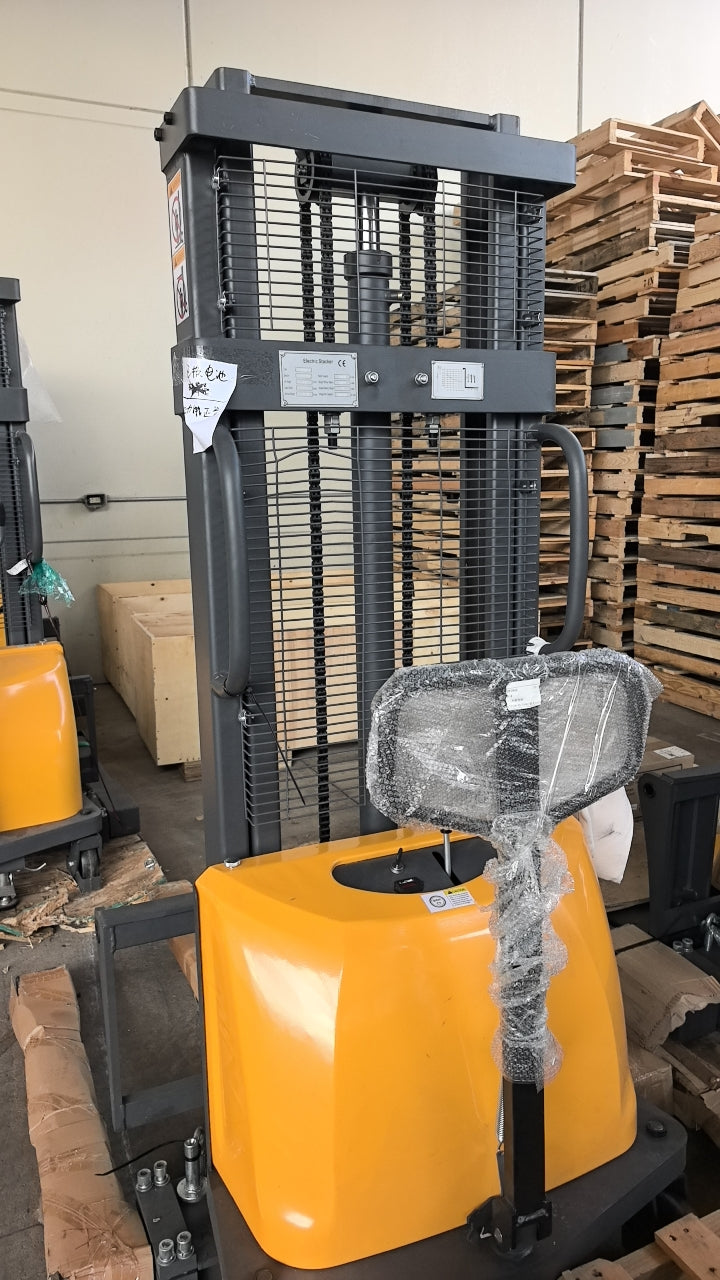

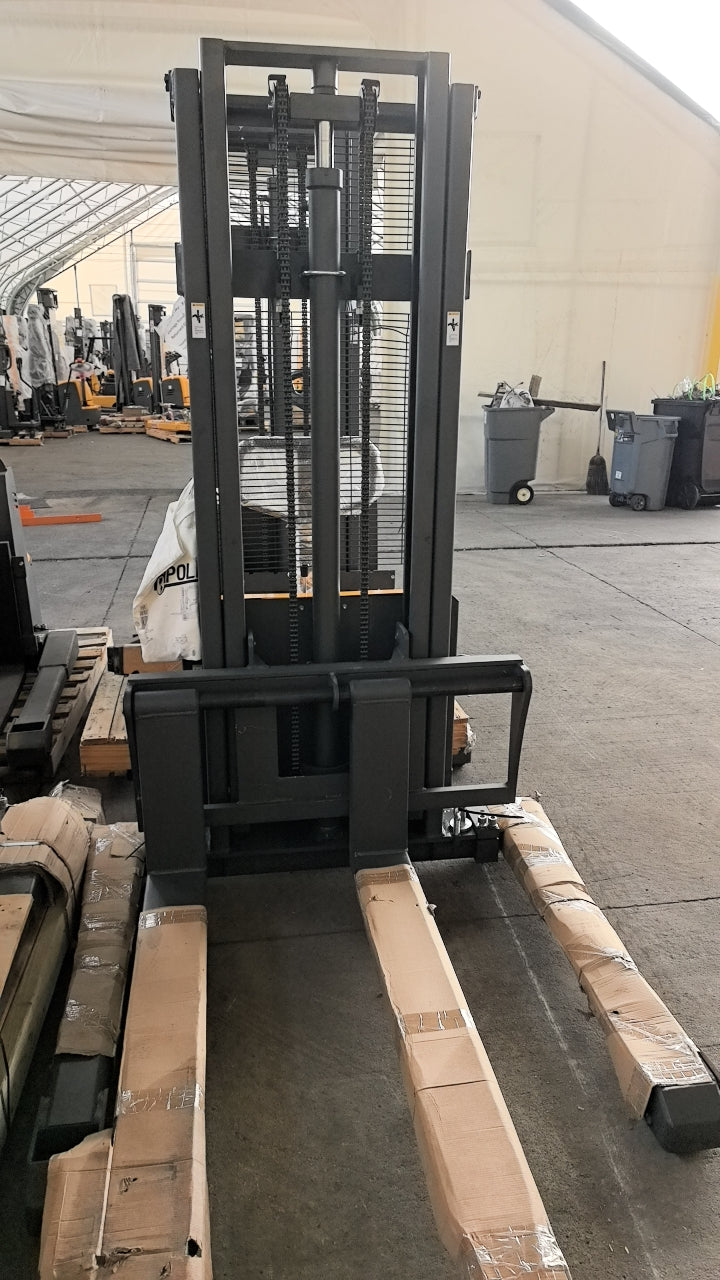

The TORY CARRIER Semi-Electric Straddle Stacker combines powered lifting with manual travel for pallet stacking and load-positioning applications. With a 3,300 lb rated capacity, maximum lift height of 98 in, and adjustable forks, it provides a practical solution for warehouses, workshops, stockrooms, and production areas.
The straddle-leg configuration allows the support legs to position around compatible pallets, including certain closed-bottom pallet designs. A 1.5kW lift motor provides powered raising and lowering, while the operator manually pushes or pulls the stacker between work areas.
Key Features
- 3,300 lb Rated Capacity: Supports compatible palletized loads for occasional lifting, stacking, and positioning.
- 98 in Maximum Lift Height: Provides vertical reach for elevated pallet storage and load positioning.
- Powered Lift, Manual Travel: Electric lifting reduces manual pumping, while horizontal movement remains operator-powered.
- 1.5kW Lift Motor: Provides powered raising and lowering for routine stacking applications.
- Adjustable Forks: Allow the fork spacing to be matched to compatible pallet and load dimensions.
- Straddle-Leg Configuration: Positions the support legs around compatible pallets to reduce interference beneath the load.
- Controlled Lift Operation: The multifunction control allows the operator to manage raising and lowering.
- Hydraulic Safety Valve: Helps limit uncontrolled fork lowering in the event of hydraulic pressure loss.
- Operator Protection: A mesh mast guard, reinforced support legs, and wheel brake support controlled operation.
- 12V / 105Ah Battery: Powers the lifting system and includes a compatible charger.
Choosing the Right Stacker
This semi-electric stacker requires the operator to push and pull the equipment manually. It is not intended for long travel routes, high-volume warehouse logistics, or continuous heavy stacking. For frequent travel or higher-throughput operation, consider a full electric stacker with powered travel and powered lifting.
| Model | A-3011 |
|---|---|
| Load Capacity | 3,300 lb |
| Load Center Distance | 19.7 in |
| Mast Height, Lowered | 74.6 in |
| Maximum Lift Height | 98 in |
| Overall Length | 68.7 in |
| Overall Width | 44.5–60.3 in |
| Fork Dimensions (L × W × H) | 42.1 × 5.6 × 2.3 in |
| Lifting Speed, Loaded / Unloaded | 2 / 3.1 in/s |
| Turning Radius | 56.1 in |
| Battery Type | Lead-acid |
| Battery Rating | 12V / 100Ah |
| Service Weight | 1,155 lb |
| Warranty Coverage | 1-Year Limited Warranty |
User Documentation
View Product ManualAssembly, Compatibility, and Battery Care: Partial assembly of the forks and straddle-leg components is required upon delivery. Confirm pallet opening, fork spacing, straddle-leg clearance, load center, and rated capacity before use. Operate only on firm, level surfaces. During extended storage, recharge the battery at least once a month.
Included: All TORY CARRIER electric products include the required battery and charger, providing a complete ready-to-use solution for your material handling needs.
