Model: A-7004

Manual Lift Stacker with Foot Pump, 440 lbs Capacity, 35.8" Lift Height, Steel Platform, Swivel Casters, A-7004

$319.00 $269.00 Save $50.00
In stock
Key Features
  • 440 lb capacity with up to 35.8" lift height.
  • Foot pump hydraulic lifting system for smooth and controlled height adjustment.
  • Durable steel platform and fork configuration for versatile material handling.
  • Swivel casters provide easy maneuverability in tight work areas.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
Load Capacoty: 440 lb
✓ For details on returns and refunds, please see our Return Policy .
Load Capacoty: 440 lb

Product details

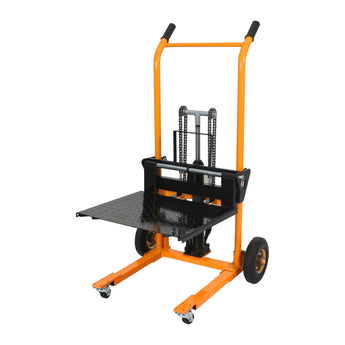

The TORY CARRIER A-7004 Manual Hydraulic Lift Stacker combines adjustable removable forks and a solid removable platform in one compact material handling solution. With a 440 lb rated capacity and maximum lift height of 35.8 in, it is designed for lifting and positioning compatible pallets, boxes, containers, tools, and other loads.

The 18.5 in forks adjust from 5.6 to 19.9 in to accommodate different load widths. A foot-operated hydraulic pump provides manual lifting, while the release control supports controlled lowering. Fixed support legs, a reinforced dual-chain mechanism, swivel casters, and a powder-coated steel frame support routine use in warehouses, workshops, stockrooms, and other light-duty material handling environments.

Key Features

  • 440 lb Rated Capacity: Supports boxes, containers, tools, and other compatible material handling loads.
  • 35.8 in Maximum Lift Height: Raises loads to a more accessible position for handling and workstation tasks.
  • Adjustable Removable Forks: The 18.5 in forks adjust from 5.6 to 19.9 in and can be removed when not required.
  • 18.5 × 21.2 in Removable Platform: Provides a flat supporting surface for compatible boxes, containers, tools, and non-palletized loads.
  • Foot-Operated Hydraulic Lift: Provides manual lifting without batteries, charging, or external power.
  • Controlled Lowering: The release control supports smooth lowering and precise load positioning.
  • Reinforced Dual-Chain Mechanism: Supports controlled lifting during routine operation.
  • Compact and Maneuverable: A 90 lb service weight and swivel casters make the unit easier to position and store.
  • Durable Steel Construction: A reinforced frame and powder-coated finish help resist everyday wear.

Product Specifications

Model A-7004
Product Type Manual Hydraulic Lift Stacker
Rated Capacity 440 lb

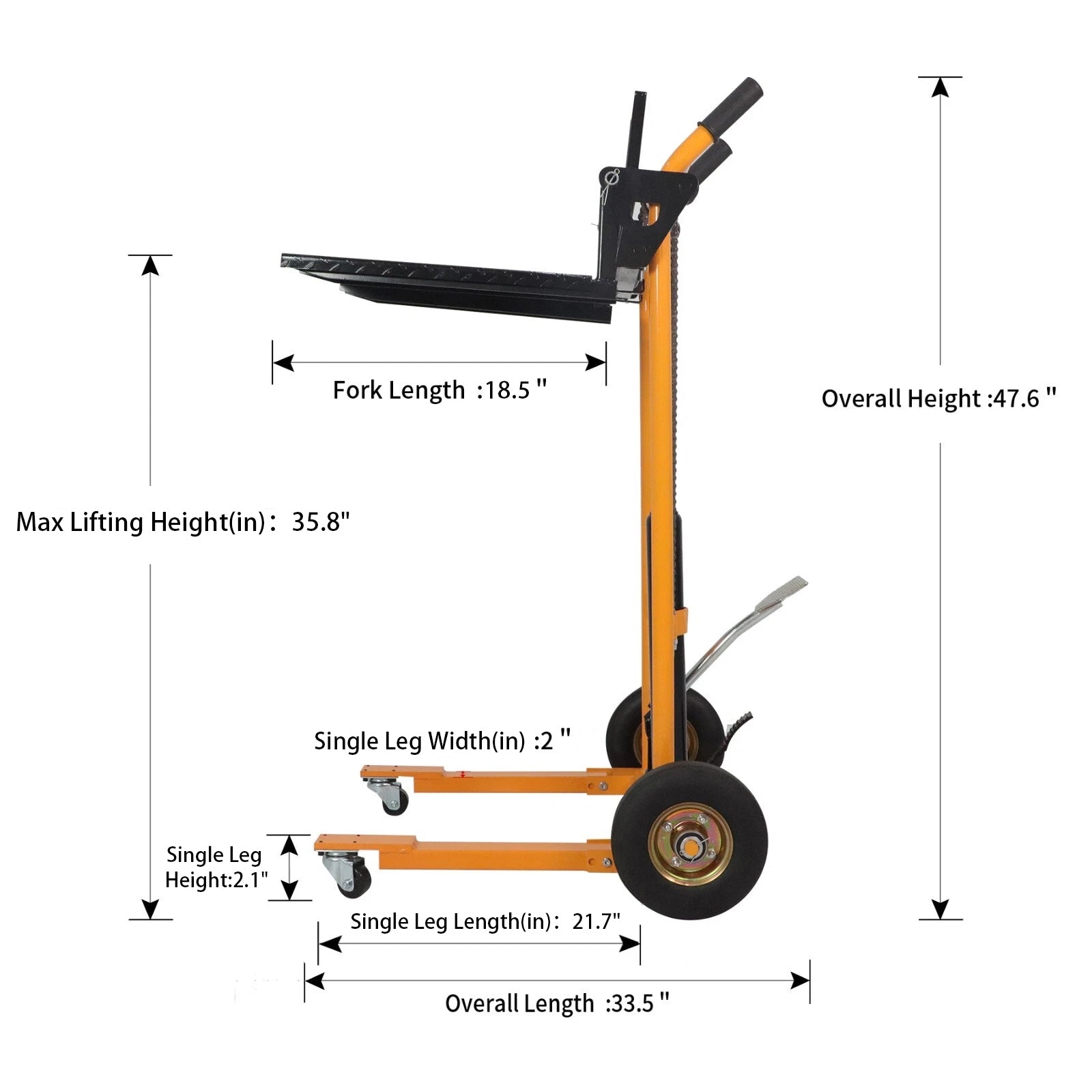

Maximum Lift Height 35.8 in

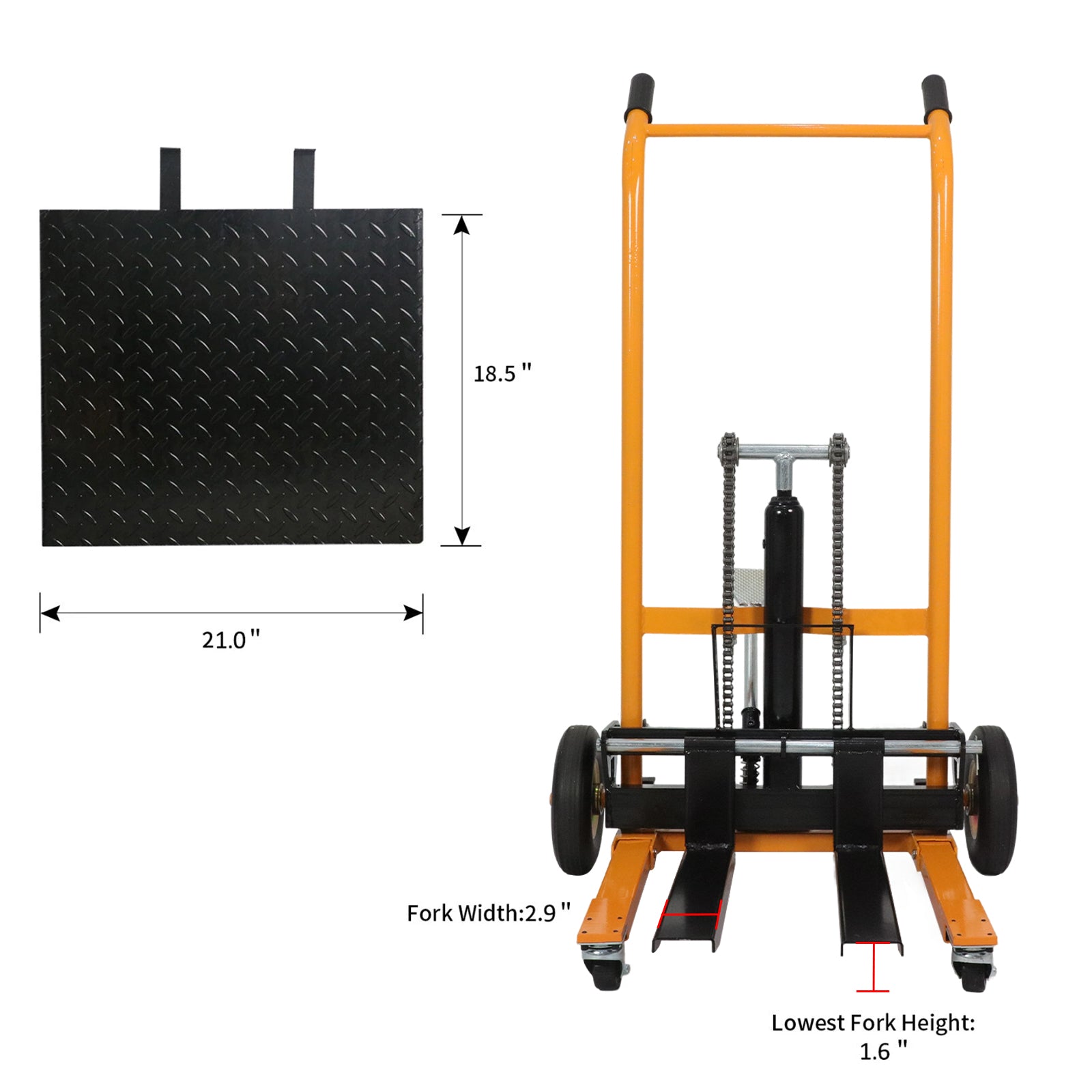

Lowered Fork Height 1.6 in
Fork Length 18.5 in
Adjustable Fork Width 5.6–19.9 in
Overall Dimensions (L × W × H) 33.5 × 28.3 × 54.4 in

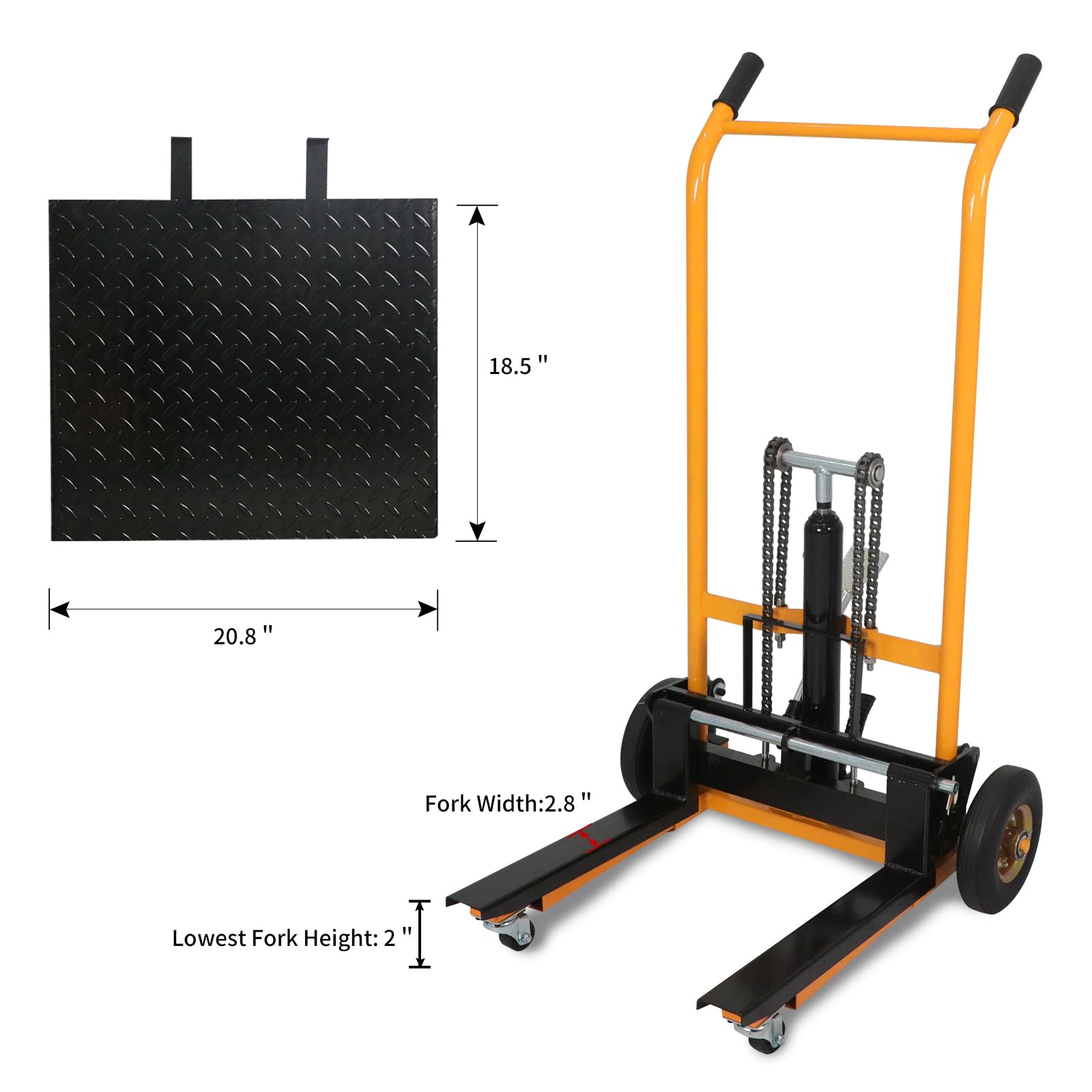

Removable Platform Dimensions 18.5 × 21.2 in
Leg Type Fixed Legs
Inside Leg Width 15 in
Compatible Pallet Type Compatible Open-Bottom Pallets Only
Service Weight 90 lb
Shipping Package Dimensions 49 × 29 × 9 in
Warranty 1-Year Limited Warranty

Package Contents

Seq. No. Description Quantity Remarks
1 Frame 1
2 Forks 2
3 Stabilizing Legs 2
4 Large Rubber Wheels 2
5 Fork Platform 1
6 Lifting Hand Crank Arm 1
7 Allen Keys #5 2 Included in one hardware bag
8 Round Fixing Bolts (screws 8×16 and bolts 10×60 included) 4 Included in one hardware bag
9 Round Washers Φ20 2 Included in one hardware bag
10 Spring Pins 2 Included in one hardware bag
Operating Notice: The fixed-leg design is intended for compatible open-bottom pallets. Confirm the load dimensions, fork spacing, leg clearance, platform support, and rated capacity before lifting. Center and secure the load, operate only on firm, level surfaces, and never lift personnel.
