Model: A-3016

Semi-Electric Stacker – 3300 lb Capacity, 118" Lift Height, Fixed Legs with Adjustable Forks, A-3016

$3,400.00 $2,899.00 Save $501.00
In stock
Key Features
  • 3,300 lb capacity with up to 118" lift height.
  • Fixed legs with adjustable 42" x 11.6-36.6" forks.
  • Electric lifting with manual travel.
  • 56.1" turning radius for tight spaces.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.

Important Compatibility Notice

This fixed-leg stacker is compatible only with open-bottom U.S. standard pallets. It is NOT compatible with closed-deck or solid-bottom pallets. Please confirm your pallet type before purchase to avoid incompatibility issues.

✓ For details on returns and refunds, please see our Return Policy .

Product details

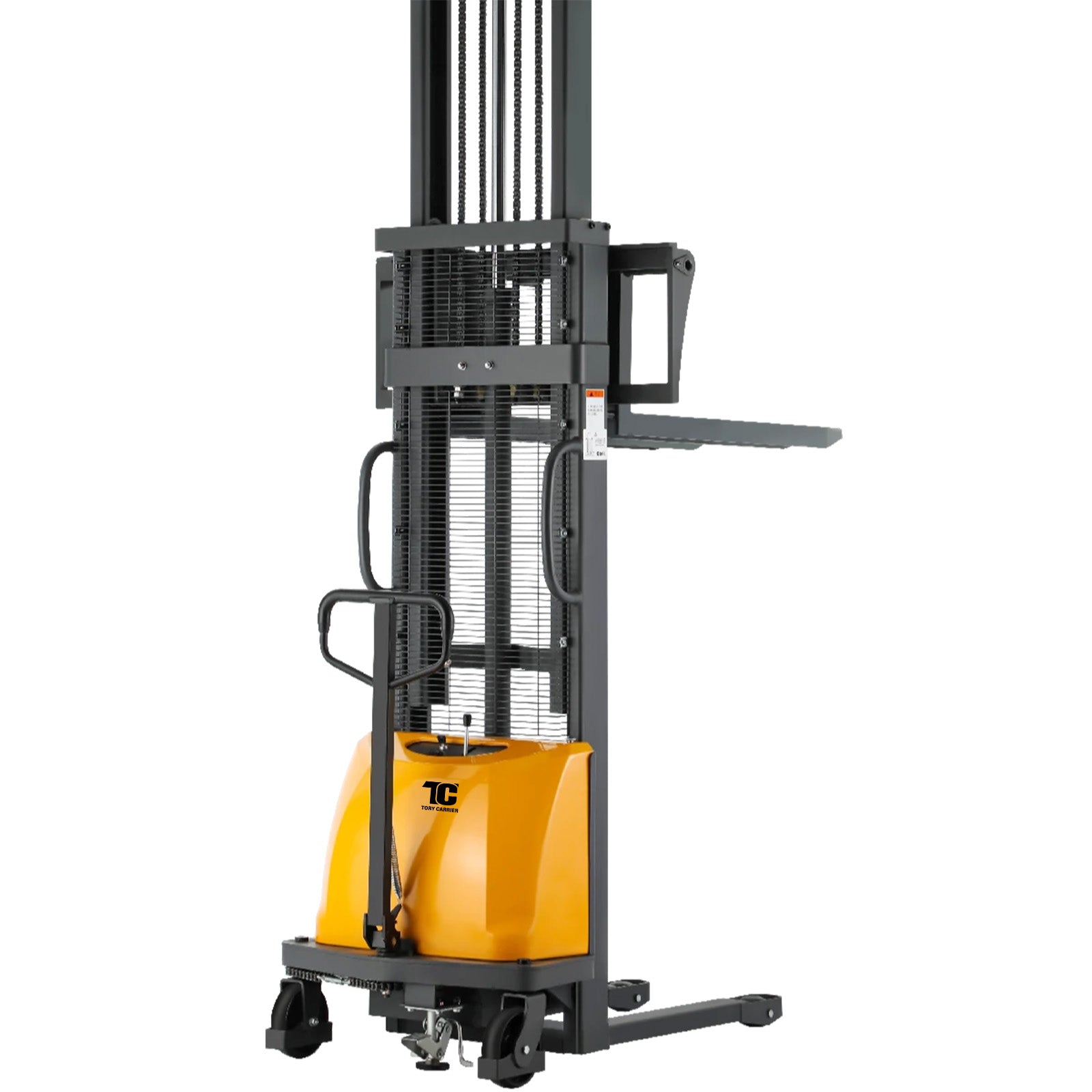

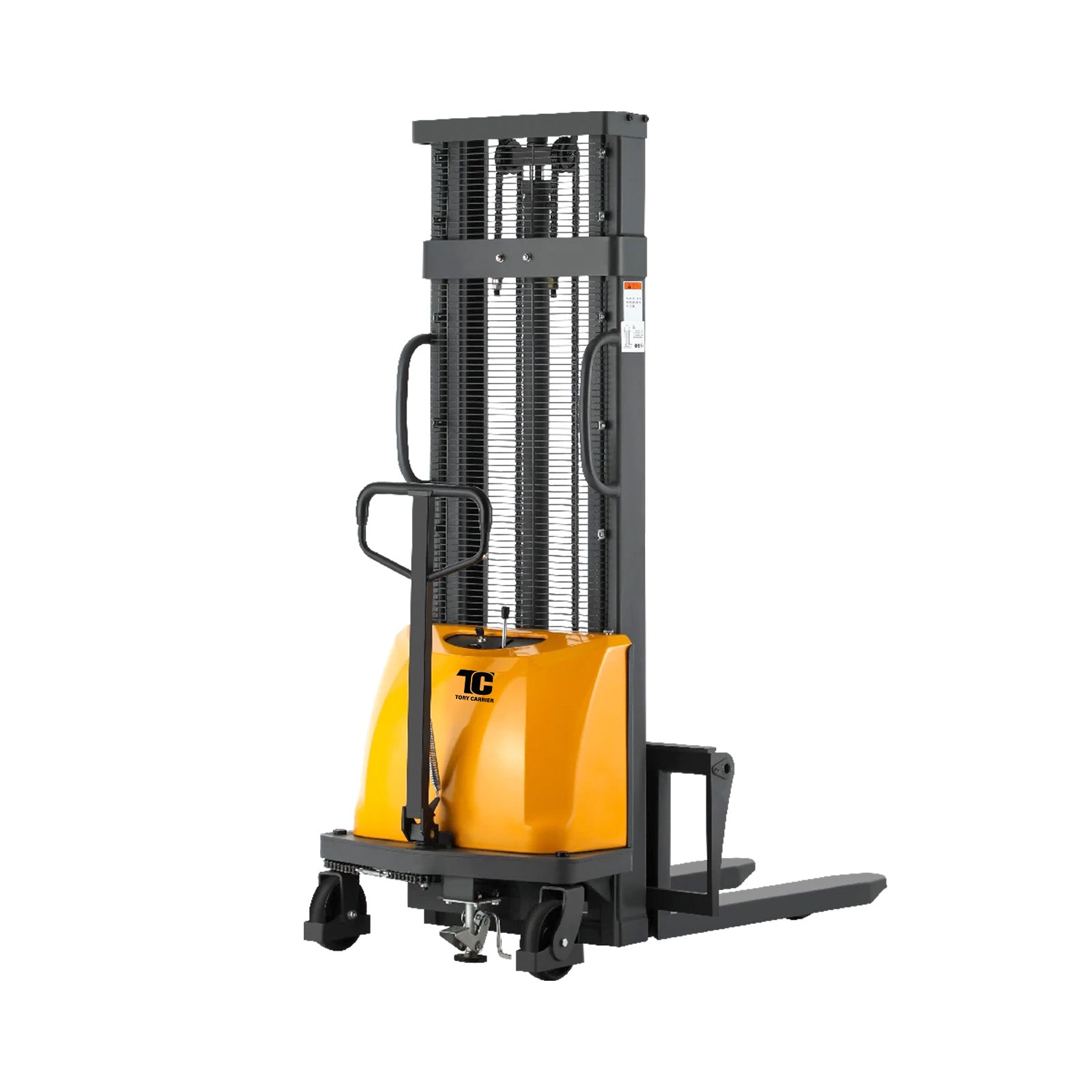

The TORY CARRIER Semi-Electric Stacker combines powered lifting with manual travel for occasional pallet stacking and load-positioning applications. With a 3,300 lb rated capacity, maximum lift height of 118 in, and adjustable forks, it is designed for warehouses, workshops, loading areas, and other indoor material handling environments.

A 1.5kW lift motor provides electric raising and lowering, while the operator manually pushes or pulls the stacker between work areas. Its fixed-leg frame is intended for compatible open-bottom pallets, and the protective mast screen, hydraulic safety valve, wheel brake, and reinforced steel construction support controlled daily operation.

Key Features

  • 3,300 lb Rated Capacity: Supports compatible palletized loads for occasional lifting, stacking, and positioning.
  • 118 in Maximum Lift Height: Provides vertical reach for elevated pallet storage and load positioning.
  • Powered Lift, Manual Travel: The electric lift reduces manual pumping, while horizontal movement remains operator-powered.
  • 1.5kW Lift Motor: Provides powered raising and lowering for routine stacking applications.
  • Adjustable Forks: Allow the fork spacing to be matched to compatible pallet and load dimensions.
  • Fixed-Leg Frame: Provides stable support for compatible open-bottom pallets.
  • Hydraulic Safety Valve: Helps limit uncontrolled fork lowering in the event of hydraulic pressure loss.

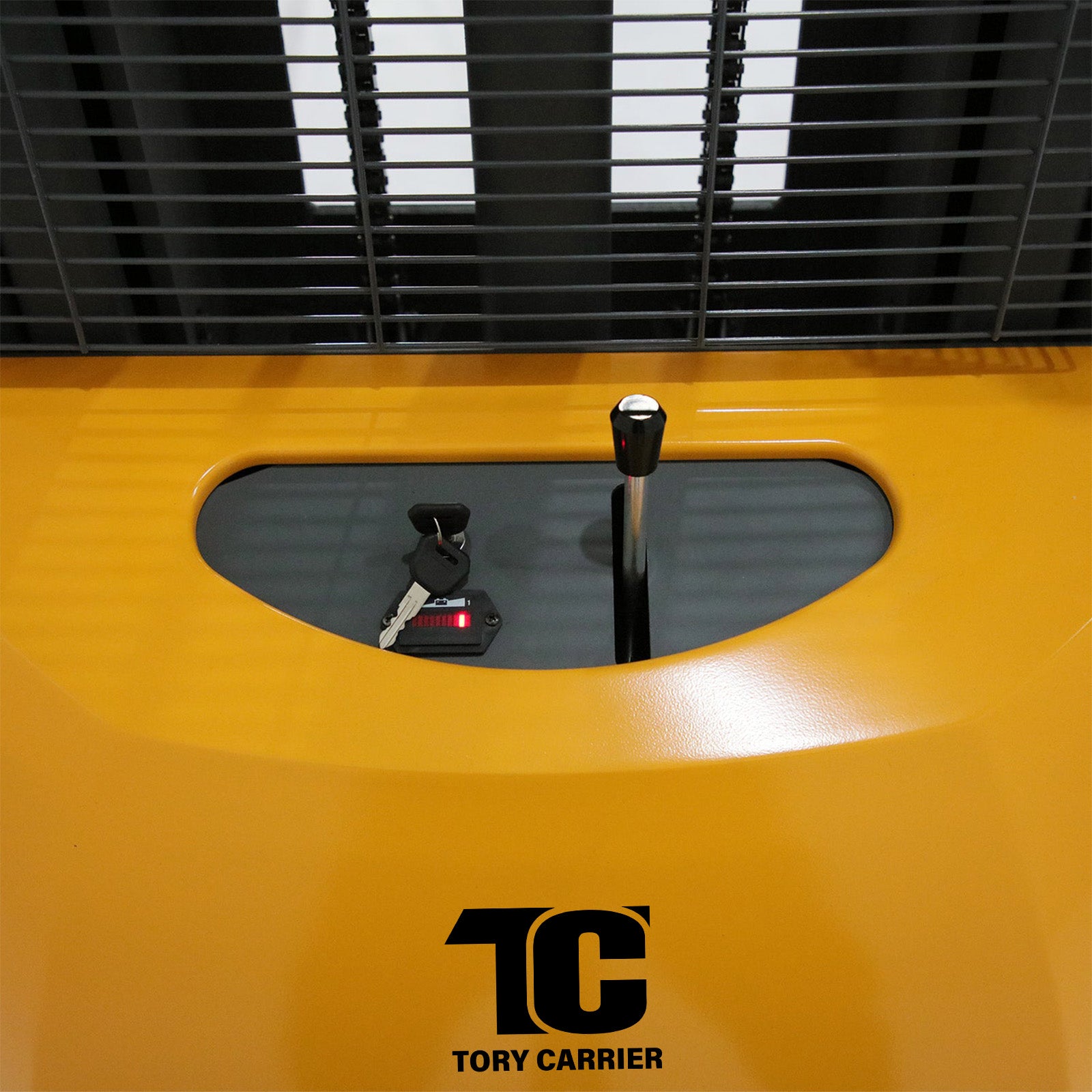

  • Operator Protection: A mesh mast guard, reinforced support legs, and wheel brake support controlled operation.
  • 12V / 105Ah Battery: Powers the lifting system and includes a compatible charger.

Recommended Applications

  • Low to moderate stacking frequency
  • Short travel distances
  • Occasional pallet lifting and positioning
  • Warehouse, workshop, and stockroom use
  • Compatible open-bottom pallet handling

Choosing the Right Stacker

Because this model requires the operator to push and pull the stacker manually, it is not intended for long travel routes, high-volume warehouse logistics, or continuous heavy stacking. For frequent travel or higher-throughput operation, a full electric stacker with powered travel and powered lifting may be more appropriate.

Compatibility and Battery Care: The fixed-leg design is intended for compatible open-bottom pallets and may not accommodate standard closed-bottom U.S. pallets. Confirm pallet opening, fork spacing, leg clearance, load center, and rated capacity before use. During extended storage, recharge the battery at least once a month.

Load Capacity 3,300 lb
Load Center 19.7 in
Maximum Lift Height 118 in
Mast Height (Extended) 140.2 in
Fork Dimensions 42.1 × 5.6 × 2.4 in
Lift Speed (Loaded / Unloaded) 2 / 3.1 in/s
Lowering Speed (Loaded / Unloaded) 3.9 / 3.5 in/s
Minimum Aisle Width 90.1 in
Turning Radius 56.1 in
Battery Type Lead-Acid
Battery Rating 12V / 100Ah
Service Weight 960 lb
Warranty 1-Year Limited Warranty
TORY CARRIER 3,300 lb electric stacker product specifications

User Documentation

Download Product Manual (PDF)

👉Installation and Operation Video

Have Questions About Our Semi-Electric Stacker?

What is a semi-electric stacker and how does it work?

A semi-electric stacker uses electric lifting but requires the operator to manually push or pull the unit for travel. This makes it suitable for low to moderate stacking tasks and short transport distances.
What type of pallets can it be used with?

This model is designed for open-bottom pallets.

⚠️ Note: Fixed-leg semi-electric stackers are not compatible with closed-bottom U.S. stringer pallets.
Is a semi-electric stacker suitable for high-intensity warehouse operations?

Not recommended. Semi-electric stackers require manual movement, which can become tiring during:

  • Long travel distances
  • High-frequency stacking
  • Heavy workloads
    For high-intensity operations, a full electric stacker with powered travel is recommended to reduce operator fatigue and improve efficiency.
How long does the battery last and how should it be maintained?

The lift motor battery typically supports a full work shift under normal use. For best performance:

  • Charge after daily use
  • Charge once a month if not in operation
  • Avoid deep discharge to extend battery life
What environments are ideal for a semi-electric stacker?

Best used in:
✔ Small to medium warehouses
✔ Workshops
✔ Manufacturing lines
✔ Places with narrow aisles & short travel distances
Not suitable for outdoor uneven ground or long-distance logistics operations.
