Product Details

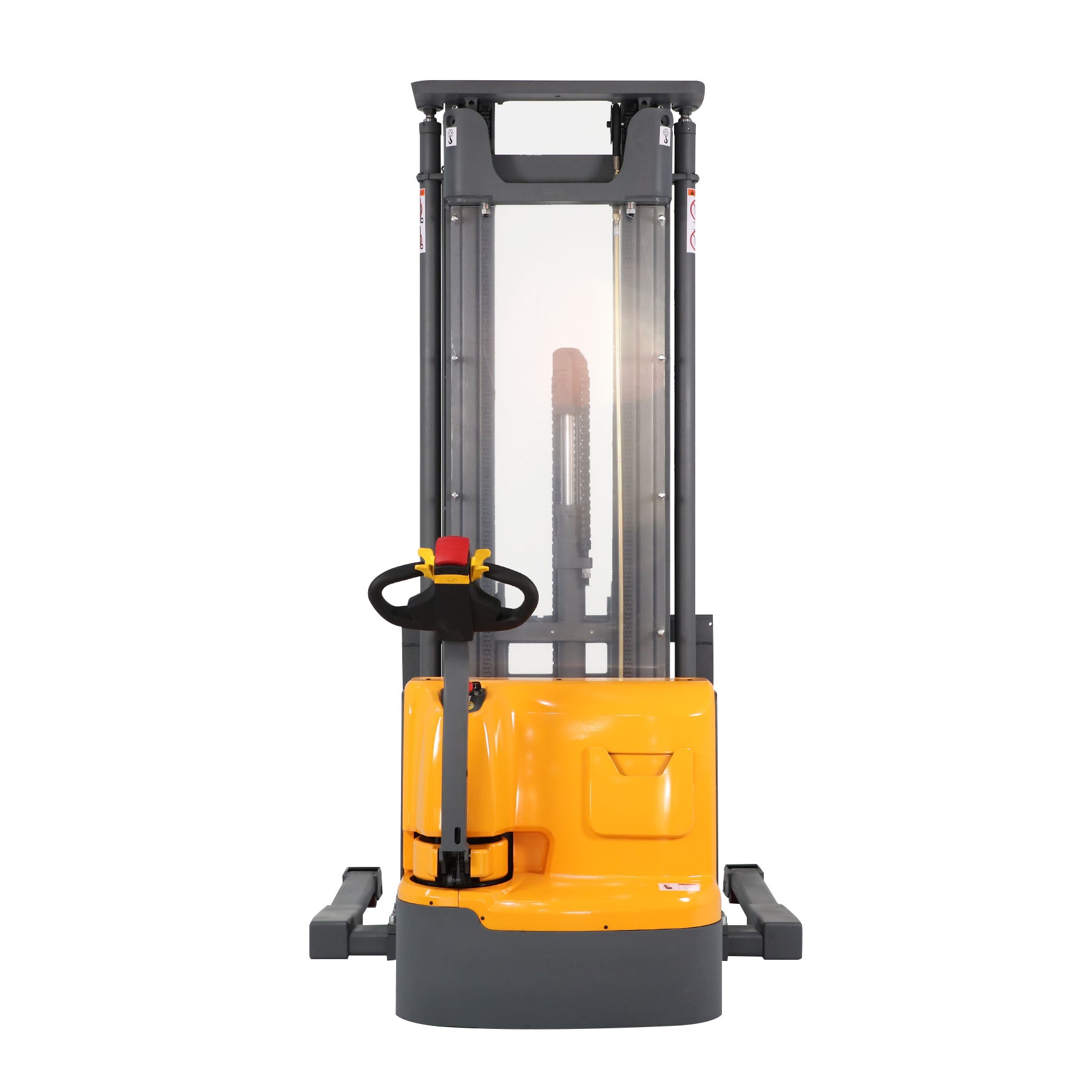

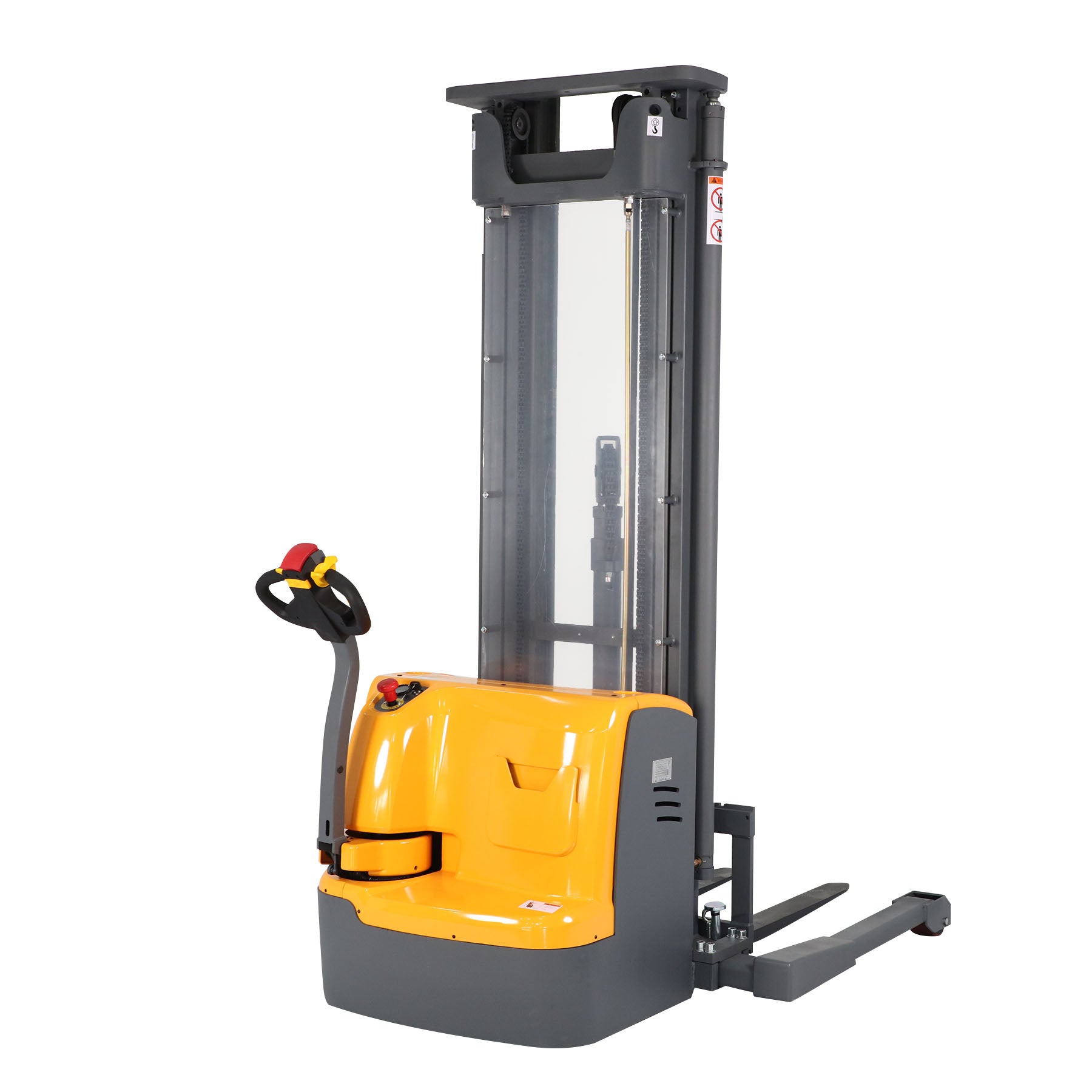

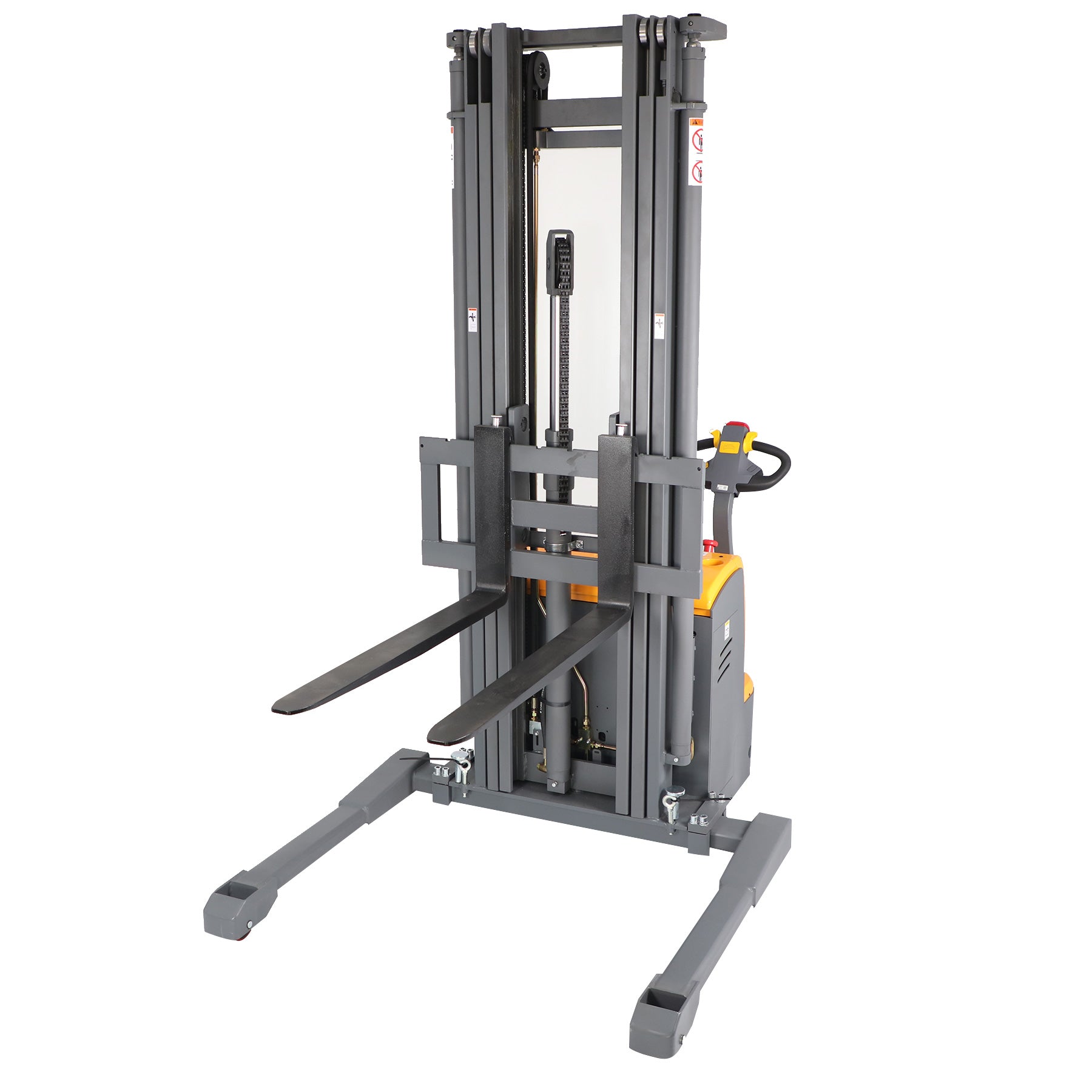

The TORY CARRIER Full Electric Walkie Stacker is built for businesses that need reliable high-lift performance without sacrificing efficiency. With a rated capacity of 3,300 lbs and lift heights ranging from 177" to 220", it offers a powerful yet user-friendly solution for warehouses, factories, and distribution centers. Equipped with a 24V/200AH lead-acid battery, this stacker delivers long-lasting operation and smooth handling for demanding workflows.
Key Features
-
High-Lift Capacity: Maintains full 3,300 lbs load rating even at 177–220" lift heights.
-

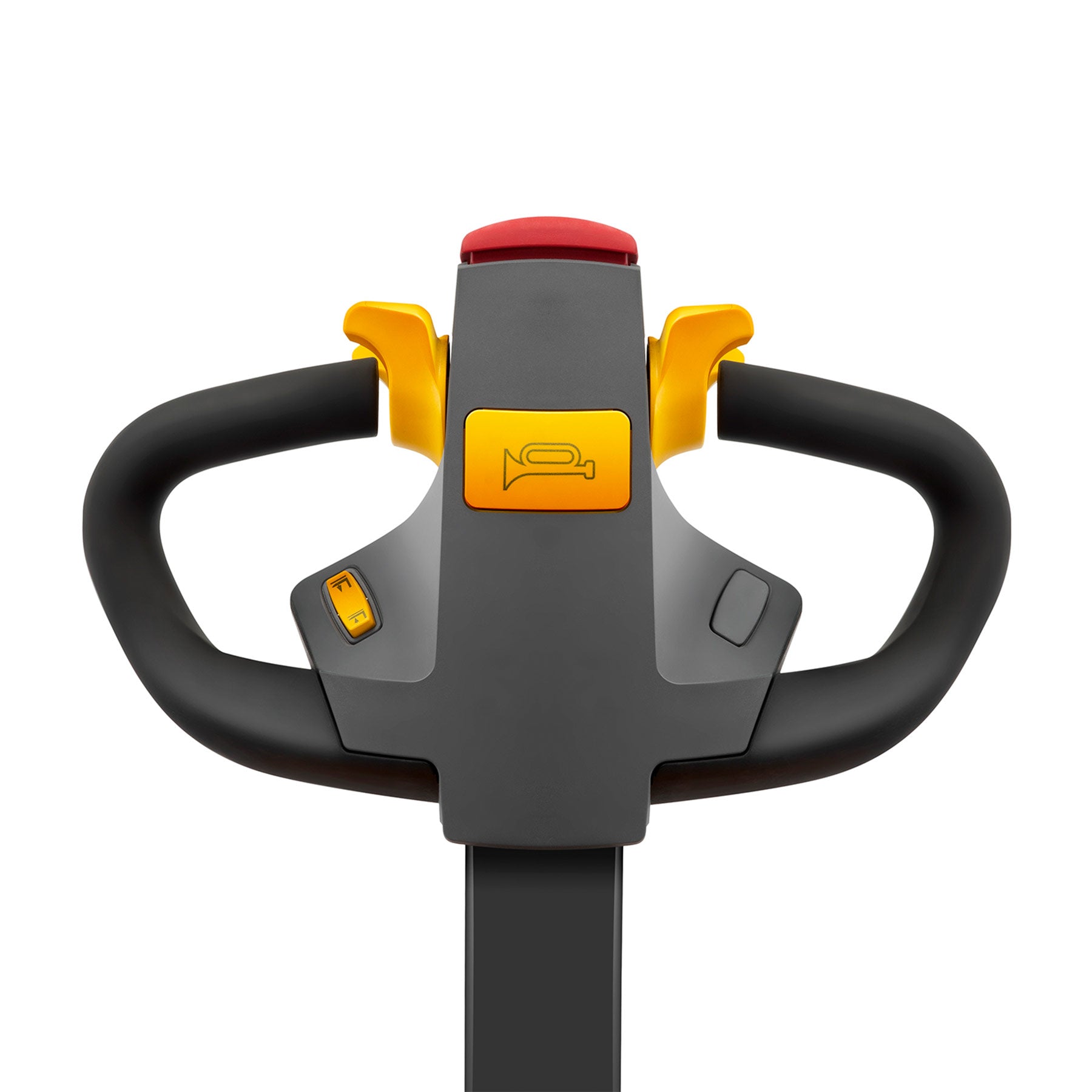

Precision Control: German-brand tiller handle with advanced AC control for stable and accurate operation.
-

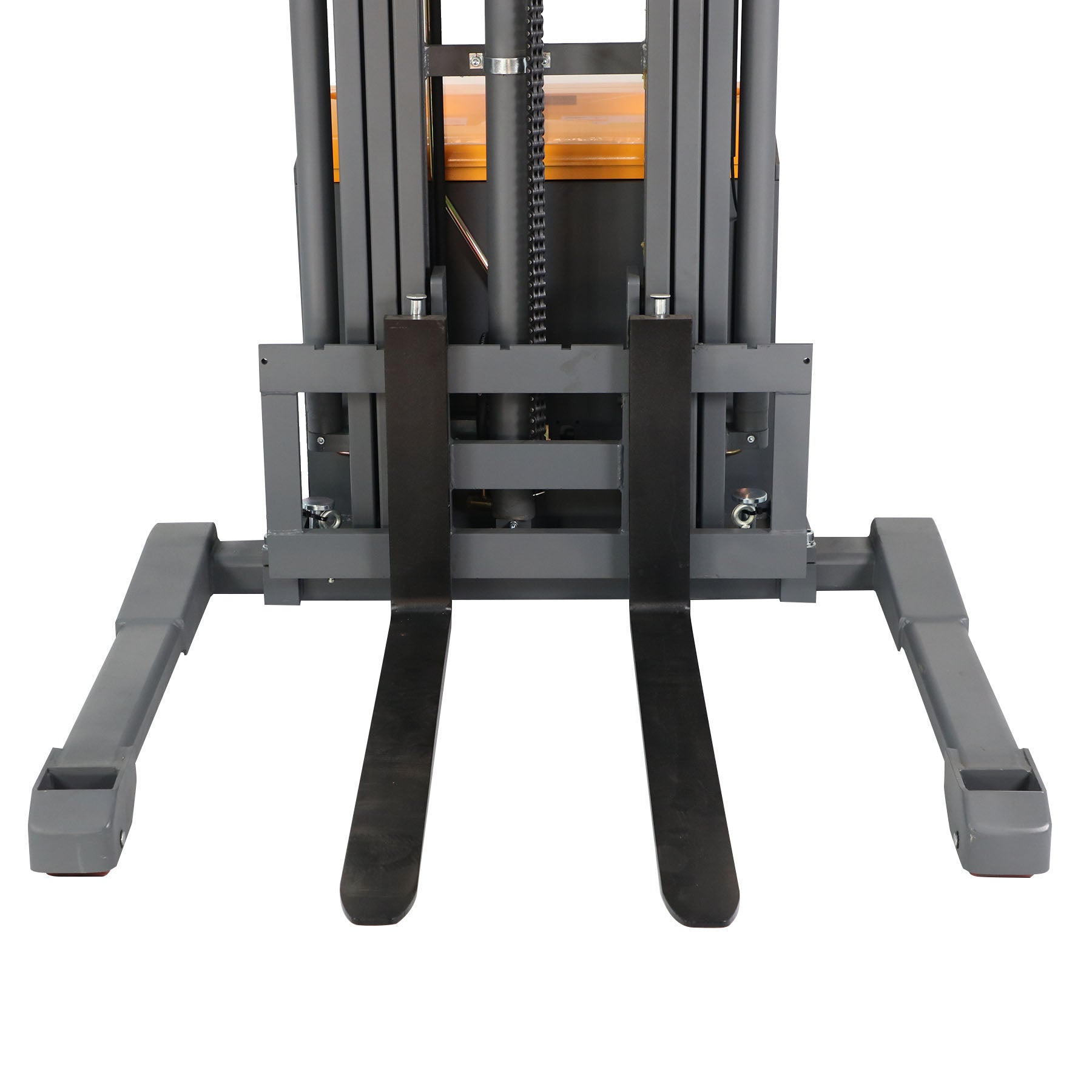

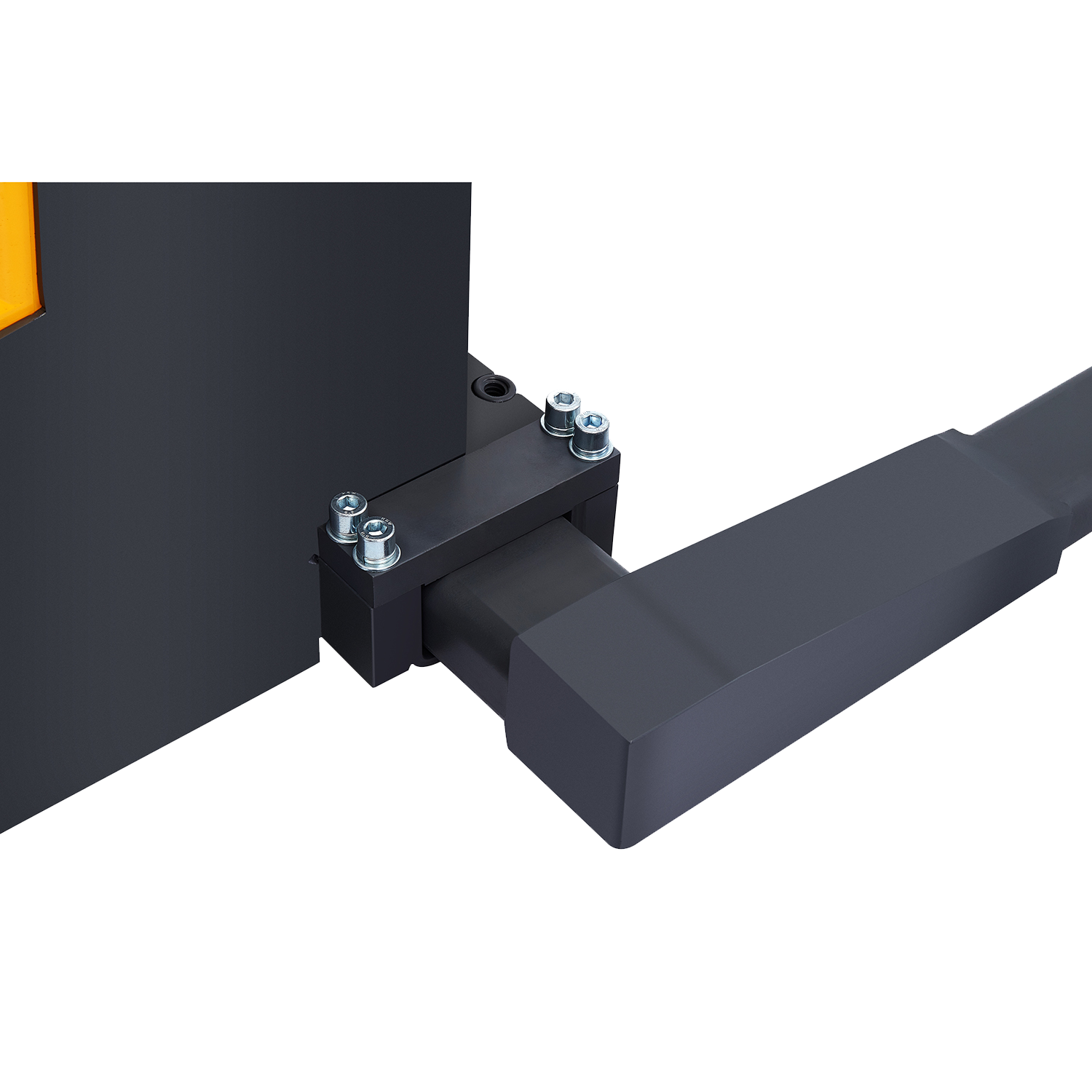

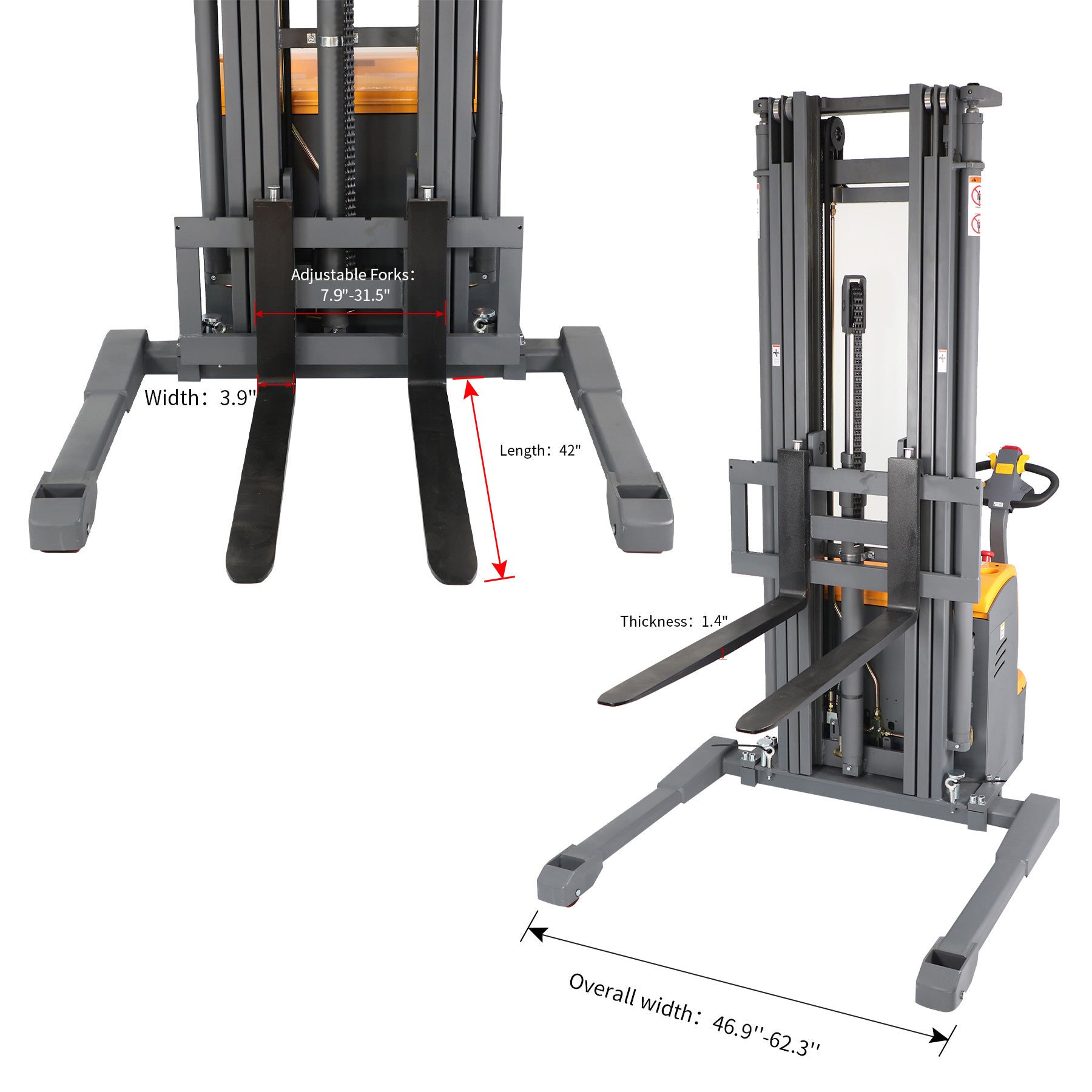

Adaptable Design: Adjustable forks and straddle legs to fit a wide range of pallet sizes.
-
Effortless Steering: Extended tiller arm reduces steering force, ensuring flexibility in tight spaces.
-

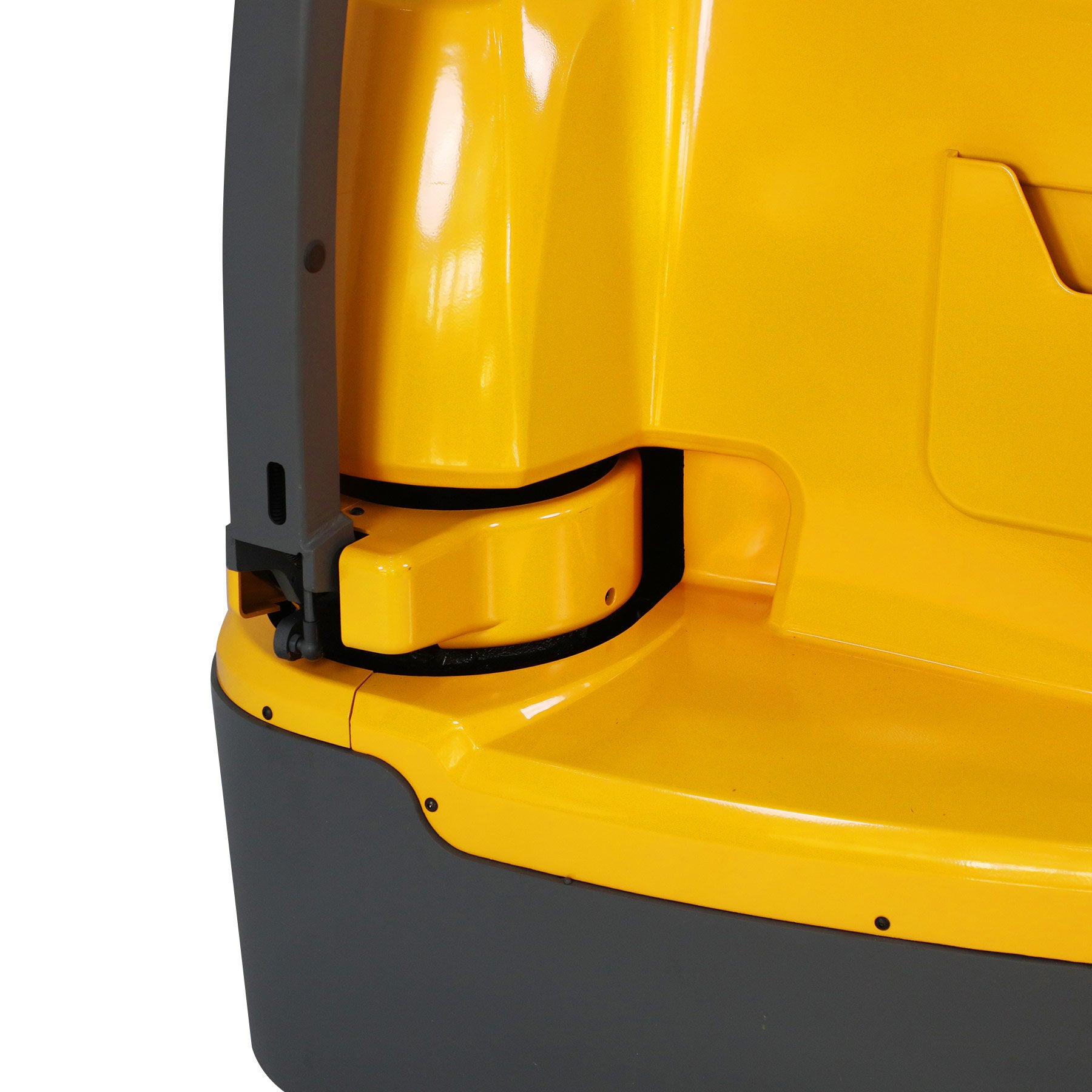

Efficient Drive System: Vertical drive wheel boosts efficiency and simplifies maintenance.
-

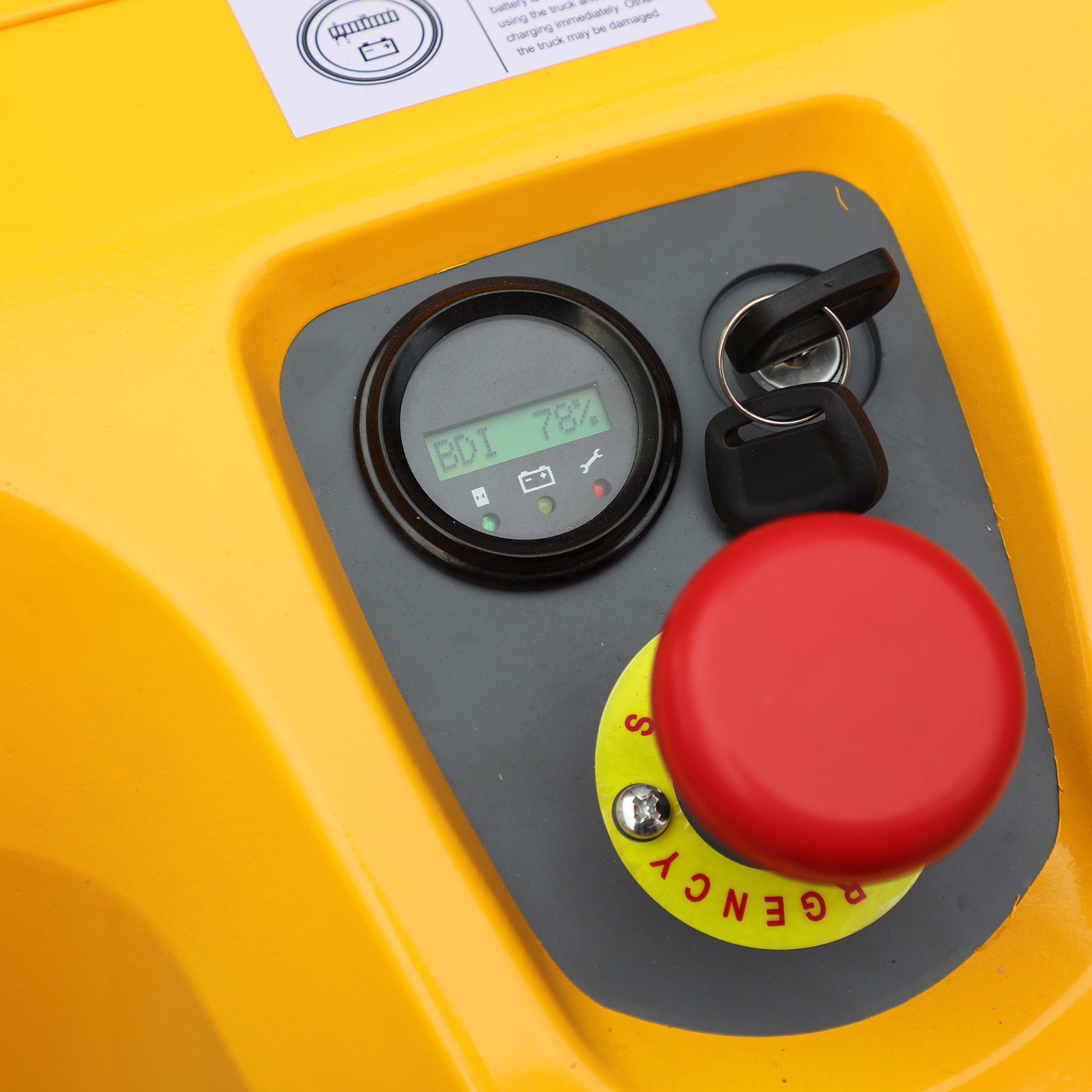

Smart Display: Monitors working hours, battery status, and low-voltage alerts at a glance.
-
Extended Operation: 24V/200AH lead-acid battery supports up to 8 hours of continuous use per charge.
-
Quick Recharge: 8–10 hour charging cycle keeps downtime minimal.
-
Complete Package: Delivered with battery and charger, ready for immediate operation.
⚙️ Partial assembly required.
Specs
| Specification | A-3029 | A-3030 |
|---|---|---|
| Load Capacity | 3300 lbs | 3300 lbs |

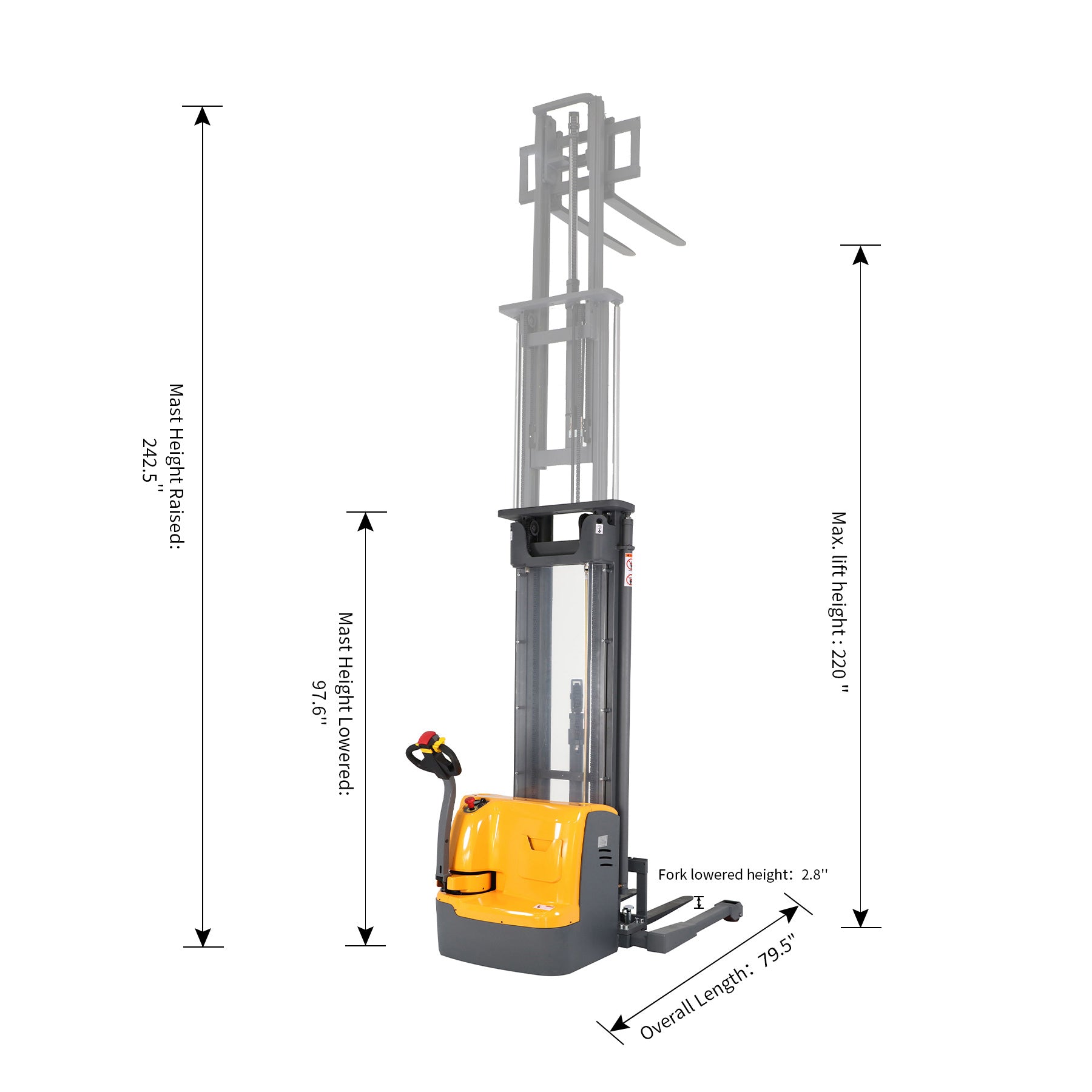

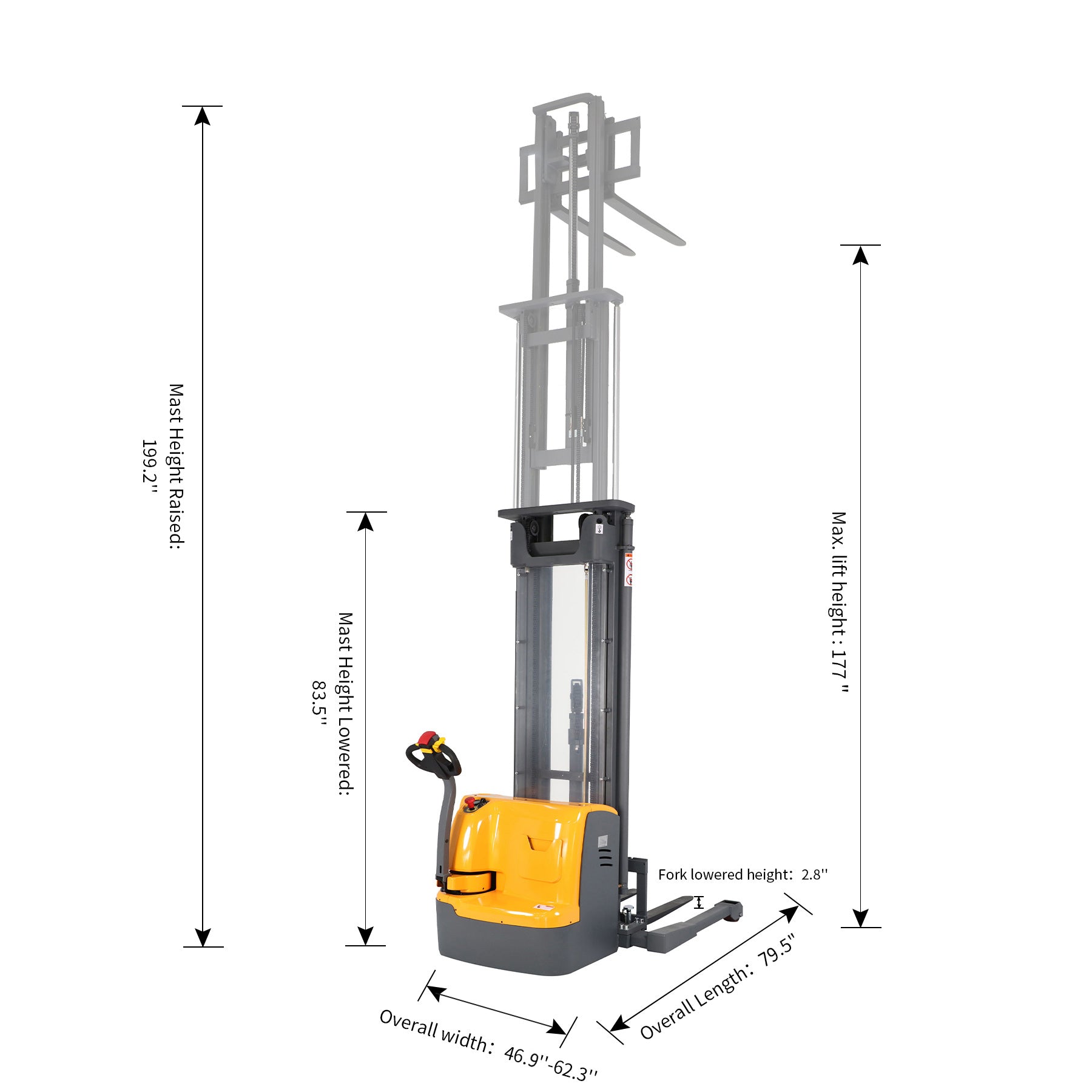

| Height, Mast Lowered | 83.5 in | 97.6 in |
| Lifting Height | 177 in | 220 in |
| Fork Dimensions | 42 × 3.9 × 1.3 in | 42 × 3.9 × 1.3 in |
| Lifting Speed (Laden/Unladen) | 3.5 / 6.3 in/s | 3.5 / 6.3 in/s |
| Travel Speed (Laden/Unladen) | 3.6 / 3.72 mph | 3.6 / 3.72 mph |
| Gradeability | 6% / 15% | 6% / 15% |
| Turning Radius | 68.1 in | 68.1 in |
| Battery Type | Lead Acid | Lead Acid |
| Rated Voltage | 24V / 200Ah | 24V / 200Ah |
| Service Weight (With Battery) | 2790 lbs | 2980 lbs |
Warranty
1-Year Warranty (from delivery date):
- First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
- 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
- After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).
Special Warranty Terms:
- Spare Parts: 3-month warranty.
- Batteries: 6-month warranty.
- Used Machines: 3-month parts-only warranty (no labor or returns).
- Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.
Have Questions About Our Electric Stackers?
What is the difference between a full electric stacker and a Manual stacker?
A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
What type of pallets are compatible with full electric stackers?
Most full electric stackers are suitable for open-bottom pallets. If you use closed-bottom or block pallets, please confirm compatibility before purchasing.
How long does the battery last on a full charge?
Typically, the battery lasts 6–8 hours under normal use. Charging time is usually 6–8 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?
Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?
Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.
