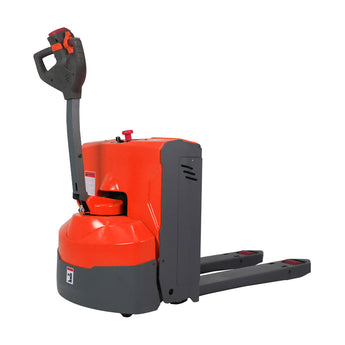

Electric Pallet Jack 4400 lb Capacity with 48"L x 27"W Forks, Lithium Battery

$4,399.00
SKU: R-1023
1 in stock

Pickup currently unavailable at GA

⛟ Shipping: Usually ships within 2 business days.

Product details

Key Features:

Compact & Agile
Engineered for tight spaces, the small turning radius and upright turtle-mode allow for smooth, precise control—even in narrow aisles.

Built-in Safety System
Equipped with overload protection, emergency power-off, reverse function via belly switch, and lift height limits—keeping operators protected at all times.

Elevated Drive Motor
High-mounted drive wheels help prevent water, dust, and oil damage, extending the motor’s lifespan and reducing maintenance needs.

Stable Performance
Floating balance wheels reduce lateral sway, ensuring smooth, stable travel over various surfaces.

Heavy-Duty Hydraulic System
Low-pressure, large-plunger hydraulic design enhances durability and reduces failure risk for long-term reliability.

Battery Care Tip
To maintain battery health, charge at least once a month when the unit is not in use.

Specifications

Item Specification
Capacity 4400 lb
Overall Length 70 in
Overall Width 28 in
Overall Height 52.4 in
Max Lifting Height 7.8 in
Fork Length 48 in
Forks Overall Width 27 in
Fork Thickness 2.1 in
Single Fork Width 6.7 in
Inside Distance Between Forks 12.8 in
Fork Lowered Height 3.2 in
Turning Radius 62.6 in
Aisle Width 95.2 in
Service Weight 1074 lb
Driving Speed (Laden) 3.6 mph
Driving Speed (Unladen) 3.7 mph
Battery Capacity 180Ah
Battery Voltage 24V
Charger 24V 20A Built-in
Lifting Distance 4.7 in
Package Size 77 x 34 x 53 in
Gross Weight 1084 lb

Differences Between Tory Carrier Electric Pallet Trucks and Buying Guide

Compare the key features of different Tory Carrier electric pallet jacks and find the best solution for your warehouse, factory, or retail distribution needs.

Lightweight Lithium

A-1034 Electric Pallet Jack – Lightweight Lithium Model

A-1034 is equipped with a fast-charging lithium battery and supports a 3,300 lbs load capacity. Compact and agile, it’s perfect for small warehouses and retail distribution centers.

Compact Design

T-1037 Electric Pallet Jack – Narrow Aisle Model

T-1037 features a compact frame with a 3,300 lbs load capacity, specifically designed for narrow aisles and high-density storage environments.

Enhanced Safety

A-1038 Electric Pallet Jack – Safety Enhanced Model

A-1038 combines strong performance with enhanced safety features, ensuring more secure operation in workplaces with higher safety requirements.

High Load Capacity

R-1030 Electric Pallet Jack – GEL Battery

The R-1030 is equipped with a GEL battery and offers a 4,400 lbs capacity, perfect for demanding operations requiring both power and reliability.

Balanced Performance

T-1028 Electric Pallet Jack – GEL Battery

The T-1028 provides a balance of efficiency and endurance with a 3,700 lbs capacity, designed for medium-duty applications and daily use.

Compact & Efficient

T-1029 Electric Pallet Jack – GEL Battery

The T-1029 is a compact GEL battery pallet jack with 3,300 lbs capacity, ideal for tight spaces and lighter industrial operations.

Warranty & Support

1-Year Limited Warranty

All new equipment is covered by a 1-year limited warranty. For detailed terms, please refer to our official warranty policy or contact our support team.

Battery Maintenance
  • Charge the battery at least once a month to prolong lifespan, even when the equipment is not in use.
Warranty Exclusions
  • Misuse, neglect, modifications, or force majeure events.
  • Normal wear, consumables, and damage caused by improper operation.
Special Items
  • Accessories: 6-month warranty.
  • Batteries: 12-month warranty.
  • Used Machines: 6-month limited warranty (parts-only).
