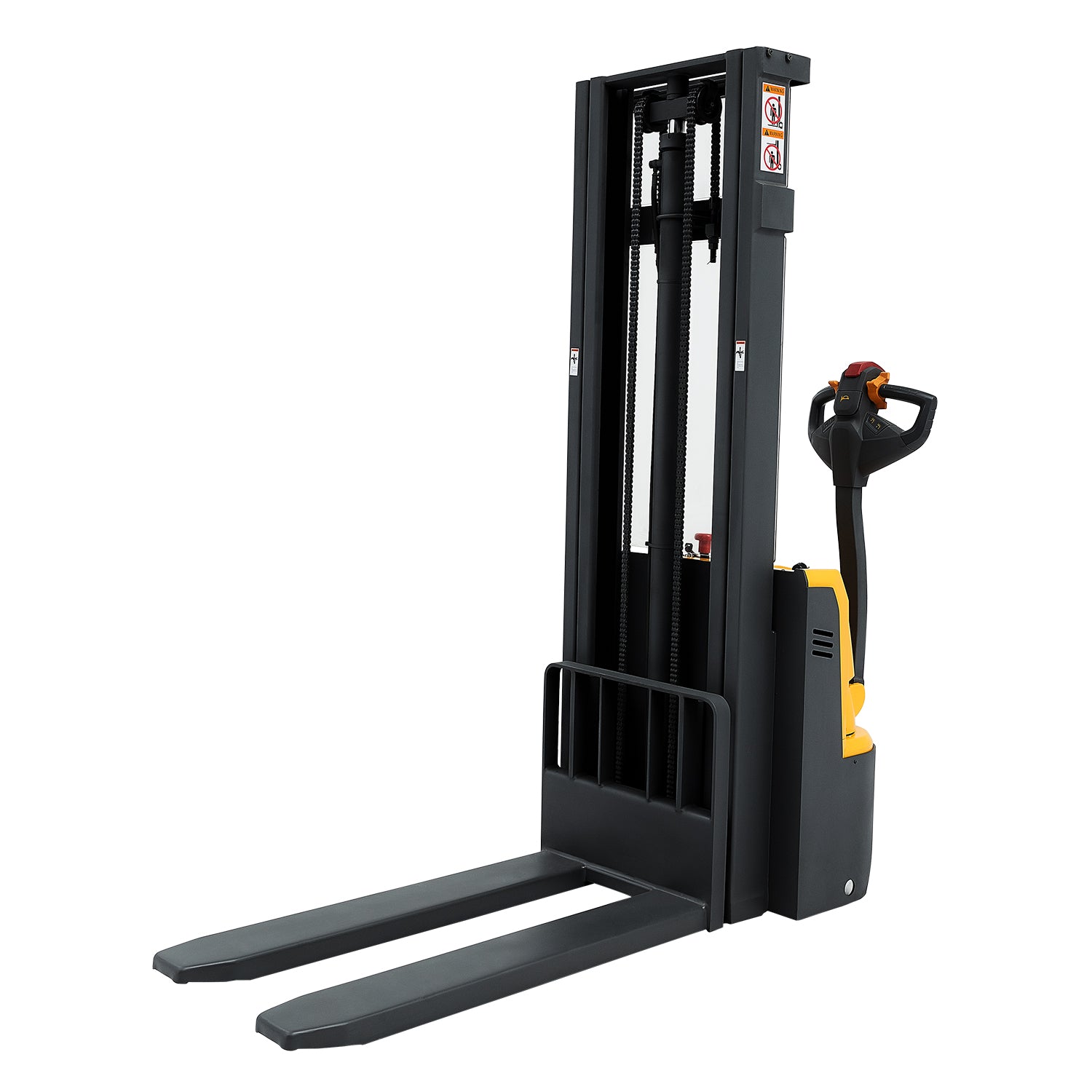

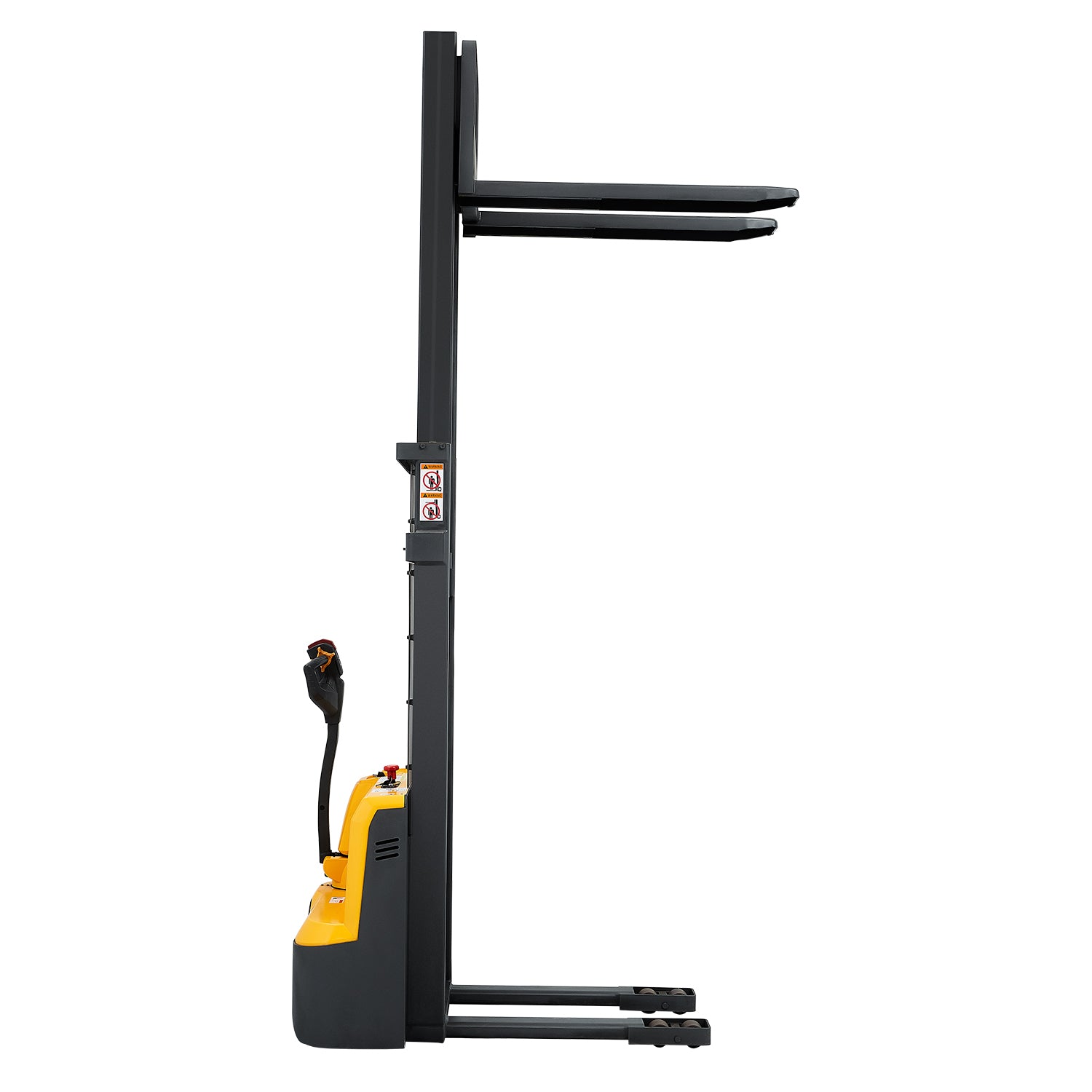

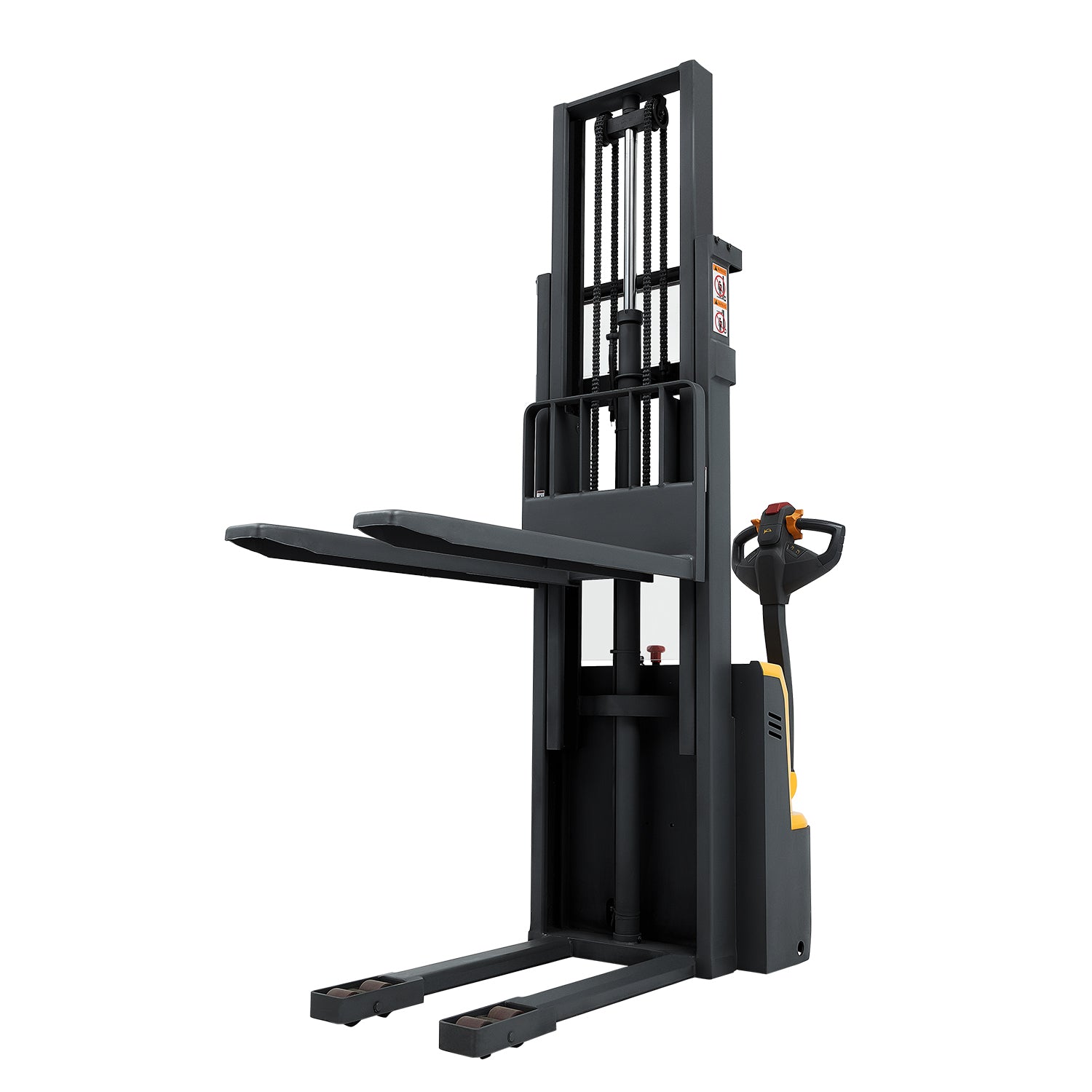

3300lbs Cap. Lifting Height Full Electric Walkie Stacker with Fixed Legs

$5,298.00 $3,698.00 Save $1,600.00
SKU: A-3033
Lift Height: 98"
1 in stock

⛟ Shipping: Usually ships within 5 business days.

Lift Height

Product details

Features

  • Red dot and IF design award winner
  • Fixed forks suits for EU-type pallet
  • In-build charger, Use GEL battery-free to maintain
  • Both sides of the button for lifting and lowering operation
  • Small turning radius which is widely used in small warehouses and supermarkets
  • Suit for low-level stacking and short-distance transportation.
  • The turning radius and aisle width are very small, which is similar to a manual stacker.

Specification

Load Capacity 3300 LBS 3300 LBS
Load Center Distance 23.6 inch 23.6 inch
Height, Mast Lowered 72.4 inch 82.2 inch
Lifting Height 98 inch 118 inch
Fork Dimensions 45*6.7*2.3 inch 45*6.7*2.3 inch
Lifting Speed(Laden/Unladen) 4.3/5.5 inch/s 4.3/5.5 inch/s
Travel Speed (Laden/Unladen) 2.8/3.1 mph 2.8/3.1 mph
Gradeability 6%/15% 6%/15%
Turning Radius 53.7 inch 53.7 inch
Battery Type GEL GEL
Battery Capacity 24/125 V/Ah 24/125 V/Ah
Service Weight 1609 LBS 1654 LBS
