Product details

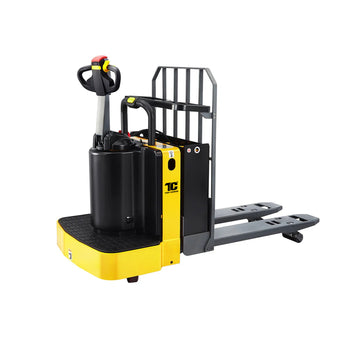

The TORY CARRIER Ride-On Electric Pallet Jack is designed for efficient and reliable material handling in large warehouses, distribution centers, and industrial environments. With a powerful 6,600 lb load capacity and a 24V/300Ah high-capacity battery system, it provides a dependable solution for heavy-duty pallet transportation, high-volume operations, and improving warehouse productivity.
Built for demanding industrial applications, this ride-on electric pallet jack combines electric power steering, stable load handling, and advanced control systems to deliver smooth operation, enhanced maneuverability, and reduced operator fatigue during long shifts. Powered by an AC brushless drive system and a high-capacity industrial battery, it provides strong torque output, consistent travel performance, and reliable operation under heavy loads.
Key Features
- High Load Capacity: Rated for up to 6,600 lb, this heavy-duty ride-on electric pallet jack is built to handle demanding pallet transport applications in warehouses, manufacturing facilities, and logistics operations.
- Electric Power Steering (EPS): Electric Power Steering reduces steering effort and provides smooth, responsive control, allowing operators to maneuver easily in narrow aisles and high-traffic warehouse environments.
- Dual-Speed Control System: Dual-speed operation provides precise low-speed control for pallet positioning and efficient high-speed travel for long-distance material movement, improving flexibility across different working conditions.
- AC Brushless Drive System: The high-torque AC drive motor delivers smooth acceleration, stable power output, and reliable performance even when operating at maximum load capacity.
- 5% Gradeability: Designed to handle inclines up to 5% under full load conditions, ensuring stable and dependable operation across ramps and uneven warehouse surfaces.
- Reinforced Fork Structure: The 48" L × 27" W forks provide strong load support and improved durability, ensuring stable pallet engagement and safe transportation of heavy loads.
- Fork Guidance System: Integrated fork guidance rollers and support wheels help improve pallet entry and exit, reduce impact during operation, and provide smoother handling performance.
- Heavy-Duty Steel Frame: A reinforced steel chassis provides excellent structural strength and long-term durability, making it suitable for continuous industrial use.
- Smart Multi-Function Display: The integrated display provides real-time information including battery status, fault alerts, and operating data, helping operators monitor equipment performance and improve operational safety.
- Side-Pull Battery System: The 24V/300Ah side-pull battery design allows faster battery replacement and easier maintenance, helping minimize downtime during multi-shift operations.
- Enhanced Safety System: Equipped with safety railings, an anti-slip operator platform, and a high-performance braking system to provide stable and secure operation in busy warehouse environments.
- Operator Comfort Design: The ergonomic ride-on platform and operator-focused design help reduce fatigue during extended working hours, improving comfort and productivity throughout the workday.
| Specification | Details |
|---|---|
| Capacity | 6,600 lbs |
| Turning Radius | 73.7" |
| Aisle Width | 105" |
| Fork Dimensions | 48" L × 27" W × 2.1" Thick |
| Inside Fork Width | 8.9" |
| Fork Lowered Height | 3.2" |
| Overall Dimensions | 36.9" W × 84.4" L |
| Lifting Height | 8.5" |
| Lifting Distance | 5.3" |
| Handle Height | 52.4" |
| Battery | 24V / 300Ah |
| Charger | 24V / 40A External |
| Travel Speed | 4.7 mph (Laden) / 5.0 mph (Unladen) |
| Service Weight | 1,896 lbs |
Warranty
| Warranty | 1-Year Limited Warranty |
Electric Pallet Jack FAQ
What applications is this electric pallet jack suitable for?
This electric pallet jack is designed for warehouses, distribution centers, manufacturing facilities, retail backrooms, and loading docks where frequent pallet transportation is required.
What is the maximum load capacity?
This model can handle loads up to 6600 lbs. Do not exceed the rated capacity to ensure safe operation and extend equipment life.
How long can the battery operate on a full charge?
Battery runtime depends on load weight, operating frequency, and working conditions. Under normal warehouse operations, it provides reliable performance for daily material handling tasks.
How long does it take to charge the battery?
Charging time depends on the battery capacity and charger specifications. Please refer to the included user manual for detailed charging instructions.
Is this electric pallet jack easy to operate?
Yes. The ergonomic control handle allows operators to easily control lifting, lowering, forward, and reverse functions with minimal training.
What is included with the pallet jack?
Every order includes:
✅ Electric Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
✅ Battery Charger
All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?
Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Where does this product ship from?
Orders ship from our U.S. warehouses to provide fast delivery across the United States.
