Product details

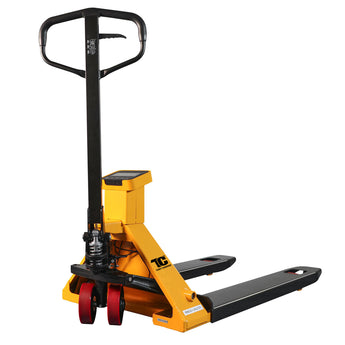

The TORY CARRIER Scale Pallet Truck combines pallet handling and weighing functions into one efficient solution. With a 5,500 lb load capacity, integrated digital scale system, and 45 × 27.7 in. forks, it allows operators to transport and accurately weigh palletized loads without the need for additional weighing equipment.
Designed for warehouses, storage facilities, distribution centers, and receiving areas, this pallet truck features a large LED display, rechargeable lithium battery, and multiple weighing functions to improve workflow efficiency. The durable steel frame, smooth hydraulic operation, and compact design provide reliable performance for daily material handling applications.
Key Features
- Integrated Weighing & Transport Solution: Combines pallet moving and load weighing functions in one unit, helping reduce handling time and improve workplace efficiency.
- 5,500 lb Load Capacity: Designed for reliable pallet transportation and weighing applications in warehouses, distribution centers, and industrial environments.
- Large LED Display: The 12-inch bright LED display provides clear weight readings and improved visibility during operation.
- Multiple Weighing Functions: Supports weight checking, counting functions, automatic tare, and other weighing operations to meet different application needs.
- LB / KG Unit Conversion: Allows operators to switch between pounds and kilograms for convenient reporting and inventory management.
- Rechargeable Lithium Battery: Powered by a 3.7V / 5Ah lithium battery for convenient operation and reduced maintenance requirements.
- Ergonomic 3-Position Handle Control: The handle provides raise, neutral, and lower functions for smooth and convenient operation.
- Durable Industrial Construction: The reinforced steel frame and reliable hydraulic system provide long-lasting performance in demanding environments.
- Compact Maneuverability: The compact design and 53.1 in. turning radius allow efficient operation in warehouse aisles and confined areas.
| Model | A-1035 |
| Load Capacity | 5,500 lb |
| Scale Function | Integrated Digital Scale |
| Overall Dimensions (L × W × H) | 61.8 × 27.7 × 47.4 in. |
| Fork Dimensions (L × W × T) | 45 × 27.7 × 2.2 in. |
| Fork Height, Lowered | 3.0 in. |
| Maximum Fork Height | 6.5 in. |
| Turning Radius | 53.1 in. |
| Minimum Aisle Width | 85.6 in. |
| Inside Fork Distance | 14.4 in. |
| Single Fork Width | 6.7 in. |
| Fork Thickness | 2.2 in. |
| Battery Type | Lithium Battery |
| Battery Voltage / Capacity | 3.7V / 5Ah |
| Wheel Material | PU |
| Wheel Size | Steering Wheel: 6.3 × 2.0 in. Fork Wheel: 2.8 × 3.1 in. |
| Ground Clearance | 0.8 in. |
| Wheel Configuration | Single Wheel |
| Handle Type | Non-Folding Handle |
| Pallet Compatibility | All Pallet Types |
| Service Weight | 354 lb |
Warranty
| Warranty Coverage | 1-Year Limited Warranty |
Integrated Weighing System
Accurately measure pallet loads during transport with built-in weighing functionality, including tare adjustment and unit conversion for flexible warehouse operations.
Large Weighing Platform
The spacious weighing area accommodates a wide range of pallet sizes, providing stable support and accurate weight measurements.
Heavy-Duty Steel Construction
Built with a reinforced steel frame to provide superior strength, stability, and reliable performance under demanding material handling conditions.
Durable PU Wheels
Heavy-duty polyurethane wheels deliver smooth movement, reduced noise, and excellent wear resistance for long-term warehouse use.
Manual Pallet Jack FAQ
What types of pallets can this manual pallet jack handle?
This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
Does this manual pallet jack require maintenance?
Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
How long does shipping take?
Standard orders are processed within 1-3 business days, with delivery times varying based on your location. Expedited shipping options are available upon request.
What’s in the Box
Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?
Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?
Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?
It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
