Product details

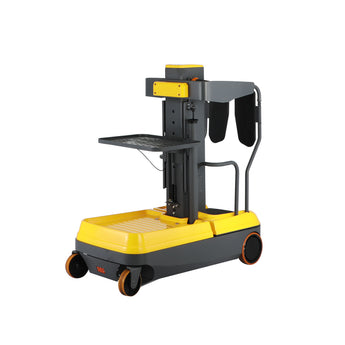

The TORY CARRIER Order Picker is designed to improve efficiency, safety, and operator comfort in warehouses, stockrooms, and retail environments. Featuring a compact structure, intuitive controls, and an adjustable working platform, it is ideal for order picking, inventory handling, and elevated material transport in narrow aisles and confined spaces.
Key Features
- Compact & Space-Efficient Design:Built with a slim 29.5" overall width and low stand height, allowing smooth maneuverability in tight aisles, warehouses, and crowded working environments.
- Safety-Optimized Lifting System:The intelligent lifting mechanism automatically slows lifting speed at higher elevations, improving stability and enhancing operator safety during operation.
- Smooth Fingertip Steering Control:Ergonomic fingertip steering provides precise handling and responsive maneuverability, making navigation easy even in narrow warehouse aisles.
- Smart Multifunction Control Handle:Integrated hand sensor allows effortless operation of travel, lifting, and lowering functions for greater convenience and productivity.
- Built-In Tow Capability:Equipped with a tractor tow device, enabling the unit to pull carts or trailers when additional material transport is needed.
- Dual Foot Safety Sensors:Integrated dual foot sensors detect proper operator positioning on the platform to help ensure safer operation.
- Adjustable Ergonomic Load Tray:Features a 10.2" adjustable tray height to create a more comfortable and efficient working position.
- On-Board Charging Convenience:Built-in charger allows convenient charging from standard outlets, reducing downtime and supporting continuous operation.
- Durable & Reliable Construction:Designed for daily industrial and commercial use with a stable structure built to withstand demanding warehouse environments.
- Load Tray Capacity: 200 lbs.Dock Capacity: 330 lbs
| Load Capacity | 330 LBS |
| Operation Type | stand driving |
| Platform lowered height | 13.2 inch |
| platform Max,lifting height(in) | 118 inch |
| Lifting Speed(Laden/Unladen) | 9.0/13.0 inch/s |
| Travel Speed (Laden/Unladen) | 5.1/5.1 miles/h |
| Wheel Diameter | 7.1 inch |
| Turning Radius | 51.2 inch |
| Aisle width | 74 inch |
| overall height(in) | 55.1-160.2 |
| overall length(in) | 59.0 |
| overall width(in) | 29.5 |
| Battery Type | GEL |
| Battery Capacity | 24/125 V/Ah |
| Service Weight | 1705 LBS |
Warranty
| Warranty | 1-Year Limited Warranty |
Order Picker – FAQ
What is an order picker used for?
An order picker is designed for picking and placing items at various heights in warehouses, distribution centers, and fulfillment operations. It allows operators to safely access shelving and racks to improve picking efficiency.
What is the maximum working height and load capacity?
Working height and load capacity vary by model. Please refer to the product specifications for exact details, including maximum platform height and rated load capacity.
Can the order picker be used indoors and outdoors?
Most order pickers are designed primarily for indoor use on flat, solid surfaces. Some models may support limited outdoor use—please check the product description for specific conditions.
What safety features are included?
Common safety features include emergency stop buttons, guardrails, anti-slip platforms, and overload protection to ensure safe operation during picking tasks.
Does the order picker require certification or training to operate?
Operator training is strongly recommended. Certification requirements depend on local regulations and workplace safety policies.
