Model: A-7005

Material Lift Stacker with Winch, 330/440 lbs Capacity, 40.5/35.4" Lift Height, Steel Platform & Swivel Casters

$329.00 $279.00 Save $50.00
In stock
Key Features
  • 330/440 lb capacity with up to 40.5"/35.4" lift height.
  • Manual winch or hydraulic lift control.
  • Steel platform and fork configuration.
  • Swivel casters for tight work areas.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
Load Capacity & Lift Height: 330 lb | 40.5"
✓ For details on returns and refunds, please see our Return Policy .
Load Capacity & Lift Height: 330 lb | 40.5"

Product details

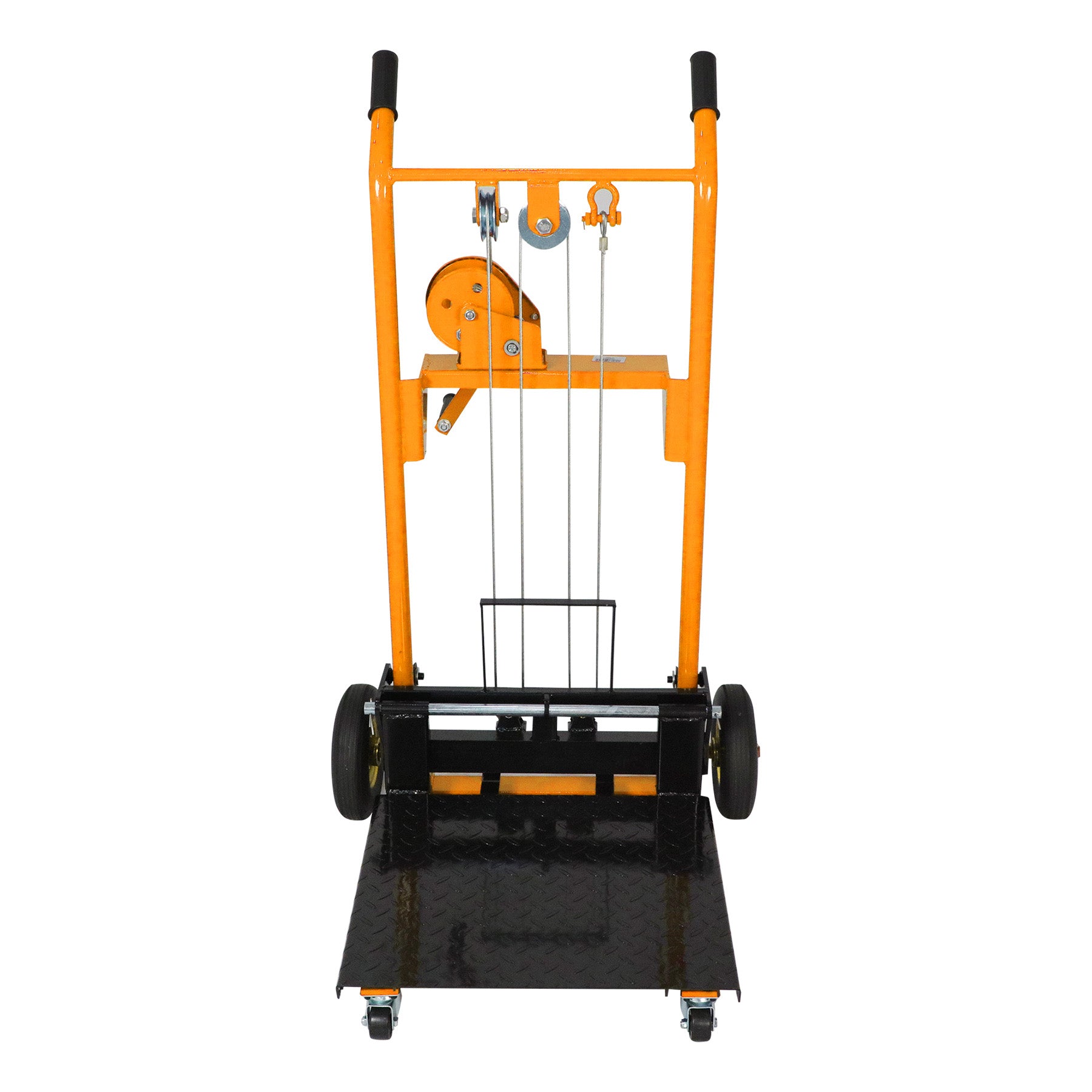

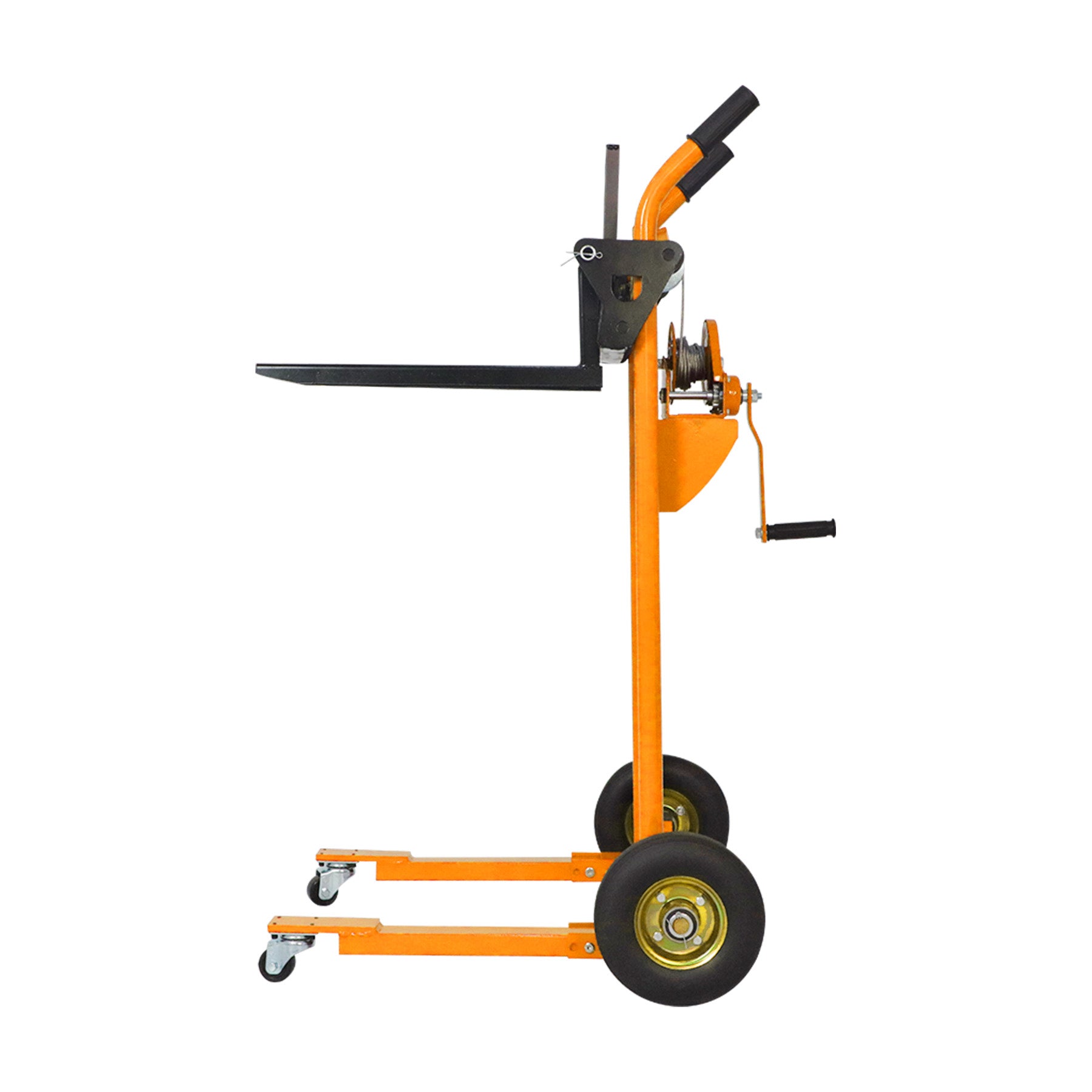

The TORY CARRIER Manual Winch Lift Stacker Series provides a compact and versatile solution for everyday lifting, positioning, and material transport. Available in 330 lb and 440 lb capacity options, with lift heights up to 40.5 in, these stackers are designed for boxes, containers, tools, compatible pallets, and other light-duty loads.

Both models use a manual winch lifting system and feature adjustable removable forks, a solid removable platform, fixed support legs, and rubber swivel casters. Their compact design is suitable for warehouses, workshops, stockrooms, retail facilities, and other indoor work areas where maneuverability and flexible load support are important.

Key Features

  • 330 lb and 440 lb Options: Two capacity configurations are available for different light-duty lifting requirements.

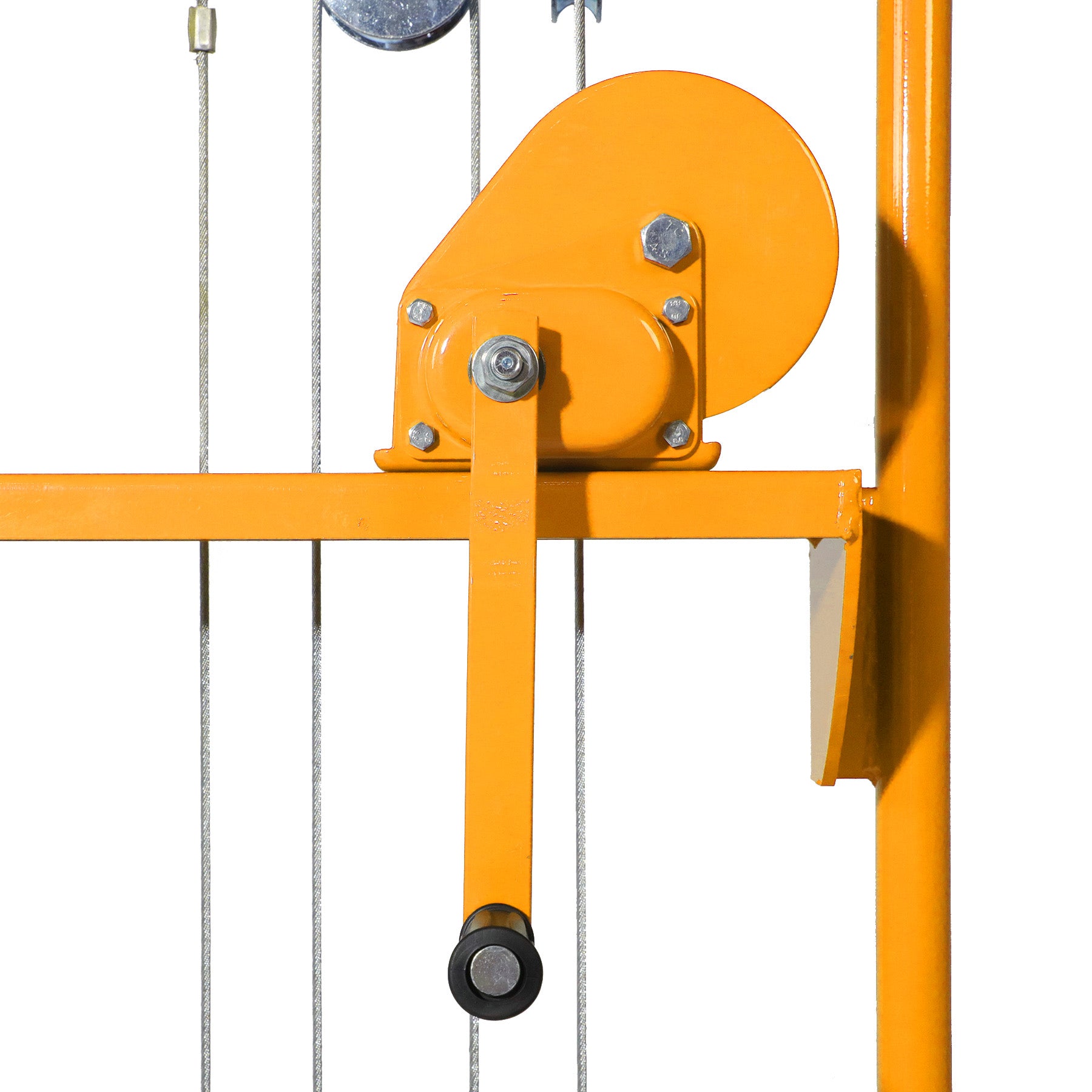

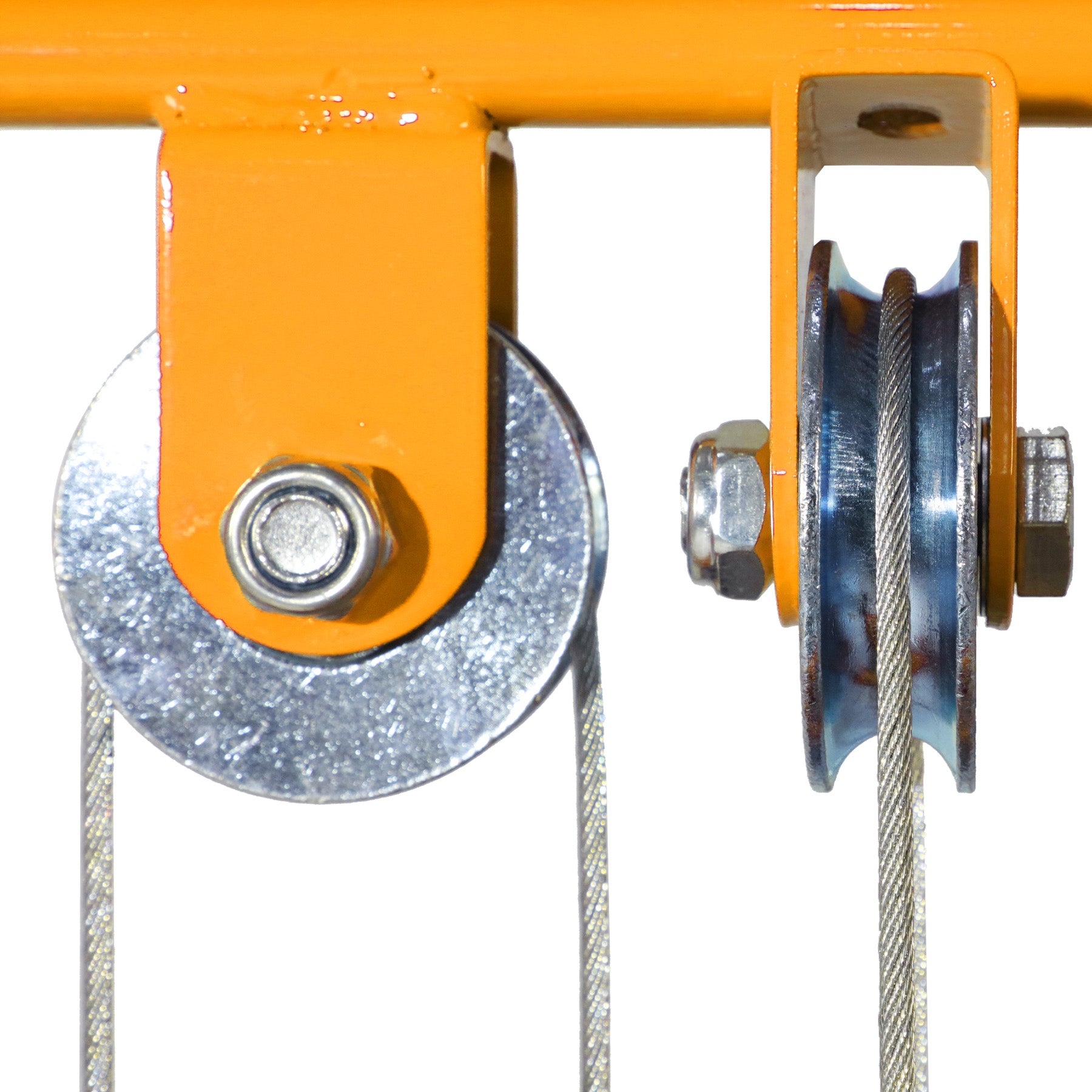

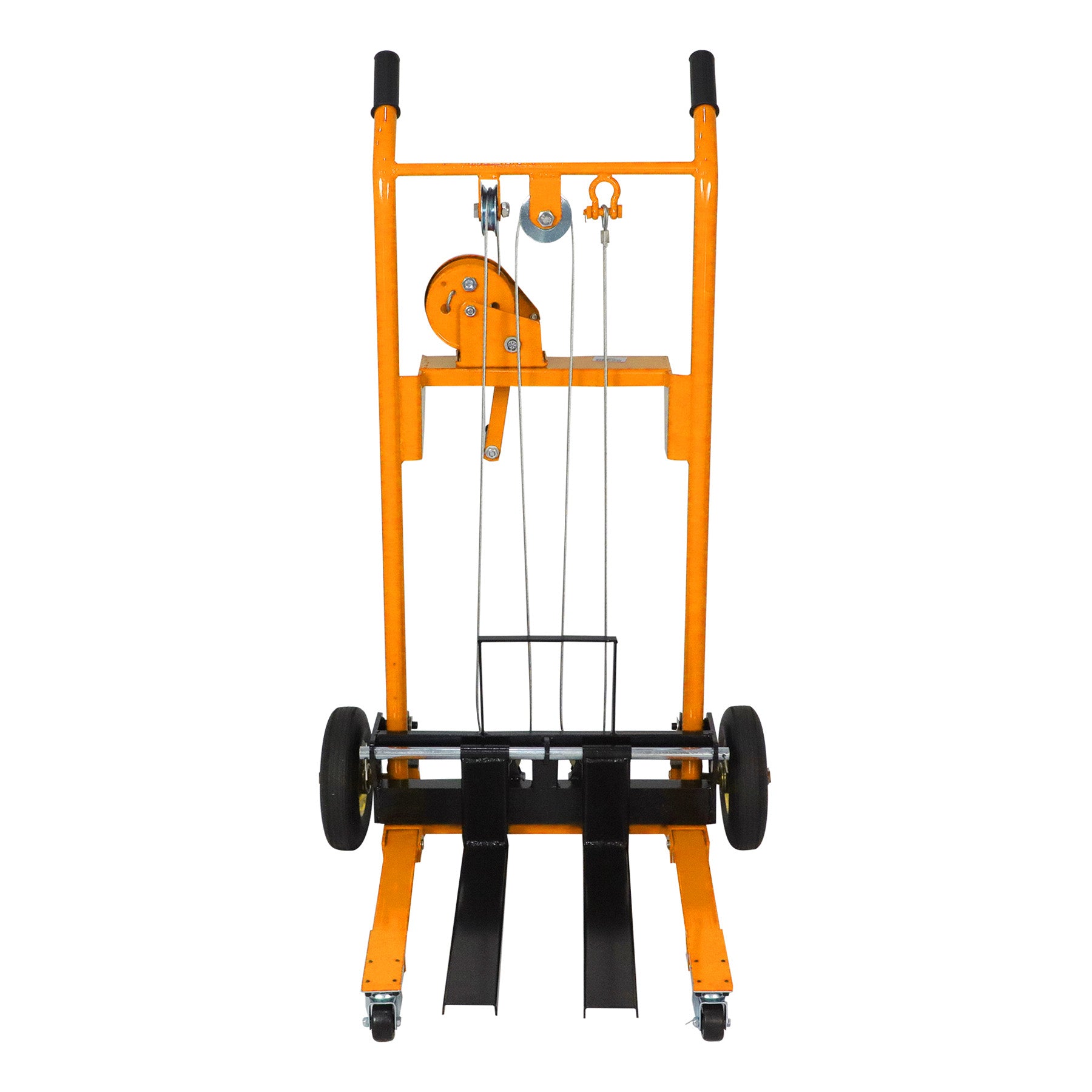

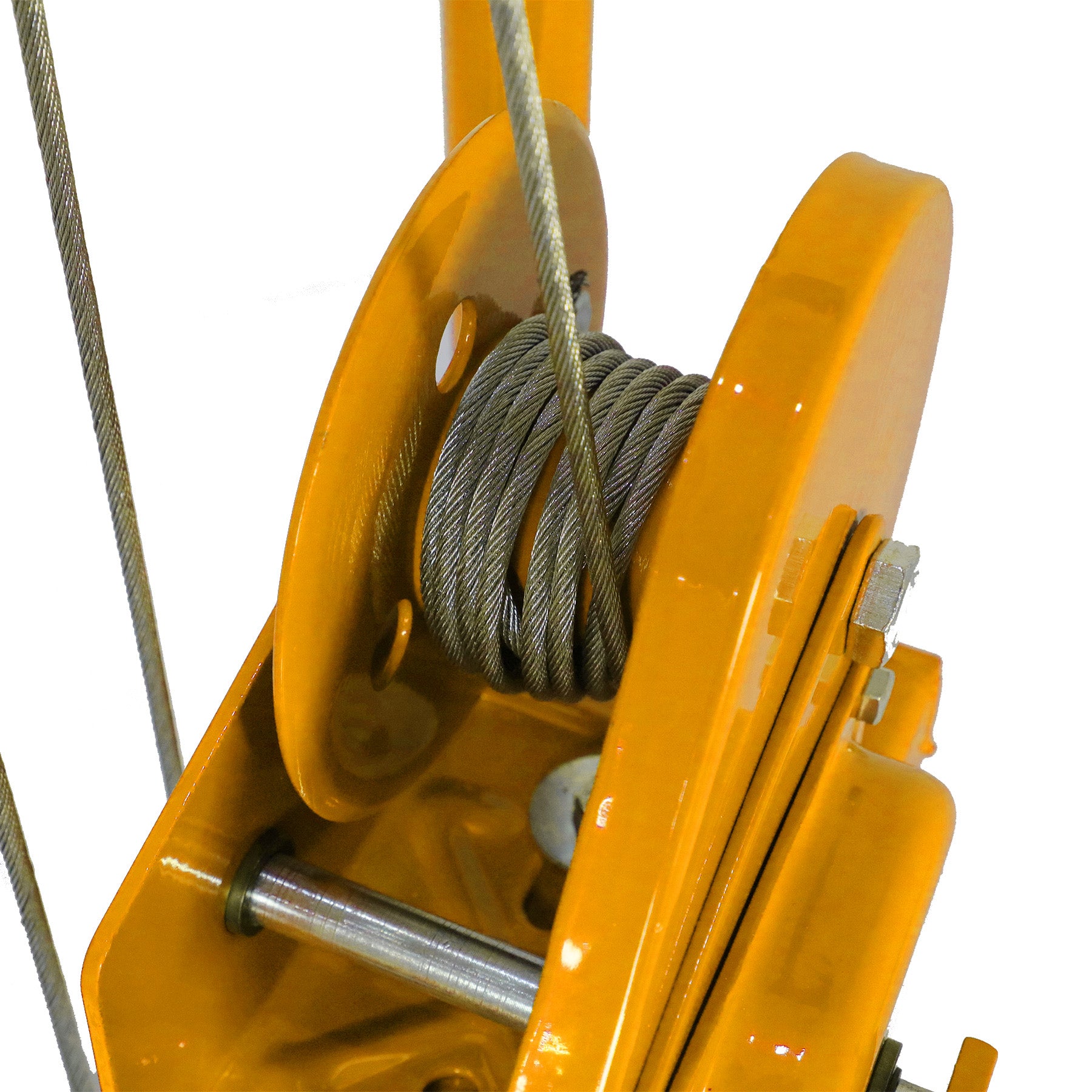

  • Manual Winch Lifting: Both models provide controlled mechanical lifting without batteries, hydraulic fluid, or external power.
  • Up to 40.5 in Lift Height: Raises compatible loads to a more accessible position for handling and workstation tasks.
  • Adjustable Removable Forks: Fork width can be adjusted to accommodate different compatible load sizes.

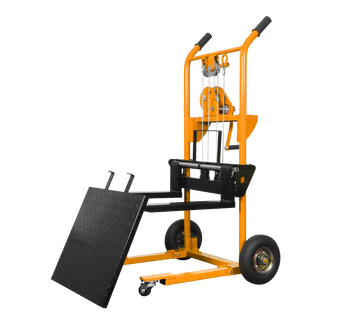

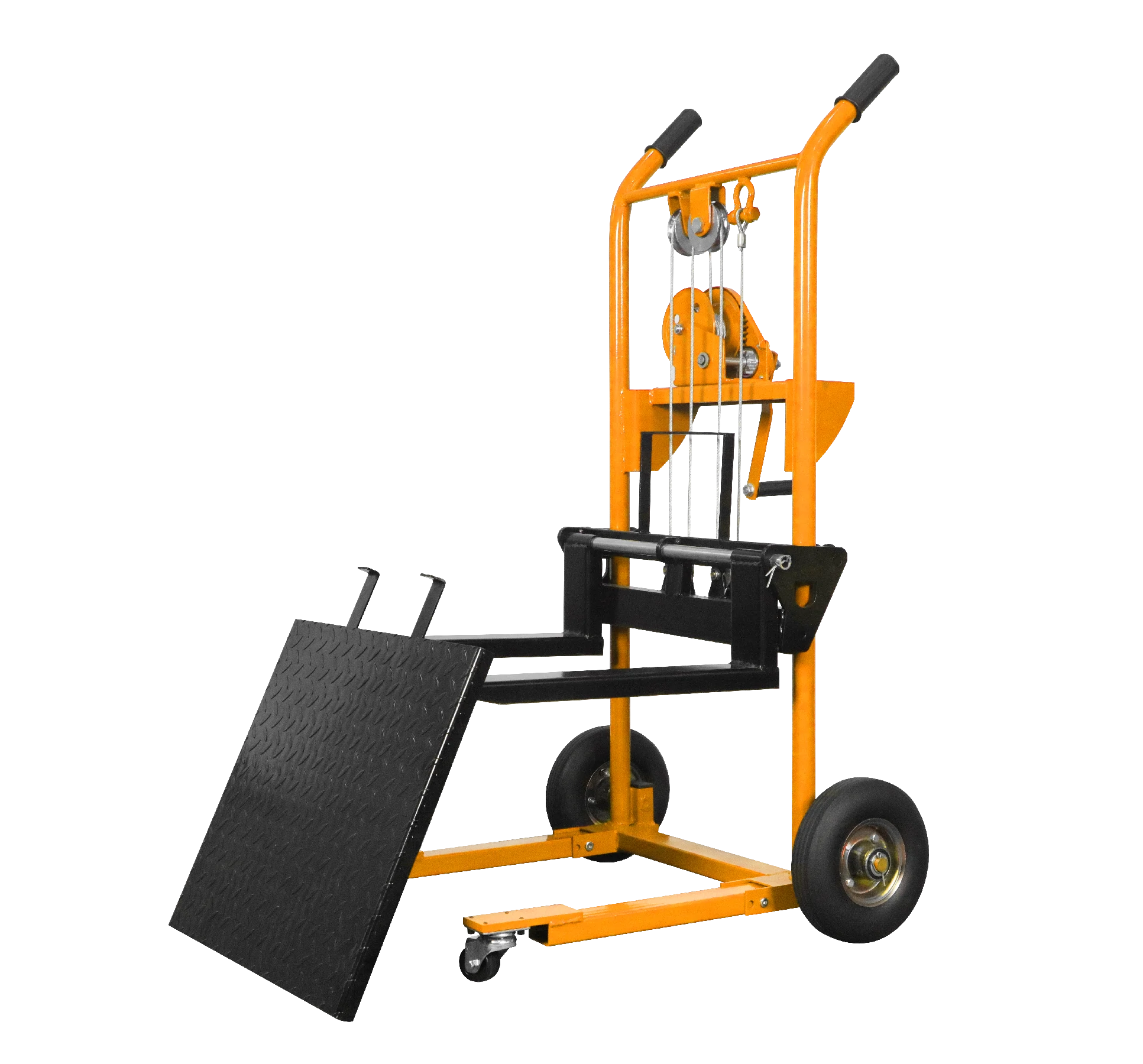

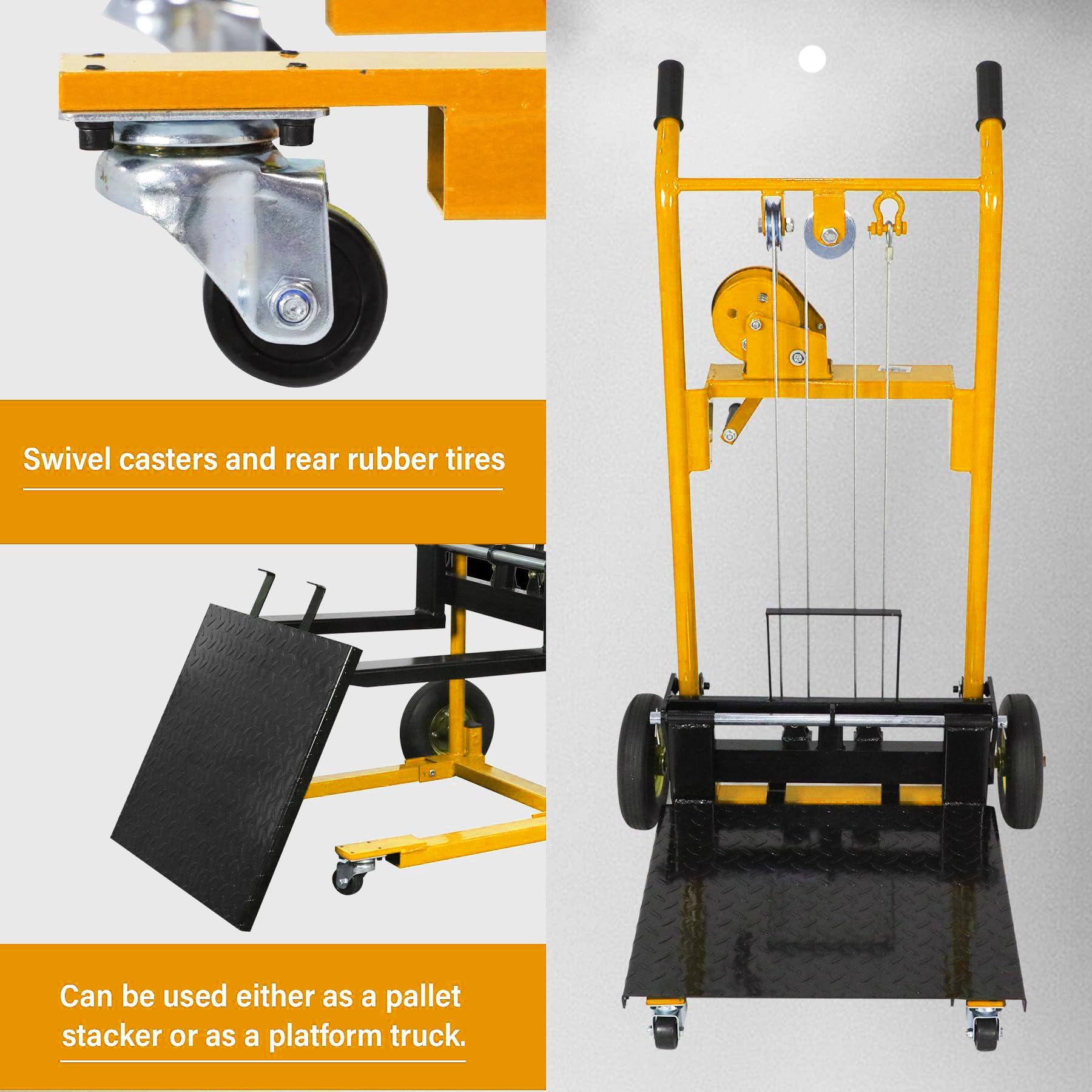

  • Removable Steel Platform: Provides a flat supporting surface for boxes, containers, tools, and other non-palletized loads.
  • Compact Fixed-Leg Design: Supports compatible open-bottom pallets and material handling applications in confined work areas.

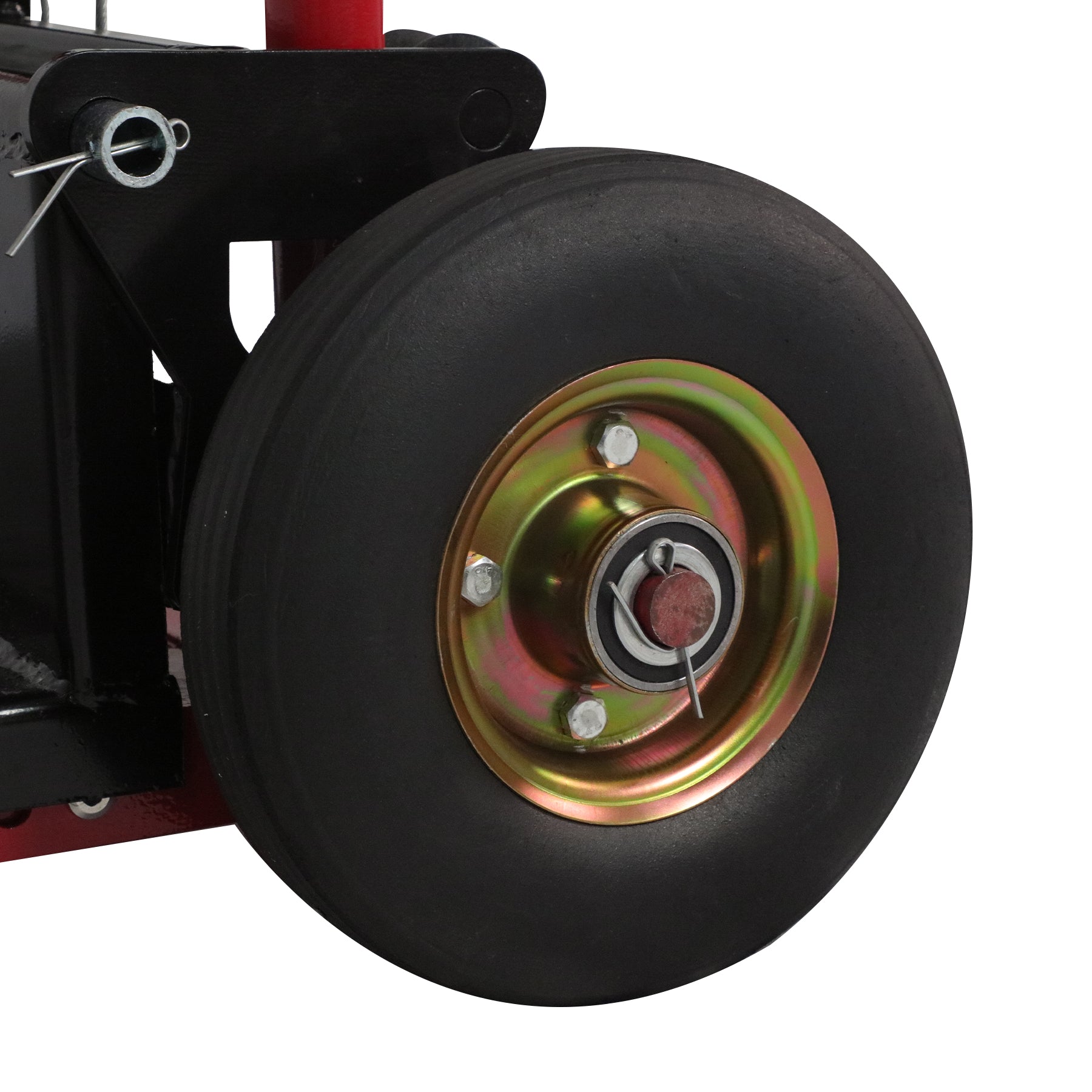

  • Rubber Swivel Casters: Support smooth positioning and maneuvering on firm, level indoor surfaces.

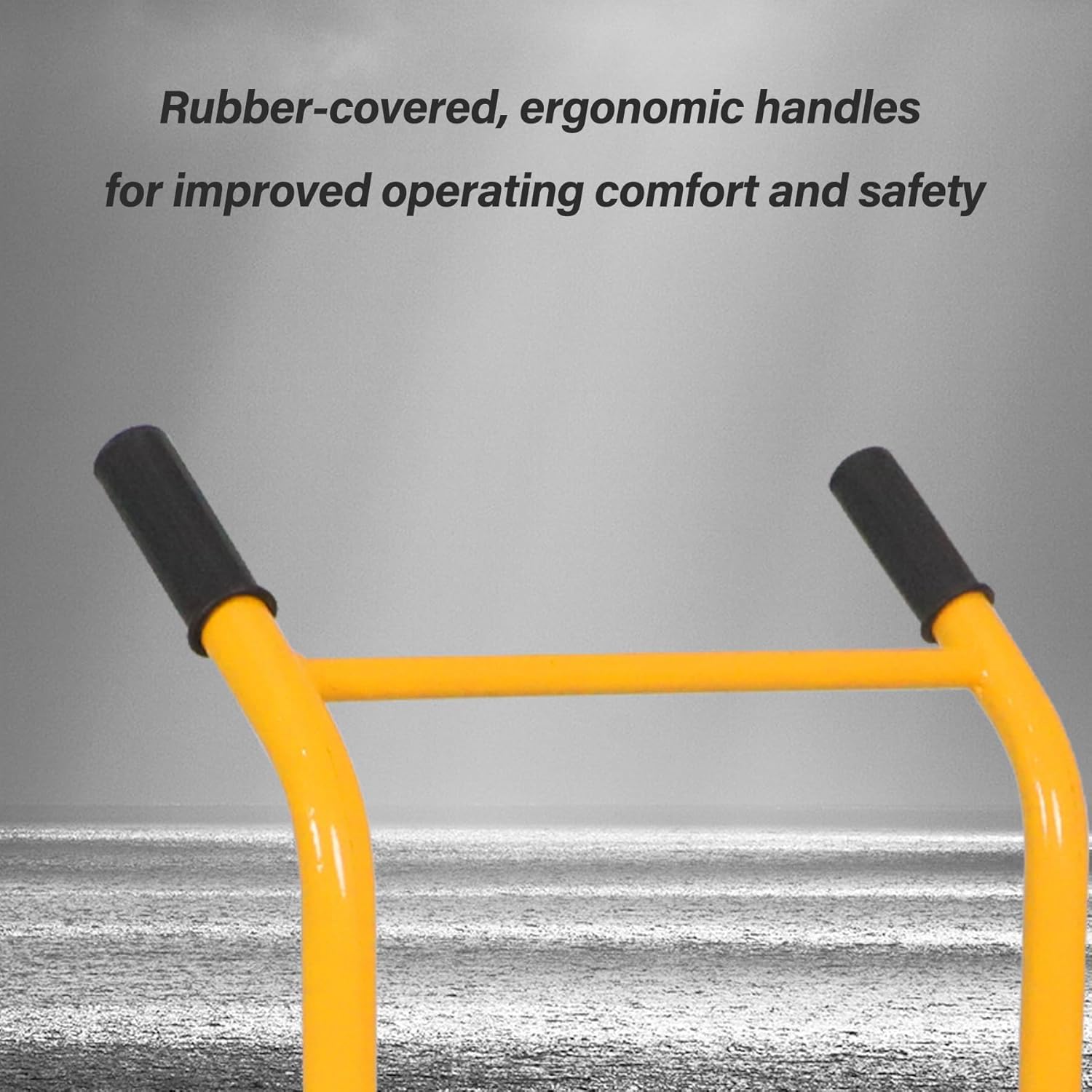

  • Anti-Slip Handle: Provides a secure grip while maneuvering and operating the stacker.
  • Powder-Coated Steel Frame: Durable steel construction supports routine operation and helps resist everyday wear.

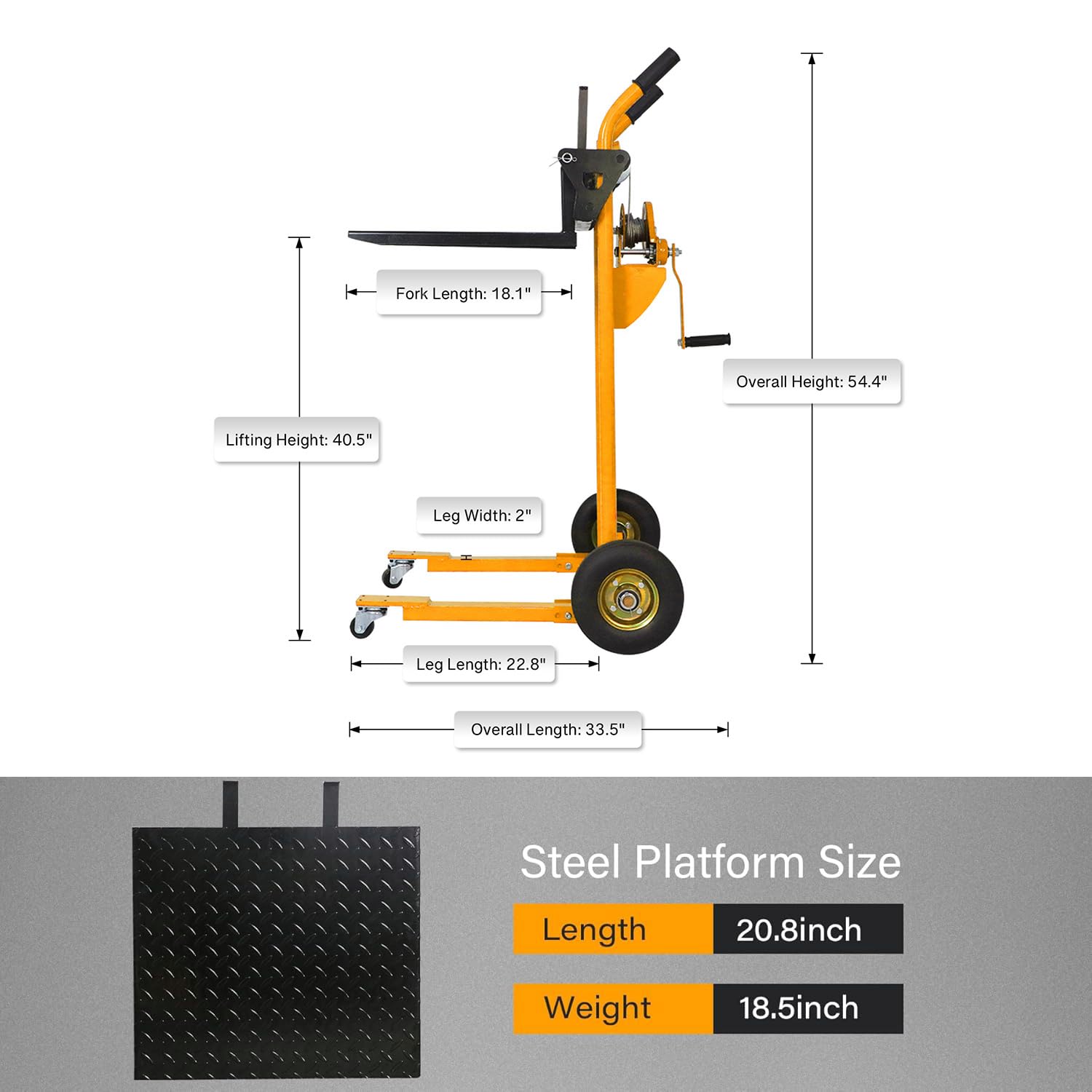

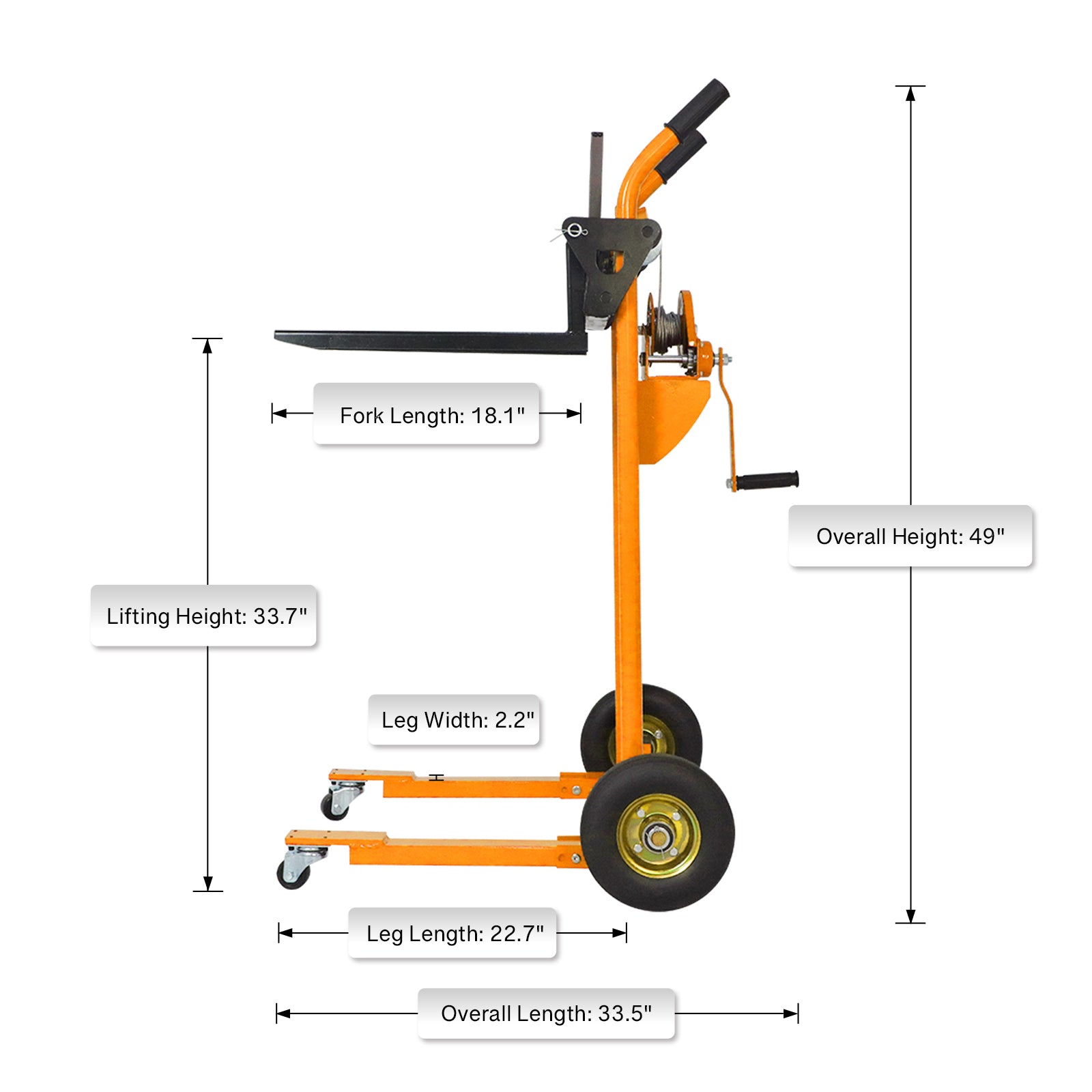

Product Specifications

Model A-7005 A-700301
Product Type Manual Winch Lift Stacker Manual Winch Lift Stacker
Rated Capacity 330 lb 440 lb
Maximum Lift Height 40.5 in 35.4 in
Lowered Fork Height 2.8 in 2.8 in
Fork Length 18.1 in 18.1 in
Adjustable Fork Width 5.6–19.9 in 5.6–19.9 in
Overall Dimensions (L × W × H) 33.5 × 28.3 × 54.4 in 33.5 × 28.3 × 54.4 in
Removable Platform Dimensions 18.5 × 21.2 in 18.5 × 21.2 in
Leg Type Fixed Legs Fixed Legs
Inside Leg Width 15 in 15 in
Compatible Pallet Type Compatible Open-Bottom Pallets Only Compatible Open-Bottom Pallets Only
Service Weight 100 lb 90 lb
Shipping Package Dimensions 50 × 22 × 10 in 50 × 22 × 10 in
Warranty 1-Year Limited Warranty 1-Year Limited Warranty

Package Contents

Seq. No. Description Quantity Remarks
1 Frame 1
2 Forks 2
3 Stabilizing Legs 2
4 Large Rubber Wheels 2
5 Fork Platform 1
6 Lifting Hand Crank Arm 1
7 Allen Keys #5 2 Included in one hardware bag
8 Round Fixing Bolts (screws 8×16 and bolts 10×60 included) 4 Included in one hardware bag
9 Round Washers Φ20 2 Included in one hardware bag
10 Spring Pins 2 Included in one hardware bag
Operating Notice: Select the appropriate model based on the required load capacity and lift height. The fixed-leg design is intended for compatible open-bottom pallets. Confirm load dimensions, fork spacing, leg clearance, platform support, and rated capacity before lifting. Operate only on firm, level surfaces and never lift personnel.
