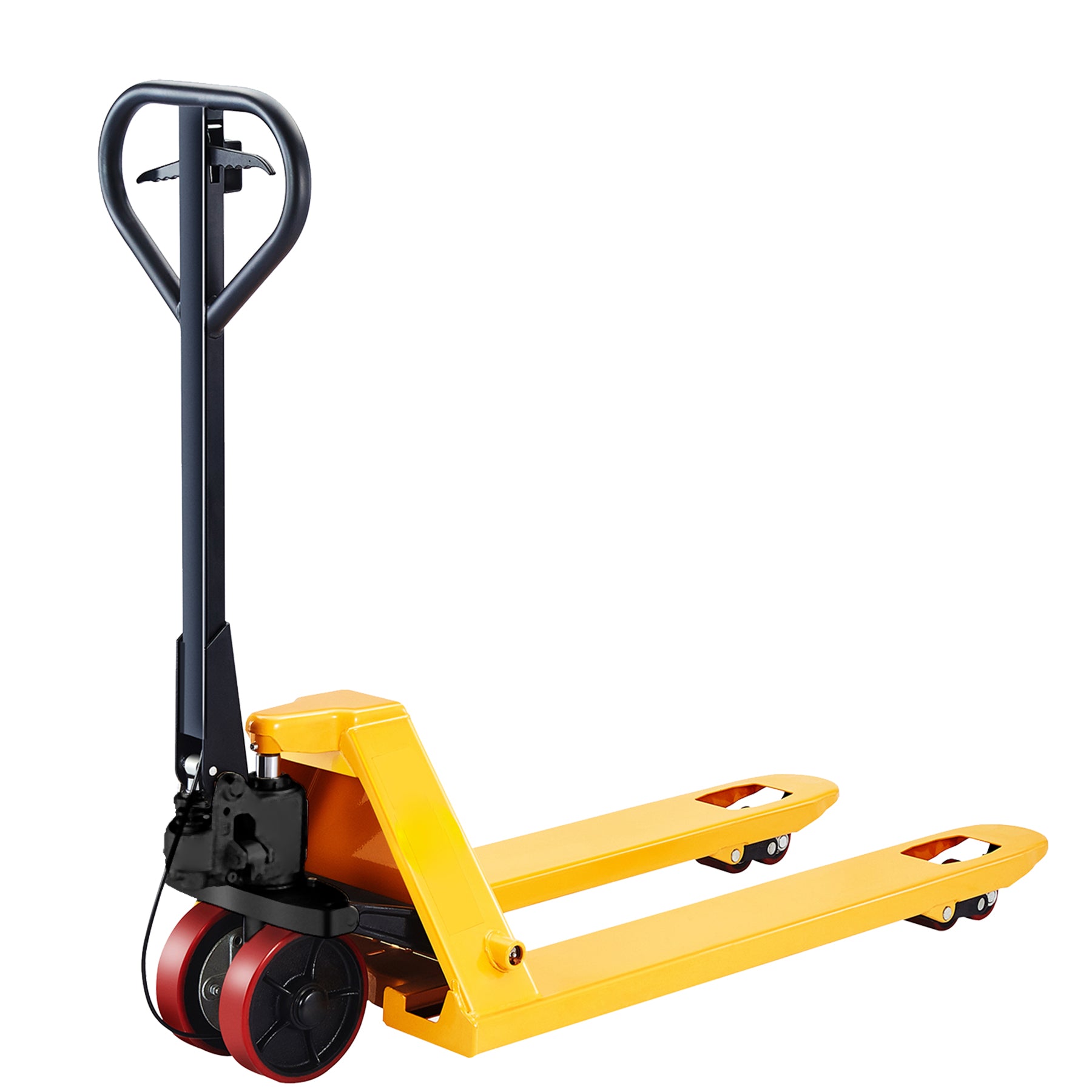

Manual Pallet Jack Truck with Brake System - 5500lbs. Cap. 48"Lx27"W Fork, A-1011
Couldn't load pickup availability
• Bulk Order Advantage: Ordering multiple units can substantially reduce freight costs per machine.
• Order Fulfillment: Most orders are processed and dispatched within 2–3 business days depending on inventory allocation and destination.
Product details
The TORY CARRIER Brake-Equipped Manual Pallet Jack is designed for reliable pallet handling in warehouses, loading areas, manufacturing facilities, and other industrial environments. With a 5,500 lb load capacity and 48 × 27 in. forks, it combines heavy-duty construction, smooth hydraulic operation, and an operator-controlled braking system for improved control during daily material handling.
Its reinforced steel frame and epoxy powder-coated finish provide dependable durability under frequent use. The ergonomic hand control allows operators to raise, hold, and lower loads smoothly, while the integrated brake helps improve control when stopping, positioning, or working in designated loading areas.
Key Features
- 5,500 lb Load Capacity: Built to handle heavy pallet loads in warehouses, distribution centers, production facilities, and loading areas.
- Operator-Controlled Brake: The brake-equipped design provides additional control when stopping and positioning the pallet jack during operation.
- Controlled Fork Lowering: The hand-operated lowering control allows operators to lower loads smoothly and position pallets more precisely.
- Overload Protection Valve: Helps protect the hydraulic pump when loads exceed the rated capacity, reducing the risk of equipment damage.
- Reinforced Steel Construction: The heavy-duty steel frame provides dependable strength, stability, and long-term performance.
- Corrosion-Resistant Finish: The epoxy powder-coated surface helps resist chips, scratches, rust, and normal corrosion.
- Convenient Handle Assembly: The handle seat includes an access opening that helps simplify control-chain installation and routine servicing.
- Low-Maintenance Design: The straightforward hydraulic and mechanical structure supports reliable daily use with reduced routine maintenance requirements.
Product Specifications
| Load Capacity | 5,500 lb |

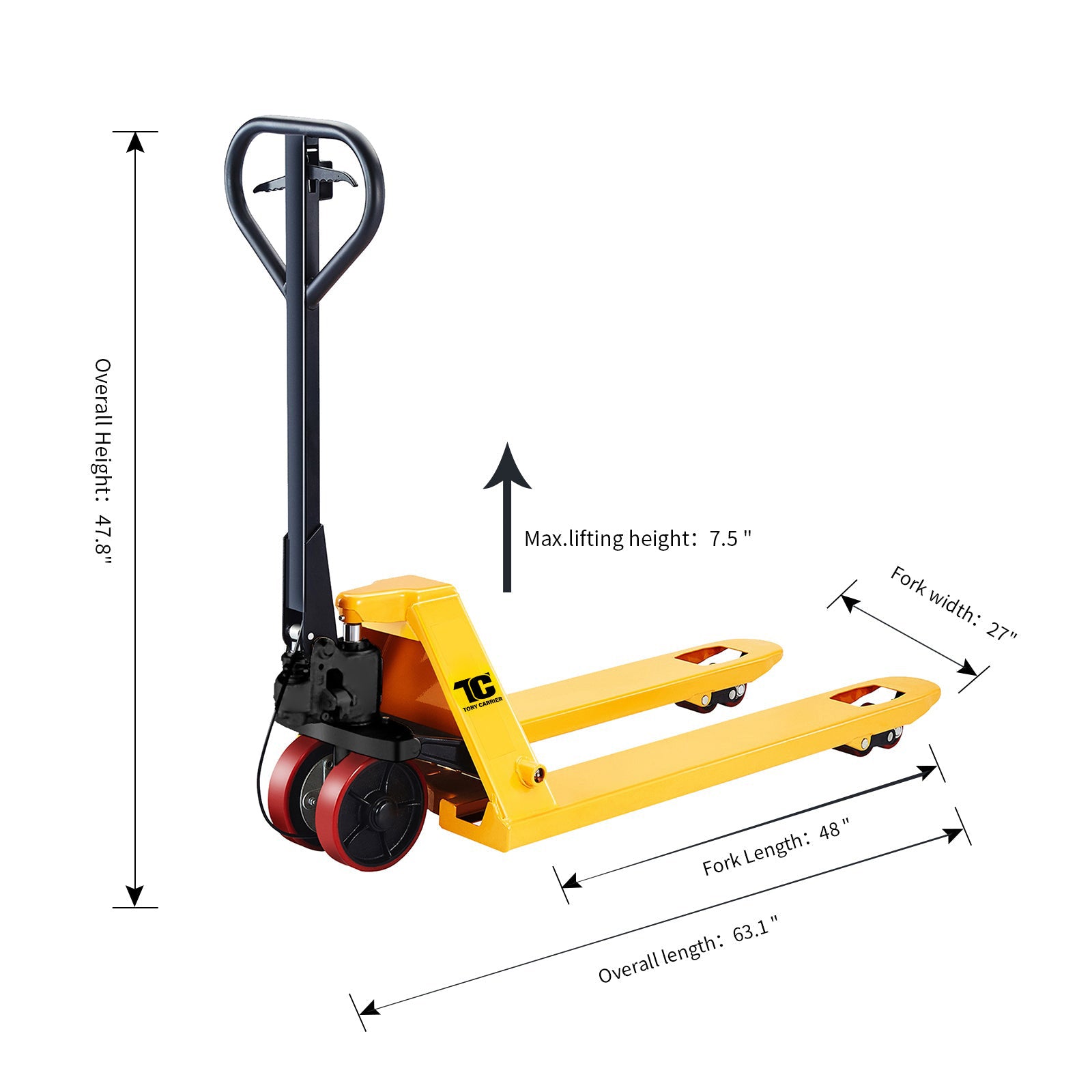

| Overall Dimensions (L × W × H) | 63.1 × 27 × 47.8 in. |
| Fork Dimensions (L × W × T) | 48 × 27 × 2.1 in. |
| Fork Height, Lowered | 3.0 in. |
| Maximum Fork Height | 7.5 in. |
| Lifting Distance | 4.5 in. |
| Turning Radius | 52.5 in. |
| Minimum Aisle Width | 70.9 in. |

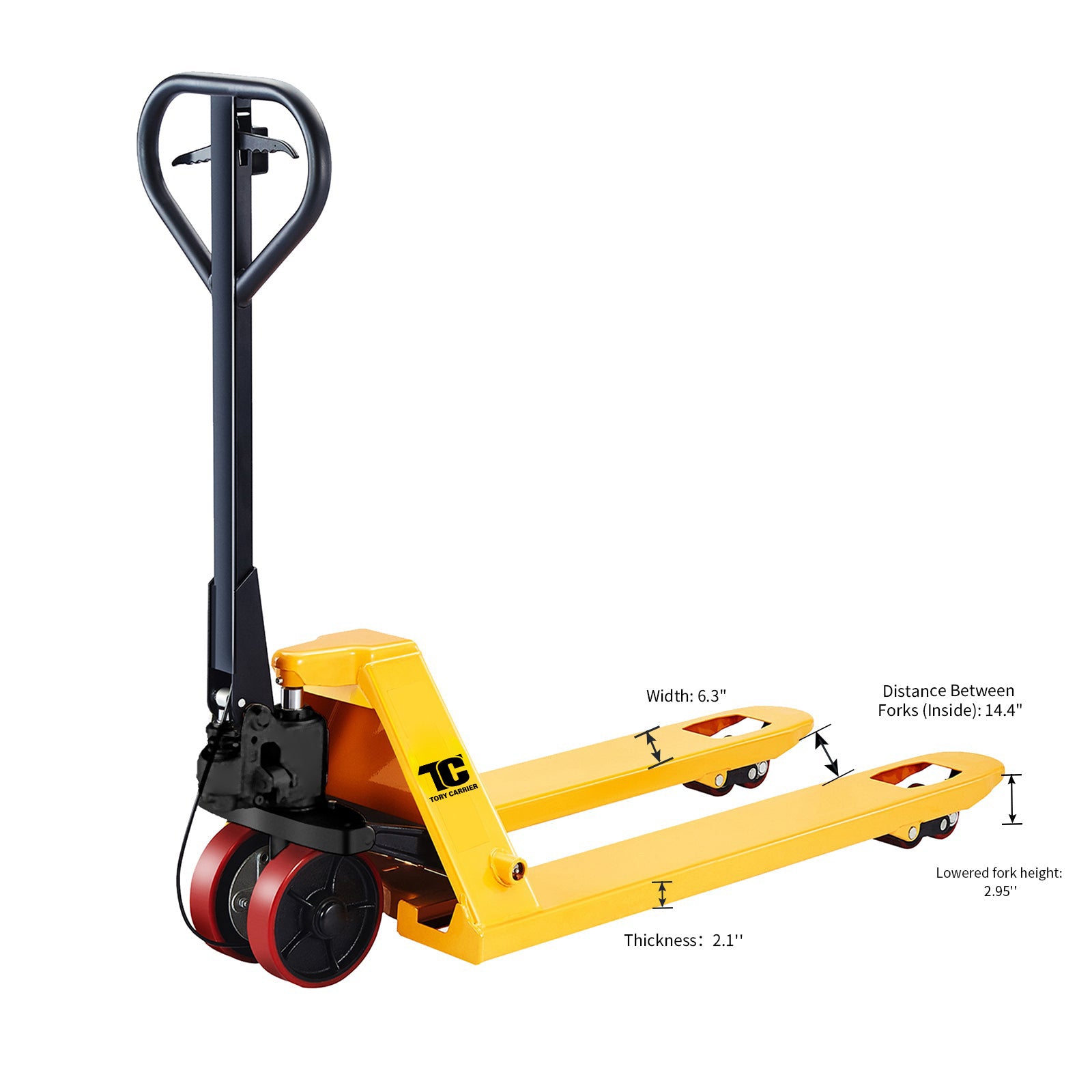

| Overall Fork Width | 27 in. |
| Single Fork Width | 6.3 in. |
| Inside Fork Distance | 14.4 in. |
| Wheel Material | PU |
| Wheel Size | Drive Wheel: 7.1 × 2.0 in. Load Wheel: 2.9 × 3.7 in. |
| Ground Clearance | 1.2 in. |
| Wheel Configuration | 4 Wheels |
| Handle Type | Non-Folding Handle |
| Steering Angle | 190° |
| Pallet Compatibility | All Pallet Types |
| Service Weight | 155 lb |
Warranty
| Warranty Coverage | 1-Year Limited Warranty |
Ordering & Shipping
How can I place an order?
You can order directly through our website or contact our sales team for bulk purchases and customized solutions.
What payment methods do you accept?
We accept credit cards, wire transfers, and PayPal for secure and convenient transactions.
How long does shipping take?
Standard orders are processed within 1-3 business days, with delivery times varying based on your location. Expedited shipping options are available upon request.
How can I get a discount on my order?
We’re happy to help you save! Here are ways to unlock discounts:
- Bulk order savings: Customized discounts are available for multi-piece purchases. Contact our Customer Support Team via [email/phone/live chat] to discuss your needs.
- Seasonal deals: Check our [Promotions Page] during holidays or special events.
What’s in the Box
Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?
Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
