Narrow Hydraulic Manual Pallet Jack 5500 lbs. 48" L x 21" W Fork, T-1006

$410.00 $289.00 Save $121.00
Model: T-1006(NYLON)
Option of Wheels: NYLON Wheels
In stock
Logistics Note:
• Multi-Unit Savings: Freight costs are significantly reduced per unit on orders of 2 or more.
• Fast Dispatch: Ready to ship from our local warehouse within 24-48 hours.
Get a Custom Quote
Option of Wheels: NYLON Wheels

Product details

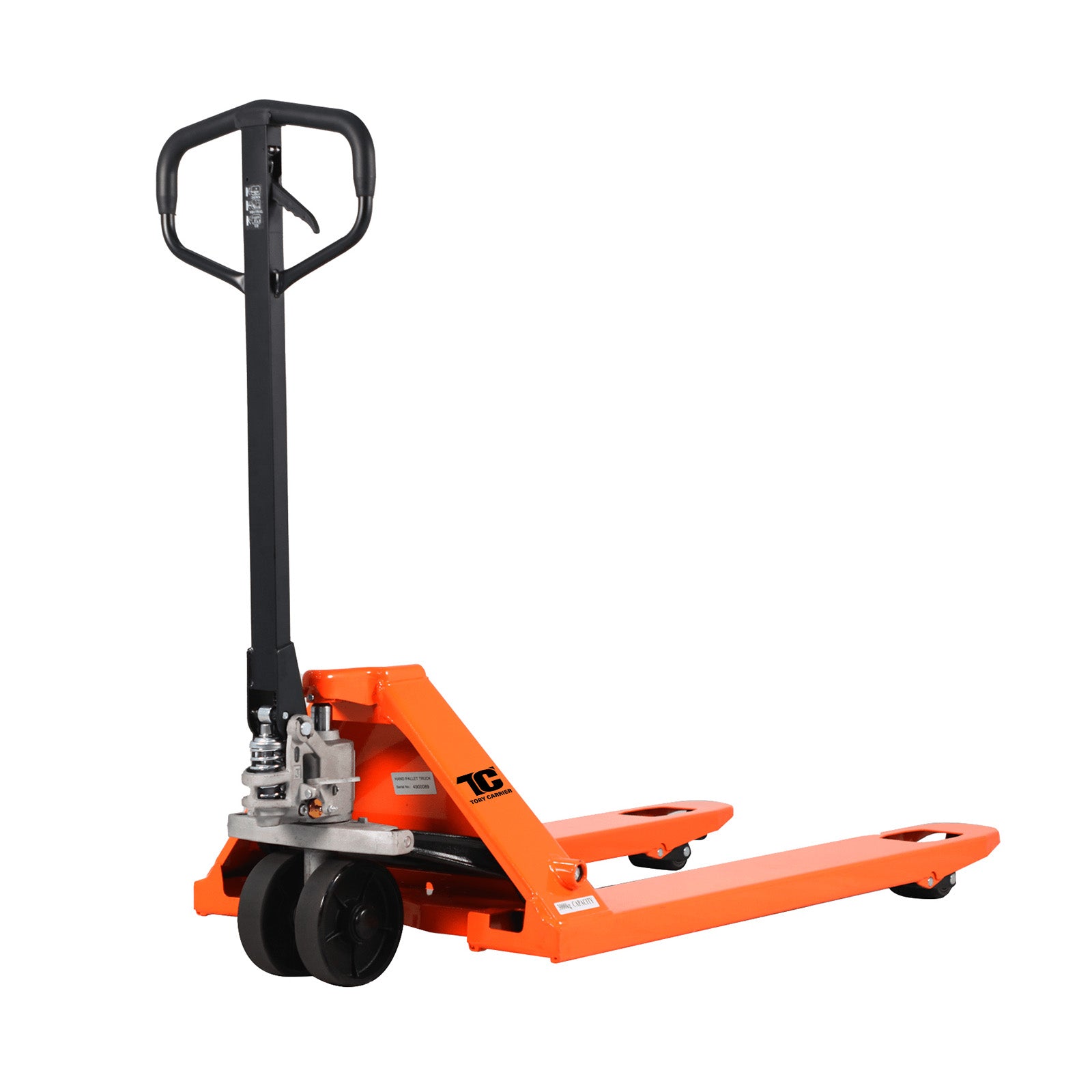

The TORY CARRIER Pallet Jack is designed for heavy-duty lifting and transporting pallets with a 5500 lbs load capacity and 48”L × 21”W forks. It features a max lift height of 7.3 inches, ideal for assembly line handling, warehouses, and more. The hydraulic pump is used for lifting, with controllable fork lowering speed operated by a hand control. Built with a reinforced steel frame and a lightweight fork frame made of high-rigidity steel, it ensures durability and long-lasting performance. The epoxy powder-coated finish resists chips and corrosion, making it suitable for even the toughest applications.

Features:

  • Heavy Load Capacity: Supports up to 5500 lbs with 48”L x 21”W forks for efficient material handling.
  • Max Lift Height: Lifts up to 7.3 inches for versatile use across different operations.
  • Hydraulic Lifting System: Operated by hand control, with controllable fork lowering speed for precise handling.
  • Three-Position Hand Control: Easily adjusts between Raise, Lower, and Neutral positions.
  • Durable Design: Reinforced steel frame ensures rugged durability for long-term performance.
  • Corrosion-Resistant: Standard epoxy powder coat finish resists chips and normal corrosion.
  • Reliable Hydraulic System: Oil leak-proof hydraulic system ensures smooth operation.
  • Overload Protection: Equipped with an overload valve to prevent pump damage when the load exceeds the weight limit.
  • Easy Maintenance: Low routine maintenance, with welded joints and reinforced fork tips for maximum durability.
  • Convenient Handle Design: Handle seat features a finger hole for easier installation of the control chain.
Model T-1006
Load Capacity 5,500 lb

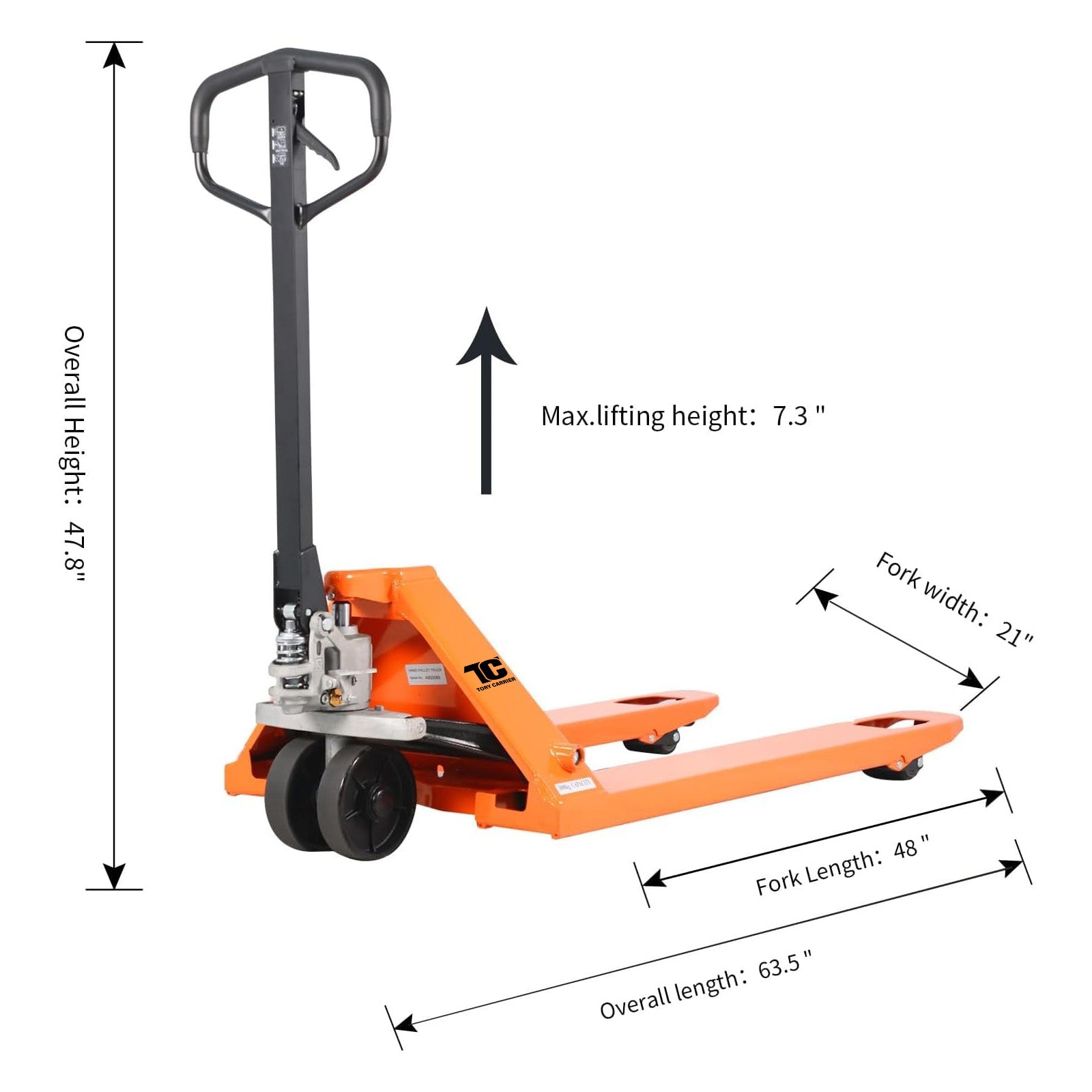

Overall Dimensions (L × W × H) 63.5 × 21 × 47.8 in.
Fork Dimensions (W × L × T) 21 × 48 × 2.1 in.
Fork Height, Lowered 3.0 in.
Maximum Fork Height 7.3 in.
Turning Radius 53 in.
Minimum Aisle Width 71.4 in.
Fork Overall Width 21 in.

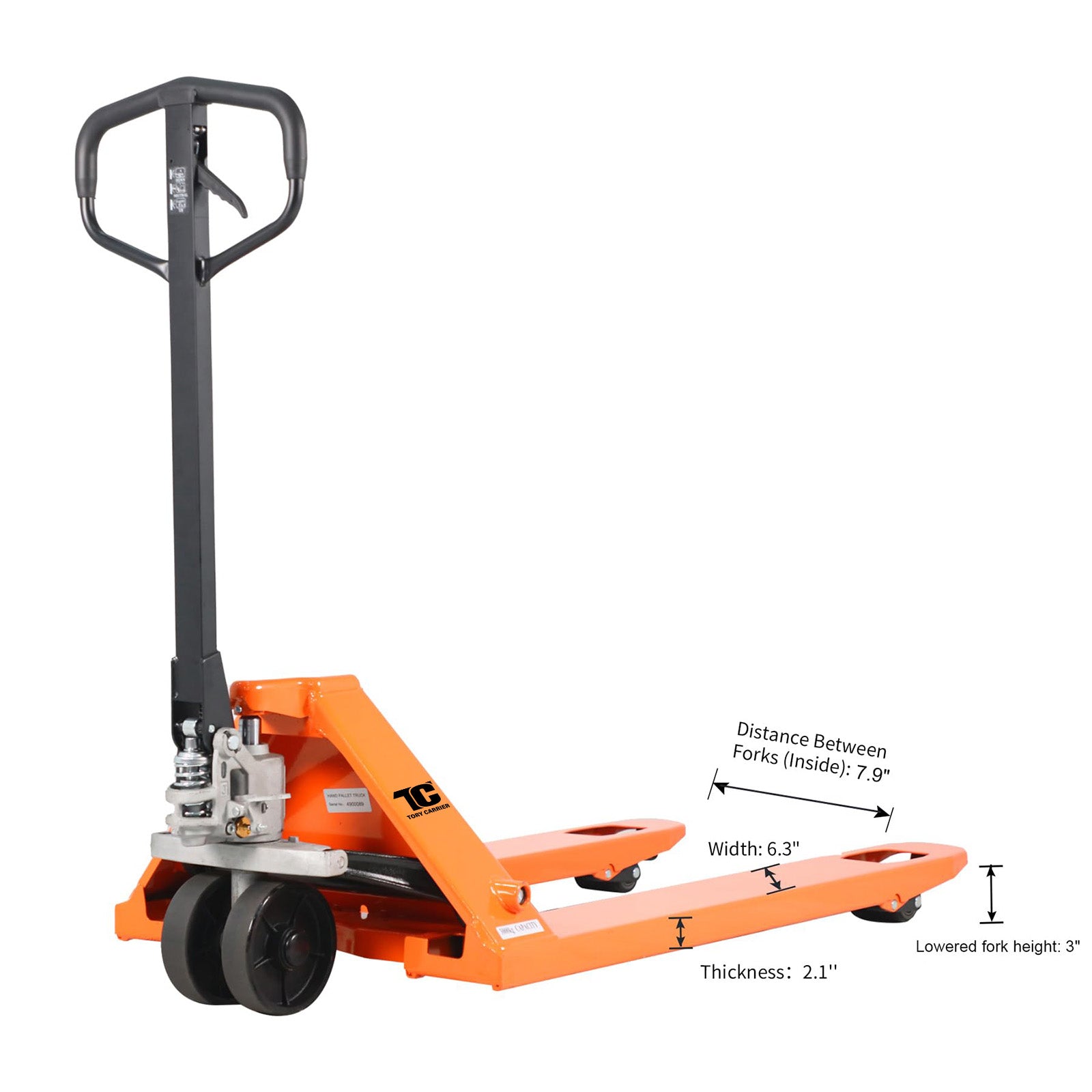

Single Fork Width 6.3 in.
Inside Fork Distance 7.9 in.
Wheel Material PU / NYLON

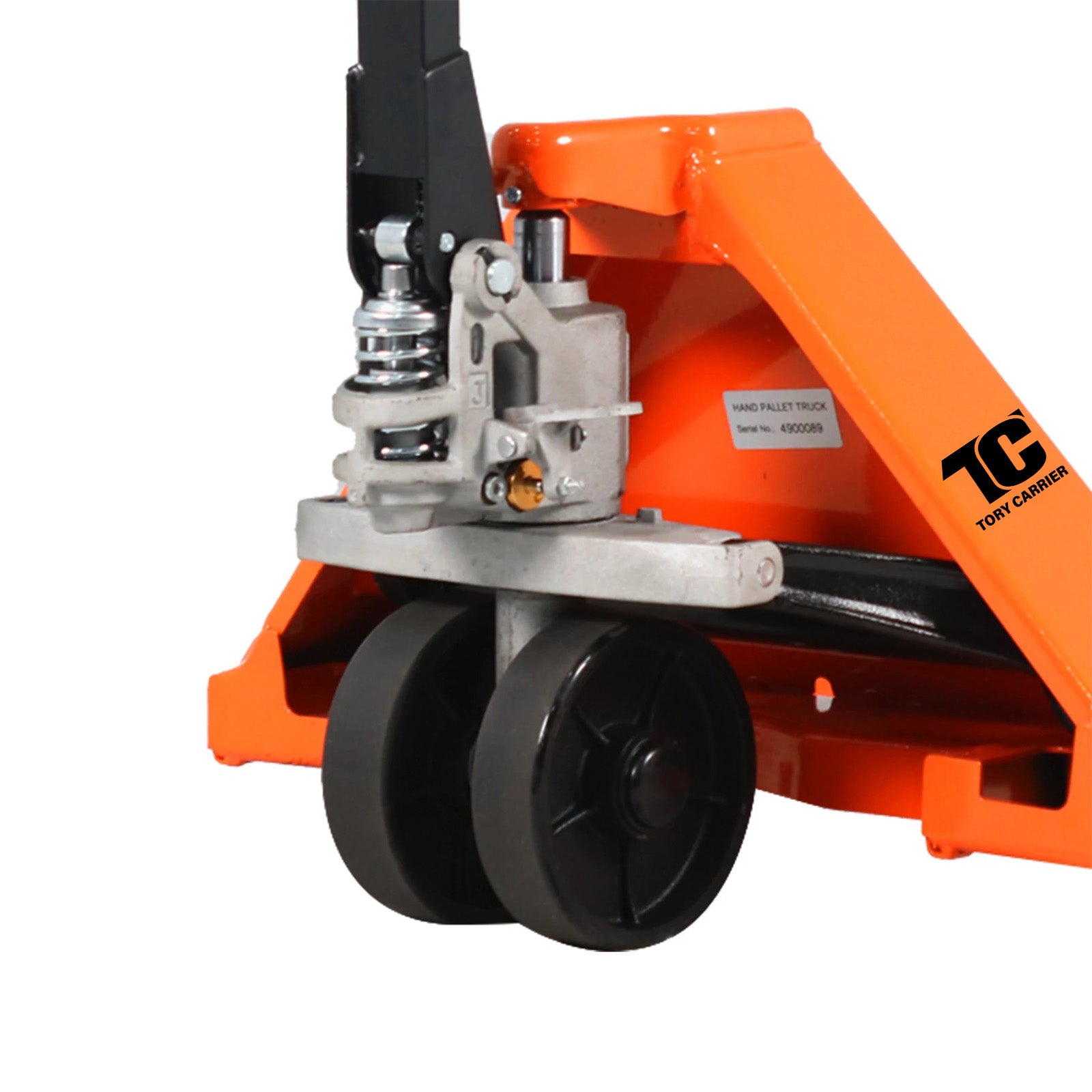

Wheel Size Drive Wheel: 7.1 × 2.0 in.
Load Wheel: 2.9 × 3.7 in.
Ground Clearance 0.9 in.
Service Weight 129 lb
Steering Angle 190°
Pallet Compatibility All Pallet Types
Handle Folding Non-Folding Handle
Warranty
Warranty Coverage 1-Year Limited Warranty
User Documentation

Download T-1006 Operation Manual

👉Installation and Operation Video

Certifications & Compliance

Designed with Compliance in Mind

This model is CE certified to support safer and more reliable material handling operation. Certification coverage may vary by model, so please verify certification details before purchase.

CE

CE Certified

Indicates conformity with applicable European safety, health, and product requirements for this model.

Hand Pallet Jack

A reliable and cost-effective solution for moving pallets in warehouses, loading docks, and industrial workplaces. Manual pallet jacks provide smooth, efficient pallet handling without the need for power, making them ideal for everyday material handling tasks.

Manual Pallet Jack FAQ

What types of pallets can this manual pallet jack handle?

This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
What is the maximum load capacity?

The rated capacity is 5500 lbs. Always operate within the recommended load limit for safety.
What fork sizes are available?

Fork dimensions vary by model, including common sizes such as 48" x 27" and 48" x 21". Please check the product specifications before ordering.
Does this manual pallet jack require maintenance?

Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
What’s in the Box

Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?

Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?

It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
