Model: A-500101

Mini Order Picker – 330 lbs Capacity, High-Powered Stand-On Platform, Max Lift 118", A-500101

$12,300.00 $10,999.00 Save $1,301.00
In stock
Key Features
  • 330 lb capacity stand-on order picker.
  • For small-item picking and elevated shelves.
  • 24V / 100Ah battery system.
  • 51.2" turning radius and 5.1 mph travel speed.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
✓ For details on returns and refunds, please see our Return Policy .

Product details

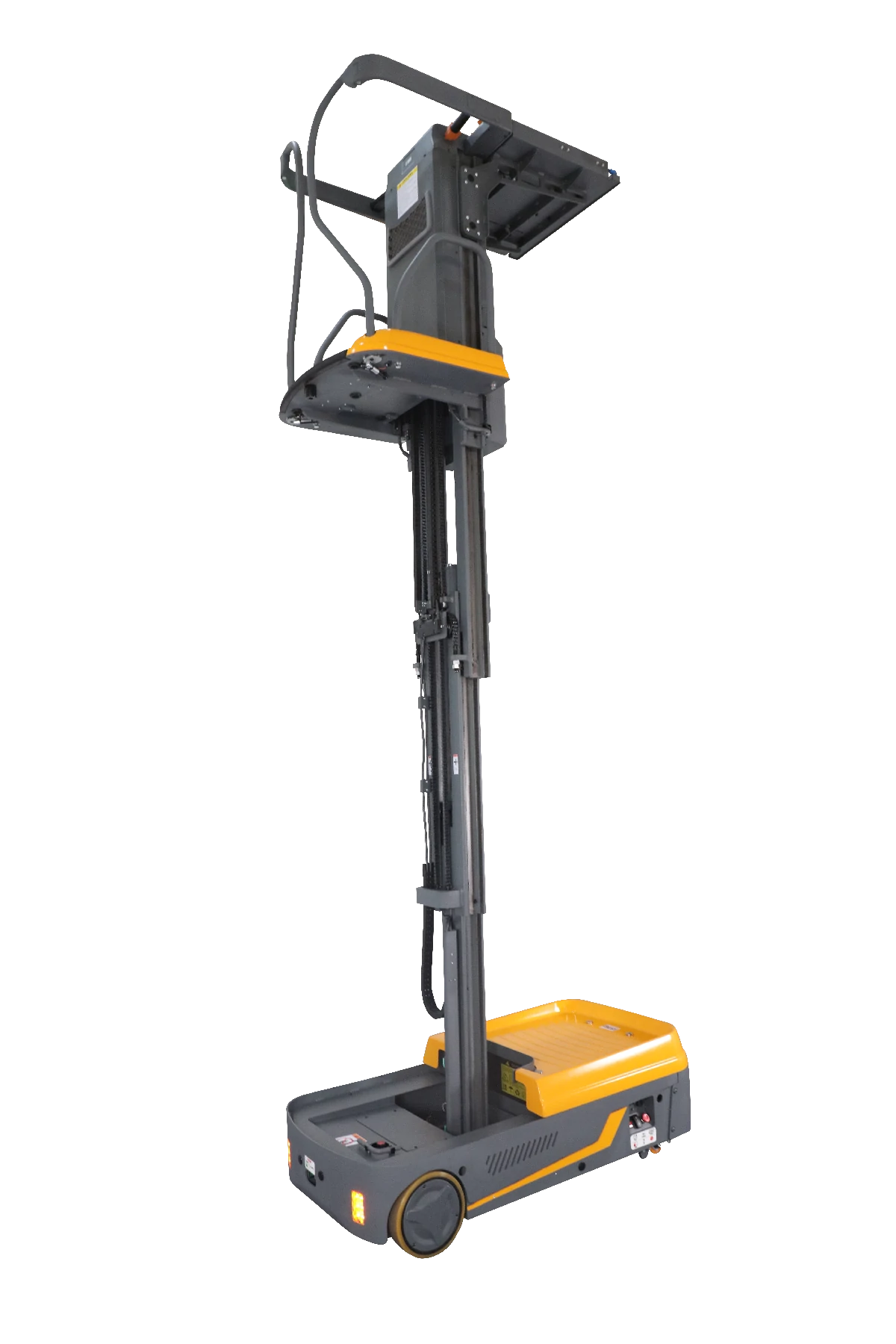

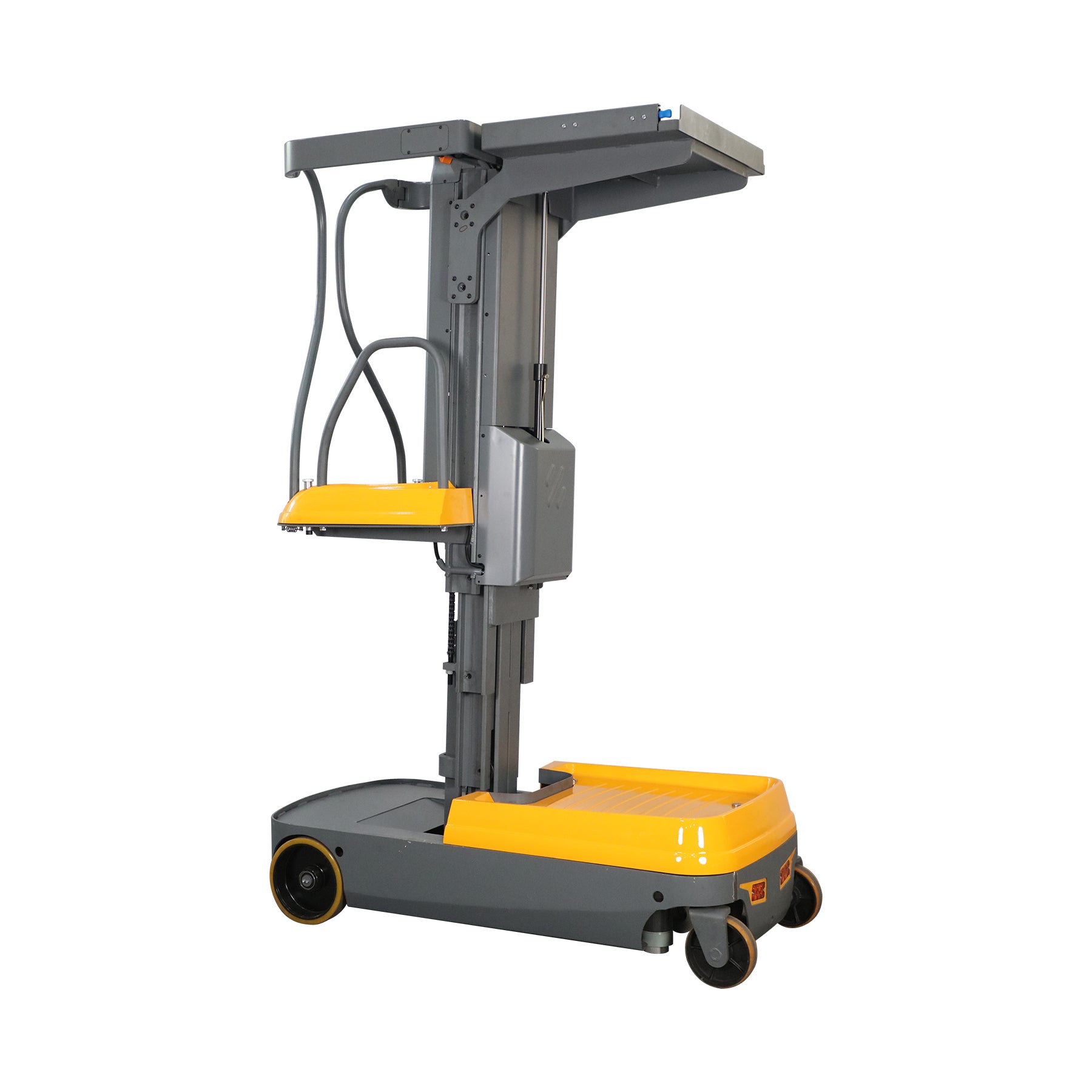

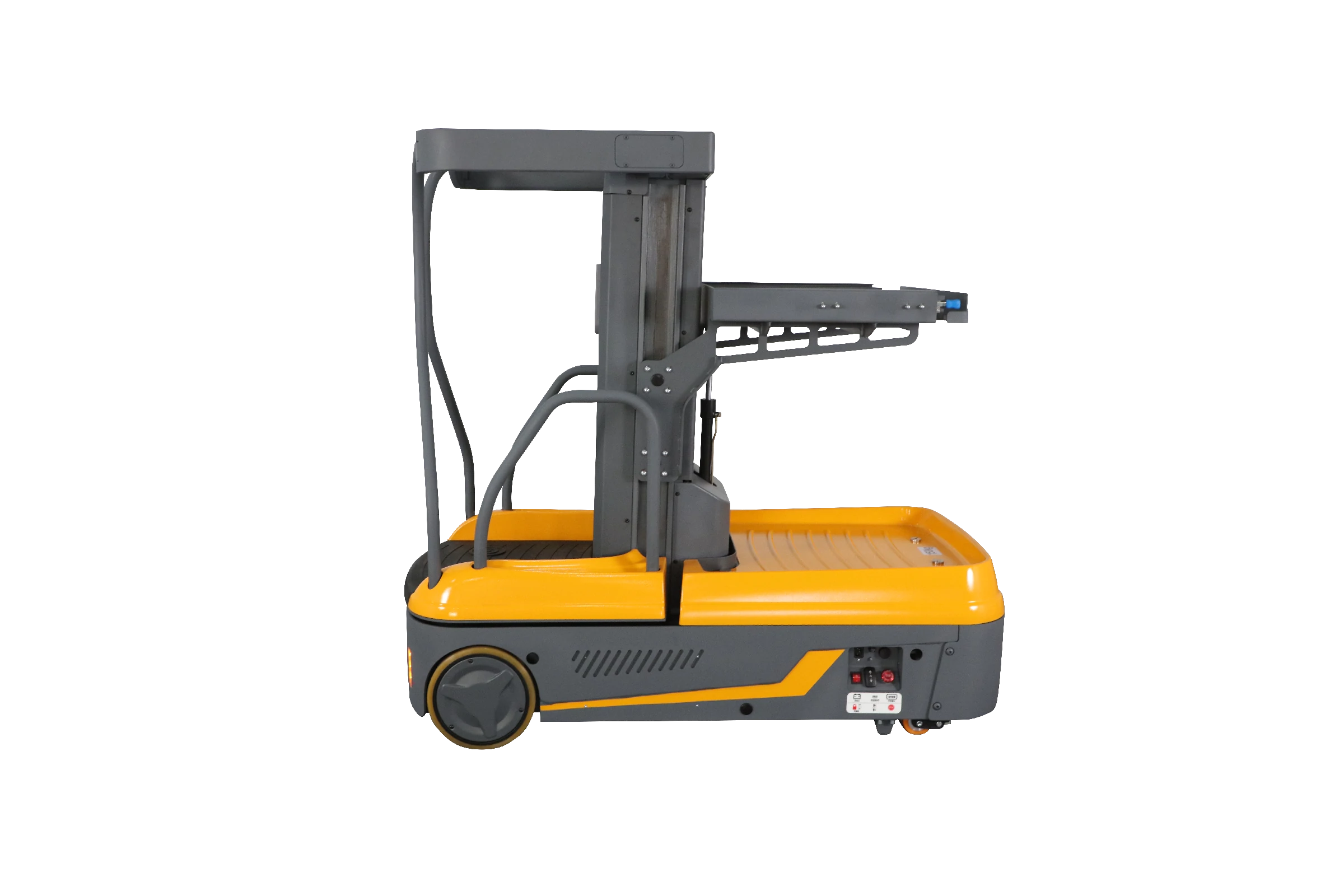

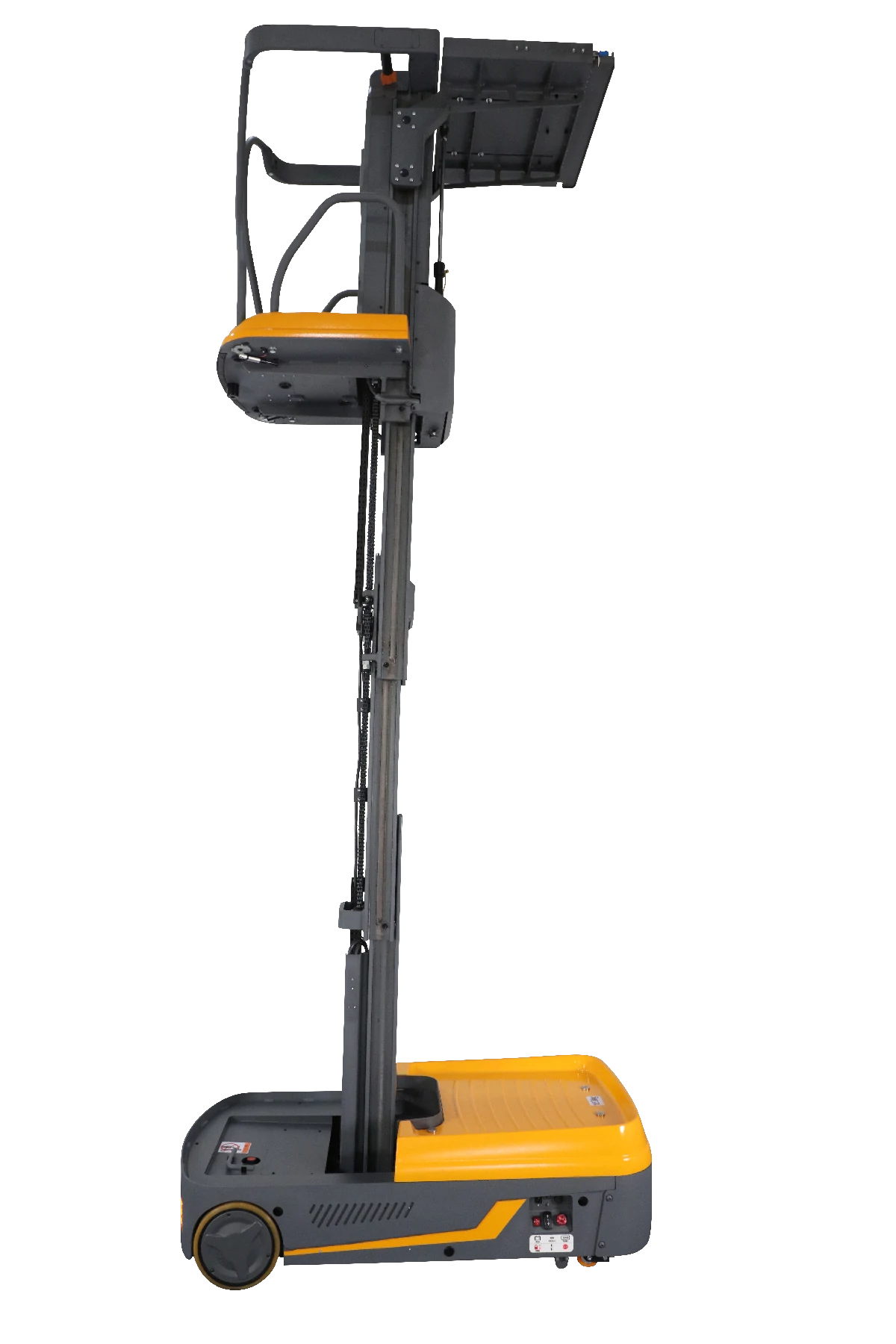

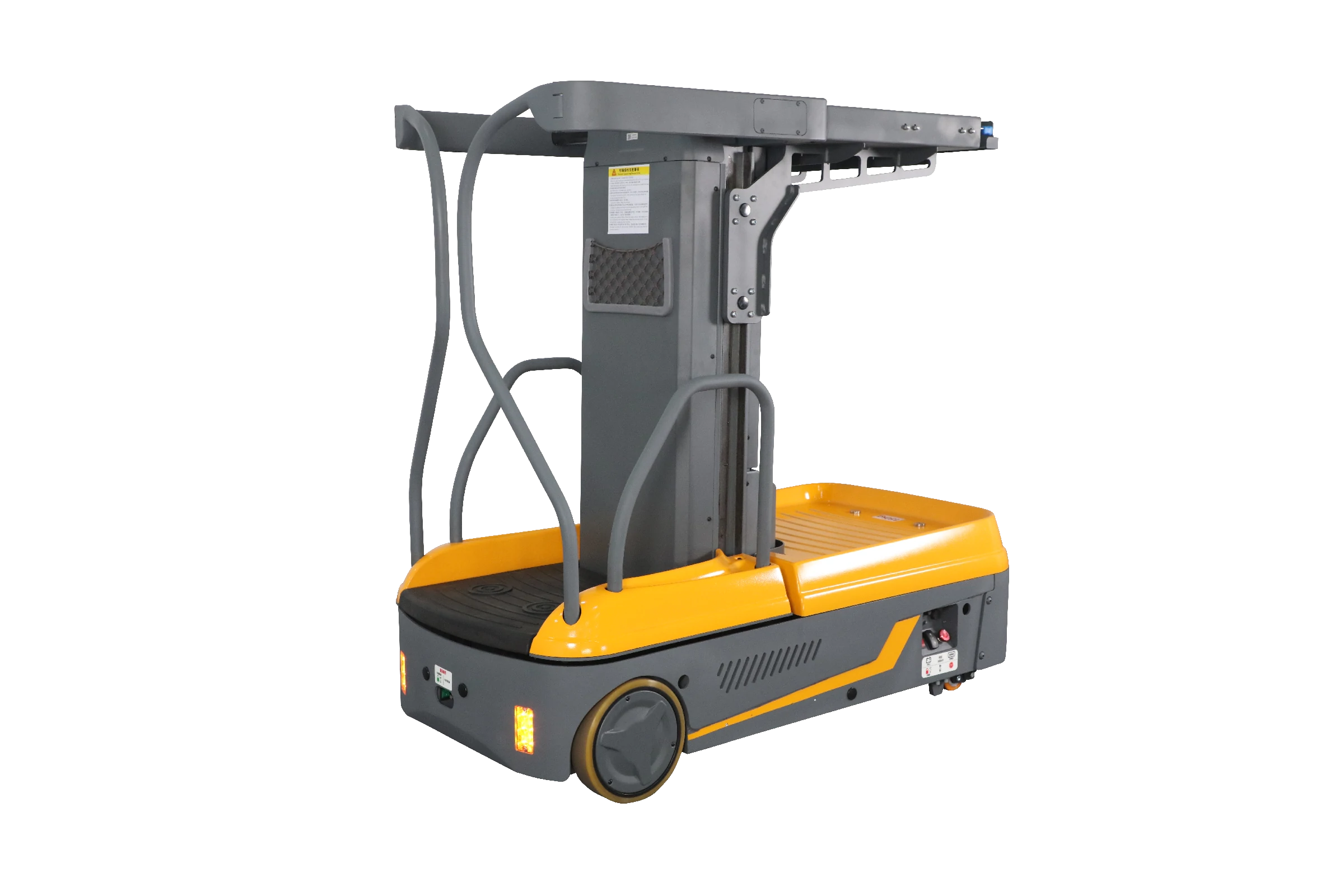

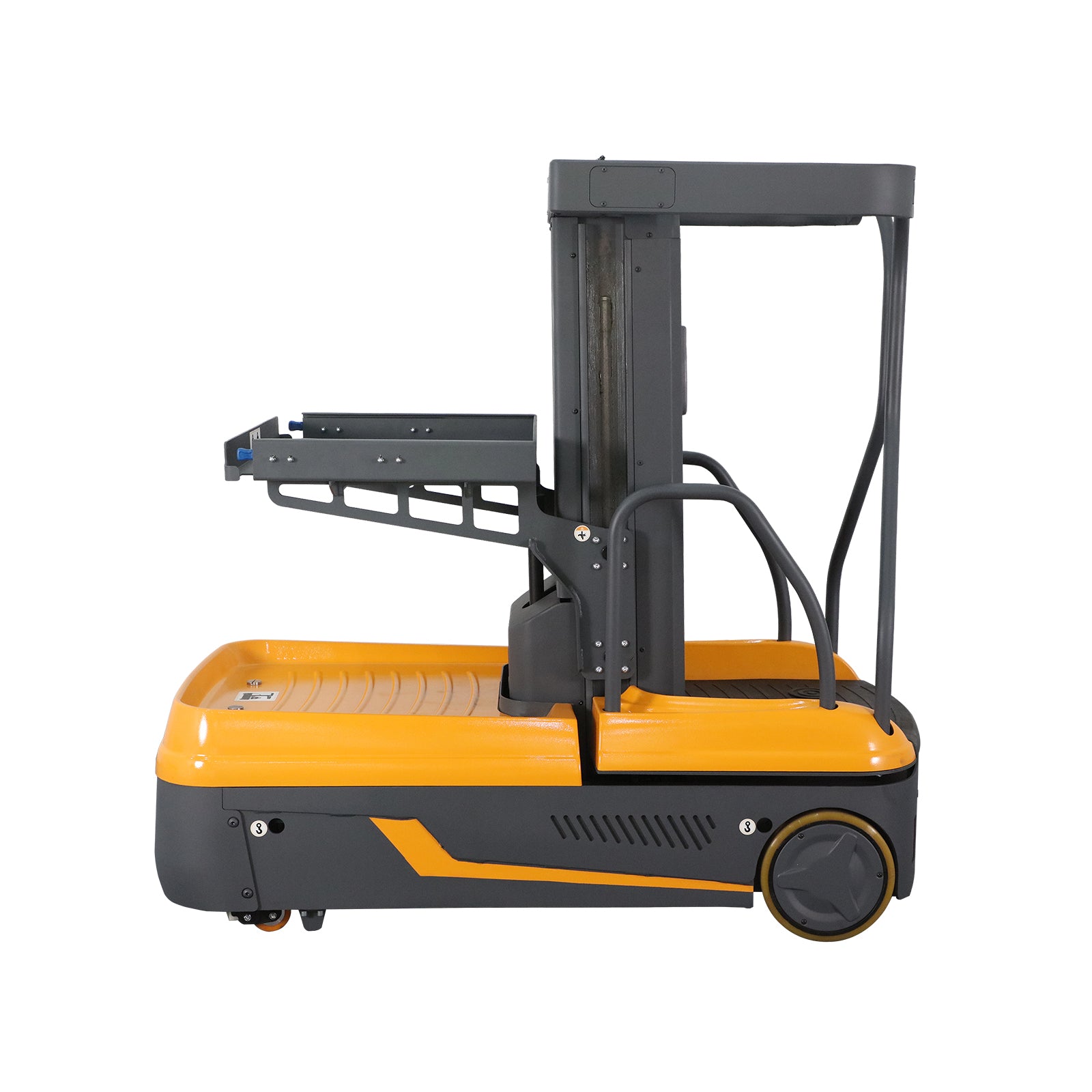

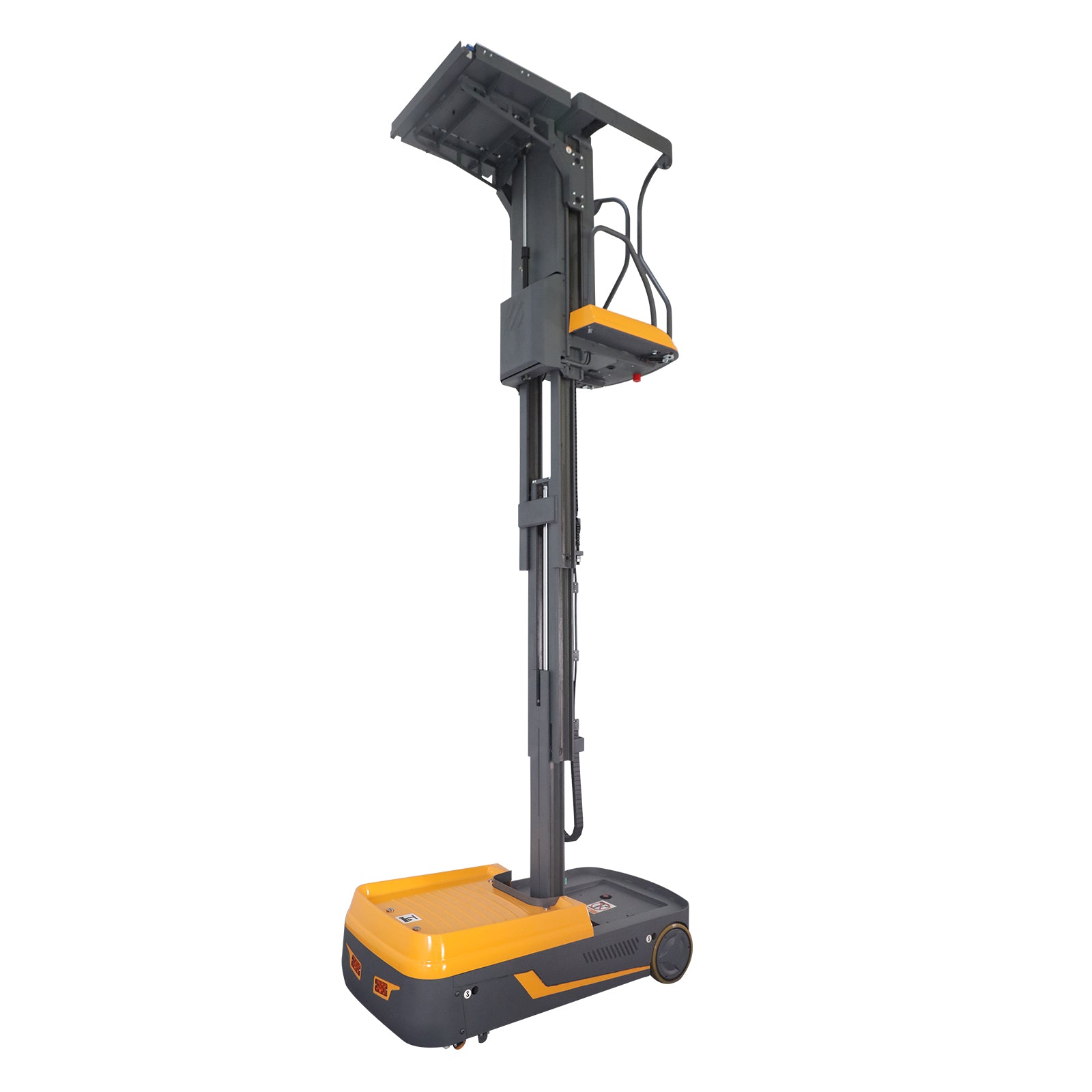

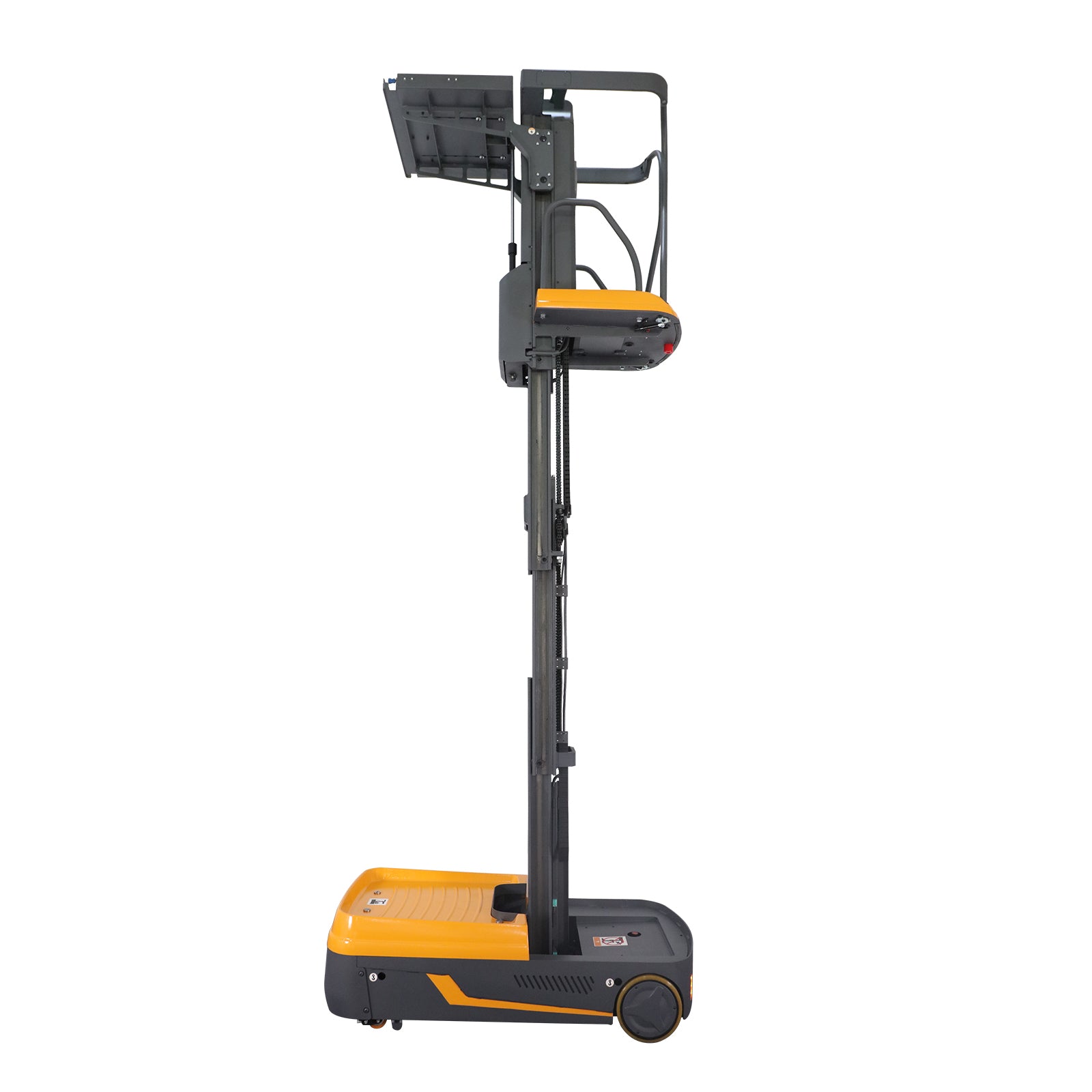

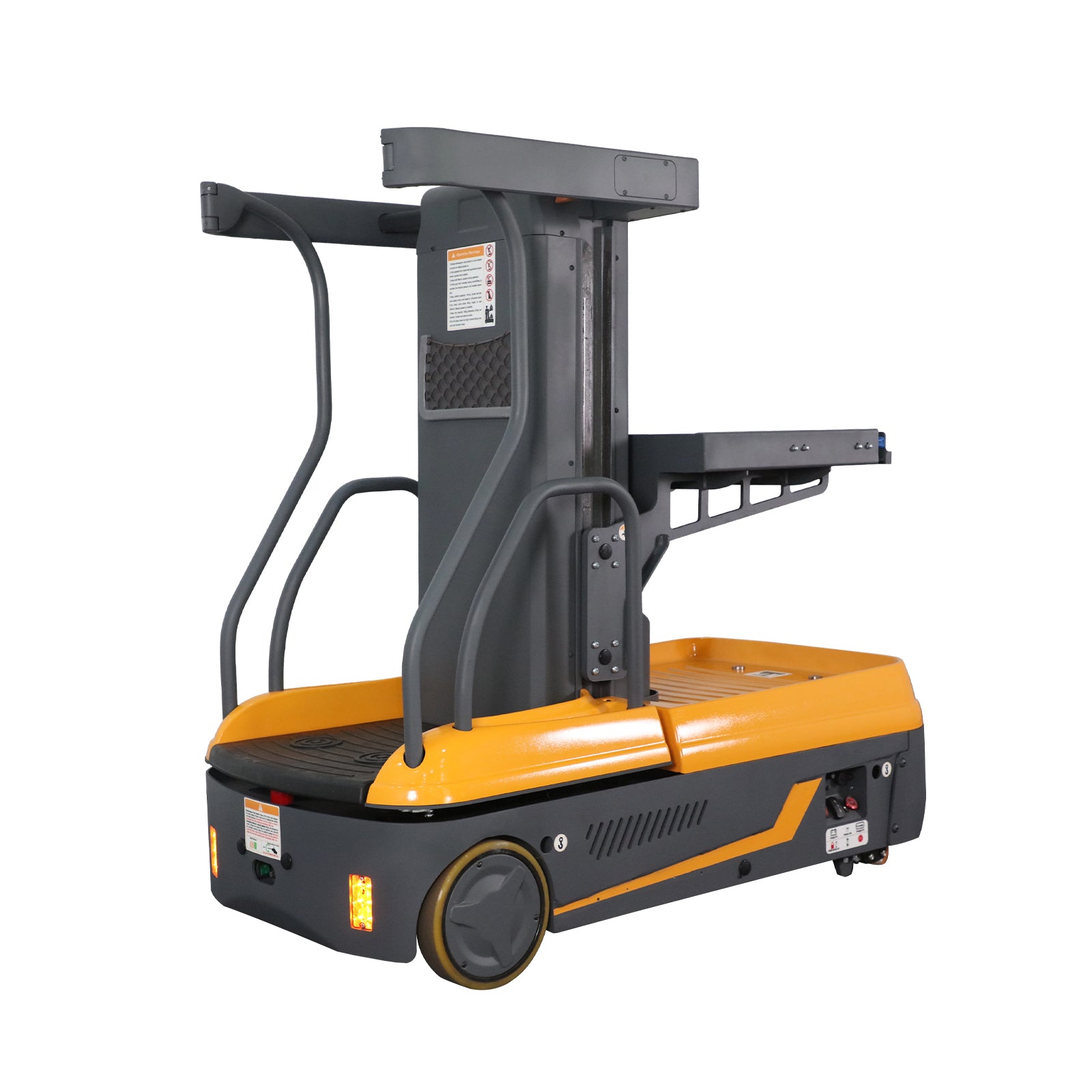

The TORY CARRIER Electric Order Picker is designed for order picking, stock replenishment, inventory management, and elevated access tasks in warehouses, distribution centers, and retail storage areas. Its compact 29.5-inch overall width supports maneuvering through narrow aisles and confined workspaces.

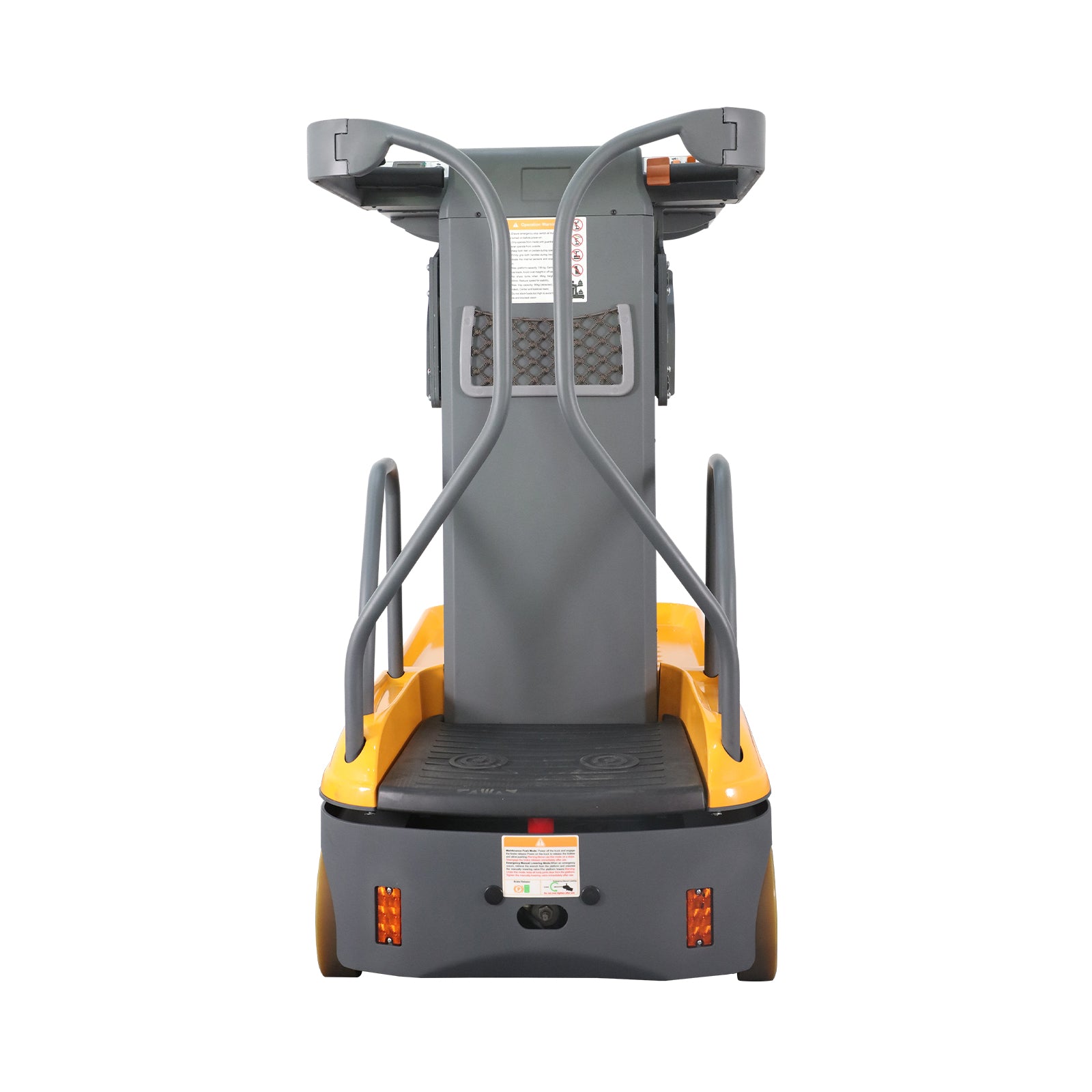

Fingertip steering and an integrated multifunction control handle provide convenient control of travel, lifting, and lowering functions. An elevated operator platform, adjustable work tray, foot safety sensors, and automatic lift-speed reduction support controlled operation during everyday picking tasks.

Key Features

  • 29.5 in overall width supports maneuvering in narrow aisles and confined storage areas.
  • 330 lb platform capacity and 200 lb tray capacity support elevated picking and stock-handling tasks.
  • Automatic lift-speed reduction slows platform movement at higher elevations for more controlled operation.

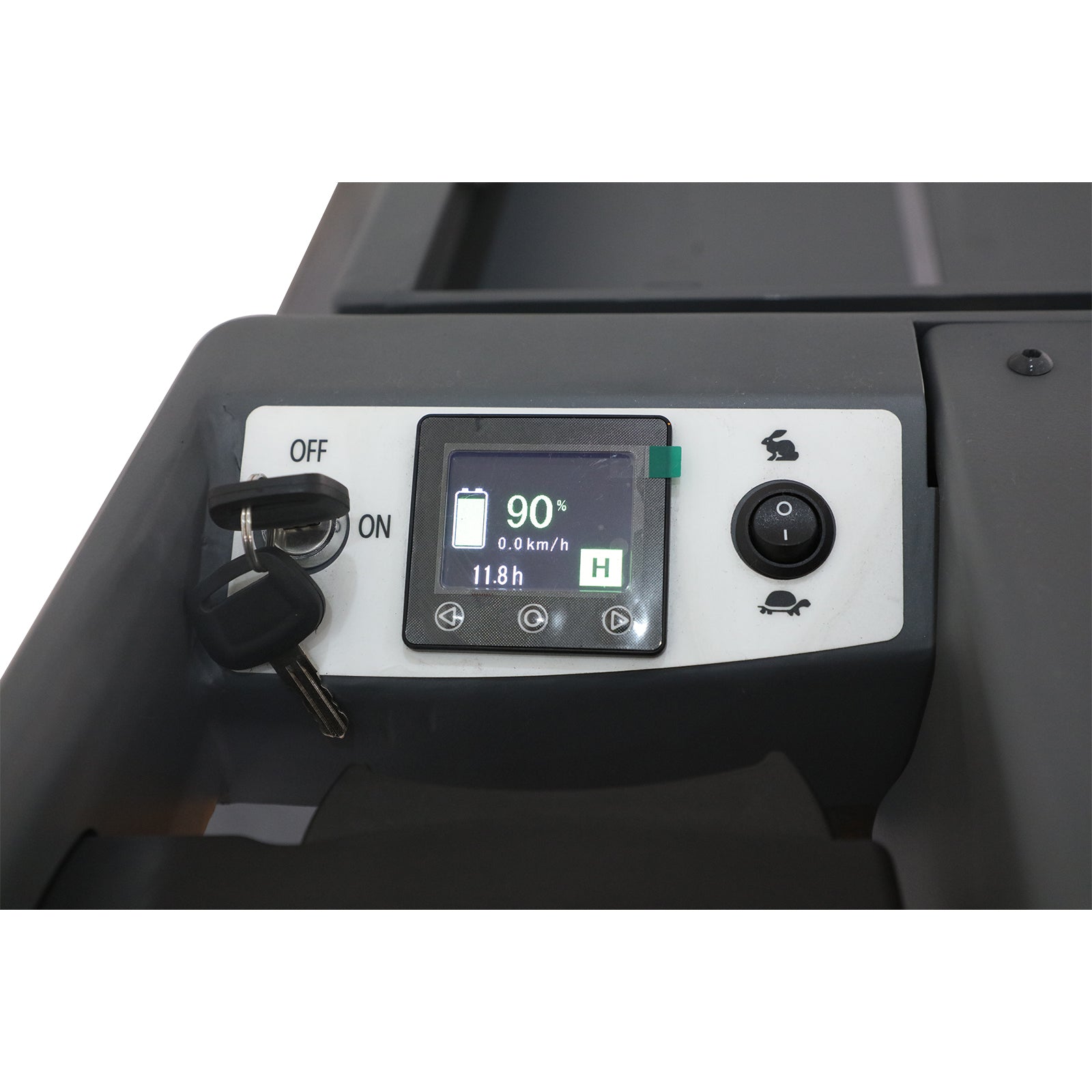

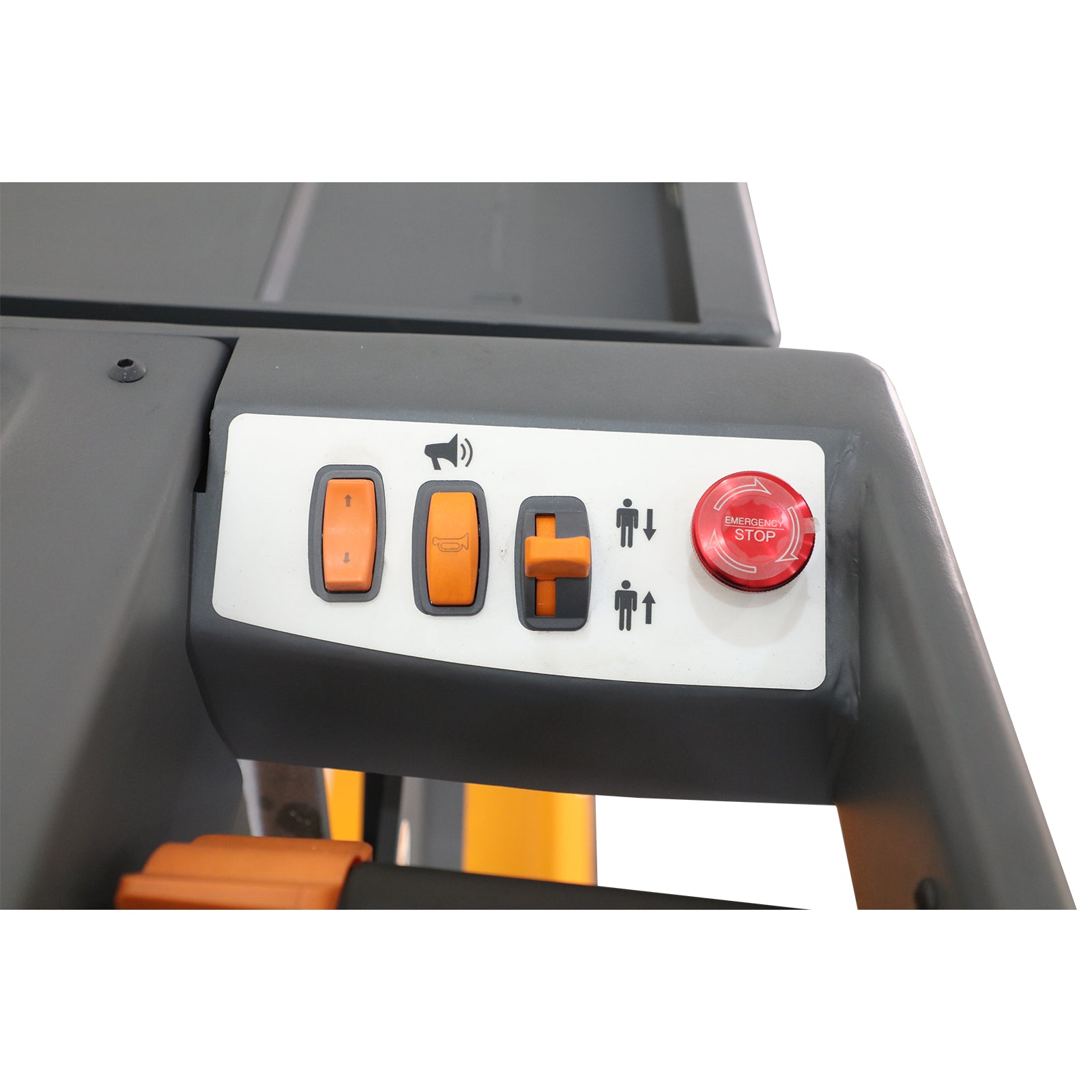

  • Fingertip steering and multifunction controls combine travel, lifting, and lowering functions in one operator interface.

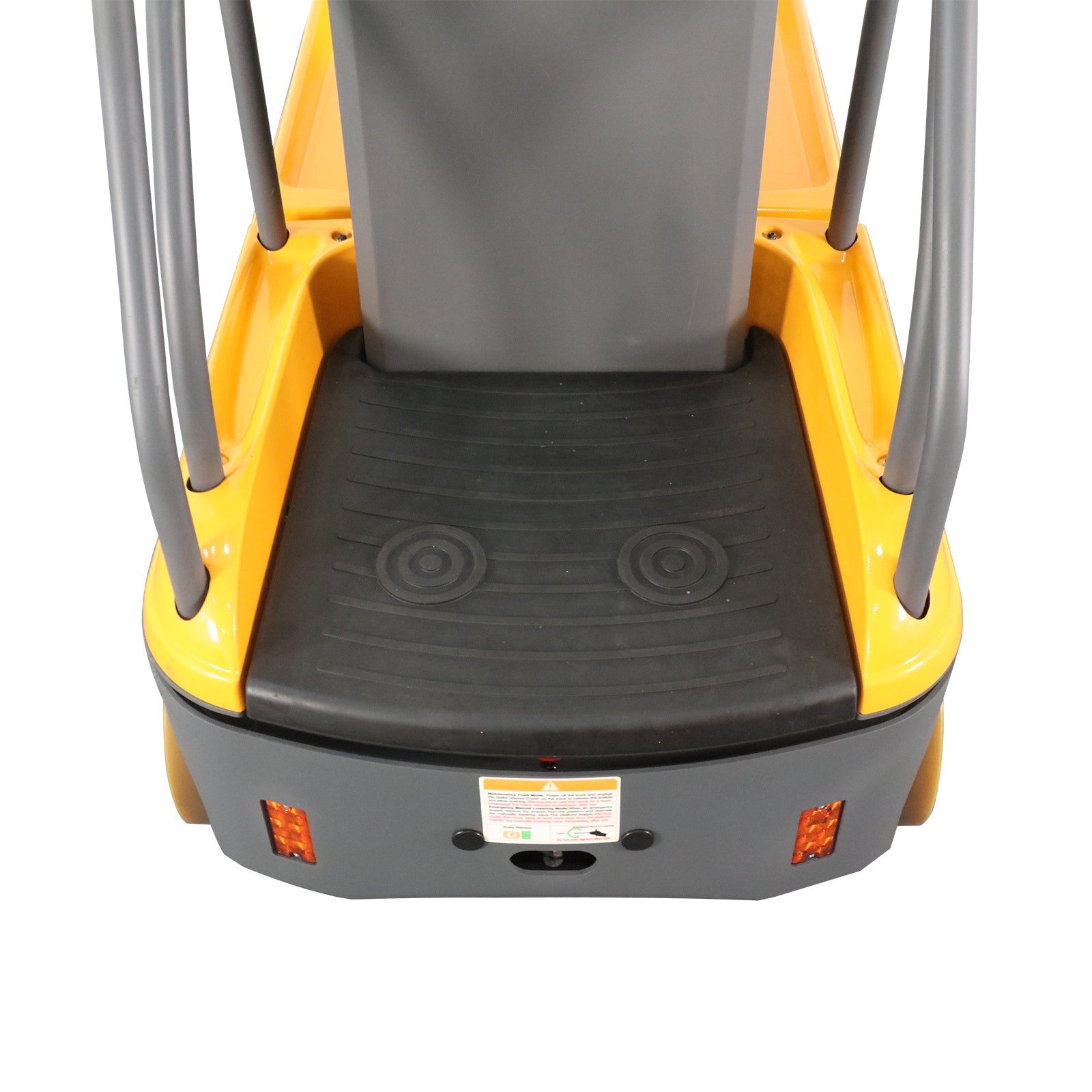

  • Dual foot safety sensors confirm operator positioning before equipment operation.

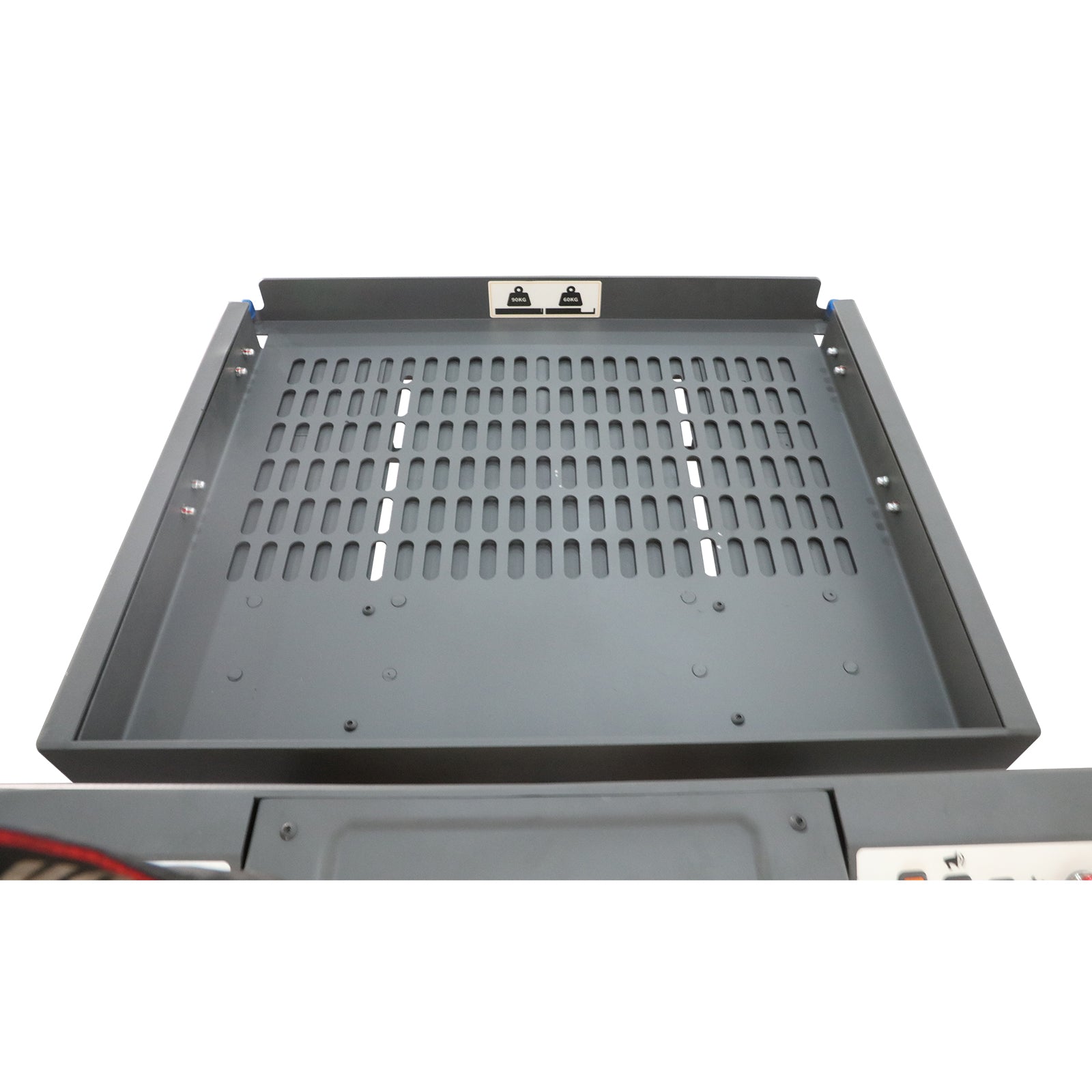

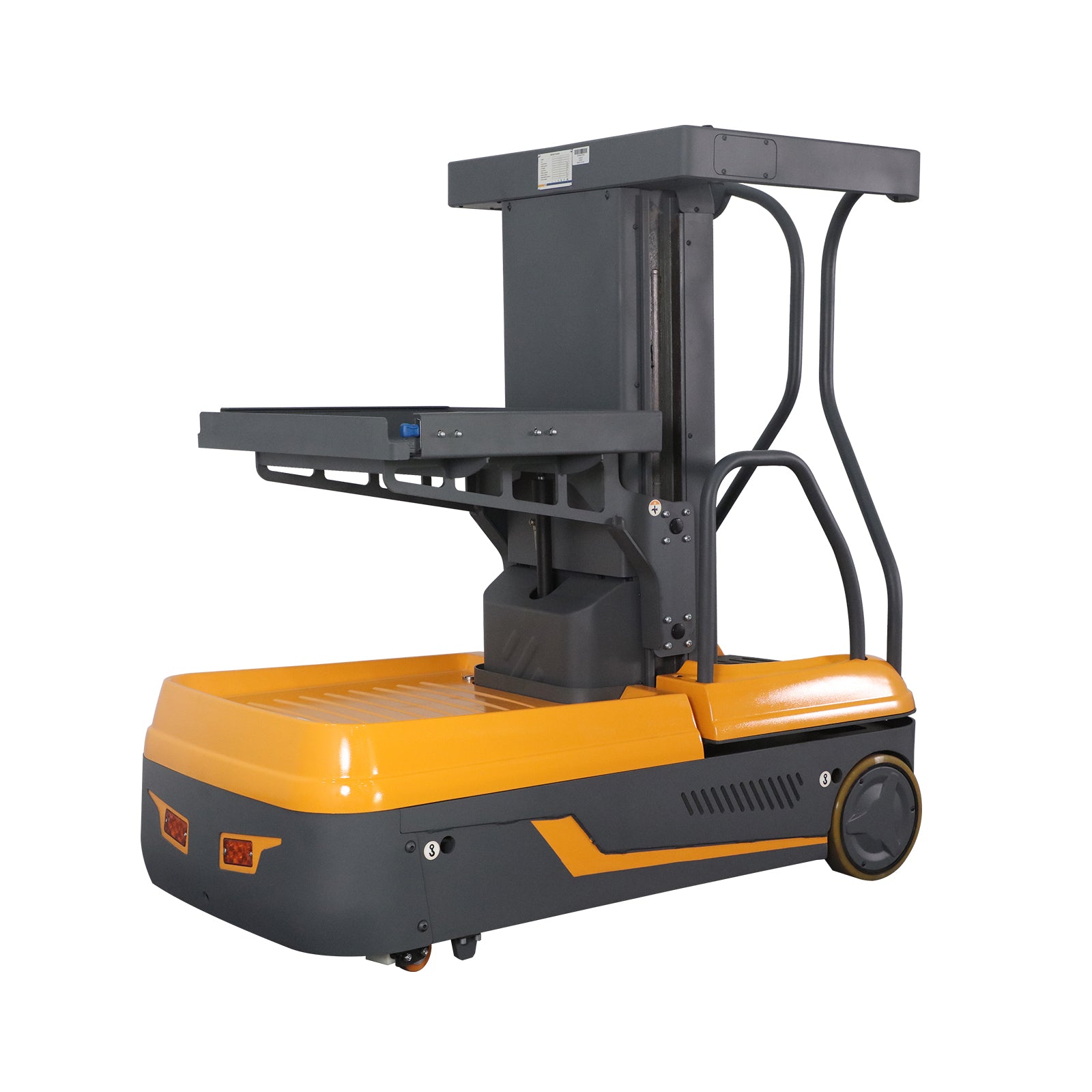

  • Adjustable work tray provides up to 10.2 in of height adjustment for different picking positions.
  • Integrated tow hitch allows the order picker to pull compatible carts and trailers.

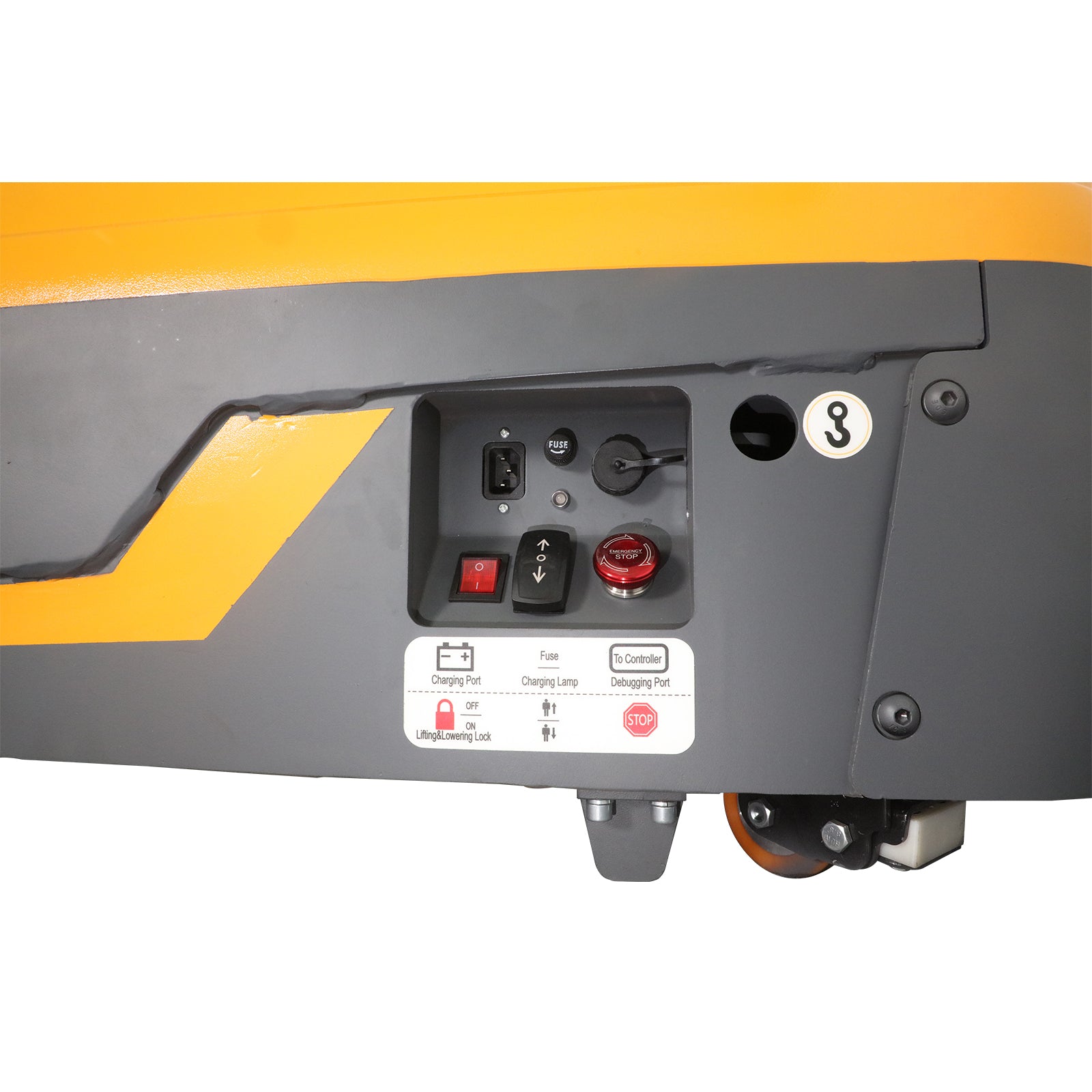

  • Built-in charger provides convenient charging without separate external charging equipment.
Load Capacity 330 LBS
Operation Type stand driving
Platform lowered height 13.2 inch
platform Max,lifting height(in) 118 inch
Lifting Speed(Laden/Unladen) 9.0/13.0 inch/s
Travel Speed (Laden/Unladen) 5.1/5.1 miles/h
Wheel Diameter 7.1 inch
Turning Radius 51.2 inch
Aisle width 74 inch
overall height(in) 55.1-160.2
overall length(in) 59.0
overall width(in) 29.5
Battery Type GEL
Battery Capacity 24/125 V/Ah
Service Weight 1705 LBS

Warranty

 Warranty 1-Year Limited Warranty

User Documentation

Product Manual (PDF)

👉Installation and Operation Video



Order Picker – FAQ

What is an order picker used for?

An order picker is designed for picking and placing items at various heights in warehouses, distribution centers, and fulfillment operations. It allows operators to safely access shelving and racks to improve picking efficiency.
What is the maximum working height and load capacity?

Working height and load capacity vary by model. Please refer to the product specifications for exact details, including maximum platform height and rated load capacity.
Can the order picker be used indoors and outdoors?

Most order pickers are designed primarily for indoor use on flat, solid surfaces. Some models may support limited outdoor use—please check the product description for specific conditions.
What safety features are included?

Common safety features include emergency stop buttons, guardrails, anti-slip platforms, and overload protection to ensure safe operation during picking tasks.
Does the order picker require certification or training to operate?

Operator training is strongly recommended. Certification requirements depend on local regulations and workplace safety policies.
