Model: A-1001

Manual Pallet Jack Truck 4400 lbs. 48" L x 21" W Fork, A-1001

$310.00 $259.00 Save $51.00
Key Features
  • 4,400 lb capacity with 48" x 21" forks.
  • Standard configuration.
  • Lift height up to 7.5".
  • 3.0" lowered fork height.
View More Details
Shipping Information:
• Bulk Order Advantage: Ordering multiple units can substantially reduce freight costs per machine.
• Order Fulfillment: Most orders are processed and dispatched within 2–3 business days depending on inventory allocation and destination.
In stock
✓ For details on returns and refunds, please see our Return Policy .

Product details

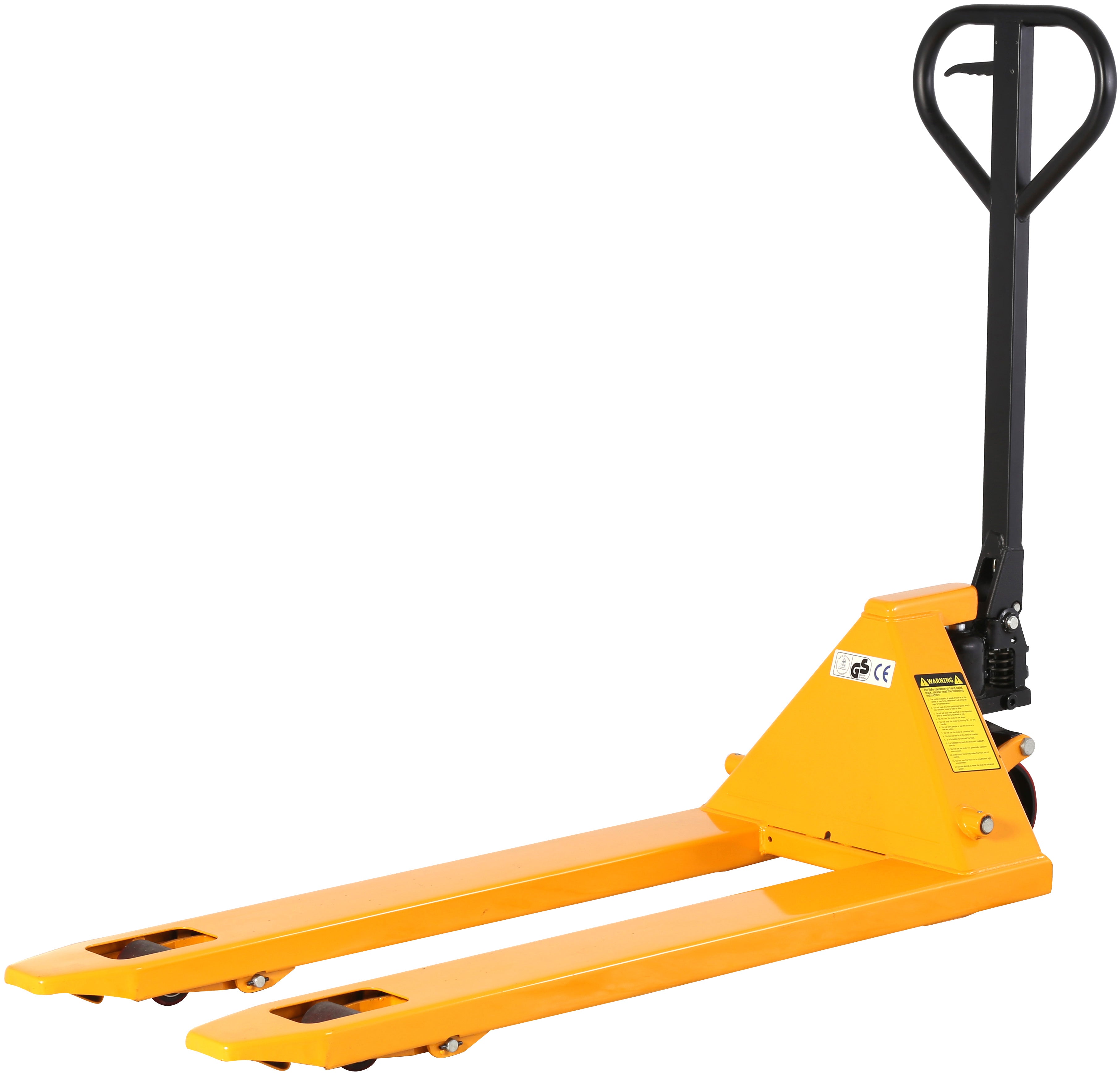

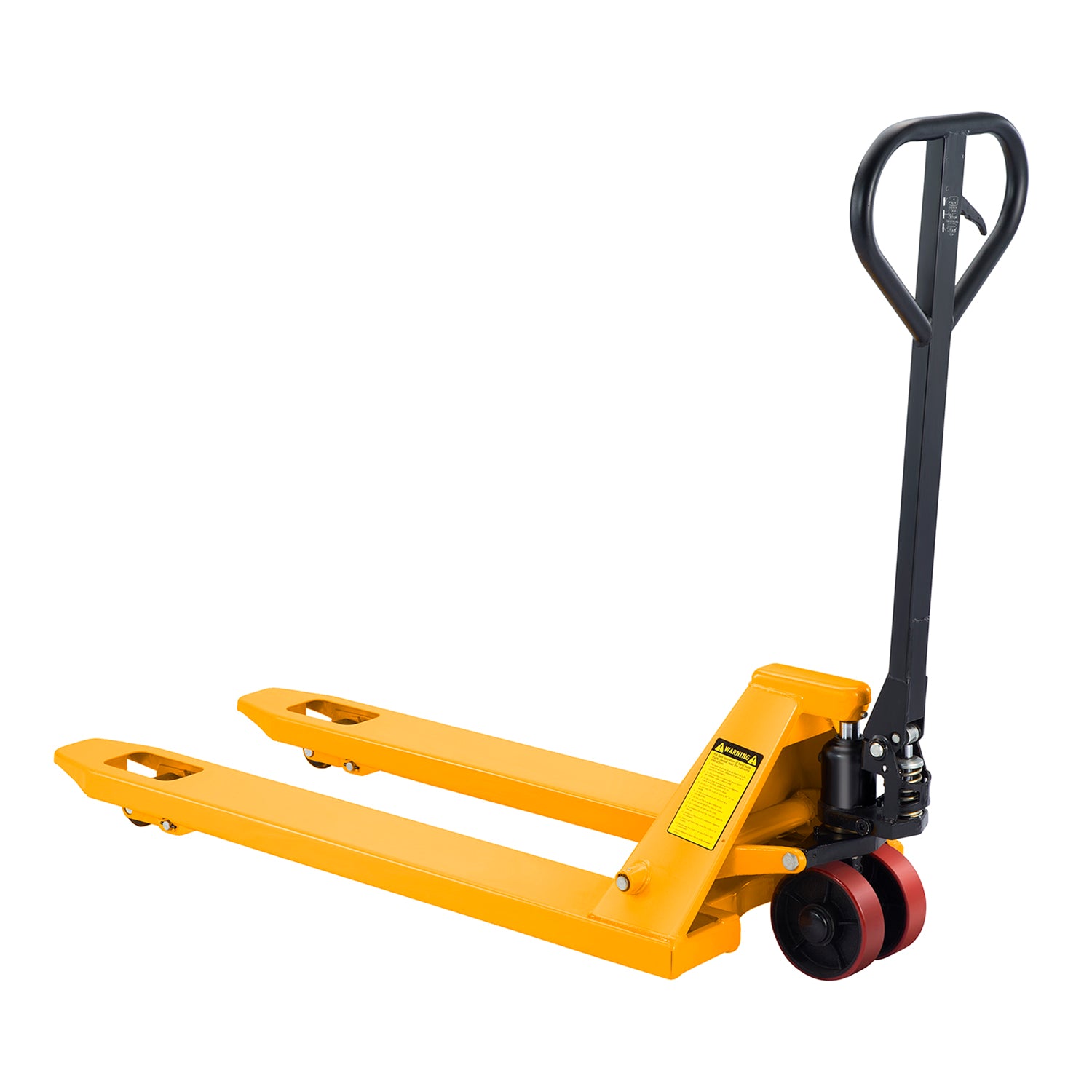

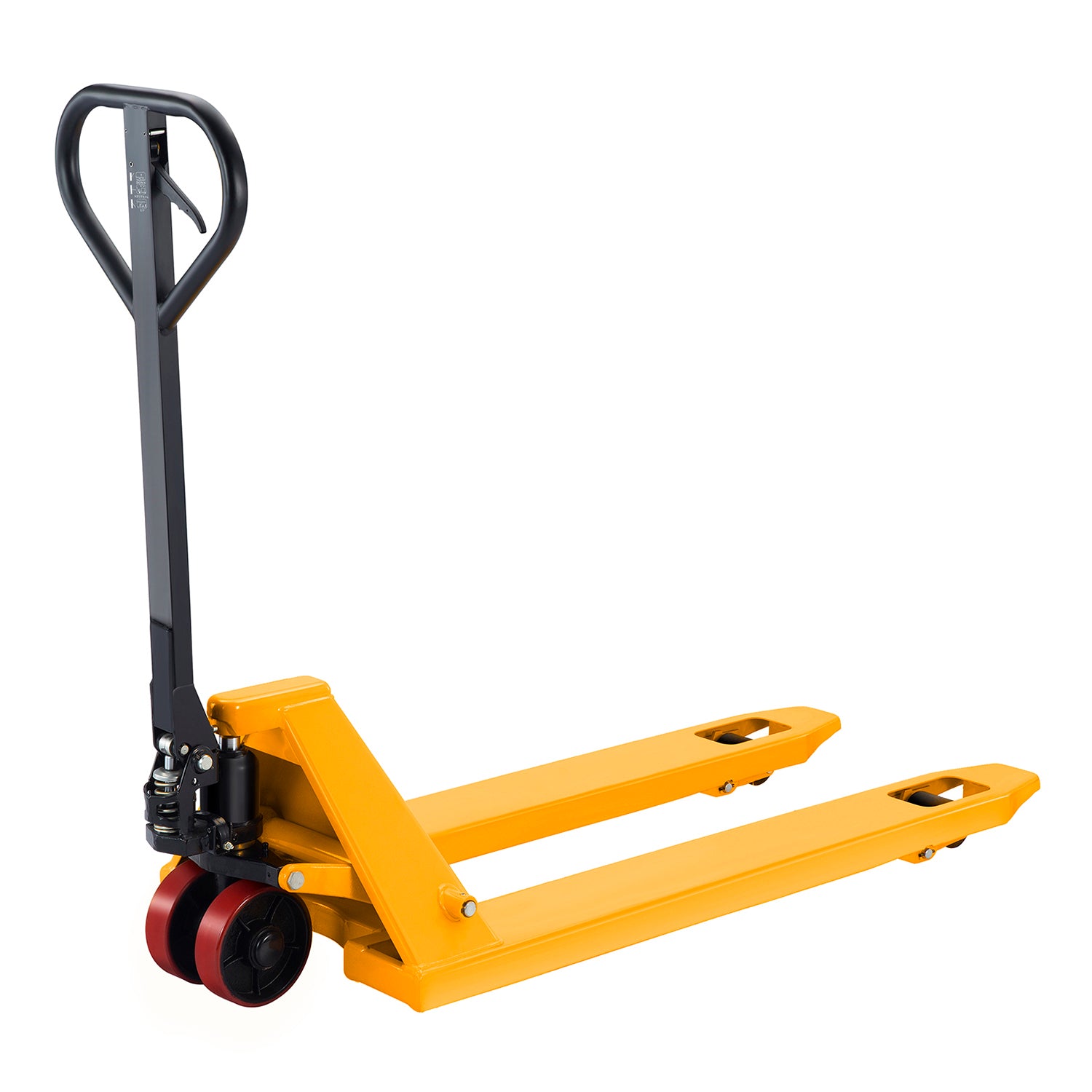

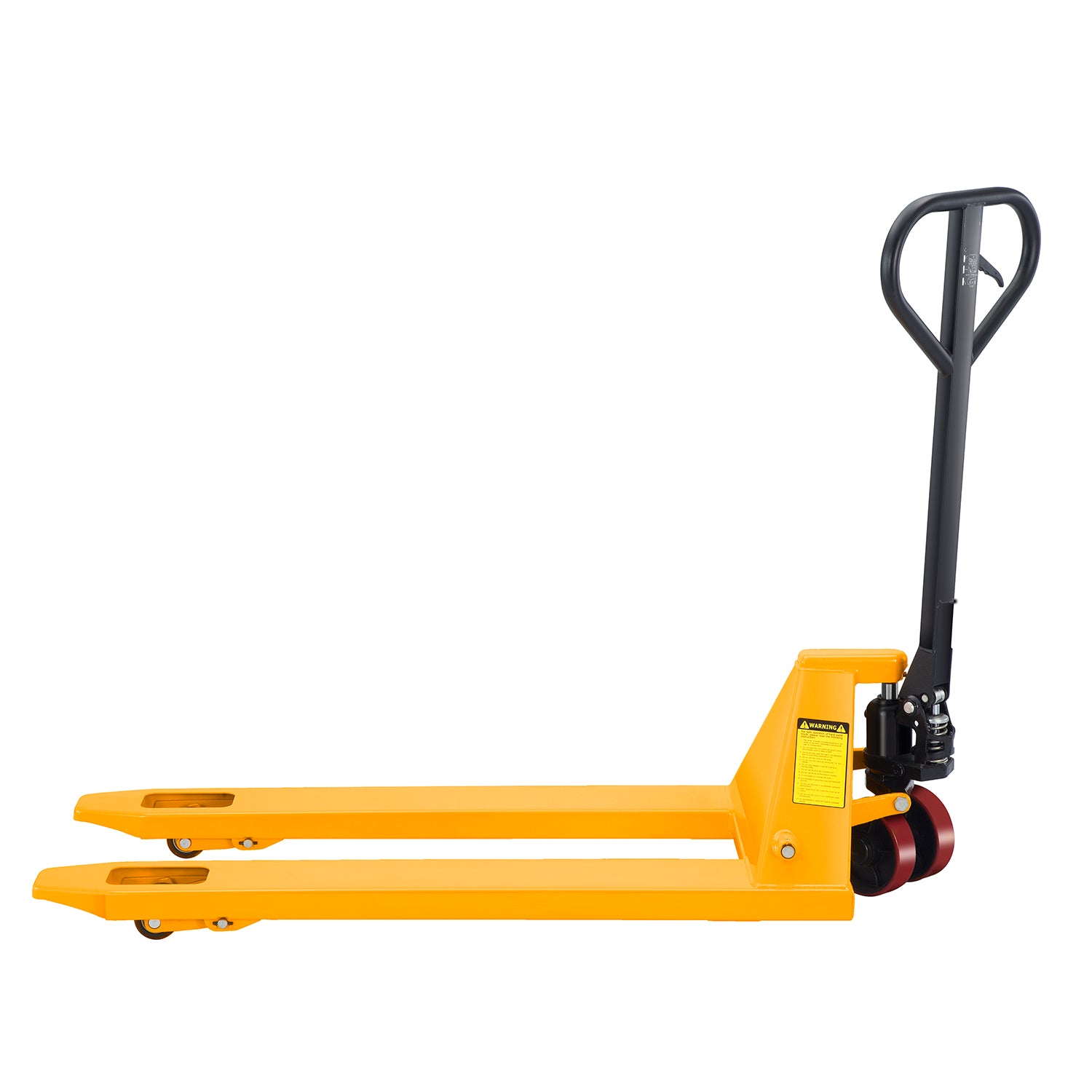

The TORY CARRIER A-1001 Hand Pallet Truck is designed for dependable pallet transport in warehouses, stockrooms, retail facilities, workshops, and other indoor material handling environments. Its 4,400 lb load capacity and compact 48 × 21 in forks make it suitable for moving compatible narrow-entry pallets in confined work areas.

A manual hydraulic system provides controlled lifting from 3 to 7.5 in, while the three-position hand control simplifies raising, lowering, and travel. The reinforced steel frame, compact 126 lb service weight, and 190-degree steering range support responsive everyday handling without batteries or external power.

Key Features

  • 4,400 lb Load Capacity: Supports routine pallet transport in warehouse and commercial environments.
  • 48 × 21 in Forks: The narrow fork configuration accommodates compatible pallets in confined work areas.
  • Manual Hydraulic Lifting: Raises the forks from 3 to 7.5 in without batteries, charging, or external power.

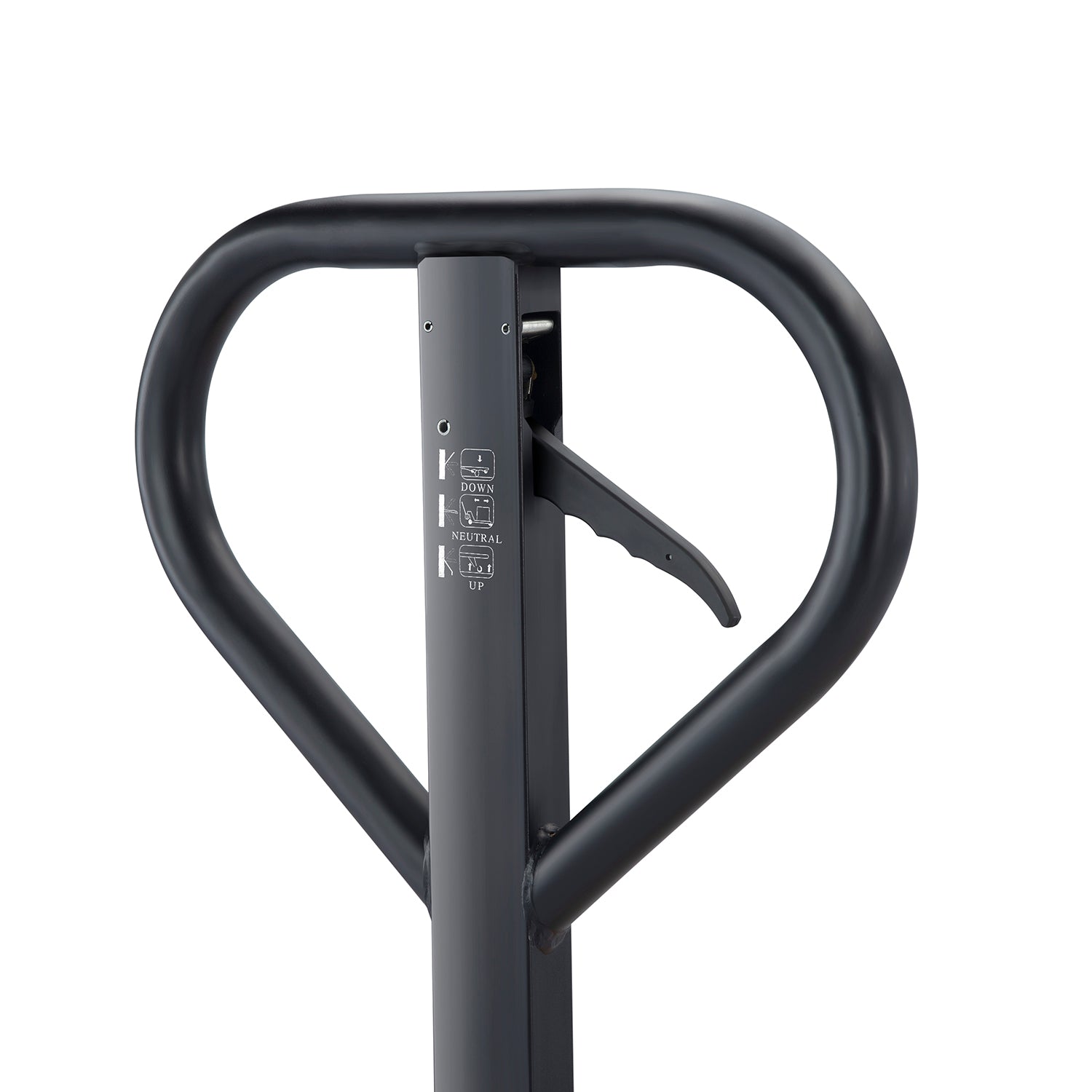

  • Three-Position Hand Control: Provides convenient raise, lower, and neutral operating positions.
  • Compact Maneuverability: A 52.5 in turning radius and 190-degree steering range support responsive positioning.
  • Reinforced Steel Construction: A high-strength frame, welded joints, and reinforced fork tips support demanding daily use.
  • 126 lb Service Weight: The compact frame is easier to position, store, and transport between work areas.
  • Powder-Coated Finish: The protective coating helps resist corrosion, chipping, and everyday wear.

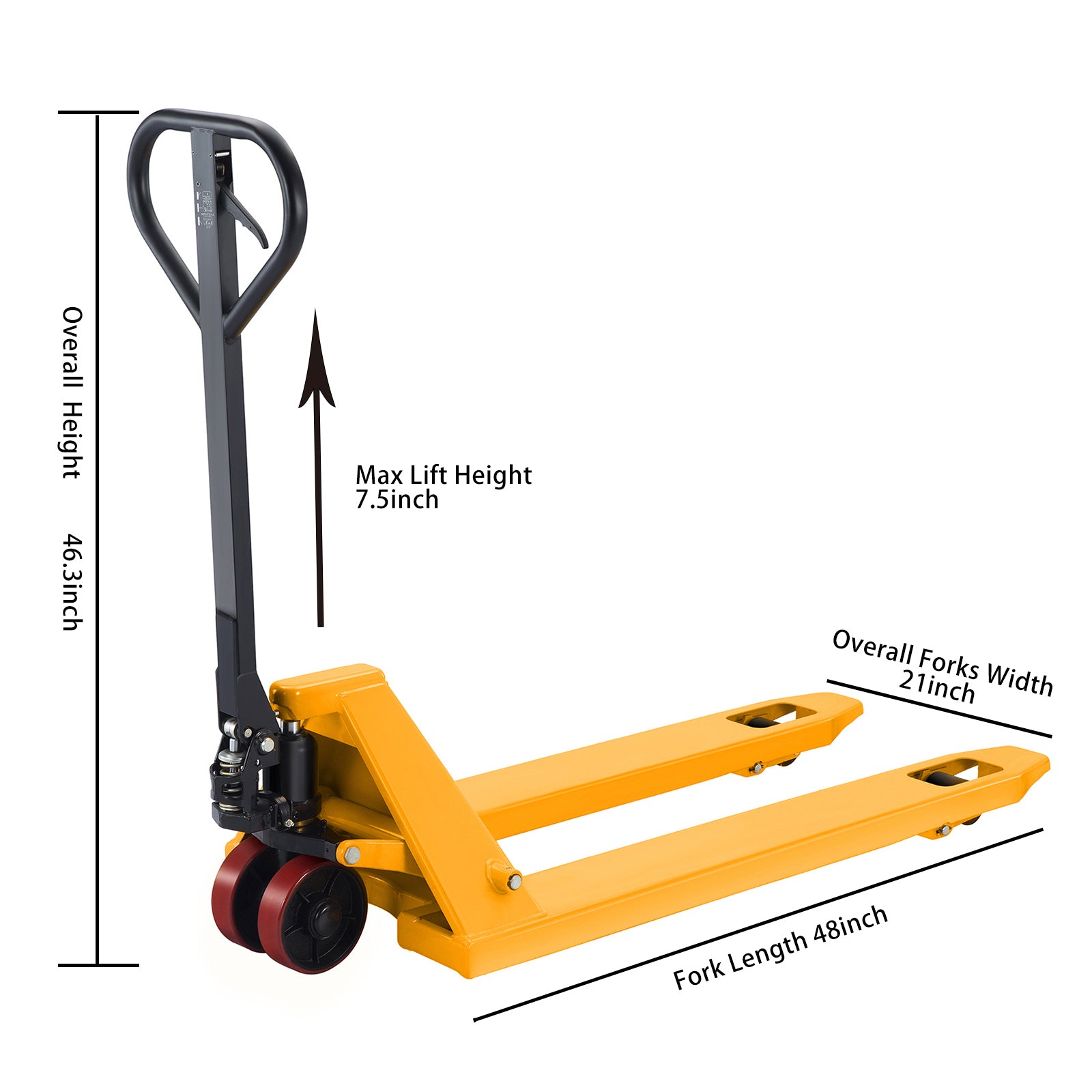

Product Specifications

Model A-1001
Load Capacity 4,400 lb
Fork Dimensions (L × W × H) 48 × 21 × 2.1 in
Individual Fork Width 5.9 in
Inside Fork Width 9.2 in
Lowered Fork Height 3 in
Maximum Fork Height 7.5 in
Lifting Travel 4.5 in
Overall Dimensions (L × W × H) 62.5 × 21 × 46.3 in
Turning Radius 52.5 in
Maximum Steering Angle 190°
Recommended Aisle Width 70.4 in
Ground Clearance 0.9 in
Steer Wheel Size 6.3 × 2 in
Load Wheel Size 2.8 × 3.1 in
Load Wheel Configuration Single Wheels
Handle Length 35 in
Service Weight 126 lb
Package Dimensions (L × W × H) 63 × 21 × 18 in
Gross Weight 131 lb
Warranty 1-Year Limited Warranty

Intended Use: Use with compatible pallets on firm, level indoor surfaces. Do not exceed the rated 4,400 lb load capacity.

Manual Pallet Jack FAQ

What types of pallets can this manual pallet jack handle?

This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
Does this manual pallet jack require maintenance?

Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
What’s in the Box

Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?

Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?

It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
