Model: T-1006(HP-III-1)

Narrow Hydraulic Manual Pallet Jack 5500 lbs. 48" L x 21" W Fork, T-1006

$415.00 $299.00 Save $116.00
In stock
Key Features
  • 5,500 lb capacity with 48" x 21" forks.
  • Narrow Fork configuration.
  • Lift height up to 7.3".
  • 3" lowered fork height.
View More Details
Logistics Note:
• Multi-Unit Savings: Freight costs are significantly reduced per unit on orders of 2 or more.
• Fast Dispatch: Ready to ship from our local warehouse within 24-48 hours.
Option of Wheels: PU Wheels
✓ For details on returns and refunds, please see our Return Policy .
Get a Custom Quote
Option of Wheels: PU Wheels

Product details

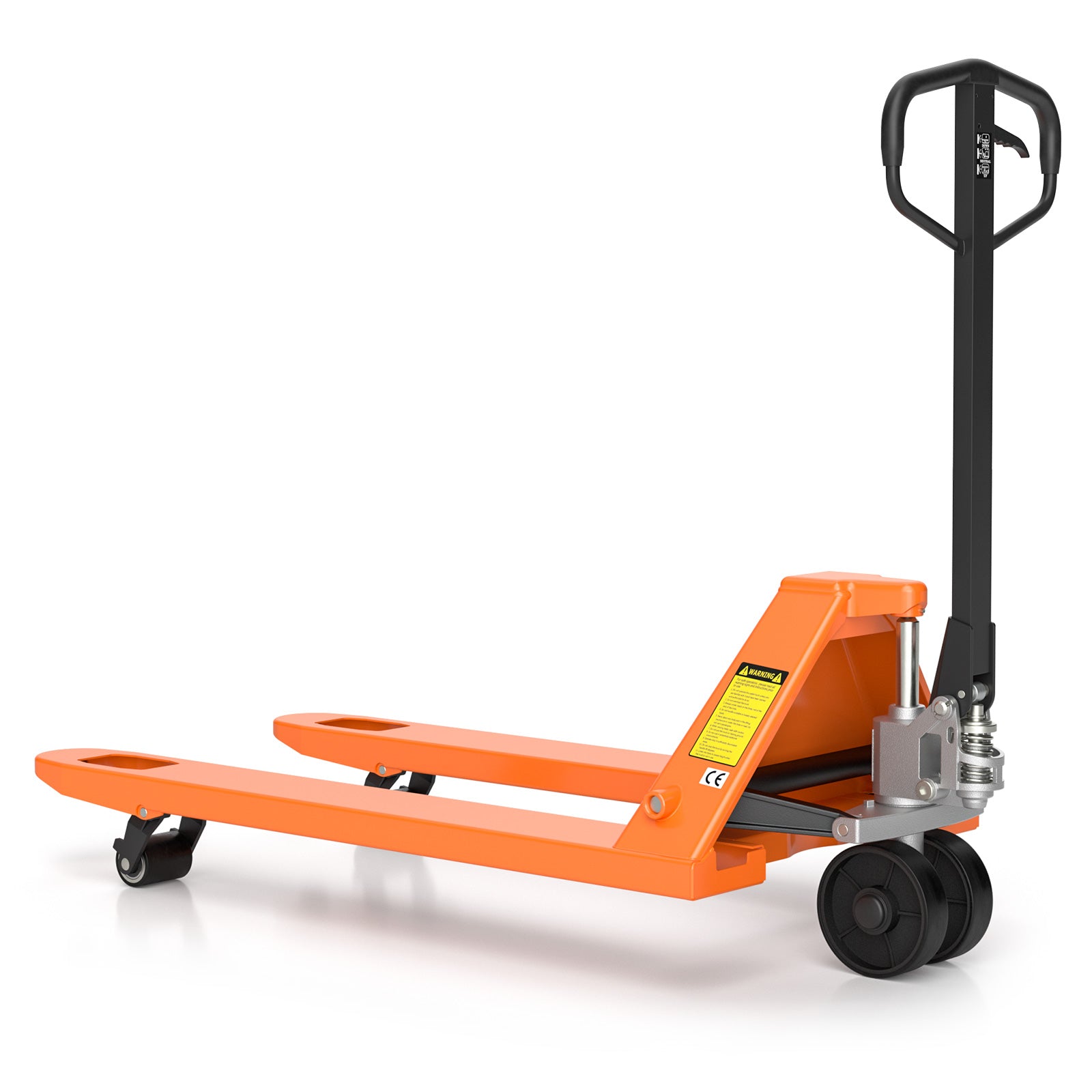

The TORY CARRIER Manual Pallet Jack is designed for heavy-duty pallet transport in warehouses, production areas, loading docks, and other material handling environments. With a 5,500 lb load capacity and 48 × 21 in forks, it provides dependable support for compatible narrow-entry pallets.

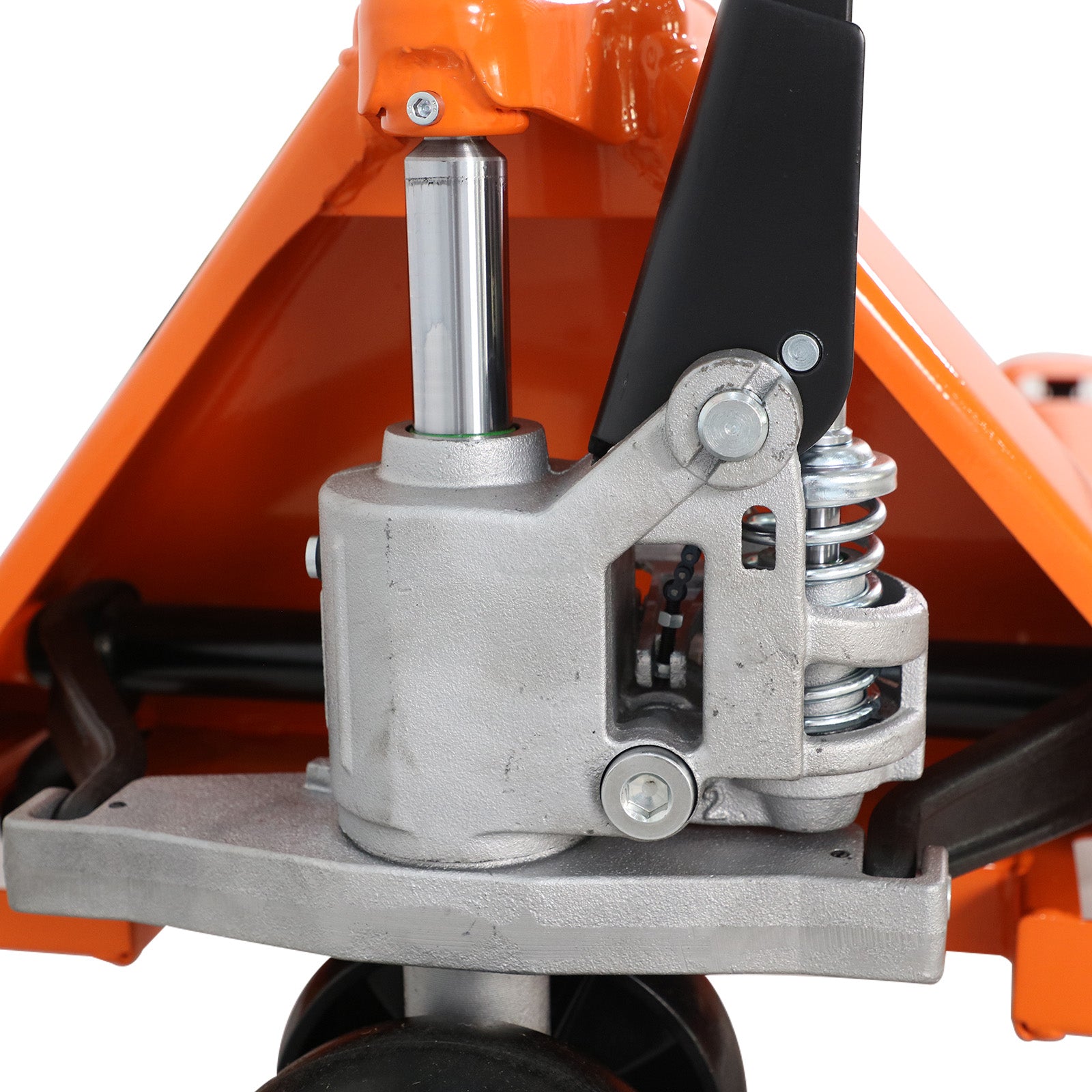

A hydraulic lifting system raises the forks to a maximum height of 7.3 in, while the three-position hand control provides convenient raise, lower, and neutral functions. The reinforced steel frame, high-rigidity fork structure, and epoxy powder-coated finish support reliable performance under demanding daily working conditions.

Key Features

  • 5,500 lb Load Capacity: Supports heavy palletized loads in warehouses, production facilities, and loading areas.
  • 48 × 21 in Forks: The narrow fork configuration accommodates compatible pallets and specialized handling applications.
  • 7.3 in Maximum Fork Height: Provides the lifting range needed for routine pallet transport and positioning.

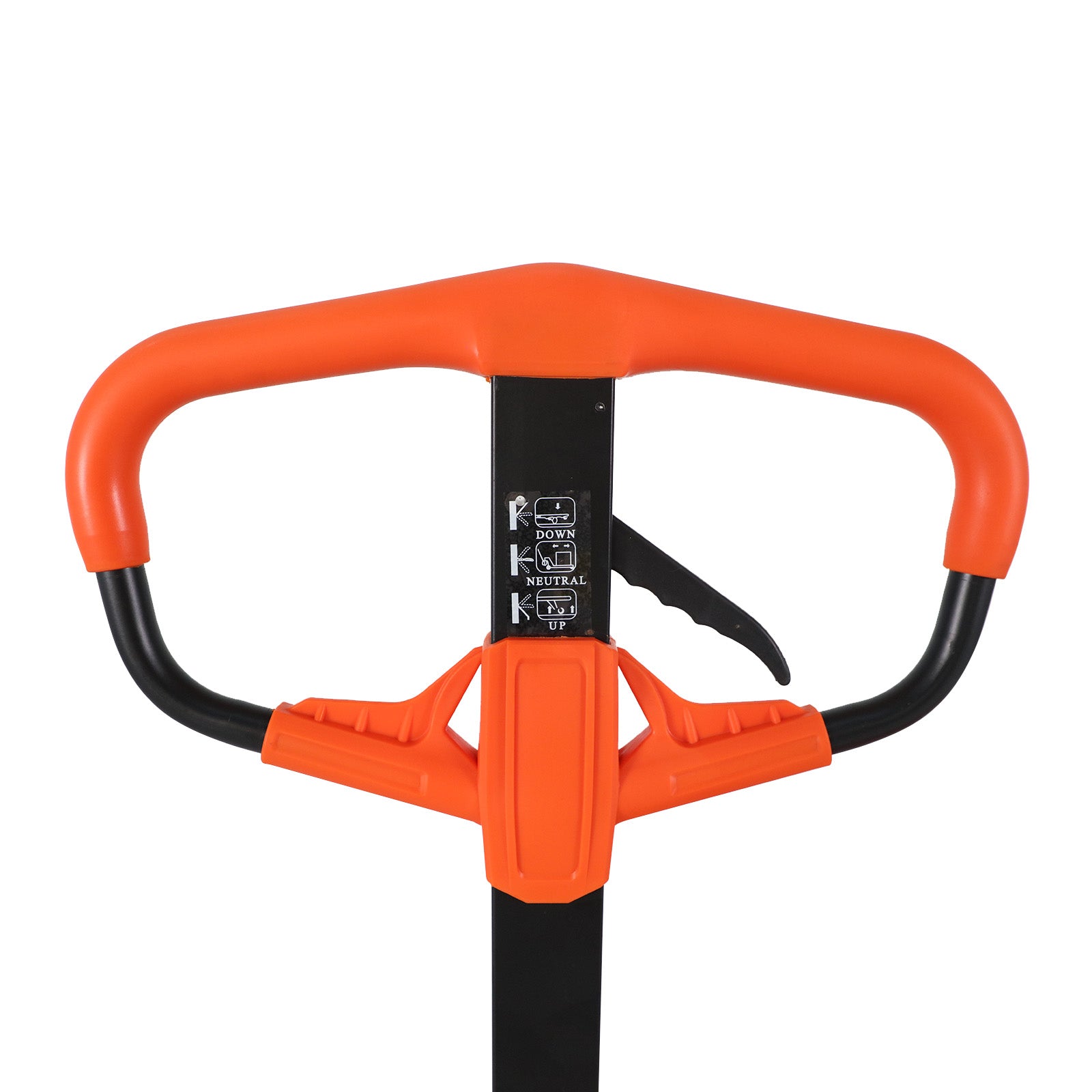

  • Three-Position Hand Control: Allows the operator to select raise, lower, or neutral for straightforward load handling.
  • Controlled Fork Lowering: Hand-operated lowering control supports smooth and precise load placement.
  • Reinforced Steel Construction: A durable frame, strengthened forks, and reinforced fork tips support frequent heavy-duty use.
  • Hydraulic Overload Protection: An integrated overload valve helps protect the hydraulic pump when the rated capacity is exceeded.
  • Epoxy Powder-Coated Finish: The protective coating helps resist chipping, corrosion, and everyday warehouse wear.
  • Service-Friendly Handle Design: An access opening in the handle seat simplifies installation and adjustment of the control chain.

Intended Use: Use only with compatible pallets on firm, level surfaces. Do not exceed the rated 5,500 lb load capacity.

Model T-1006
Load Capacity 5,500 lb
Overall Dimensions (L × W × H) 63.5 × 21 × 47.8 in.
Fork Dimensions (W × L × T) 21 × 48 × 2.1 in.
Fork Height, Lowered 3.0 in.
Maximum Fork Height 7.3 in.
Turning Radius 53 in.
Minimum Aisle Width 71.4 in.
Fork Overall Width 21 in.
Single Fork Width 6.3 in.
Inside Fork Distance 7.9 in.
Wheel Material PU / NYLON

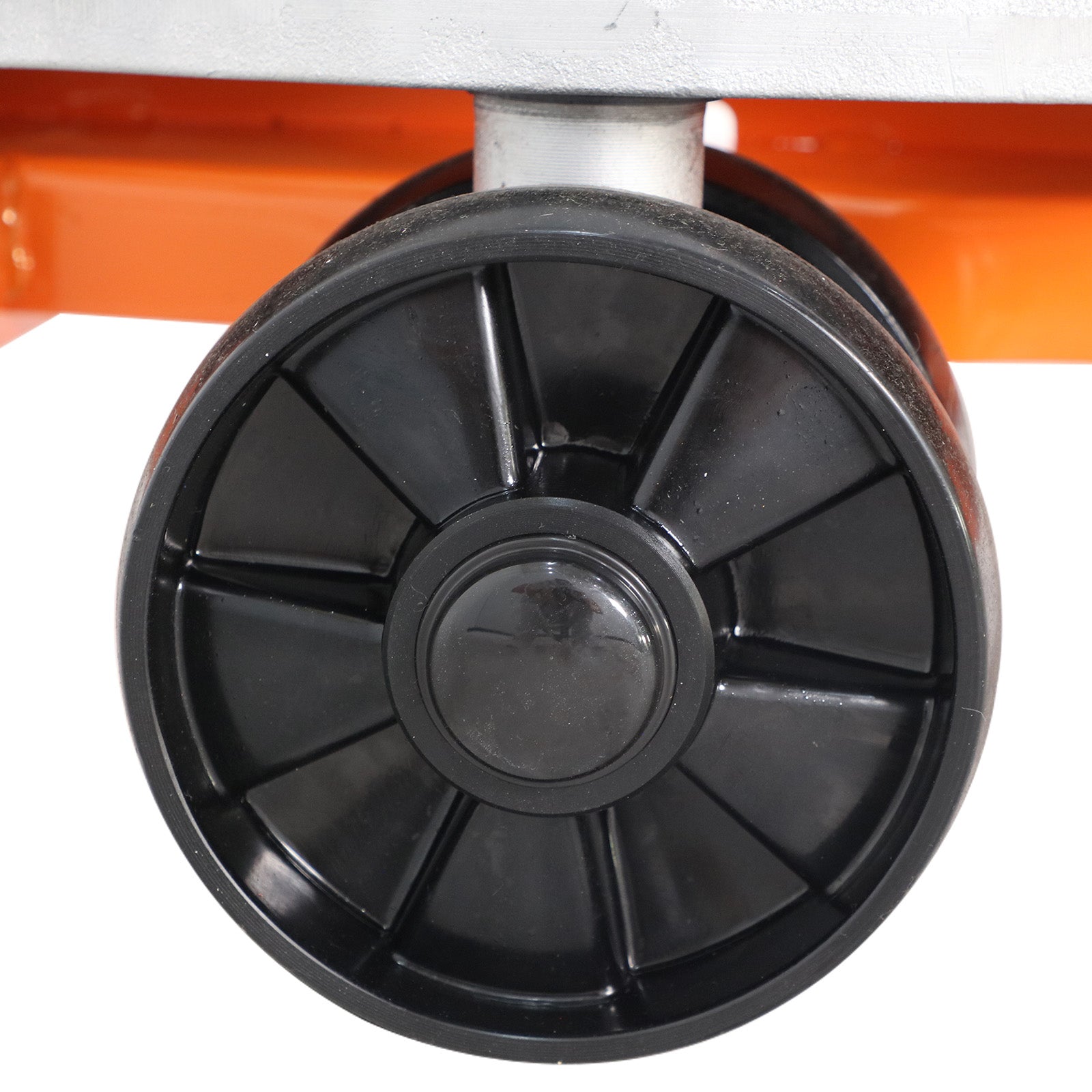

Wheel Size Drive Wheel: 7.1 × 2.0 in.
Load Wheel: 2.9 × 3.7 in.
Ground Clearance 0.9 in.
Service Weight 129 lb
Steering Angle 190°
Pallet Compatibility All Pallet Types
Handle Folding Non-Folding Handle
Warranty
Warranty Coverage 1-Year Limited Warranty
User Documentation

Download T-1006 Operation Manual

👉Installation and Operation Video

Manual Pallet Jack FAQ

What types of pallets can this manual pallet jack handle?

This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
What is the maximum load capacity?

The rated capacity is 5500 lbs. Always operate within the recommended load limit for safety.
What fork sizes are available?

Fork dimensions vary by model, including common sizes such as 48" x 27" and 48" x 21". Please check the product specifications before ordering.
Does this manual pallet jack require maintenance?

Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
What’s in the Box

Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?

Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?

It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
