Model: A-1008

Heavy Duty Manual Pallet Jack | 7700 lbs Capacity | 27" x 48" Standard Fork, A-1008

$560.00 $469.00 Save $91.00
Key Features
  • 7,700 lb capacity with 48" x 27" forks.
  • Heavy Duty configuration.
  • Lift height up to 7.5".
  • 3.0" lowered fork height.
View More Details
Shipping Information:
• Bulk Order Advantage: Ordering multiple units can substantially reduce freight costs per machine.
• Order Fulfillment: Most orders are processed and dispatched within 2–3 business days depending on inventory allocation and destination.
In stock
✓ For details on returns and refunds, please see our Return Policy .

Product details

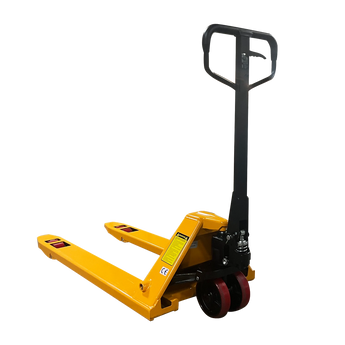

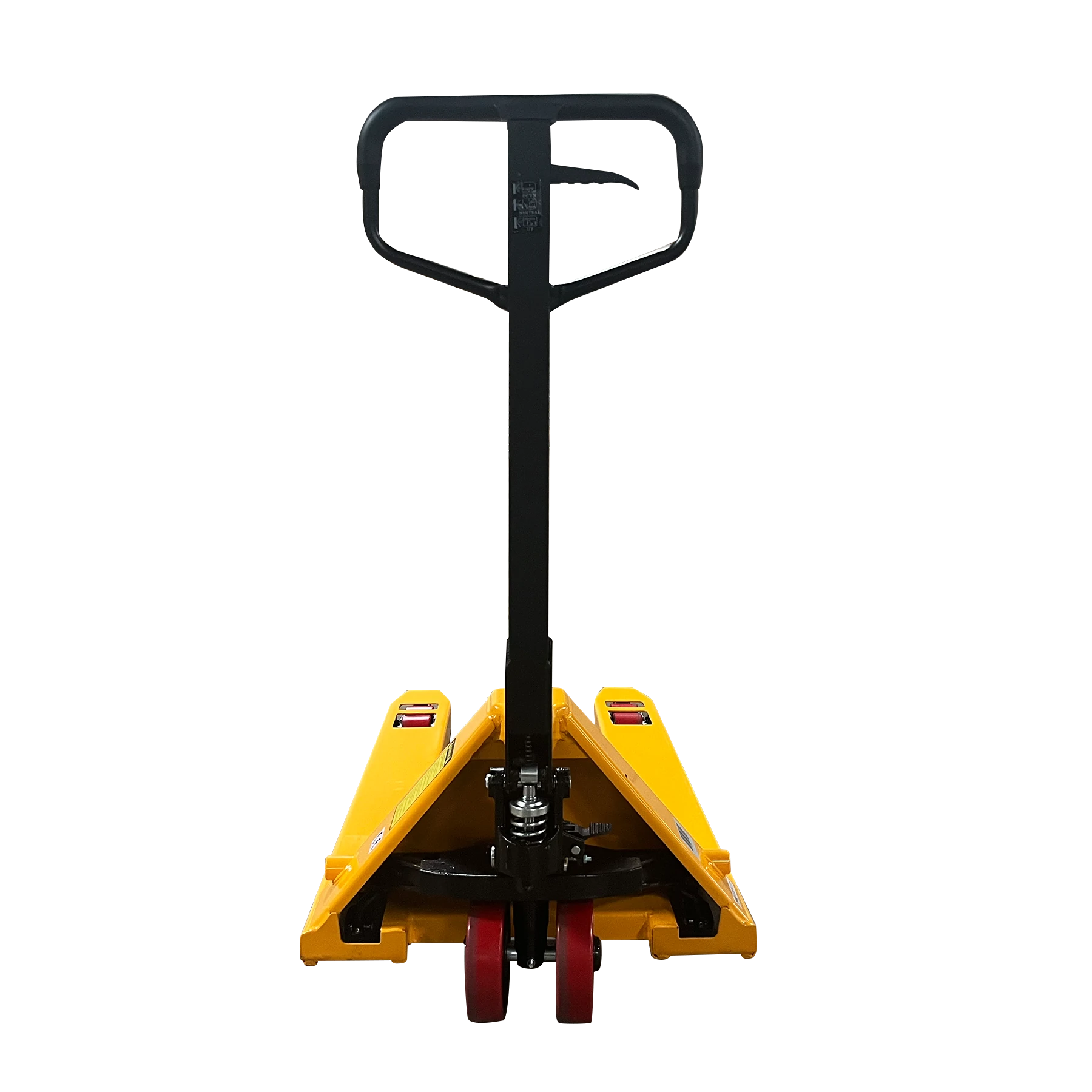

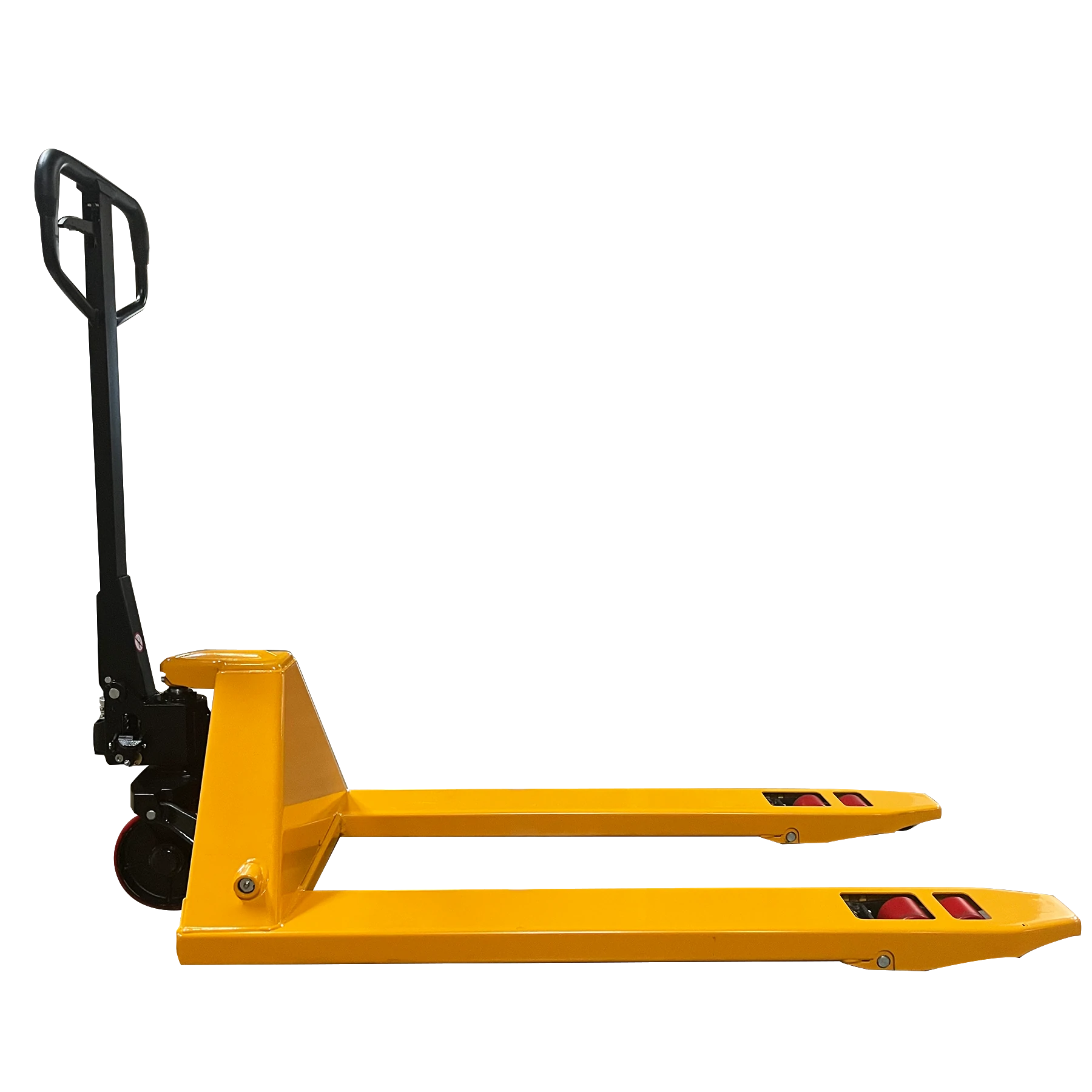

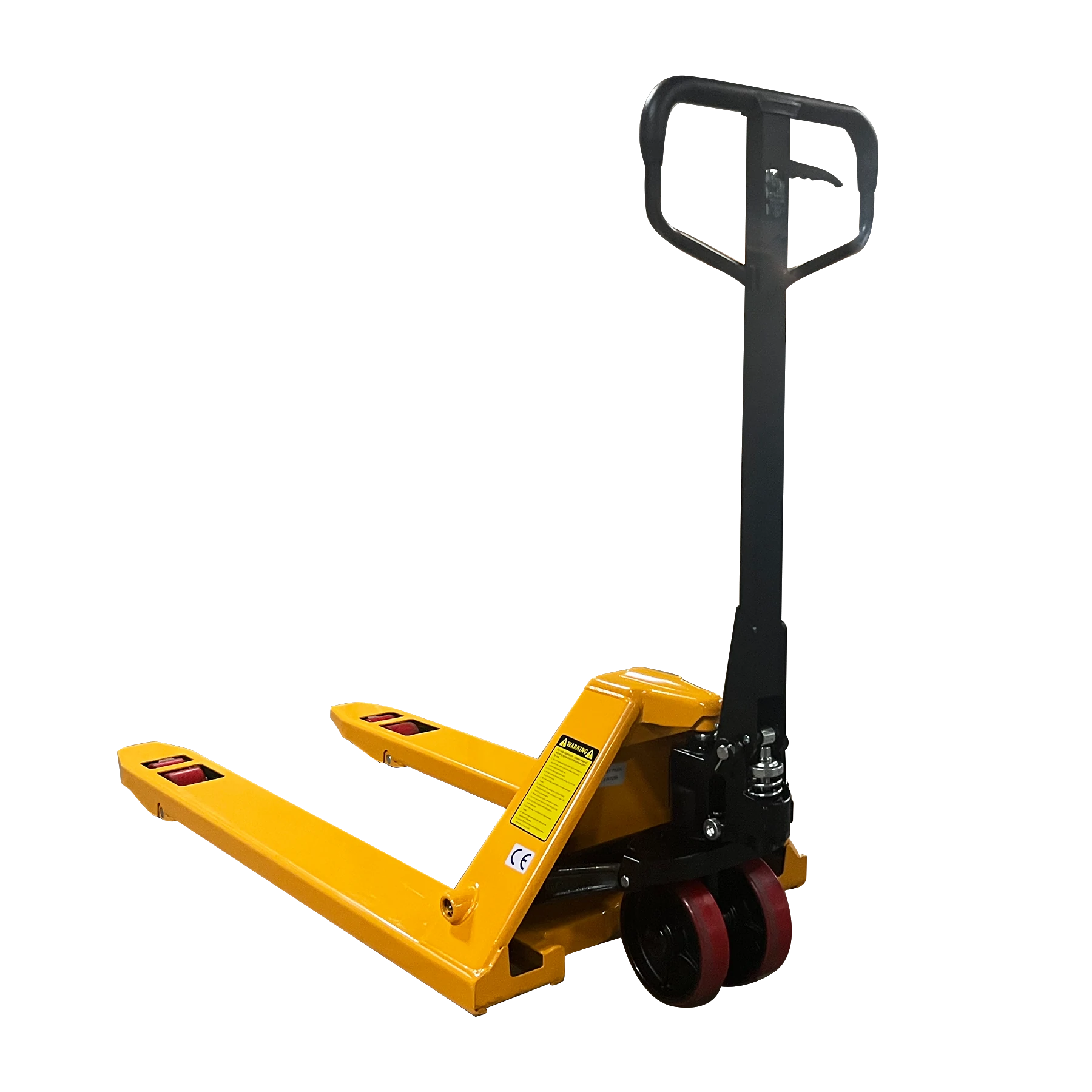

The TORY CARRIER A-1008 Manual Pallet Jack is designed for heavy-duty pallet transport in warehouses, manufacturing facilities, distribution centers, and other industrial material handling environments. Its 7,700 lb load capacity and 48 × 27 in forks provide dependable support for moving compatible palletized loads.

A heavy-duty hydraulic system provides controlled lifting from 3 to 7.5 in, while the reinforced steel frame supports stable performance under demanding working conditions. The 52.5 in turning radius, 210-degree steering range, and polyurethane wheels help operators maneuver and position loads in appropriately sized work areas.

Key Features

  • 7,700 lb Load Capacity: Supports heavy pallet transport in demanding warehouse and industrial applications.
  • 48 × 27 in Forks: Provide stable support for compatible palletized loads.
  • Heavy-Duty Hydraulic System: Provides dependable lifting and controlled fork lowering without external power.
  • 3 to 7.5 in Fork Height: Delivers 4.5 in of lifting travel for routine pallet transport and positioning.
  • Responsive Maneuverability: A 52.5 in turning radius and 210-degree steering angle support precise positioning.
  • Reinforced Steel Construction: The heavy-duty frame and fork structure support frequent use under substantial loads.
  • Polyurethane Wheels: The six-wheel configuration supports smooth travel on firm, level indoor surfaces.
  • Non-Folding Control Handle: Provides stable steering and convenient hydraulic operation during daily use.
  • Powder-Coated Finish: The protective coating helps resist corrosion, scratches, and everyday wear.

Product Specifications

Model A-1008
Load Capacity 7,700 lb
Overall Dimensions (L × W × H) 63.1 × 27 × 47.8 in
Fork Dimensions (L × W × T) 48 × 27 × 2.1 in
Individual Fork Width 6.3 in
Inside Fork Width 14.4 in
Overall Fork Width 27 in
Lowered Fork Height 3 in
Maximum Fork Height 7.5 in
Lifting Travel 4.5 in
Turning Radius 52.5 in
Steering Angle 210°
Minimum Aisle Width 70.9 in
Ground Clearance 0.9 in
Wheel Material Polyurethane (PU)
Steer Wheel Size 7.1 × 2 in
Load Wheel Size 2.9 × 2.8 in
Wheel Configuration 6 Wheels
Handle Type Non-Folding Handle
Service Weight 155 lb
Warranty 1-Year Limited Warranty

Pallet Compatibility: Confirm the pallet opening, fork clearance, and load dimensions before use. Operate only on firm, level surfaces and do not exceed the rated 7,700 lb capacity.

Manual Pallet Jack FAQ

What types of pallets can this manual pallet jack handle?

This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
Does this manual pallet jack require maintenance?

Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
What’s in the Box

Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?

Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?

It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
