Model: T-1033

Mini Manual Pallet Jack | 2200 lb Capacity | 31.5" x 15" Foldable Forks | Compact Size for Narrow Aisles, T-1033

$410.00 $359.00 Save $51.00
Key Features
  • 2,200 lb capacity with 31.5" x 15" forks.
  • Compact & Foldable configuration.
  • Lift height up to 5.9".
  • 2.4" lowered fork height.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
In stock
✓ For details on returns and refunds, please see our Return Policy .

Product details

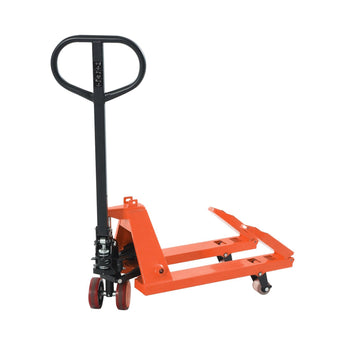

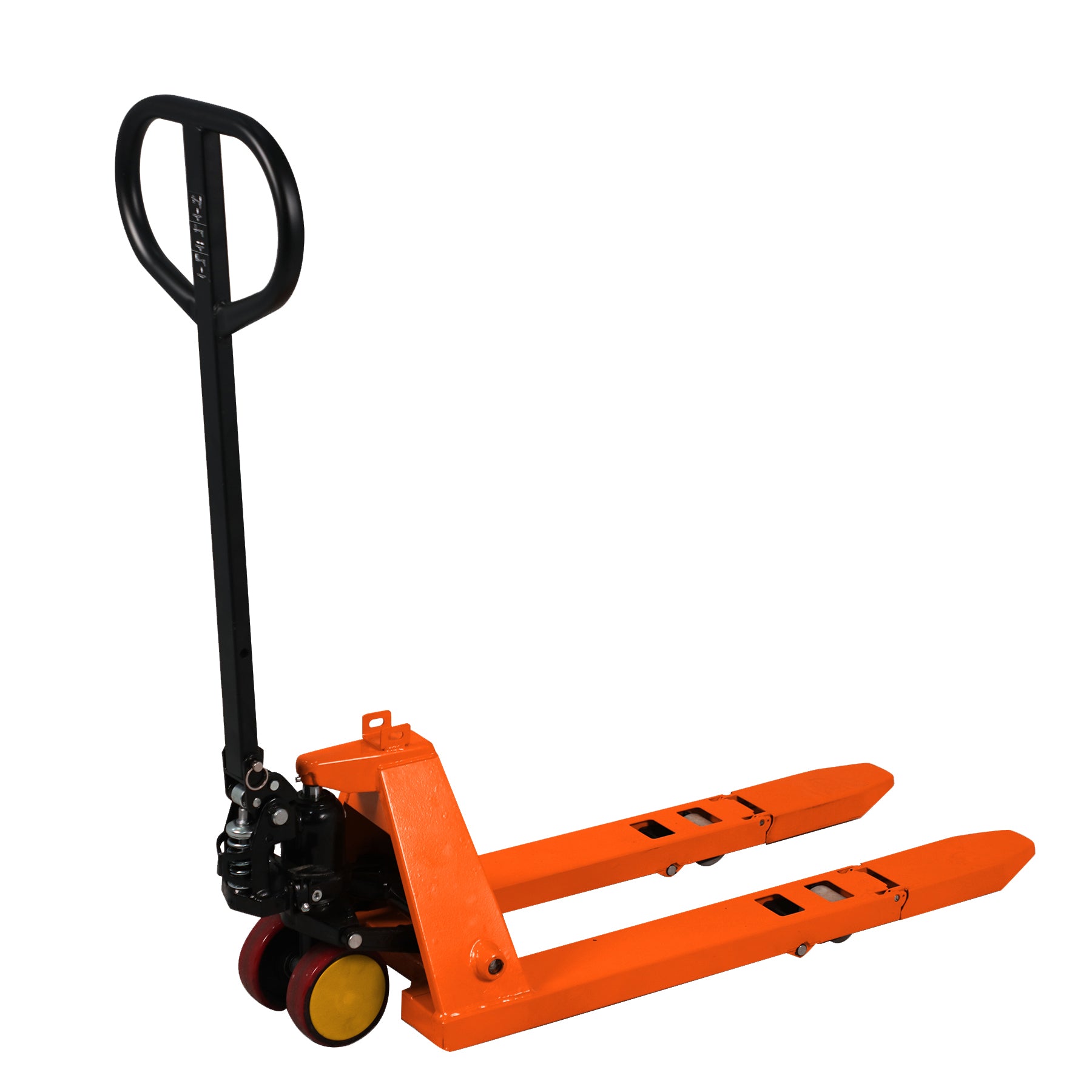

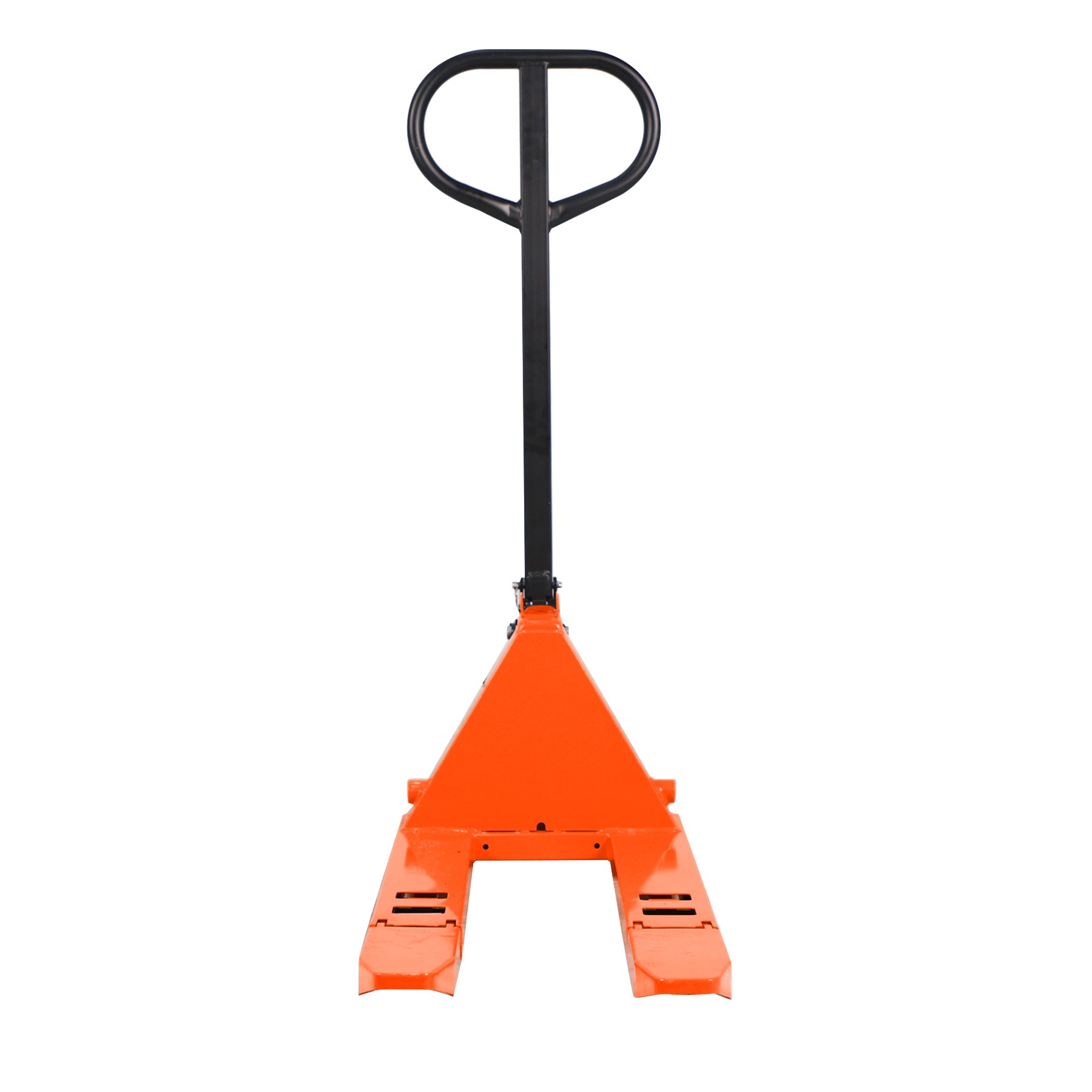

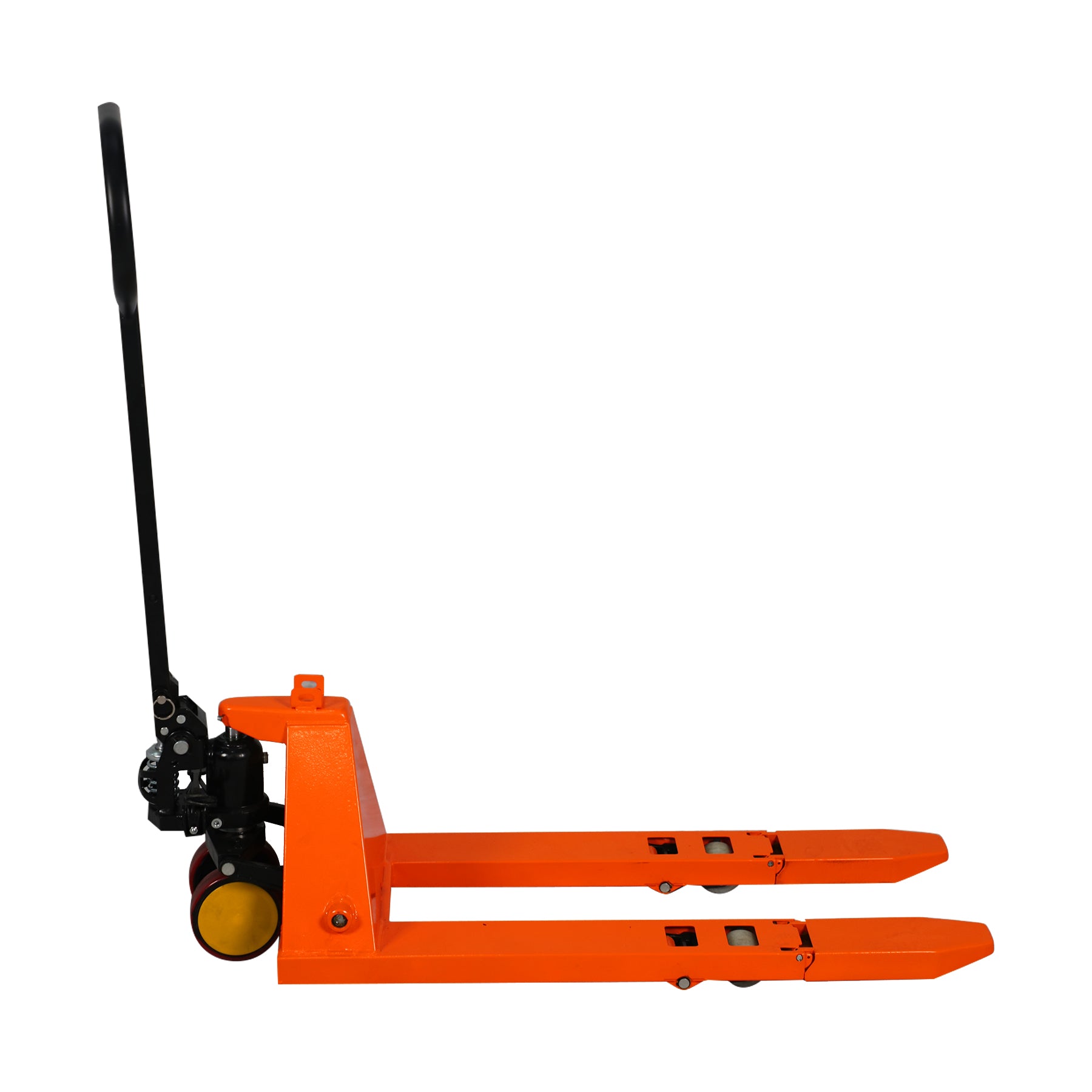

The TORY CARRIER Folding Manual Pallet Jack is a compact material handling solution designed for applications where transportation and storage space are important. With a 2,200 lb load capacity and a folding handle design, it is suitable for delivery operations, retail backrooms, small warehouses, and other space-conscious work environments.

Compact 31.5 × 15 in forks are designed for compatible small pallets and loads. A high-strength steel frame provides structural support, while the locking handle mechanism, lubricated pivot points, bearing bushings, and durable wheels support convenient handling and routine operation.

Key Features

  • 2,200 lb Load Capacity: Supports compatible small palletized loads in delivery, retail, and warehouse applications.

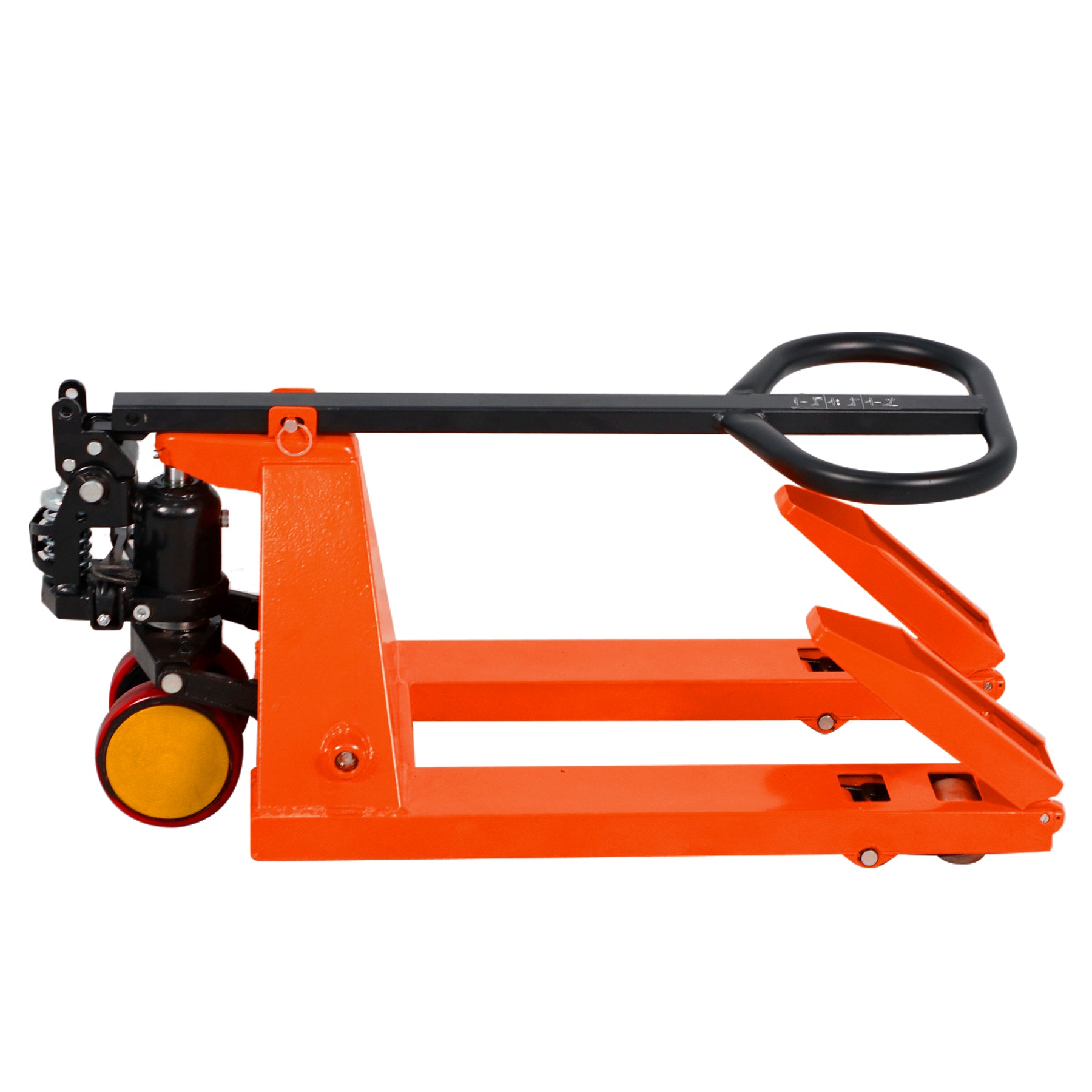

  • Folding Handle Design: Reduces the storage footprint and makes the pallet jack easier to transport between work locations.
  • 31.5 × 15 in Compact Forks: Designed for compatible small pallets and space-constrained material handling.
  • Secure Locking Mechanism: A locking pin connects the handle to the pallet jack and supports convenient folding.
  • High-Strength Steel Frame: Provides dependable load support while maintaining a compact overall design.
  • Manual Hydraulic Operation: Provides pallet lifting without batteries, charging, or external power.
  • Smooth Steering Components: Lubricated pivot points and bearing bushings support responsive maneuvering.
  • Service-Friendly Design: The straightforward mechanical and hydraulic structure simplifies routine inspection and maintenance.

Pallet Compatibility: The 31.5 × 15 in forks are intended for compatible small pallets and may not fit standard-size pallets. Confirm the pallet opening, fork spacing, load dimensions, and folded storage dimensions before purchase.

Model T-1033
Load Capacity 2,200 lb
Overall Dimensions (L × W × H) 45 × 15 × 44.2 in
Folded Dimensions (L × W × H) 35 × 15 × 14.5 in
Fork Dimensions (L × W) 31.5 × 15 in
Individual Fork Width 7.2 in
Lowered Fork Height 2.4 in
Maximum Fork Height 5.9 in
Lifting Travel 3.5 in
Turning Radius 31.2 in
Ground Clearance 0.8 in
Wheel Material Polyurethane (PU)
Steering Wheel Size 5 × 1.5 in
Fork Wheel Size 2.3 × 2.1 in
Fork Wheel Configuration Single
Folding Function Foldable Handle
Pallet Compatibility Compatible Small Pallets
Service Weight 83 lb
Warranty 1-Year Limited Warranty

User Documentation

Download Product Manual (PDF)

👉Installation and Operation Video

Manual Pallet Jack FAQ

What types of pallets can this manual pallet jack handle?

This pallet jack is compatible with most standard pallets used in warehouses, factories, retail stores, and distribution centers.
Does this manual pallet jack require maintenance?

Regular inspection of wheels, hydraulic components, and moving parts helps maintain smooth operation and extend service life.
How long does shipping take?

Standard orders are processed within 1-3 business days, with delivery times varying based on your location. Expedited shipping options are available upon request.
What’s in the Box

Every order includes:
✅ Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual

All items are securely packaged to ensure safe delivery.
Do I need to assemble the product?

Most of our products require minimal assembly before use. Assembly instructions are included with the product, and many models also have step-by-step installation videos available. If you need any assistance, our support team is happy to help.
Are replacement parts available?

Yes. Replacement wheels, hydraulic components, and other parts are available to support long-term use.
Can it be used outdoors?

It can be used on smooth outdoor surfaces, but it is mainly designed for indoor warehouse applications.
