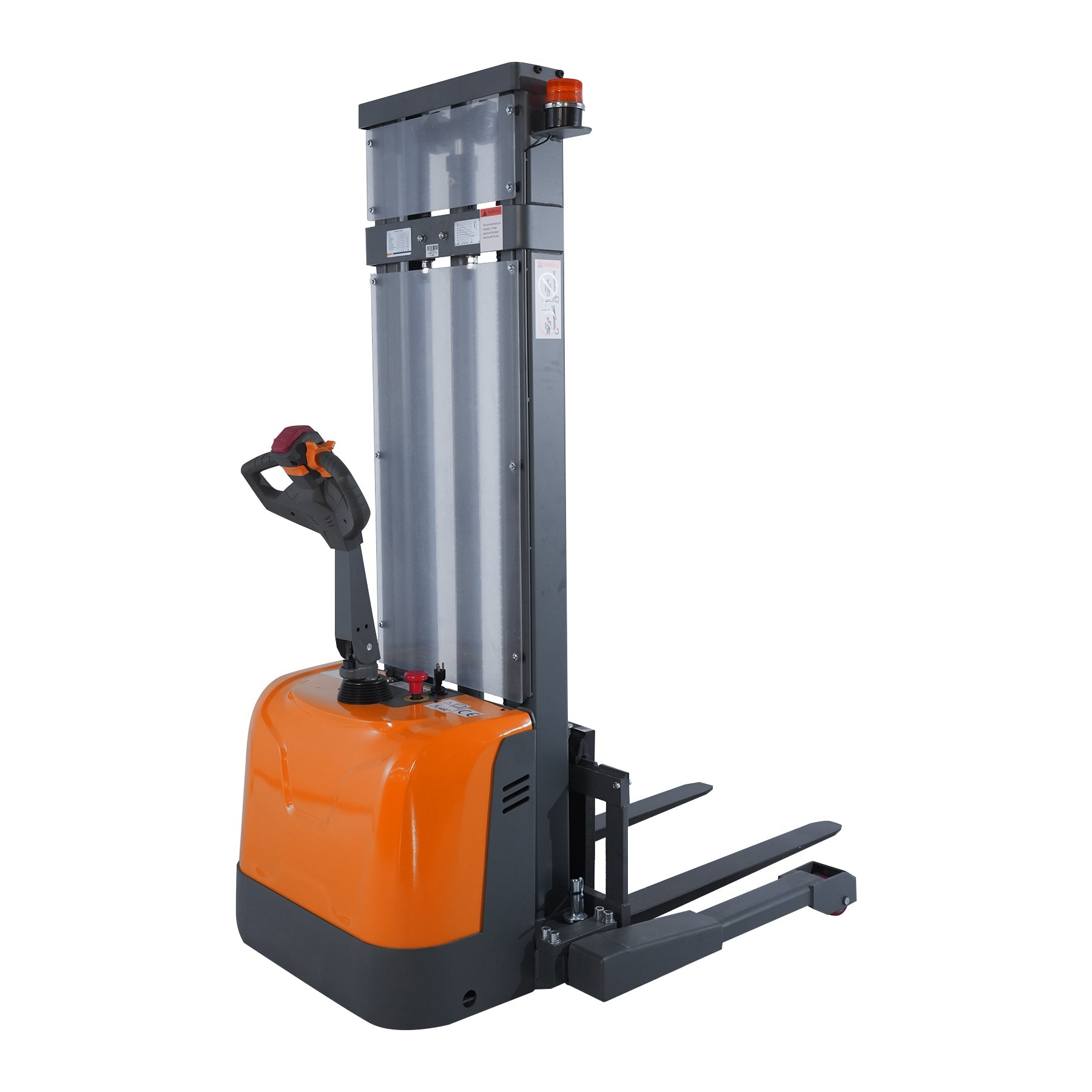

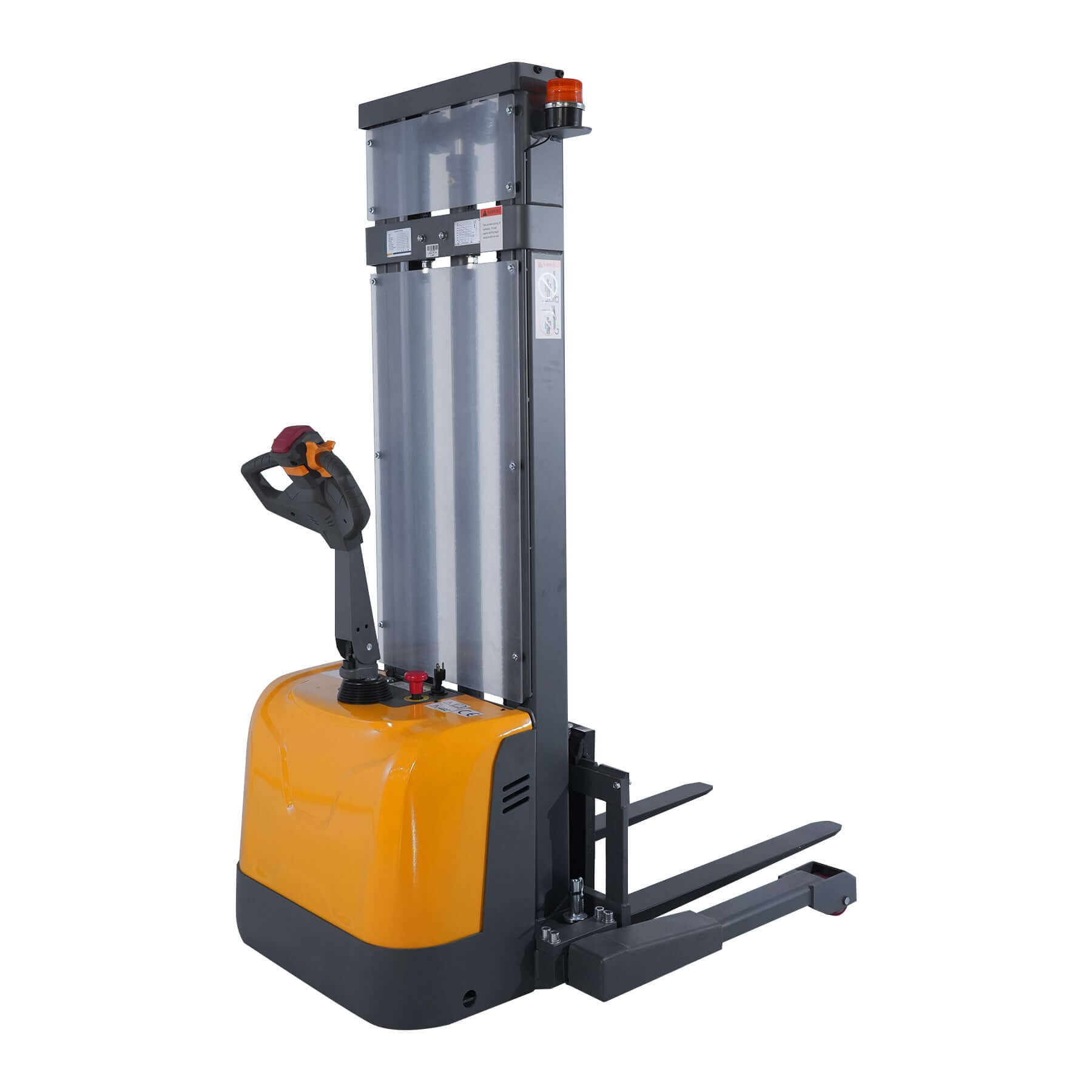

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs.130" lifting

$5,799.00 $5,250.00 Save $549.00
T-3049
89 in stock, ready to ship

Pickup available at GA

Usually ready in 24 hours

⛟ Shipping: Usually ships within 2-3 business days.

Product details

The TORY CARRIER Electric Stacker is designed to handle heavy loads with ease and efficiency, featuring an adjustable straddle leg width of 46.5 - 62.3 inches and a 3300 lbs capacity. Powered by a 650-watt drive motor and a 2200-watt lift motor, it offers impressive performance with a max lifting height of 130 inches. Ideal for flat ground use, it features a Plexiglass protection shield with built-in explosion-proof valve for enhanced safety. With additional features like a warning light, buzzer, and battery level display, this stacker ensures secure, reliable operation for a range of material handling tasks.

  • Adjustable Straddle Leg Width: Offers flexibility with a range of 46.5 - 62.3 inches for different load sizes.
  • Powerful Motors: 650-watt drive motor and 2200-watt lift motor provide smooth, efficient performance.
  • Max Lifting Height: Lifts up to 130 inches for handling high shelves and heavy loads.
  • Fork Lowered Height: Forks lower to 2.8 inches, ideal for accessing low-clearance pallets.
  • Compact Turning Radius: 52.9-inch turning radius ensures maneuverability in tight spaces.
  • Ideal for Narrow Aisles: Works efficiently with an aisle width of 88.3 inches, perfect for confined environments.
  • Built-in Safety Features: Plexiglass protection and explosion-proof valve provide added safety.
  • Warning Light & Buzzer: Alerts operators of any operational issues or hazards.
  • Display: Shows working hours, battery level, and low-voltage alerts for easy monitoring.
  • Maintenance-Free Battery: Equipped with a GEL battery, offering hassle-free maintenance.
  • Customizable Settings: After-sales engineers can adjust driving speed and acceleration using a compatible Curtis handheld unit to meet specific needs.

Usage and Safety Guidelines

  • Not explosion proof.
  • This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the forklift once a month even it's not in use.

Load Capacity

3300lbs
Load Center Distance

23.6 inch

Height, Mast Lowered

90.4 inch

Max. Lifting Height

130 inch

Height, Mast Extended

157 inch

Fork Lowered Height

2.8 inch

Overall Length

70.3 inch

Overall Width

46.5-62.3 inch

Width Overall Forks

7.8-31.5 inch

Fork Dimension（thickness*width*length）

1.3*3.9*42 inch

Distance Between Forks (inside)

0.1-23.6 inch

Fork Lowered Height

2.8 inch

Turning Radius

52.9 inch

Travel Speed, Laden/Unladen

2.8/3.1 mph

Lift Speed, Laden/Unladen

3.5/5.9 inch/s

Lowering Speed, Laden/Unladen

5.9/4.3 inch/s

Service Weight

1270 lbs

User Documentation

Product Manual

Tory Carrier Full Electric Walkie Stackers Installation and Operation

Warranty

1-Year Warranty (from delivery date):

  • First 30 Days:Free replacement parts, round-trip shipping, and remote technical support.
  • 30 Days to 1 Year:Free replacement parts and one-way shipping (customer covers return shipping costs).
  • After 1 Year:Free technical support only (customer covers all related costs, including shipping and parts).

Special Warranty Terms:

  • Spare Parts: 3-month warranty.
  • Batteries: 6-month warranty.
  • Used Machines: 3-month parts-only warranty (no labor or returns).
  • Exclusions: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.

Battery Maintenance:
To extend battery life and ensure proper function, charge the battery once a month when not in use.

Have Questions About Our Electric Stackers?

What is the difference between a full electric stacker and a Manual stacker?

A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
What type of pallets are compatible with full electric stackers?

Most full electric stackers are suitable for open-bottom pallets. If you use closed-bottom or block pallets, please confirm compatibility before purchasing.
How long does the battery last on a full charge?

Typically, the battery lasts 6–8 hours under normal use. Charging time is usually 6–8 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?

Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?

Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.
