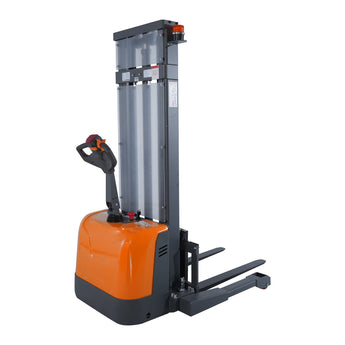

3300lbs Electric Straddle Stacker, 130" Lift, Adjustable Legs & Forks, T-3049

$5,999.00 $5,629.00 Save $370.00
Model: T-3049
61 in stock, ready to ship

⛟ Shipping: Usually ships within 2 business days.

Shipping costs will be calculated based on your ZIP code at checkout.

Product details

The TORY CARRIER Electric Stacker is designed for daily warehouse lifting, stacking, and pallet handling. With a 3,300 lb load capacity and a max lift height up to 130 in, it is built for handling heavy loads, reaching higher racking levels, and improving workflow in busy warehouse environments.

Adjustable straddle legs provide flexible pallet compatibility, while the compact 53 in turning radius helps operators maneuver through narrow aisles with confidence. Powered by dual maintenance-free GEL batteries, a 650W drive motor, and a 2200W lift motor, this stacker delivers steady travel, smooth lifting, and reliable performance throughout the workday.

For safer operation, it includes a protective mast shield, warning light, audible buzzer, battery-level display, low-voltage alert, and explosion-proof valve. It is ideal for warehouses, distribution centers, stockrooms, and small to mid-sized operations that need dependable lifting equipment for higher stacking applications.

Features:

  • Adjustable Straddle Leg Width: Offers flexibility with a range of 45.9 - 61.6 inches for different load sizes.
  • Powerful Motors: 650-watt drive motor and 2200-watt lift motor provide smooth, efficient performance.
  • Max Lifting Height: Lifts up to 130 inches for handling high shelves and heavy loads.
  • Fork Lowered Height: Forks lower to 2.8 inches, ideal for accessing low-clearance pallets.
  • Compact Turning Radius: 53-inch turning radius ensures maneuverability in tight spaces.
  • Ideal for Narrow Aisles: Works efficiently with an aisle width of 87.8 inches, perfect for confined environments.
  • Built-in Safety Features: Plexiglass protection and explosion-proof valve provide added safety.
  • Warning Light & Buzzer: Alerts operators of any operational issues or hazards.
  • Display: Shows working hours, battery level, and low-voltage alerts for easy monitoring.
  • Maintenance-Free Battery: Equipped with a GEL battery, offering hassle-free maintenance.
  • Customizable Settings: After-sales engineers can adjust driving speed and acceleration using a compatible Curtis handheld unit to meet specific needs.
Specification Value
Load Capacity 3300 lbs
Load Center Distance 23.6 inch
Height, Mast Lowered 90.4 inch
Max. Lifting Height 130 inch
Height, Mast Extended 157.3 inch
Fork Lowered Height 2.8 inch
Overall Length 68.9 inch
Overall Width 45.9–61.6 inch
Width Overall Forks 7.9–31.5 inch
Fork Dimensions (thickness × width × length) 1.4 × 3.9 × 42 inch
Distance Between Forks (inside) 0.1–23.6 inch
Turning Radius 53 inch
Travel Speed (Laden / Unladen) 2.8 / 3.1 mph
Lift Speed (Laden / Unladen) 3.5 / 5.9 inch/s
Lowering Speed (Laden / Unladen) 5.9 / 4.3 inch/s
Battery 24V/100AH
Charger 24V/10A built-in
Service Weight 1450 lbs

Warranty

 Warranty 1-Year Limited Warranty

User Documentation

Product Manual (PDF)

Tory Carrier Full Electric Walkie Stackers Installation and Operation

Certifications & Compliance

Designed with Compliance in Mind

This model is UKCA certified to support safer and more reliable material handling operation. Certification coverage may vary by model, so please verify certification details before purchase.

UKCA

UKCA Certified

Indicates conformity with applicable UK product compliance requirements for this model.

Featuring a 24V/100Ah GEL battery, an ergonomic handle with a built-in safety switch, and a key emergency switch for added protection, this stacker ensures smooth, reliable operation. The integrated rocker arm design evenly distributes weight, ensuring durability and stability. With a high-lifting motor for easy stacking and a compact turning radius for maneuverability, it’s the perfect solution for efficient material handling in tight spaces. An external charger connector provides easy charging, while the built-in display offers real-time updates on battery levels and working hours for convenient monitoring.
Quality Guarantee
Lifetime Tech Support
Money Back Guarantee
Local Pick Up Available

Have Questions About Our Electric Stackers?

What is the difference between a full electric stacker and a Manual stacker?

A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
What type of pallets are compatible with full electric stackers?

This full electric stacker is designed to handle both open-bottom and closed-bottom (block) pallets and is compatible with most standard pallet types.
How long does the battery last on a full charge?

Typically, the battery lasts 6–8 hours under normal use. Charging time is usually 8–10 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?

Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?

Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.

Operation & Maintenance Notes

  • Designed for flat indoor warehouse environments for optimal performance.
  • Recommended operating temperature: -13°F to 104°F.
  • Fully charge the battery before first use to help maximize battery life.
  • Compatible with standard 110V–120V outlets.
  • To maintain battery health, recharge at least once per month during storage periods.
  • For secure transportation, straddle legs and forks are shipped separately and require assembly upon delivery.
